Features:
Compact and lightweight design,Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
1/4" Stainless Steel Studs, Surface Mount, protective stud insulator included

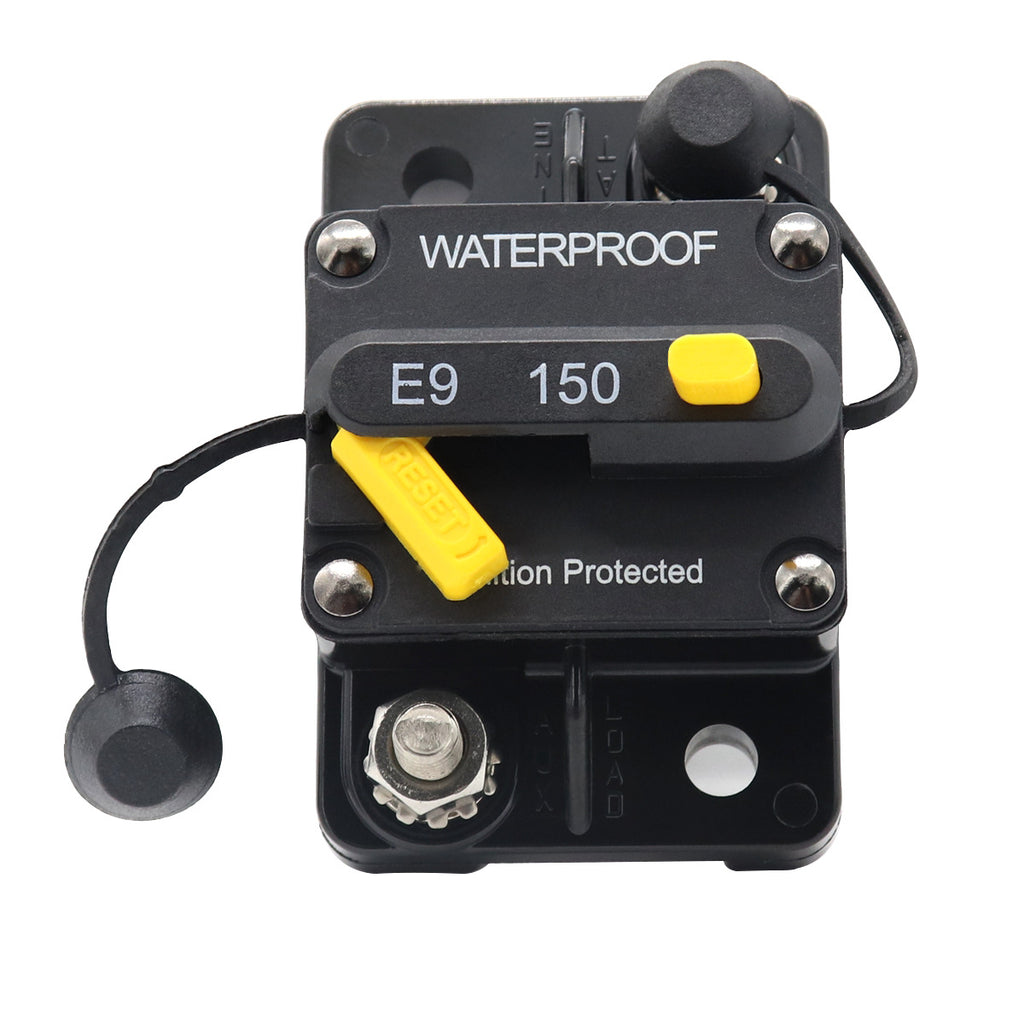

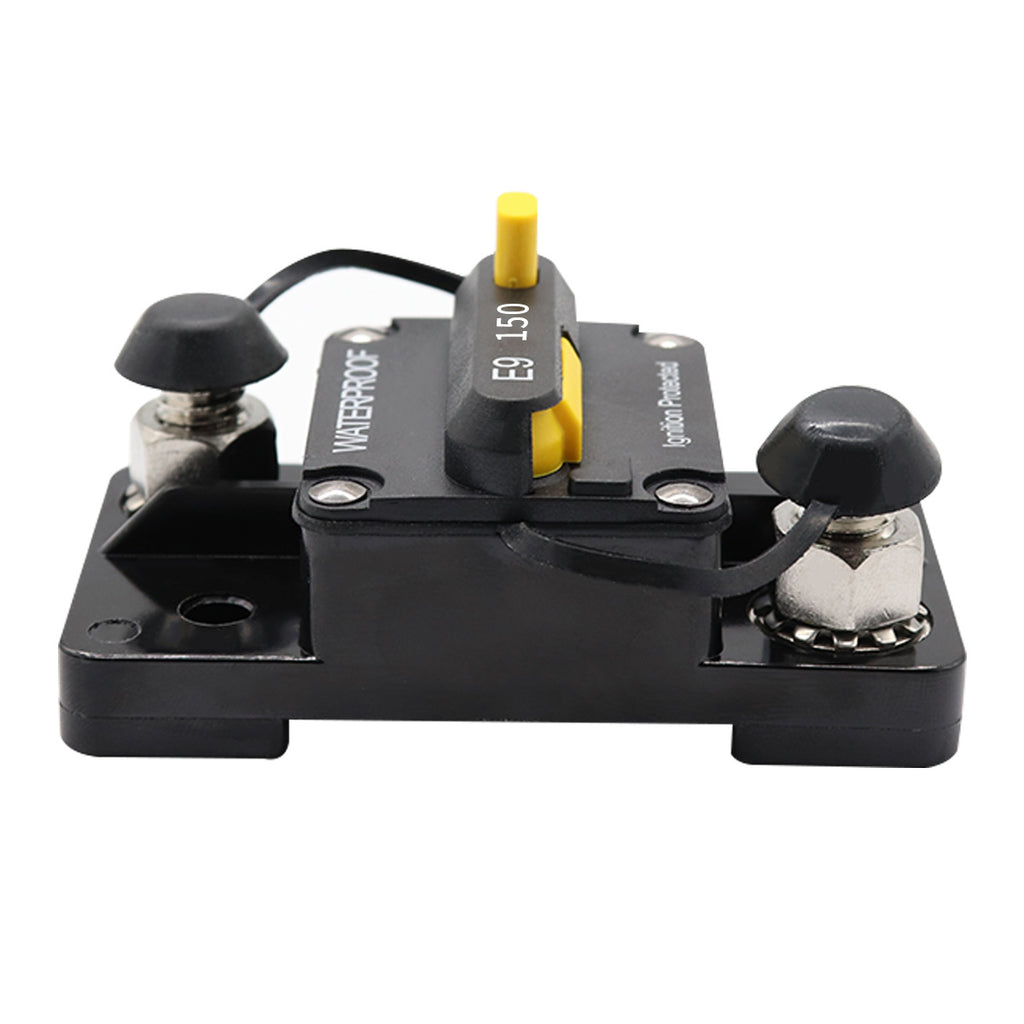

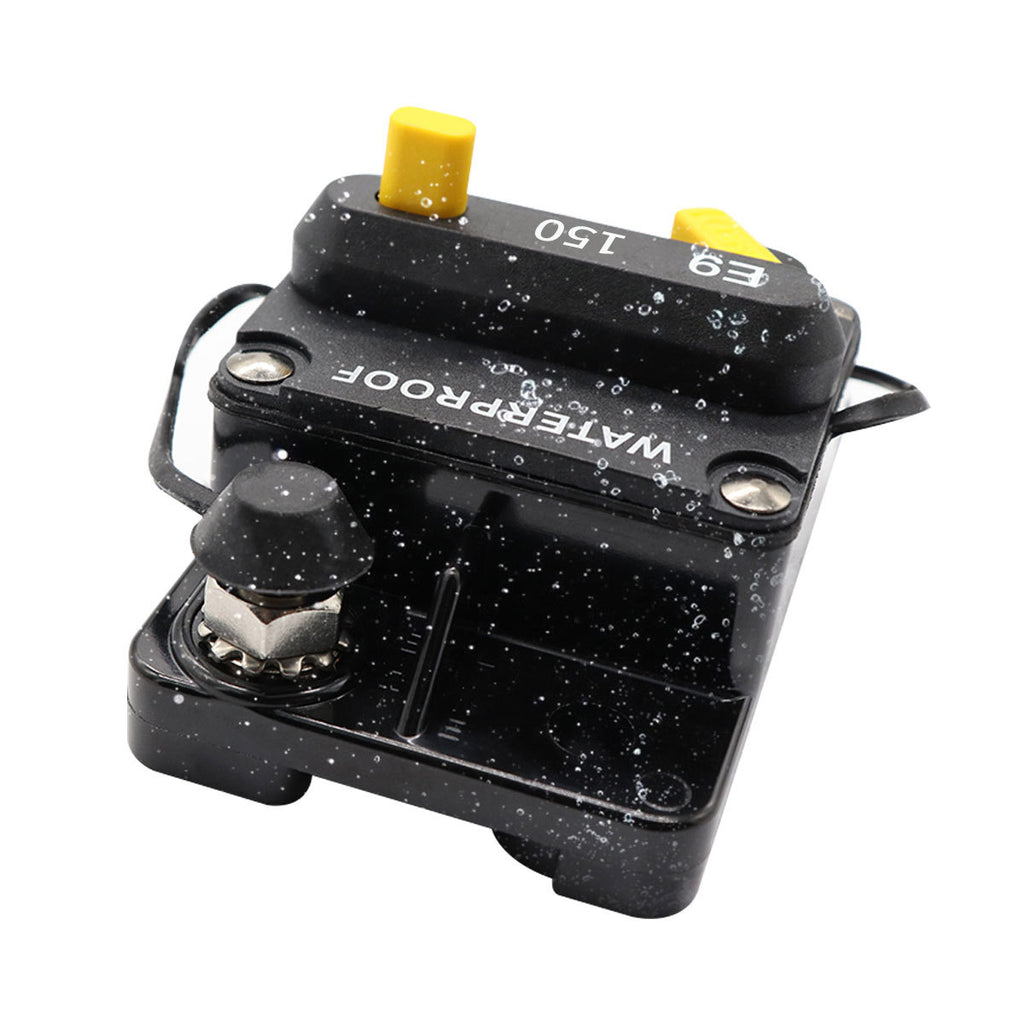

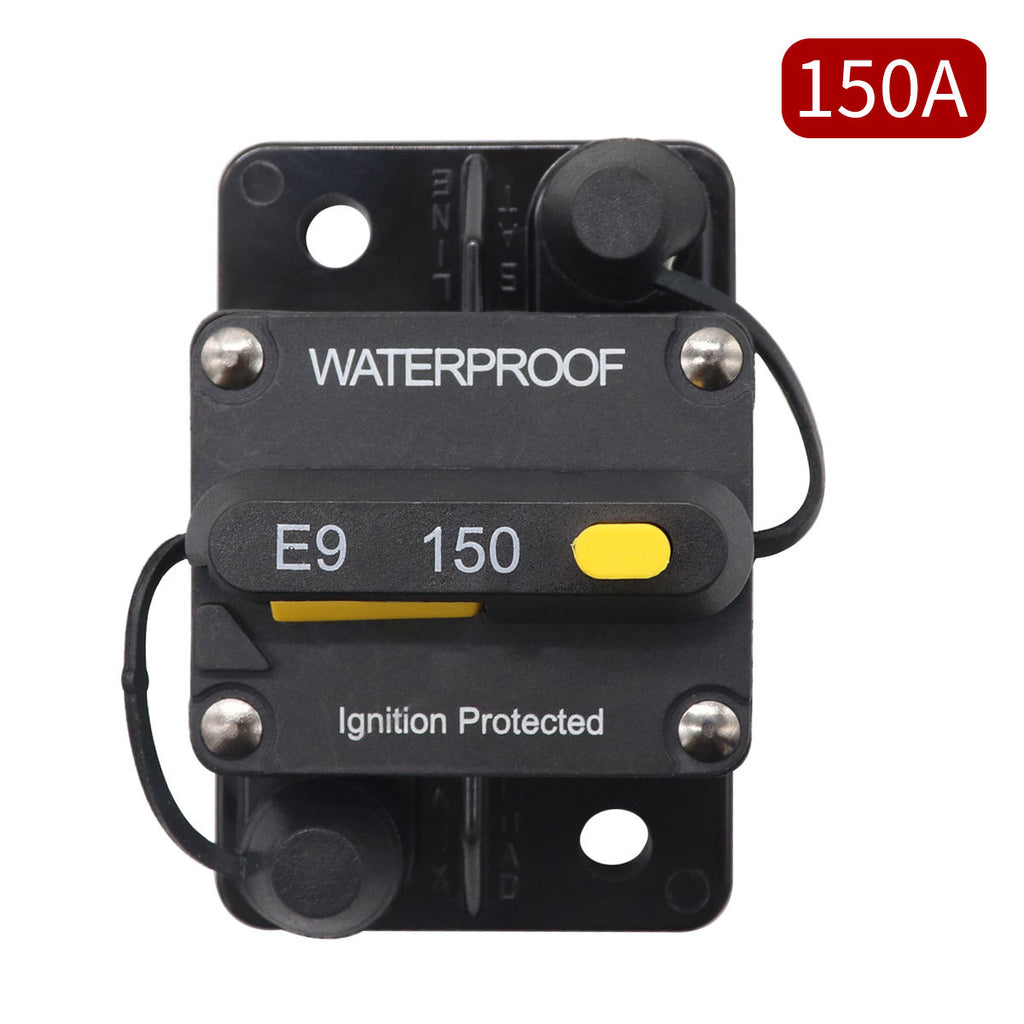

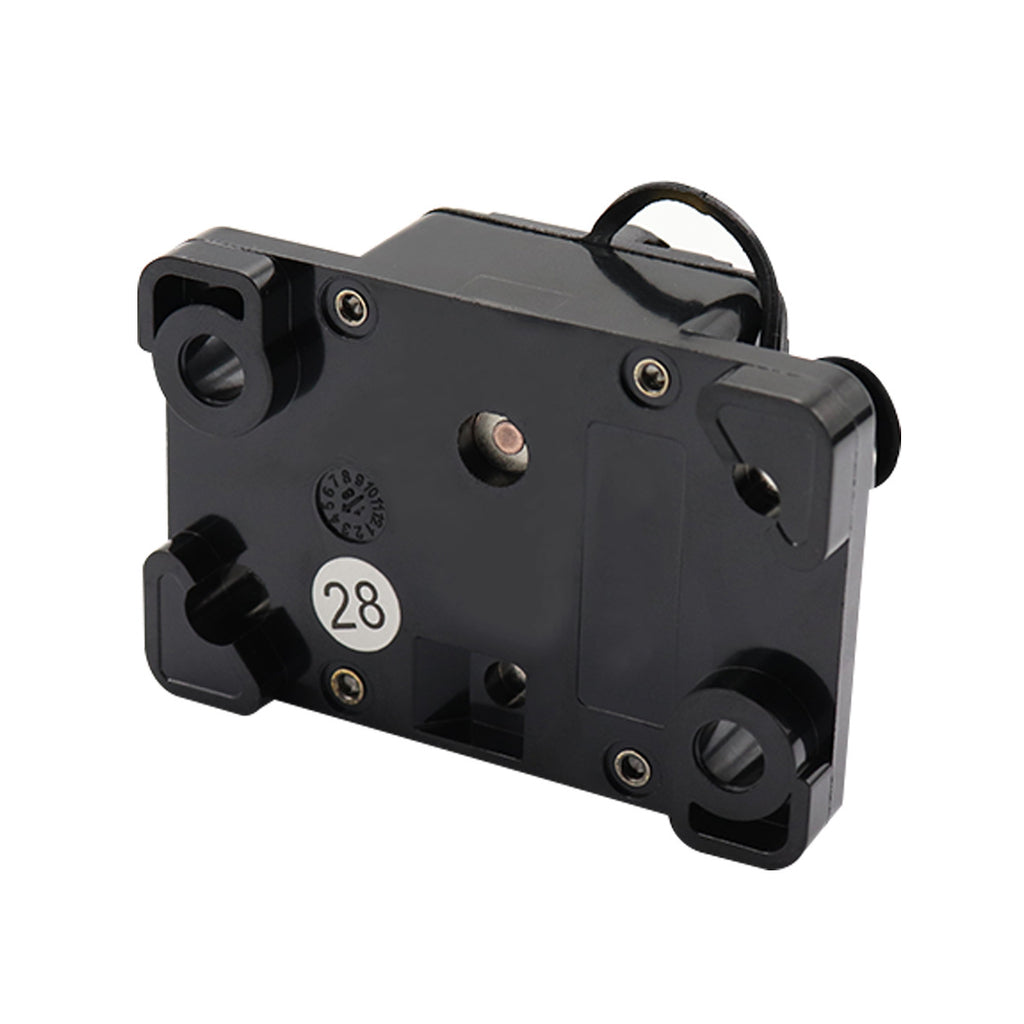

Hi-Amp 150A Circuit Breaker,Red manual reset button
Housing is thermalplastic UL rated 94V0
Manual Reset Circuit Breaker,can also be used as an on/off button switch for the battery
Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications.
Others include battery charger and DC audio system.
Voltage:up to 72Vdc
Rated Current:Consult Factory
MountingWide:Surface Mount
Reset Type:T3, Manual
Operating Temperature:-32 to 82 Celsius
Interrupt Capacity:
2,500A @ 14Vdc (25-200A)
1,500A @ 48Vdc (25-200A)
1,500A @ 14Vdc (225A-300A)
Regulatory Sepcification:SAE J1625; SAE J1171; UL 1500; ABYC E-11; CE; IP67
Termination:1/4" Stainless Steel Studs
Body:UL-rated 94V0 thermoset plastic
Storage Temperature:-34 to 149 Celsius
Packing list:
1 * 150 Amp Circuit Breaker with Manual Reset
