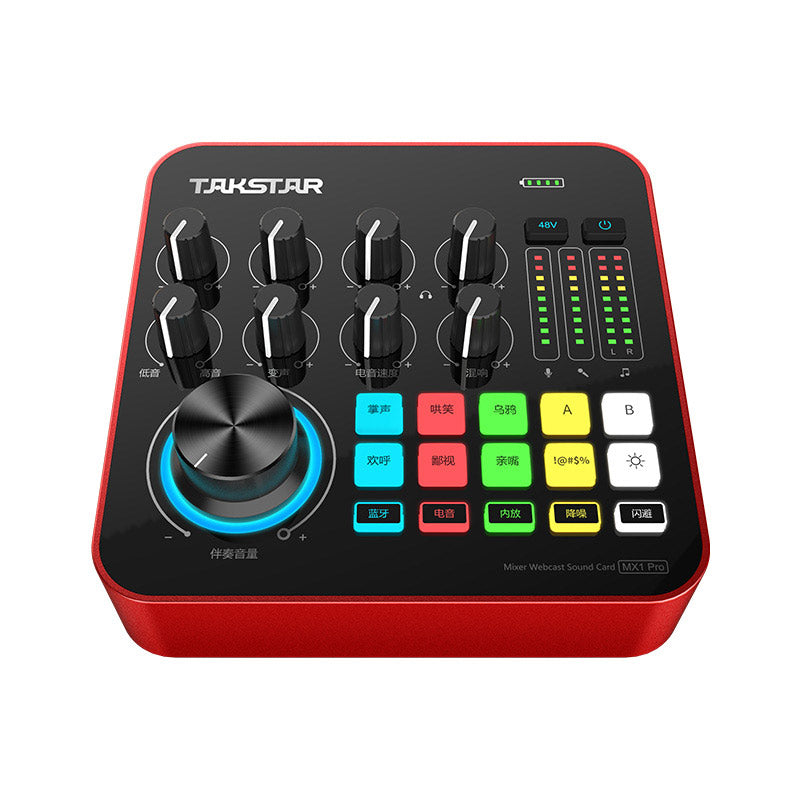

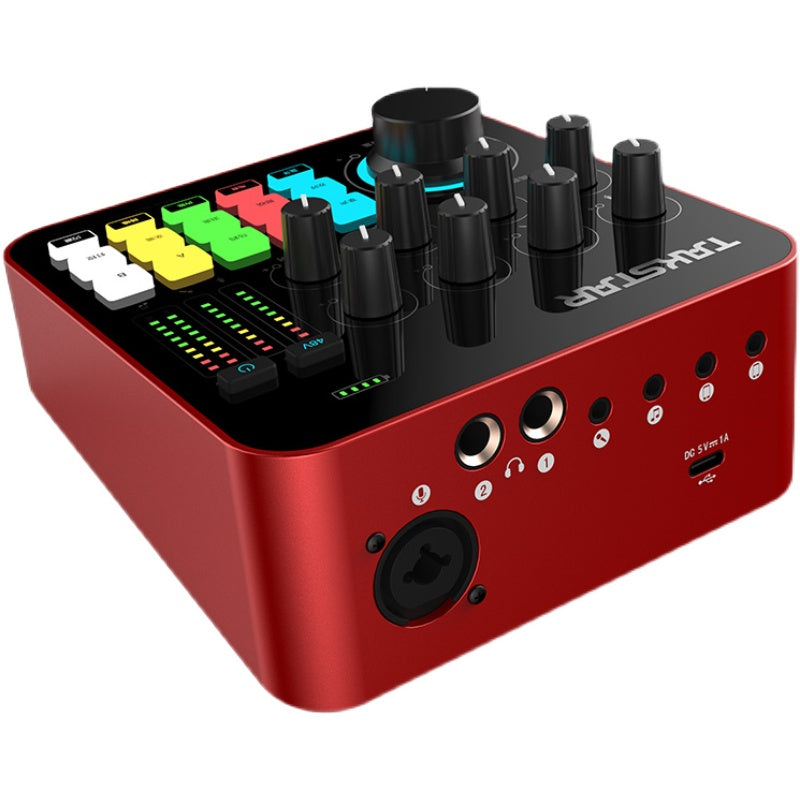

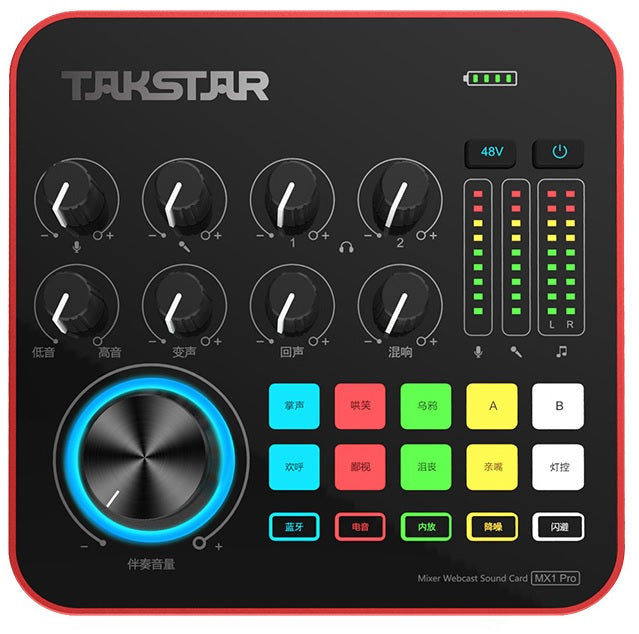

MX1 PRO Mixer Webcast Sound Card

• Tailored for entertainment webcast, influencer marketing webcast, Karaoke and recording, and suitable for smartphones, tablets and PC

• Built-in DSP digital chip, independent adjustment of REVERB, VOICE and RETUNE SPEED, easy operation

• Bluetooth playing function without the trouble of cable connection to play music more freely

• Adjustment knobs of treble and bass to meet the voice characteristics of different people

• OTG function for the MX1 Pro sound card to connect with a mobile phone via USB to realize high-definition, lossless recording and webcast

• Colorful and cool lighting control for you to switch the lighting effect through the lighting control button

• 8 sound effects for the host to use, 2 of which can be changed freely, thus making webcast more interesting

• Smart noise reduction to shield the microphone from picking up environmental noise, thus making singing noise-free

• One-button ducking function to automatically lower the background music when talking, suitable for webcast

• Supporting simultaneous webcast using two mobile phones and one computer, multi-platform webcast to attract fans

Sound Card Specification

• Data Transmission: USB2.0

• Sample Rate: 48KHz/16bit

• Frequency Response: 20Hz-20KHz (±3dB)

• THD: THD＜0.5% 1KHz

• Headphone Output Power: 167.7mW/32Ω

• Headphone S/N Ratio: 90dB (A-Weighted)

• Main Chip: DSP

• Reverb Mode: Reverb

• Autotune: 12 kinds of autotunes

• EQ Processing: EQ

• Net Weight: approx. 490g

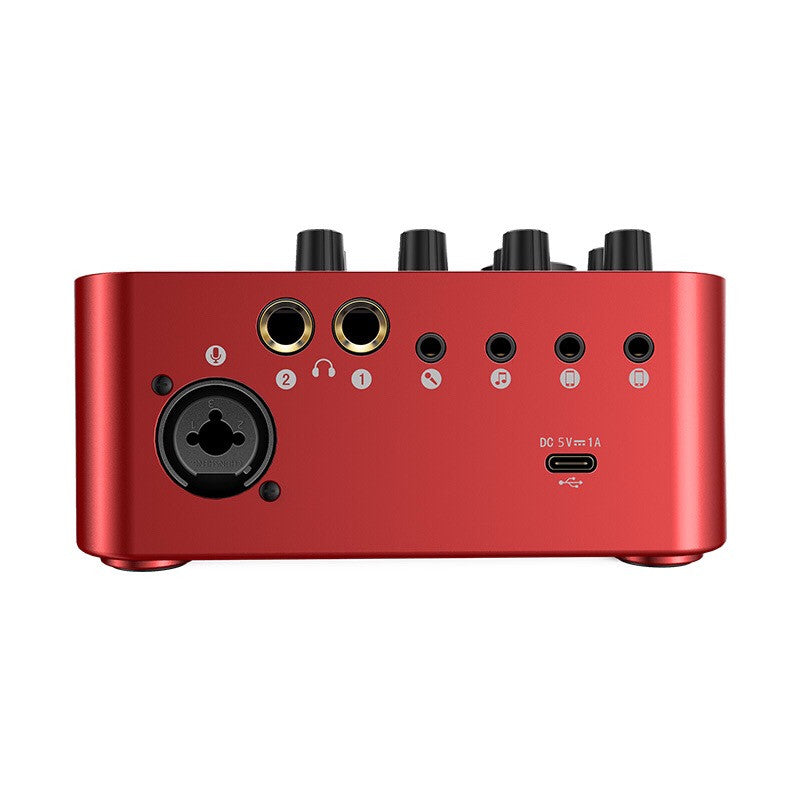

Connector Specification

• Audio Connector: Cell phone connector *2 (Φ3.5mm)

Headphone connector *2 (Φ6.35mm)

Accompaniment connector (Φ3.5mm)

Microphone connector (XLR+Φ6.35mm)

Microphone connector (Φ3.5mm)

• Data Connector: Type-C connector

Battery Specification

• Battery Type: Li-ion battery

• Charging: DC 5V 1.5A

• Battery Capacity: 4400mAh

• Charging Time：approx. 5h

• Operation Time: approx. 8h(when 48V is turned off)

• approx. 6h(when 48V is turned on)

Note: The data is tested by Takstar Laboratory, and Takstar has the final interpretation right!

Application

Cell phone/Tablet/PC: Karaoke, webcast, recording（Compatible with iOS, Android and windows）

• Suitable for a variety of entertainment webcast APPs and influencer marketing platforms

Product Content

• Sound card 1PC

• Audio cable (Φ3mm*1.2m) 2PCS

• Type-C data cable (Φ4mm*1.2m) 1PC

• 6.3mm to 3.5mm plug 2PCS

• User manual 1PC
