Product description

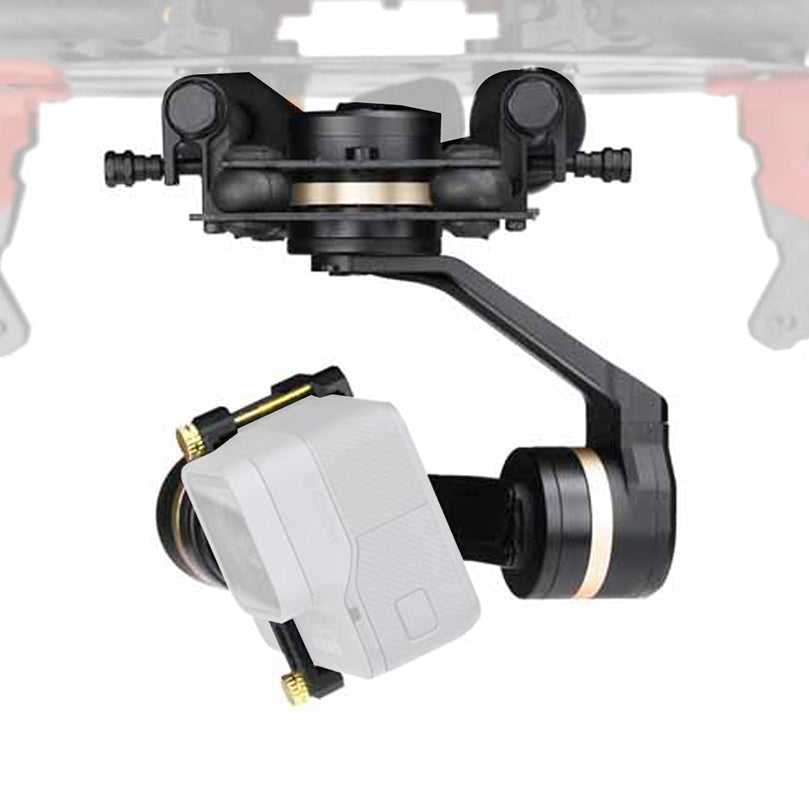

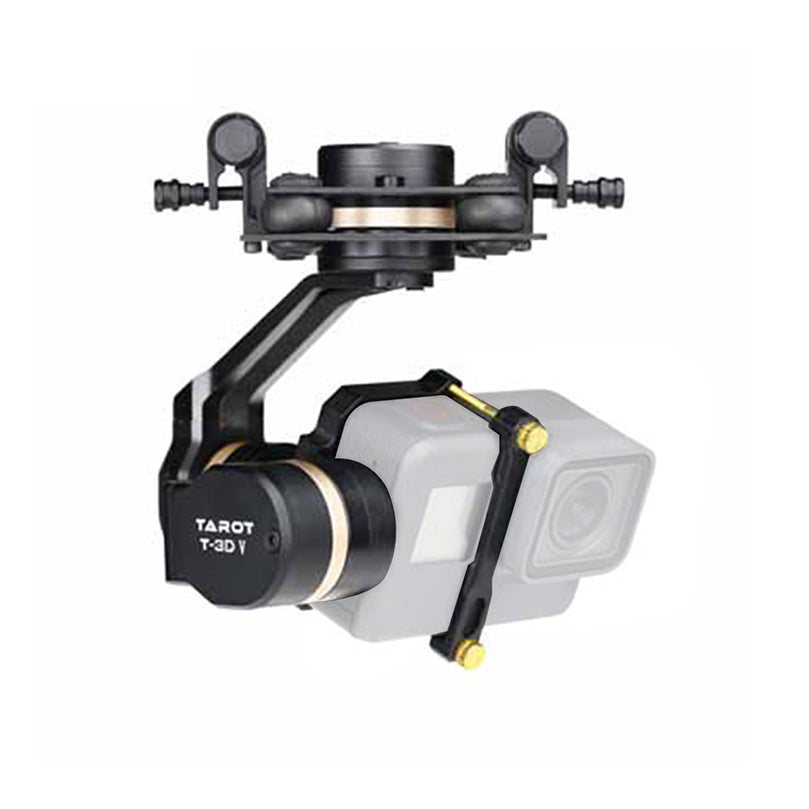

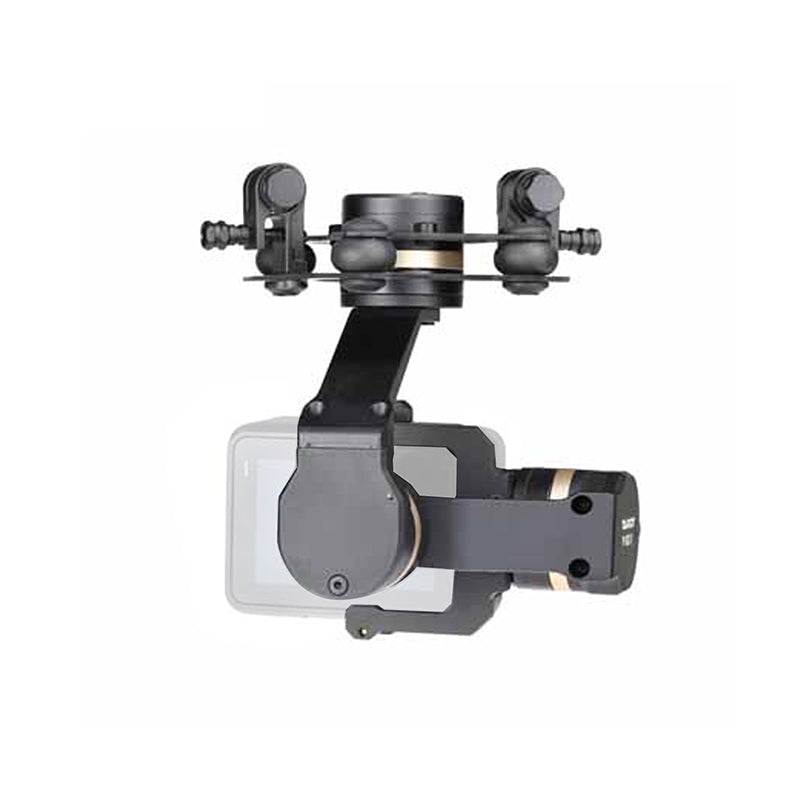

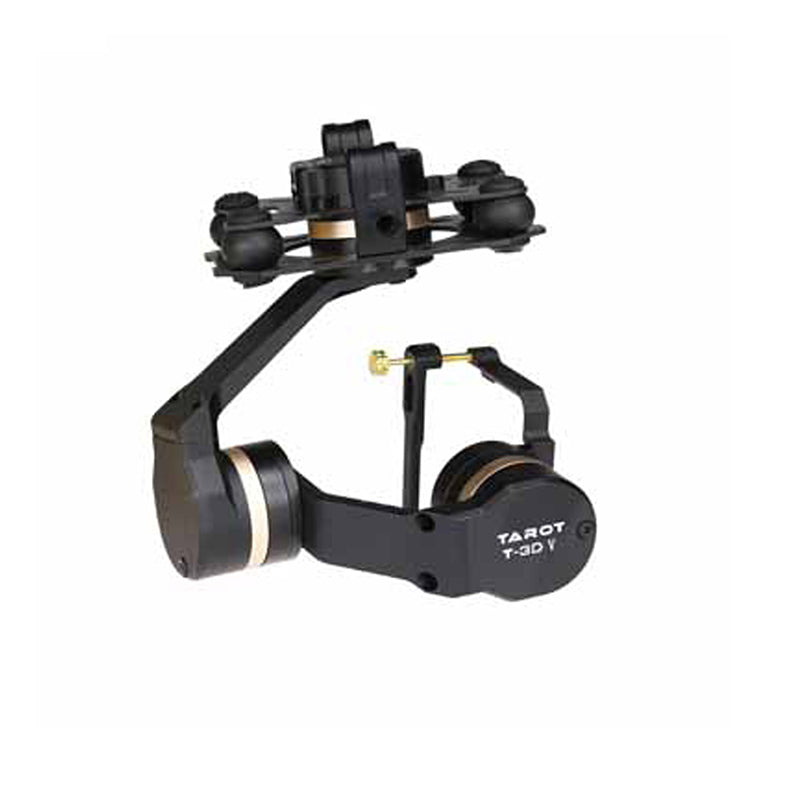

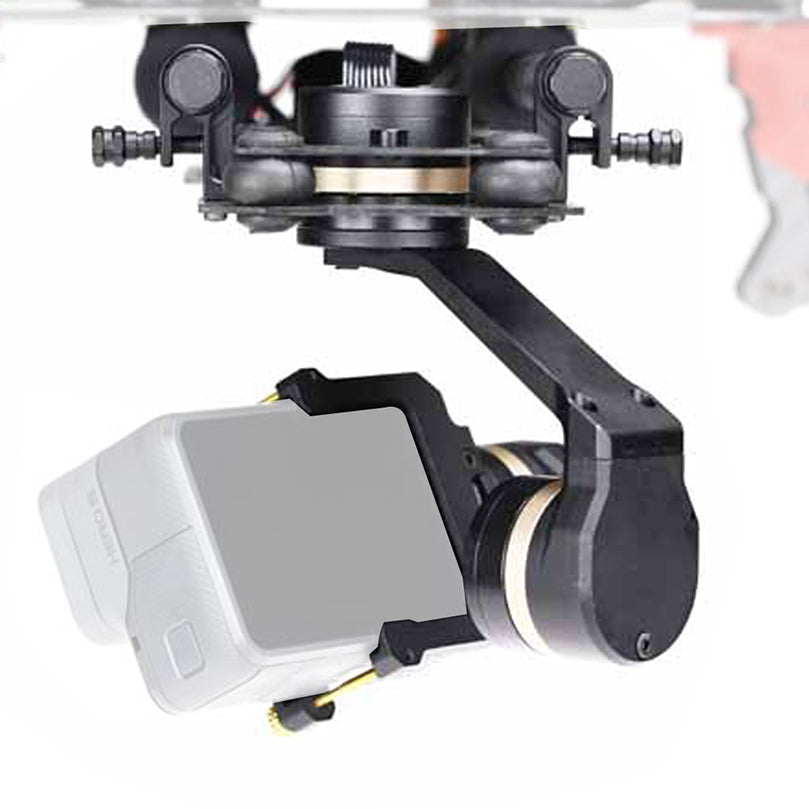

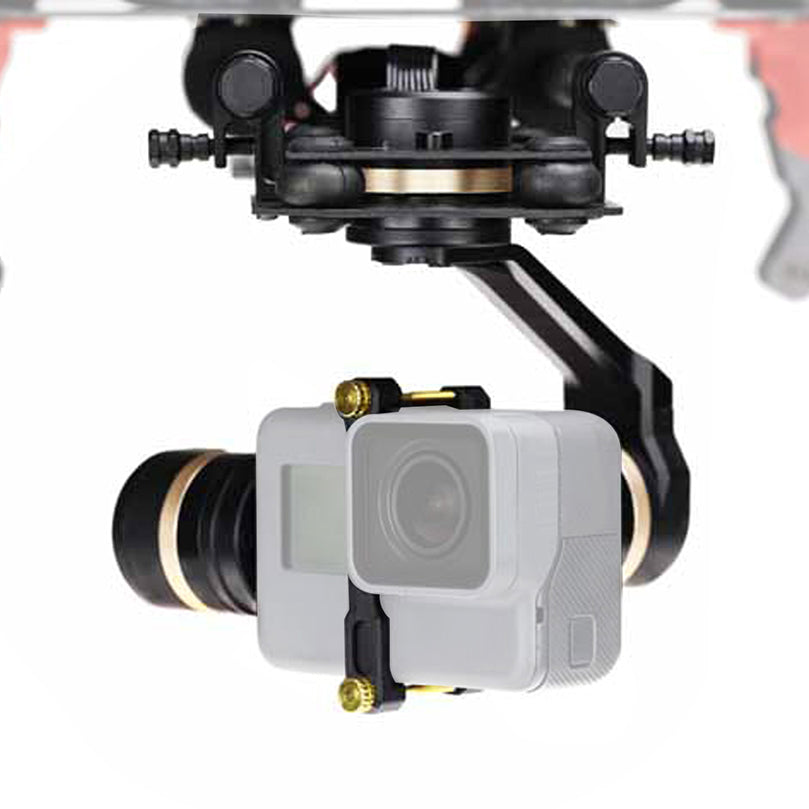

Tarot GOPRO 3 d Ⅳ metal triaxial yuntai custom solely for Canon GOPRO HERO 5 cameras, integrated the Tarot series yuntai all the high-end technology, adopts full CNC whole ribbed panel structure of industrial design, lightweight and the stability of the strongest.Even in extreme harsh environment, also can accurately lock camera maintain stability, output exquisite picture of the extreme experience.Tarot GOPRO 3 d Ⅳ triaxial yuntai excellent calculus ability of metal yuntai control system, the built-in independent I M U accurate control yuntai, integrated yuntai and servo drive module, support gesture lock, Angle of the first rules to follow and three work modes.
Mechanical/electrical properties
Working current: 30 ma (@ 25 v) / 50 ma (@ 12 v)
Locked-rotor current: 350 ma (@ 25 v) / 700 ma (@ 12 v)
The largest controllable speed
Direction of rotation (PAN) : + 200 ° / s
Pitching direction (TILT) : + 200 ° / s
The two direction (ROLL) : + 200 ° / s
Controllable rotation range
Direction of rotation (PAN) : + 330 °
Pitching direction (TILT) : - 135 ° to 45 ° +
The two direction (ROLL) : plus or minus 48 °
S - Bus/PPM/DSM receiver support
Working environment temperature: - 20 ° ~ + 50 °
Adjustable parameter software installation requirements
Windows XP;Windows VISTA.Windows 7.Windows 8 (32 or 64 bit)
The national intellectual property has been awarded the TAROT aeromodelling co., LTD. This product patents.Any unit or individual without the license holder, the manufacture, copy, use, sales of the products will face a patent infringement lawsuit.The state intellectual property has had been awarded The TAROT model., LTD five patents Any units orindividual without The license holder manufacture, copy, use and sale of The product will be patent lawsuit.
Patent, patent number: 2014201546579
Packing list:
Metal triaxial yuntai 160 g * 1
Yuntai main control module (36 x 25 x 11 mm) x 1
8 p yuntai master and yuntai main cable x 1
5 v output, a receiver and video line x 1
USB module (27 * 21 * 7 mm) x 1
Flight control cables by 1
Instruction x 1
Packing box x 1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
