1. CORDLESS MOTOR: Tattoo pen built in cordless motor, strong power, low noise, to provide a high frequency of needling speed, coloring skin damage less, faster coloring, while the machine heat dissipation performance is good.

2. TATTOO PEN: Tattoo pen for most of the tattoo cartridge needles on the market, with an interface for tattoo clip cord, not only for corded operation, but also cordless operation.

3. POWER SUPPLY: 6V, 7V, 8V, 9V, 11V 5 adjustable voltage section to meet the needs of tattoo artists operating different parts of the speed. Standard interface, the closure is tight, not easy to fall.

4. EFFICIENT: Tattoo pen for a long time is not easy to use deformation, rebound frequency, out of the needle stable and powerful, low noise, uniform speed, lasting performance.

5. 1200MAH POWER SUPPLY: Power supply built in 1200mAh high capacity battery, 2 tattoo power supply can be used alternately. Suitable for professional tattoo artists to use, tattoo beginners can also be used to practice.

    Specification:

Item Type: Tattoo Pen Power Supply Kits

Material: Aluminum alloy, electronic components

Product Description:

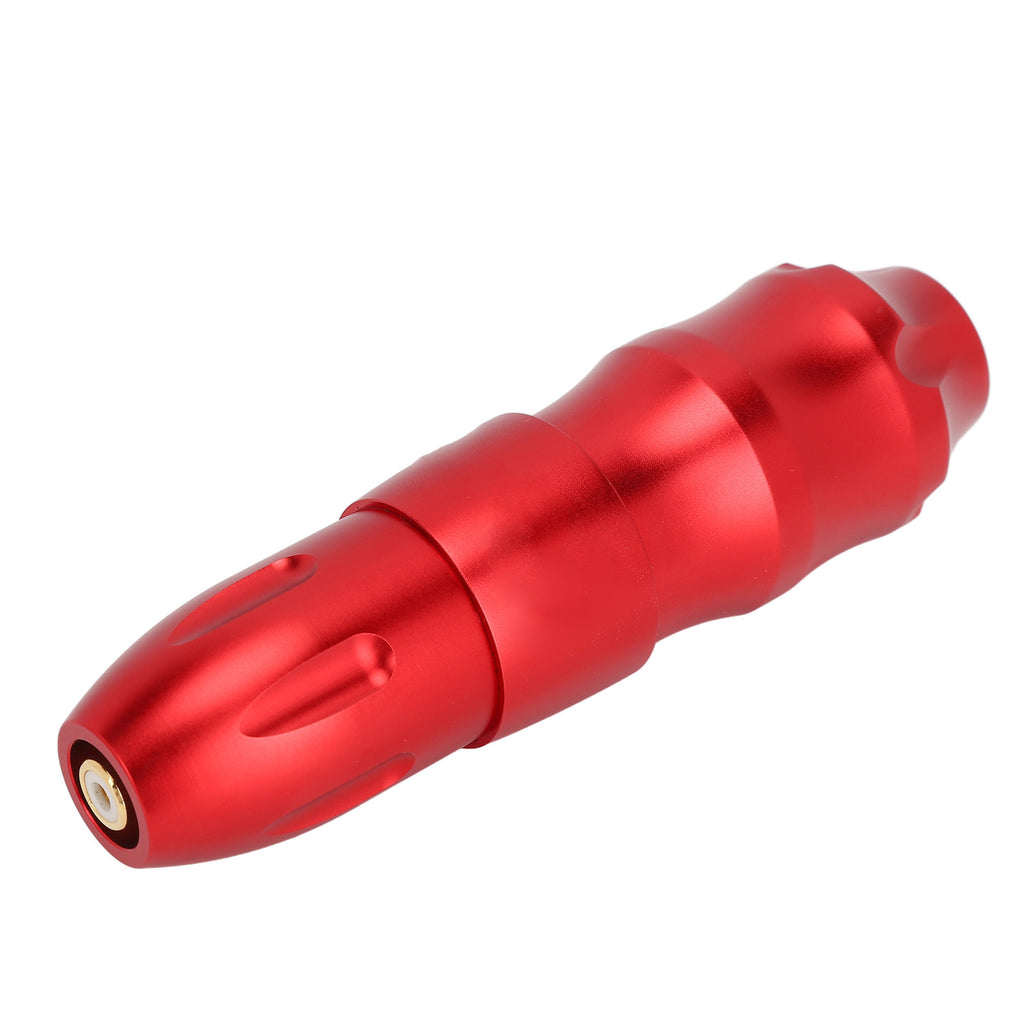

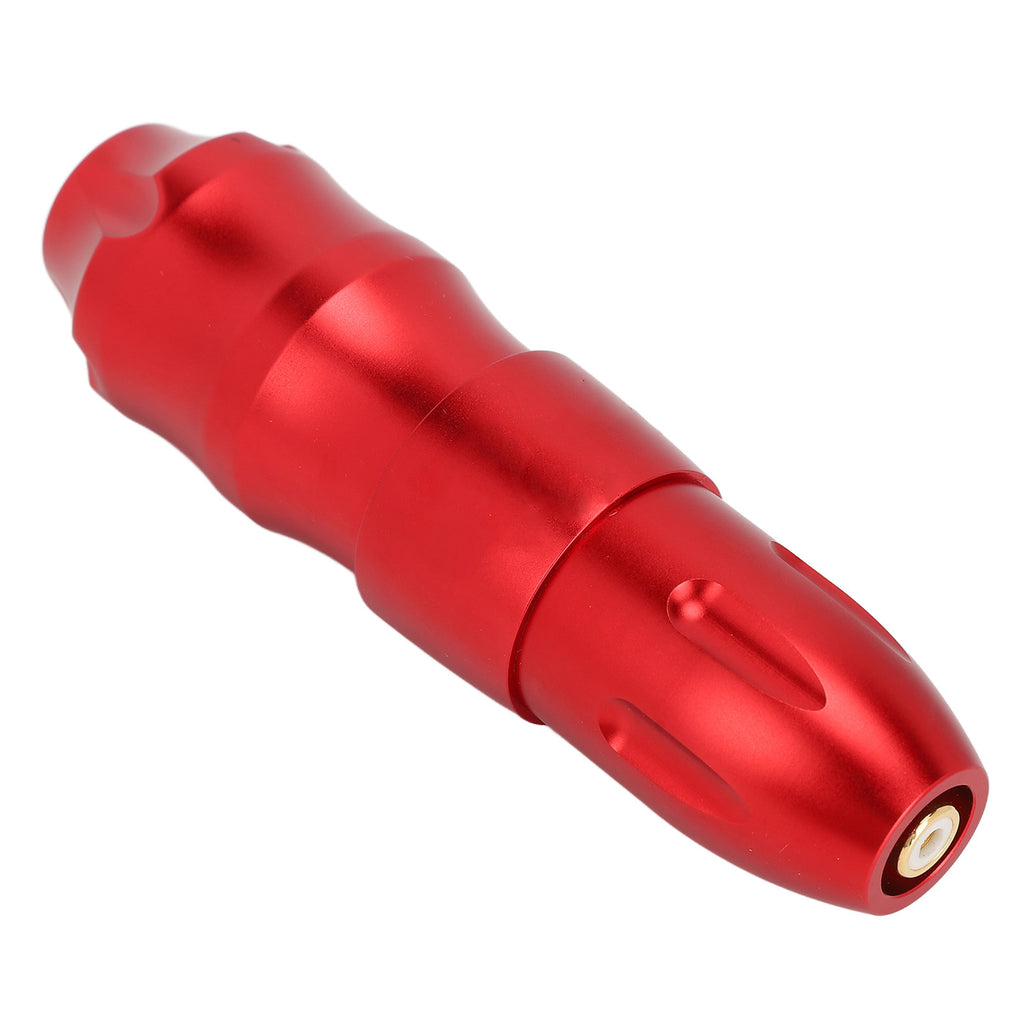

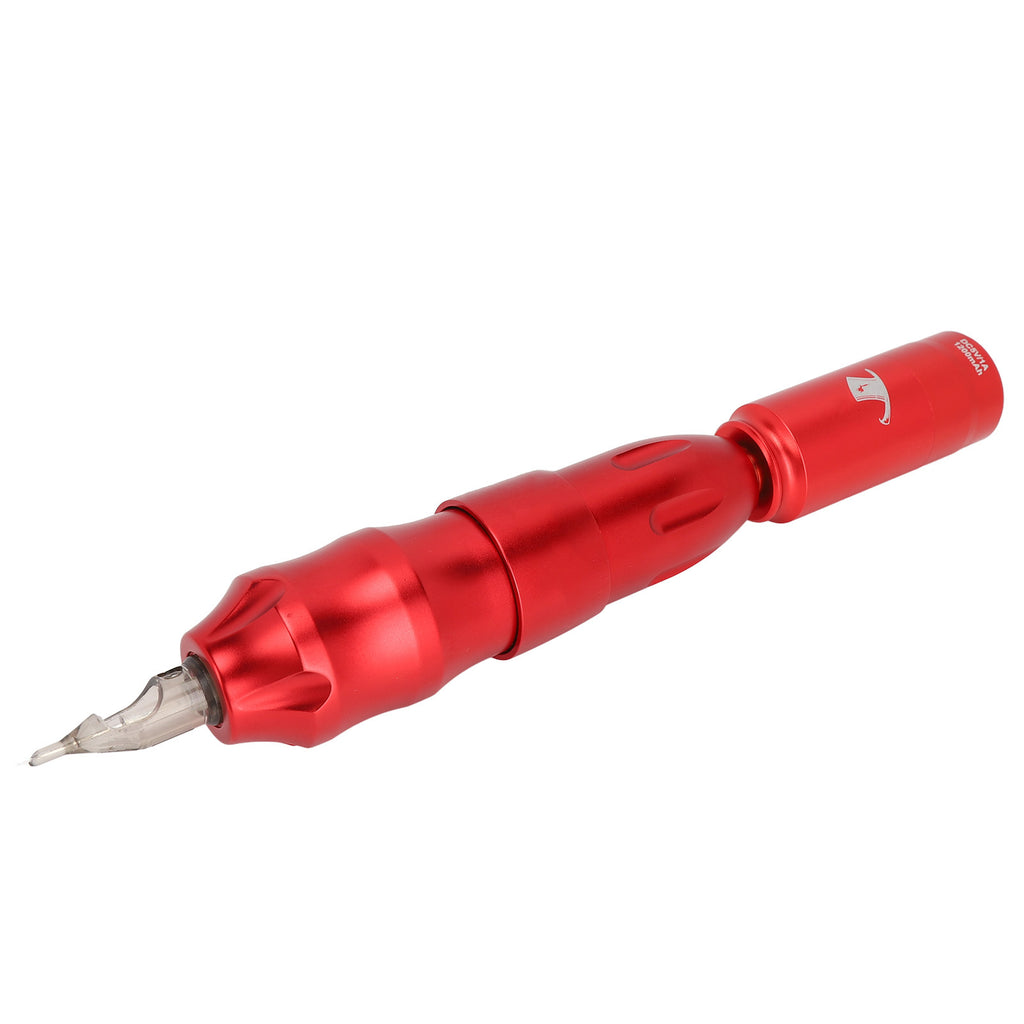

1. Tattoo pen

Needle: used for most of the tattoo cartridge needles on the market

Interface: interface

Tattoo Pen Size:

Length (without needle): Approx. 120mm / 4.7in

Diameter: Approx. 34mm / 1.3in

Stroke: Approx. 0 x 3.5mm / 0 x 0.14in

Out of the Needle Length: Approx. 1-4mm / 0.04-0.16in

RPM: 9V 10000RPM/min (drive silicone cartridge needle working speed, non idling speed)

Starting Voltage: 5V

Working Voltage: 4-12V (driving silicone cartridge needle)

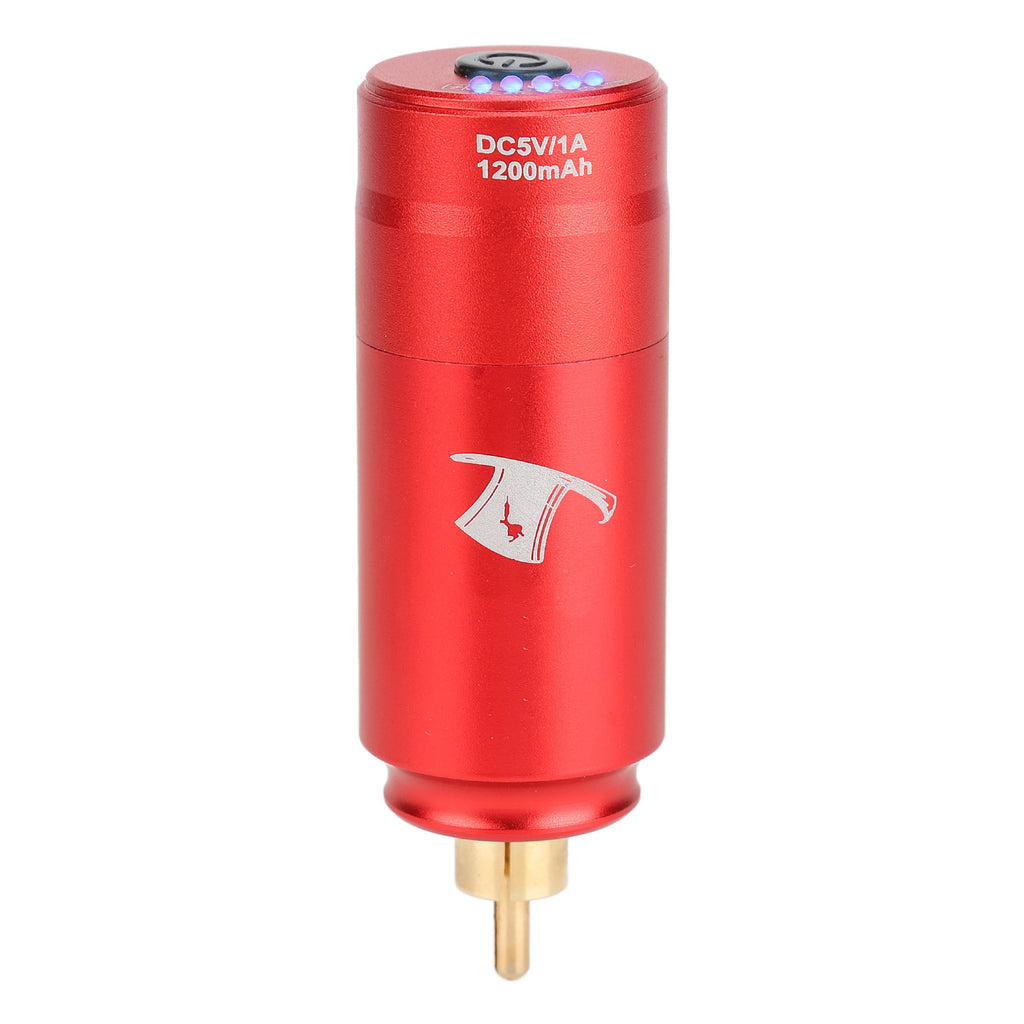

2. Tattoo power supply

Interface: interface

Battery: Built in lithium battery 1200mAh

Power Supply Size: Approx. 80 x 26 x 26mm / 3.1 x 1 x 1in

Input: DC5V 1A

Output: 6V 7V 8V 9V 11V

Charging Voltage: DC5V/1A, TYPE C charging port

Characteristics: Input and output double charge and discharge protection (battery comes with overcharge and overdischarge protection, control board with short circuit overcharge and overdischarge protection for more safety)

Charging Time: 2 hours (charging with a charger higher than 5V is strictly prohibited)

Endurance: 8V voltage for 8 hours of continuous use

Power Operation Instructions:

1. Long press the power button for 2 seconds to switch on and off.

2. Tap the power button 6V, 7V, 8V, 9V, 11V cycle, while the indicator increases with.

3. Each time the power on the default 10V strong start, 0.2 seconds to restore the display of the last used voltage memory.

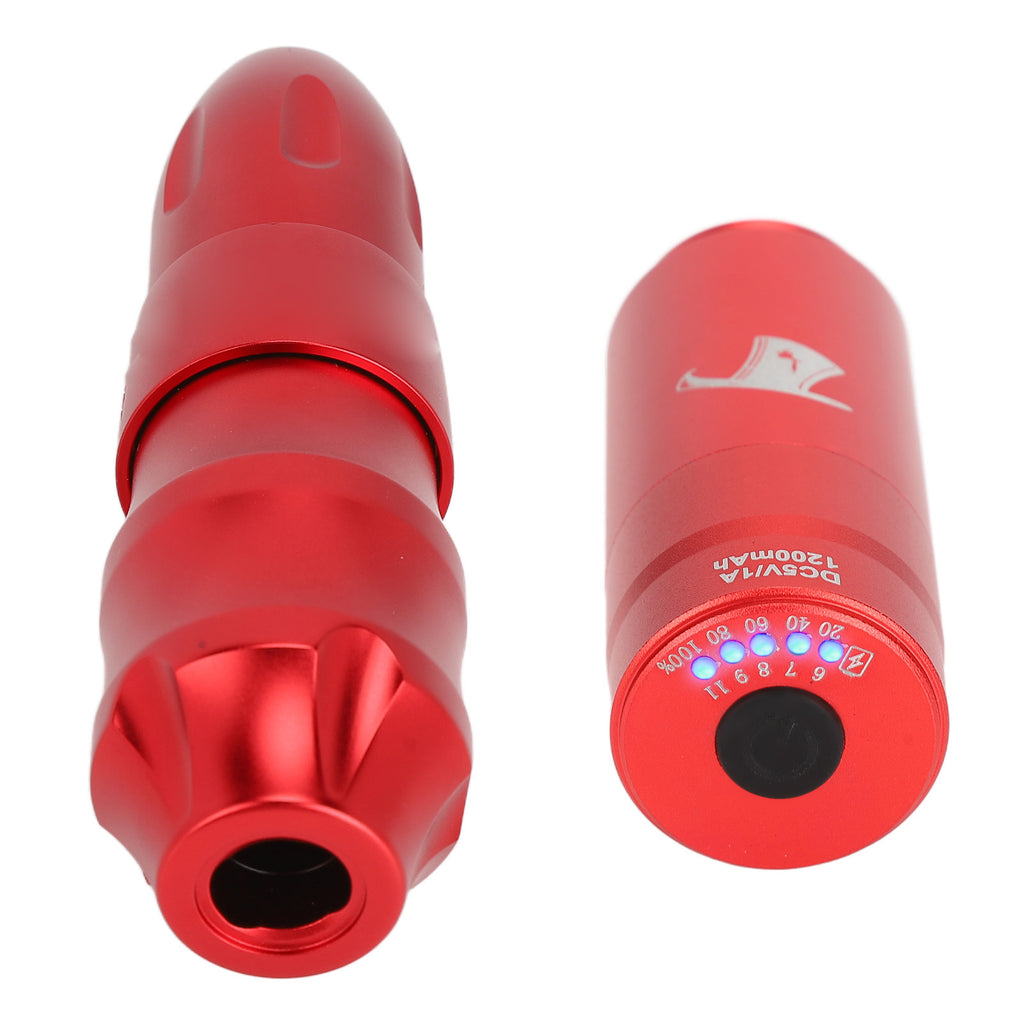

4. button more than 2 seconds without use, automatically jump to the batterycapacity display, while the indicator is in the breathing flashing state,

Indicator lights 1-5 represent 20%- power. Tap the power button to automatically return to adjust the voltage state.

5. When charging, the indicator light flashes to show the charging status, full indication of long light, while entering the overshoot protection.

6. The battery inside the charging current limit, the battery capacity of 1200MAH, more than 1A charger 3.5 hours to fill, 8V voltage output can be used continuously for about 8 hours (the voltage of the tattoo used is not the same, the use of time will be different, 8 hours is the theoretical value).

7. This product is mainly suitable for  tattoo machine, please do not use for coil tattoo machine.

8. This product does not support the use of while charging.

9. If a short circuit protection during use, just plug in the charger charging will automatically activate.

Tattoo Pen Set Instructions:

Corded Operation: The tattoo machine will be installed on the needle, connect the  clip cord and power supply, foot pedal, start the power supply, adjust the voltage can be operated.

Cordless Operation: The tattoo machine will be connected to the  interface cordless tattoo power supply, adjust the appropriate voltage, you can operate.

    Package List:

    1 x Tattoo Pen

    1 x  Tattoo Clip Cord

    1 x Tattoo Power Supply

    1 x USB Charging Cable
