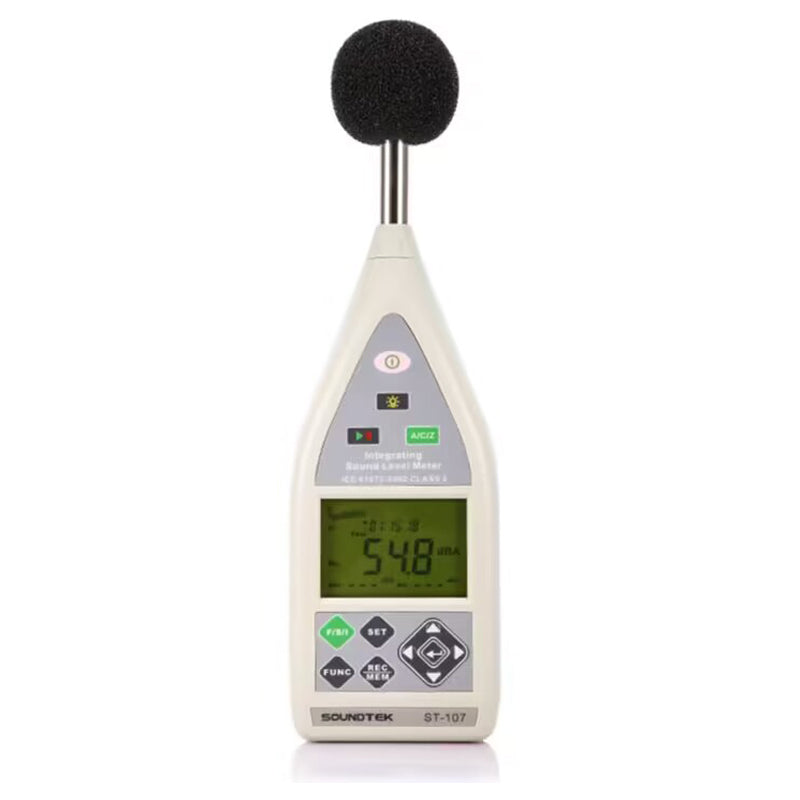

Tenmars ST-107 Class2 Integrating Sound Level Meter Noise Meter Measurement Range 70~133 dBC
Product Description:
Application
The ST-107 is high performance class2 integrating sound level meter,It measures LAF, LAS, LAI, LCF, LCS, LCI, LZF, LZS, LZI, LAmax, LCmax, LZmax, LAmin,LCmin, LZmin, Leq (A,C,Z weight),SPL, SEL, Lcpeak functions
Features
Fast, Slow, Impulse response time
Wide frequency range:31.5Hz~8KHz
Wide measurement range:30dB~130dB
Wide dynamic range:100dB
A/C/Z frequency weighting
Specifications
Dimensions:285x90x39mm(length x width x height).
Weight: Approximately 500 grams.(including Batteries)
Electrical Specifications
Environmental conditions: temperature 23℃ ± 5℃, relative humidity < 80%.
Display
Double rows LCD MAX reading 1999
Display Refresh Rate
1 Time/sec
Major Applicable Standards
IEC 61672-1:2002 Class2
Other Standards
IEC60651:1979 TYPE 2
IEC60804:2000 TYPE 2
ANSI S1.4:1983 Type12
Microphone
½inch Electret condenser microphone
Measurement Items
Lxyp, Lxmax, Lxmin, Lxeq, LAE, Lcpeak,RT60
Measurement Range
30dB ~ 130dB (A)
35dB ~ 130dB (C)
40dB ~ 130dB (Z
Dynamic range
100 dB
Integrate Time Setup
Randomly, 10s, 1m, 5m, 10m , 30m,
1h, 8h, 16h, 24h
Internal memory
24C512 × 4 ;MAX Datalogger data >37,000
Micro SD Card
The max support capacity of
micro SD card is 4GB;
37,000 data about story space 300KB
Peak value
measurement range
70~133 dBC
Time Weighting
Fast, Slow, Impulse, Peak
Frequency Weighting
A/C/Z
Frequency Range
31.5Hz~8KHz
DC Output
2Vdc/130dB
AC Output
2Vrms/130dB
Starting Time
<10second

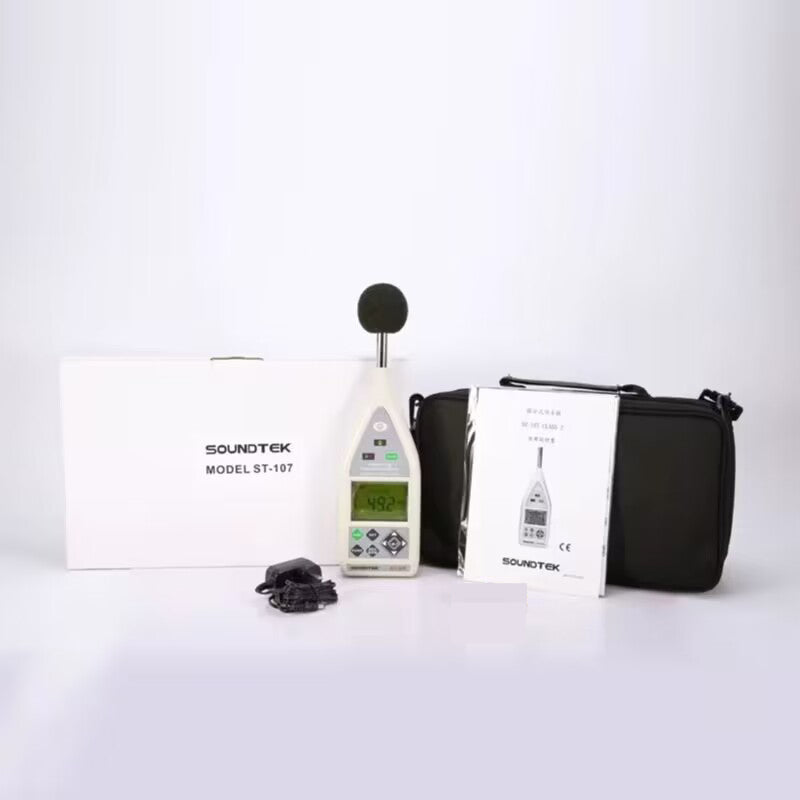

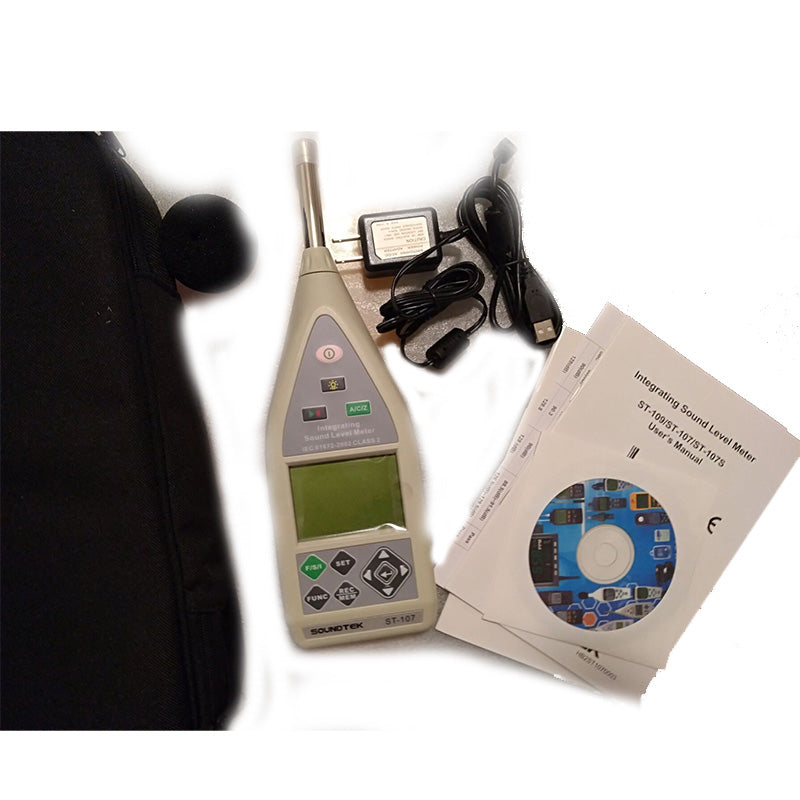

Accessories
User’s manual
SWITCHING POWER SUPPLY: 100V ~ 240V AC to DC 6V~9V/500mA.
Carrying case.
60mm diameter windscreen.
Setup CD-DISK
MINI USB Cable (Mini B type)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
