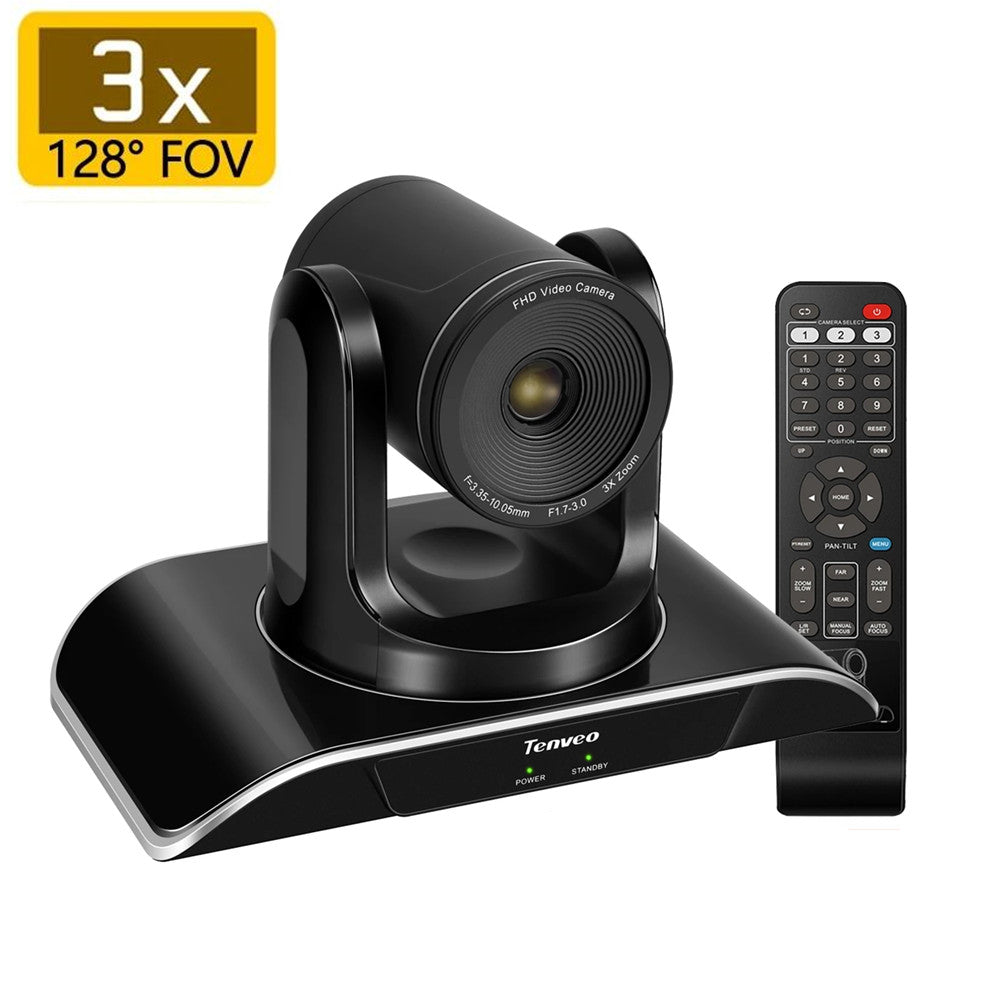

Tenveo VHD3U 3X Zoom USB PTZ Camera 1080P HD Conference Camera 2MP With H.264 Broadcast & Live Streaming Cameras Healthcare

Features:

 USB2.0

 HD1080P 2.1 mega pixel

3x optical zoom

Wide angle 90°,Pan: 0-340°

RS-232, RS-422, RS-485,

IR remote control

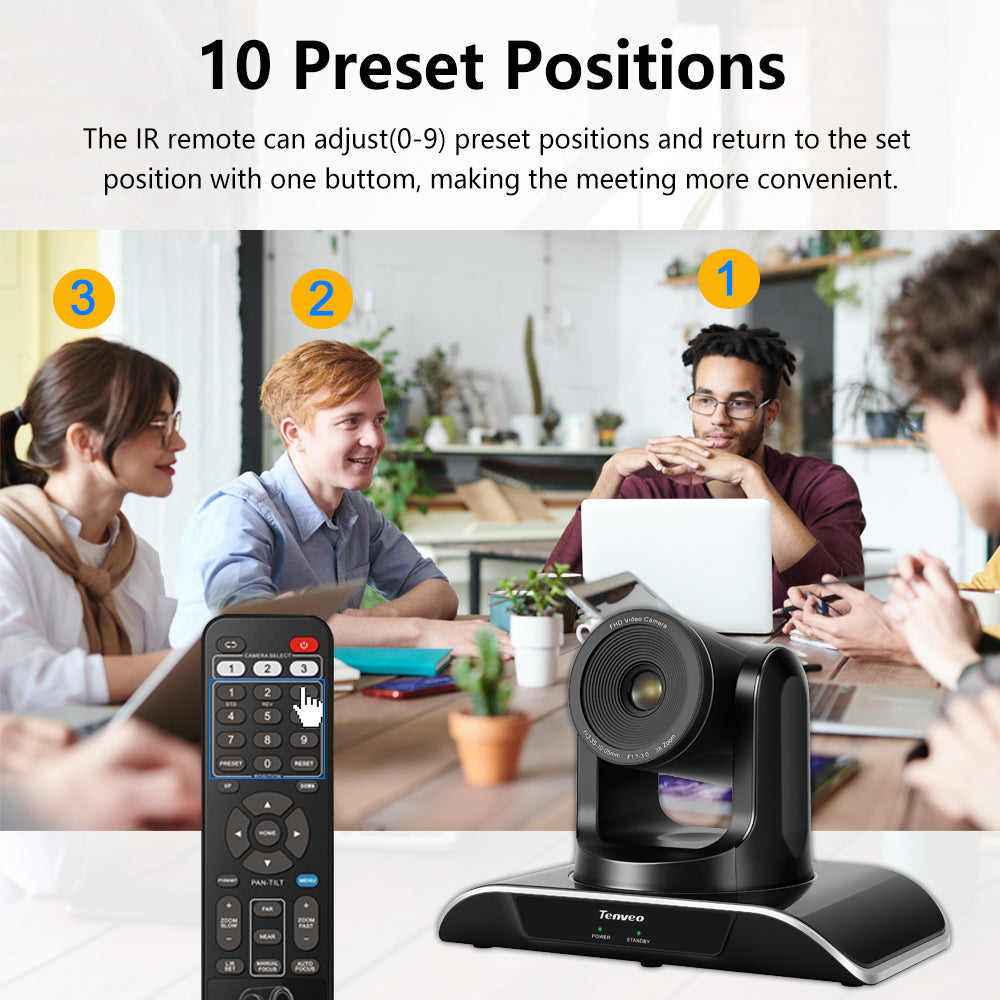

 Tips: Press the Number(1-9) directly to call the reserved preset. Fast and Smooth

PRESET+Number: To set preset position of this number.

RESET+Number: To clear preset position of this number.

 Highlisht

 3x optical zoom

 Sleek and intelligent design

 Plug & Play USB Connectivity

 Crystal clear HD1080P image quality

 Accurate, smooth and silent PTZ Movement

 Preset: 9 via IR remote setting (256 via RS232)

 Superior quality with Full Glass Lens Material

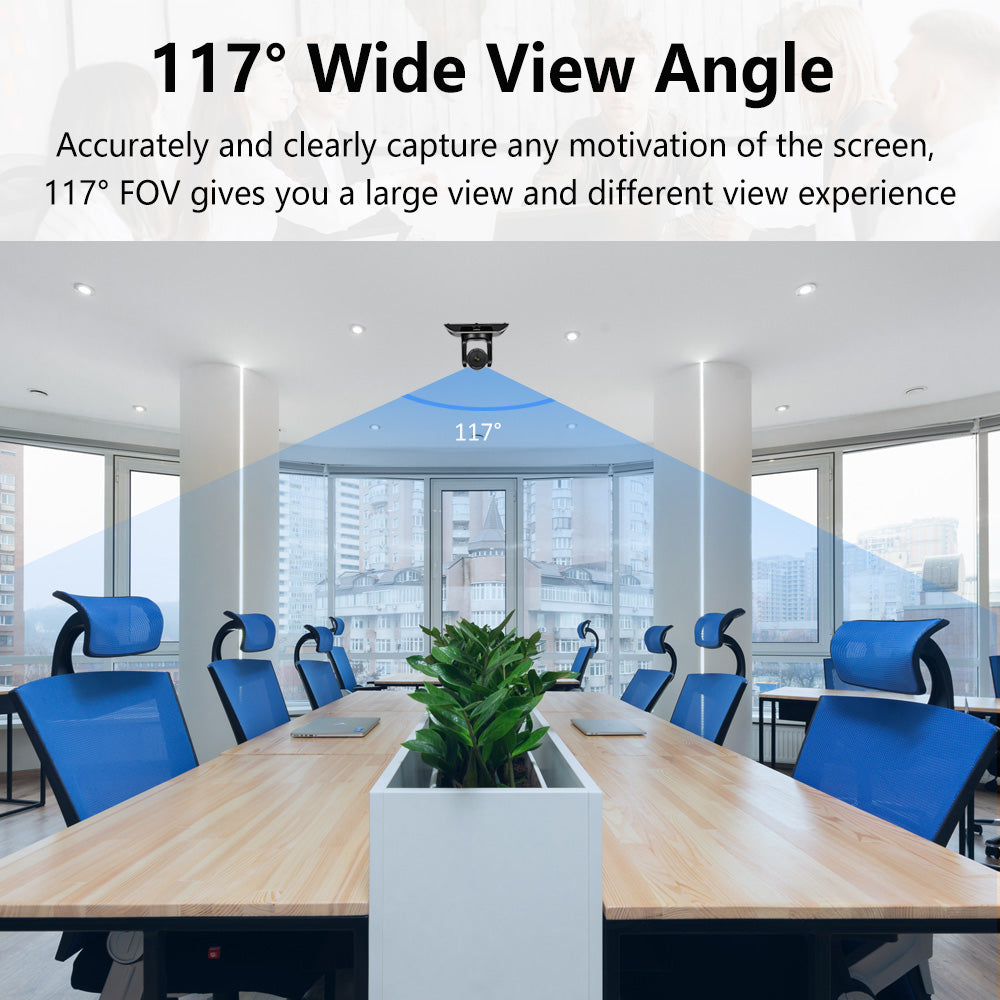

 128 ° wide field of view with no video distortion

 1/2.7 inch high quality, 2.1MEGA PIXEL (16:9) CMOS sensor

 Support ceiling mount, wall mount and tripod mount (Reverse mountable)

 2D and 3D NR for best video quality in different lighting conditions

 Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

 Compatible with most leading video conferencing software and platform

   Specification

          Product No.

    TEVO-VHD3U

          Image Sensor

    1/2.7 inch HD Color CMOS

          Effective pixel

    2.1 mega pixel(16:9)

          Horizontal Resolution

    1080P30/25, 720P30/25

          Signal standard

    NTSC/PAL

          Zoom

    3x optical zoom

          Focal length

    F=3.0mm(wide)-10.0(tele)

          Horizontal Angle

    Near-end 128°～Far-end 37°

          Gain control

    Auto/manual

          Focus

    Auto/manual

          SNR ratio

    ≥50dB

          Shutter speed

    8 to 1/10000s (auto)

          Preset position

    IR remote control supports 9 presets

PELCO Protocol supports 256 presets

          Pan/Tilt movement range

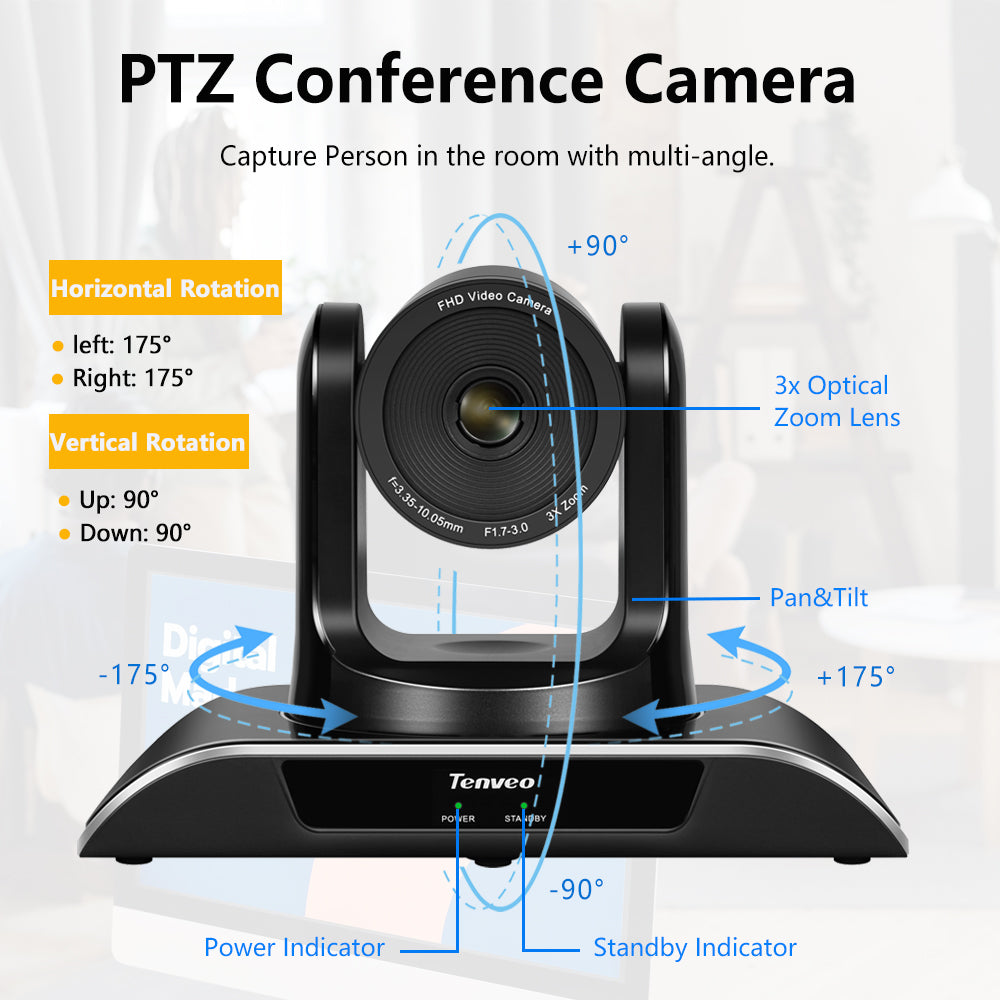

    Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)

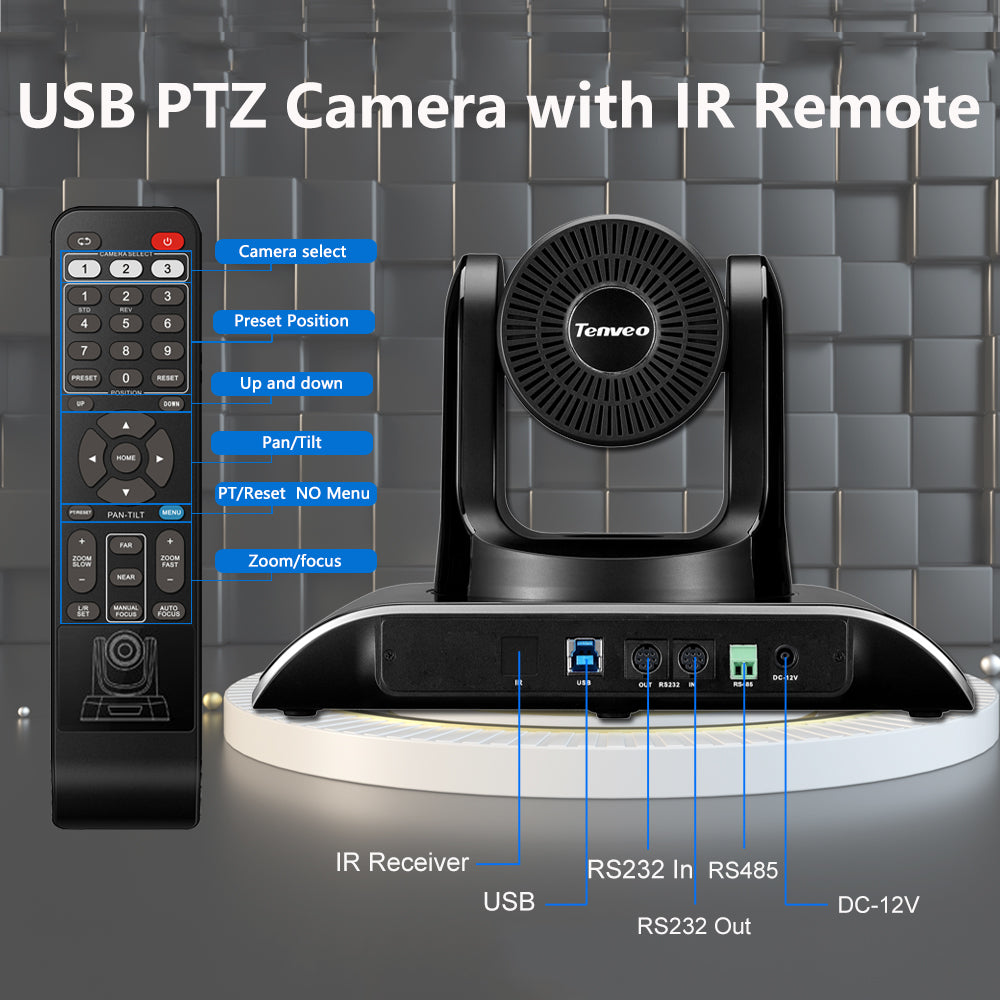

          Control terminal

    RS-232, RS485

          Control Protocol

    VISCA, PELCO-D, PELCO-P (RS-232, RS485)

          Video output

    USB

          Video Compression Format

    YUV, MJPEG, H.264

          Noise Reduction

    2D/3D

          Work temperature

    -10°C-~50°C

          Storage temperature

    -20°C~60°C

          Baud rate

    2400/4800/9600bps

          Decoder

    Built-in

          Address set

    1~256

          Installation

    Support desktop, Tripod, Wall mount and Ceiling mount

          Power supply

    DC12V/ 2A

          Power consumption

    12 W

          Net weight/Gross weight

    1.5kg/2.85g

          Dimension(LXWXH)

    260*175*180 mm /296*225*218mm (before / after packing)

          Accessories

    DC 12V Power adaptor, IR remote control, Manual, RS232 cable, USB2.0 cable, Ceiling brackets & screws.

   What's in the box

   1 X  Camera

   1 X  DC 12V power adaptor

   1 X  IR remote control

   1 X  Manual

   1 X  RS232 cable

   1 X  USB.0 cable

   1 X  Brackets & screws

   Tenveo Camera FAQ

  Q:What kind of camera should I use?

  A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.

  Q:Is it easy to operation?

  A:Yes, it is easy to install, plug and play.

  Q:Can I bring more than one person into a call at the same time?

  A:Yes. We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems.

  Q:What is the resolution of your cameras?

  A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.

  Q:What is the Video Connector?

  A:There are USB 2.0, USB3.0, HDMI, HD-SDI, DVI, YPBPR and CVBS Video output.

  Q:How many time zoom?

  A:Support fixed focus, 3X, 10X, 20X, 30X optical zoom.

  Q:How to control this Camera?

  A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.

  Q:Which kind of software compatible with this Camera?

  A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh, WebEx, Easy meeting, Vidtel and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO Etc.
