PLLSSTC

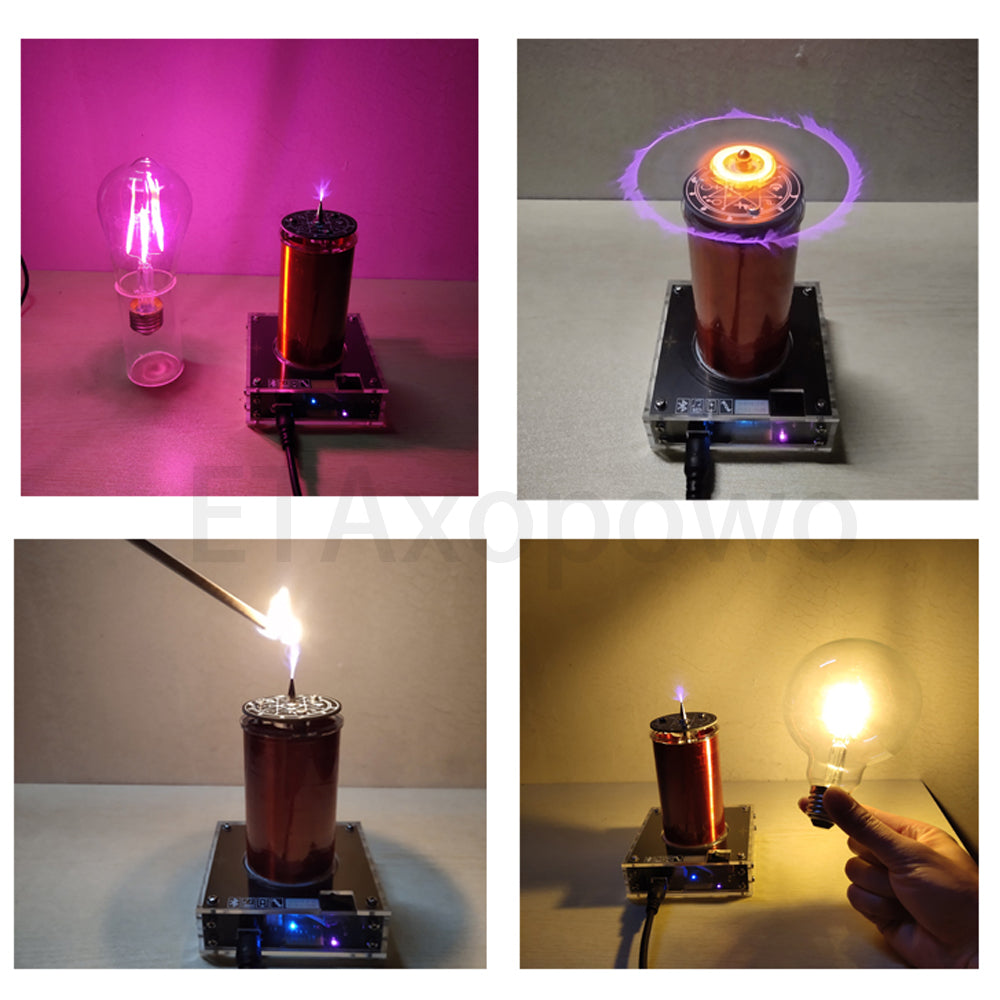

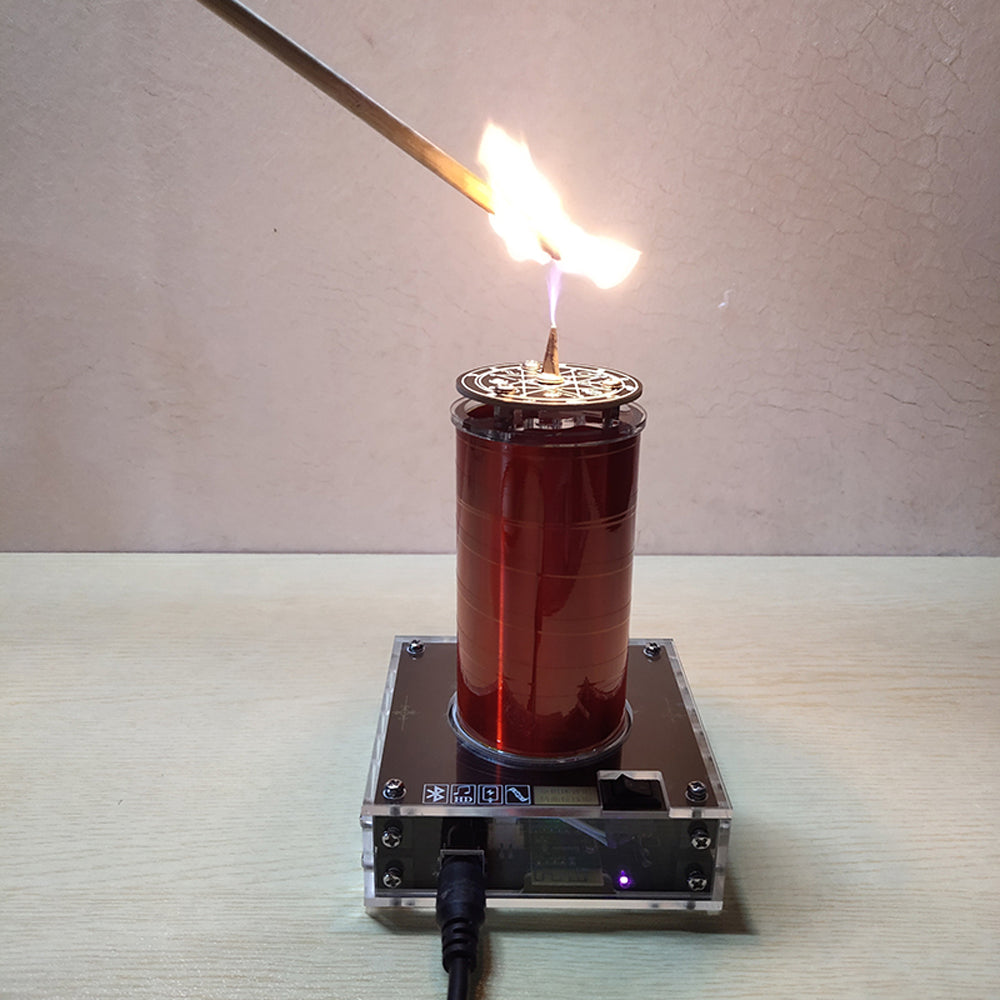

PLLSSTC is a solid-state Tesla coil controlled by a phase-locked loop circuit, which has the characteristics of continuous operation; the arc generally presents as a fluffy cluster with high temperature, which can ignite combustibles such as paper or mosquito coils, but it is more prominent. The most important thing is its characteristics in music modulation, it can play music files in any format, and has relatively high-definition sound quality, and can be used as a plasma speaker.

Features:

Adopting a new concept circuit design and selecting high power density components, it achieves the characteristics of high power, high efficiency and low heat generation, which greatly improves the working stability of the product

1. Support Bluetooth wireless music connection.

2. Has a relatively high-definition playback sound quality.

3. Has the stability of working for a long time.

4. Support the demo with sci-fi-like plasma powered windmill.

Voltage: 24V

Power consumption: 48-62W

Frequency: 92OMhz-1.2Mhz

Bluetooth: Version 5.0, name BT201-AUDIAO

Size: 96mm*96mm*154mm(L*W*H)

Weight: about 250g (without power supply)

Operation Notes:

1. Please use the matching 24V power adapter. Using other power adapters may cause the product to not work stably or directly cause damage.

2. Before the coil is assembled and tightened, do not turn on the power to avoid no-load damage!

3. After starting up and working, do not touch the coil with your fingers or metal objects, so as to avoid burning or the coil is on fire!

4. If the high-voltage arc of the Tesla coil will generate a certain amount of ozone during the long-term startup work demonstration, please perform the operation demonstration in an open or well-ventilated environment.

Safety Notice:

Since the solid-state Tesla coil works in a strong magnetic field and a strong electric field, it will generate induced current on surrounding metal objects, including wires, cables, metal tips, and nearby electronic equipment, and generate partial strength electromagnetic interference. therefore:

Those with a pacemaker are prohibited from using it! Those with a pacemaker, please stay away from the device!

When there are implanted/non-implanted electronic medical equipment carriers around, the power-on experiment may cause the failure of these equipments and cause danger to life. Due to the nature of the arc is similar to a flame, it can ignite flammables (alcohol, gasoline, paper towels, clothes, etc.). Therefore, it is forbidden to use it when unattended. Please keep away from flammable materials when using it.

During use, please pay attention to the discharge position of the tip. When the arc strikes the electronic device or the wires connected to the electronic device (audio cable, power cable, signal cable, etc.), it may cause permanent damage to the electronic device.
