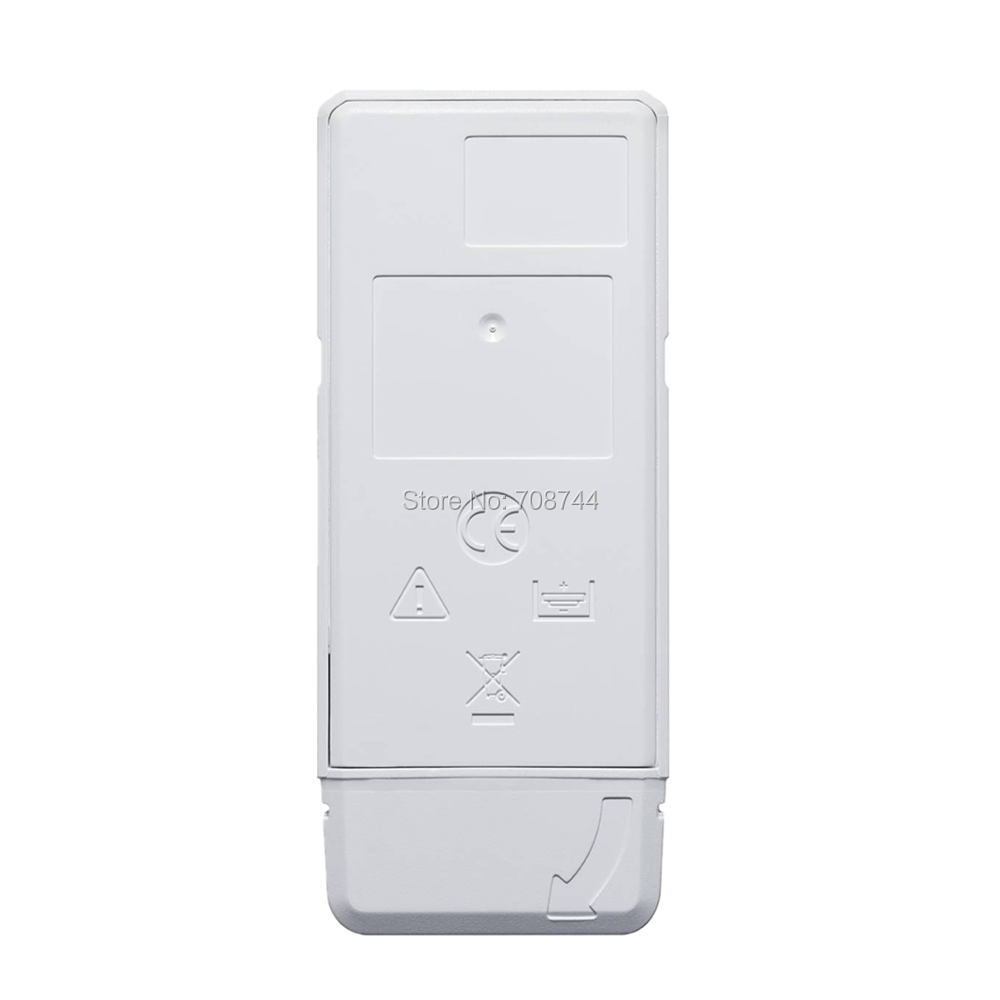

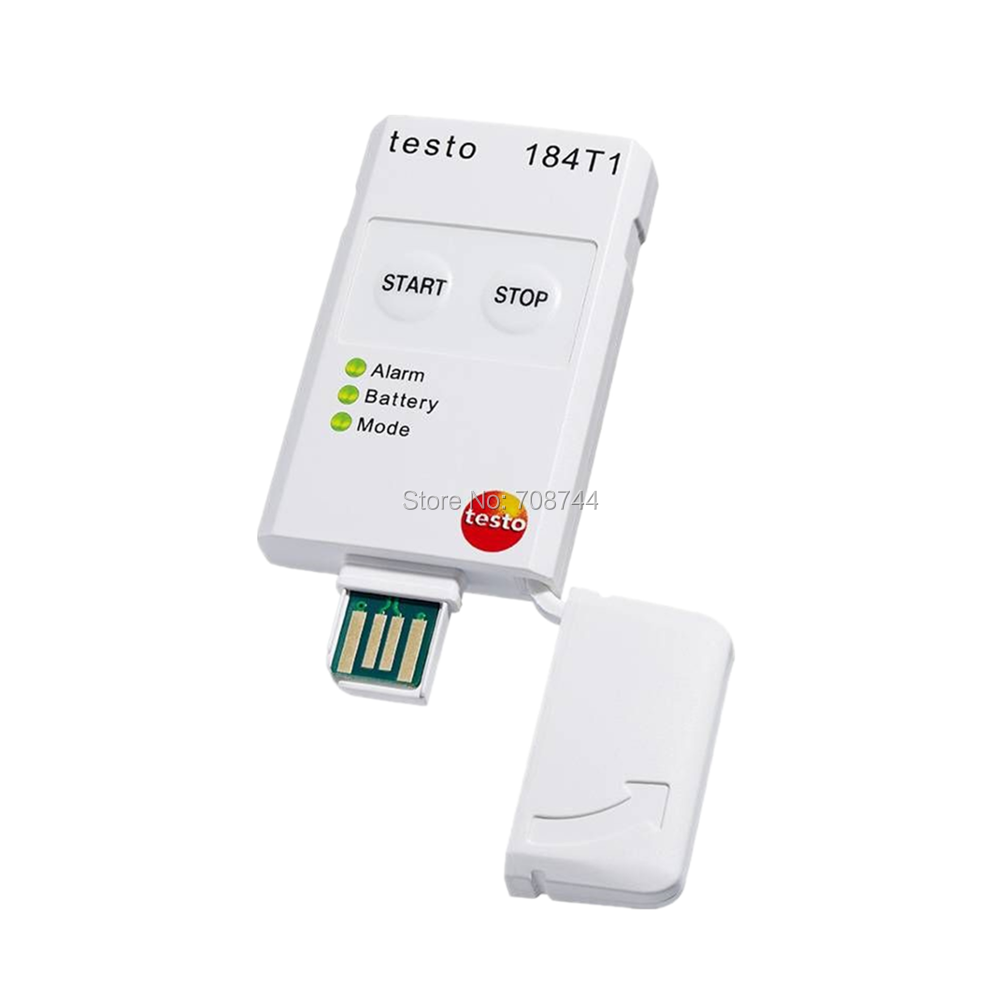

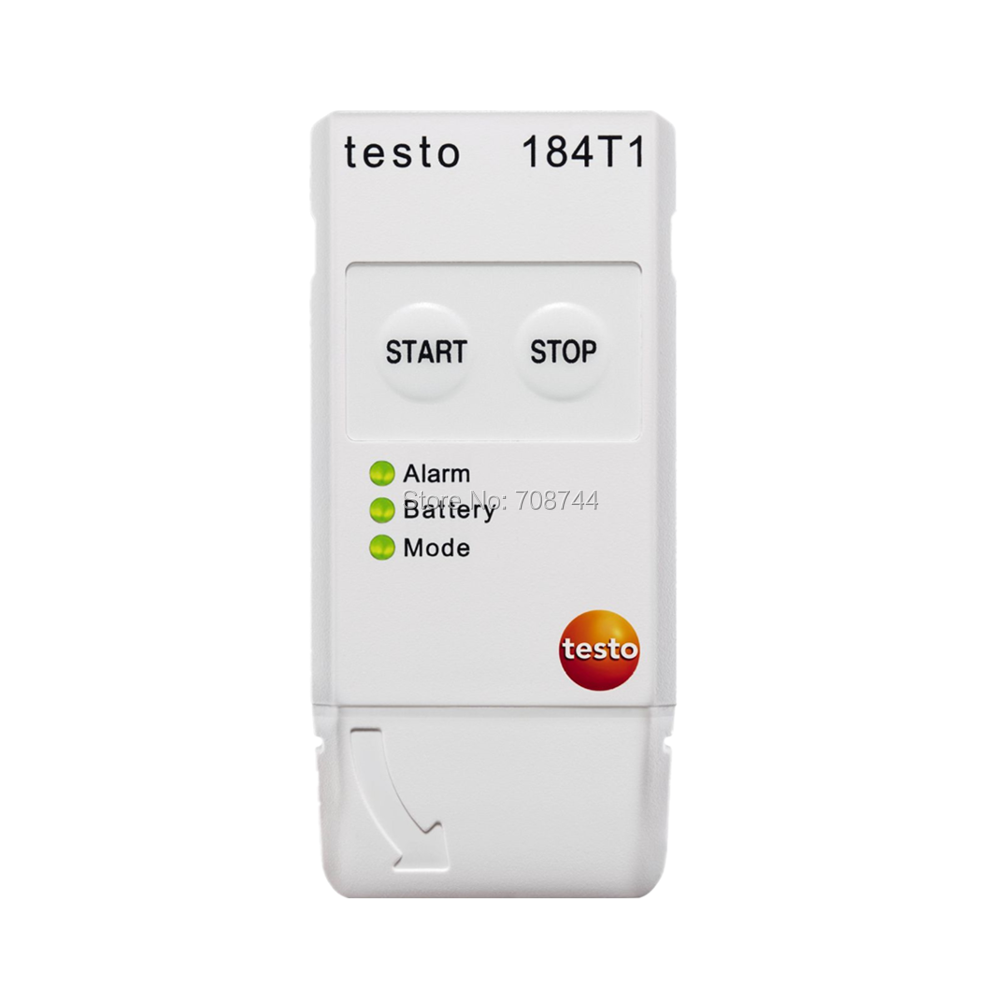

Testo 184 T1 - Temperature Data Logger for Transport Monitoring 0572 1841

 Product Description:

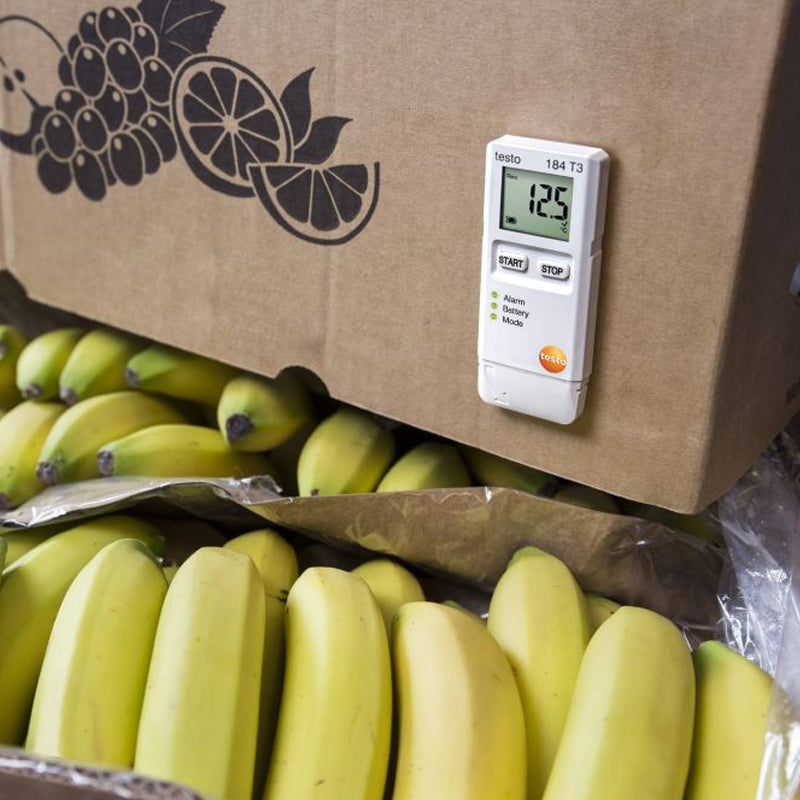

   With the temperature data loggers testo 184 T1, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics, over a maximum period of 90 days.

At their destination, a glance at the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 T1: Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual and PDF report of your recorded data.

The measurement value store of the temperature data logger testo 184 T1 has a capacity of 16000 measurement values. The measurement rate is freely selectable from 1 min to 24 h.

testo 184 T1 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.

          Temperature - NTC

              Measuring range

    -35 to +70 °C

          Accuracy

    ±0.5 °C

          Resolution

    0.1 °C

          Reaction time

    t₉₀ = 30

          Measuring rate

    1 min to 24 h

                    General technical data

              Weight

    22 g

          Dimensions

    75 x 35 x 9 mm (LxWxH)

          Operating temperature

    -35 to +70 °C

          Product-/housing material

    ABS

          Protection class

    IP67

          System requirements

    Adobe® Acrobat Reader

          Product colour

    white

          Standards

    EN 12830; CE 2014/30/EU; DIN EN 50581:2013; DIN EN 61326-1:2013; 2011/65/EU

          Certificate type

    Certified by HACCP International

          Channels

    1 internal

          Operating time

    90 days days from the first time the program is started (5-minute measuring cycle, -35 °C)

          Authorizations

    CE; RTCA/DO-160G

          Alarm function

    via LED

          Battery type

    Lithium battery non exchangeable(not included package)

          Interface

    USB; NFC

          Memory

    16,000 measuring values

          Storage temperature

    -55 to +70 °C
