Measuring Range 0 to 4000 ppm Testo 310 Flue Gas Combustion Analyzer O2 CO CO2

without Printer

 Introduction：

   Direct O2, CO, flue gas and ambient temperature measurements

   Integrated measurement menu for flue gas, draft, CO ambient air and pressure

   Quick sensor zero in only 30 seconds

   Large, backlit digital display, rechargeable lithium battery with up to 10 hours life

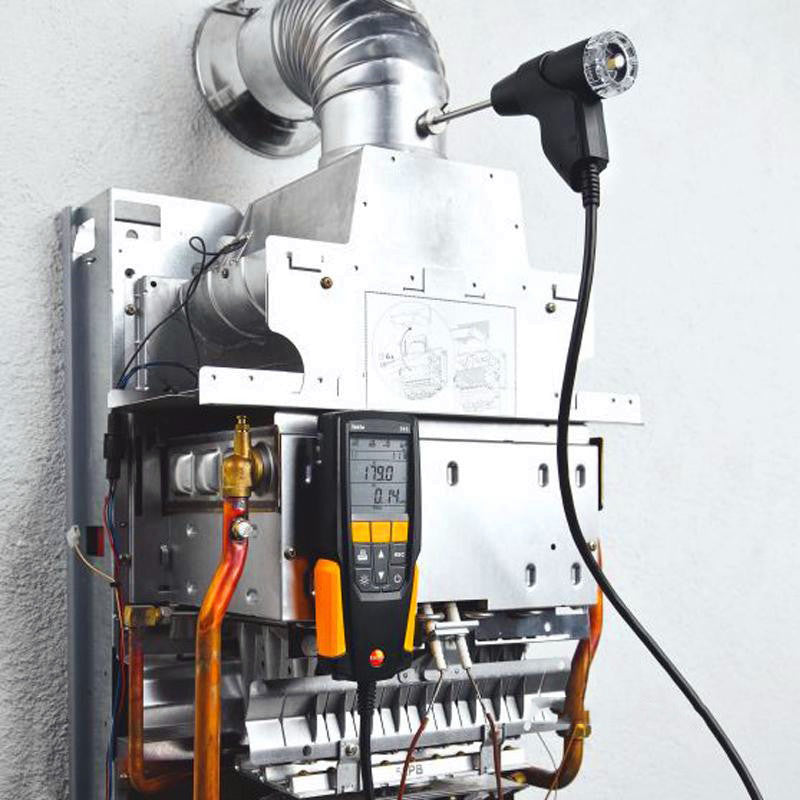

   Being a systems mechanic you know only too well how tough things can get when you’re working out in the field. That’s why your measuring tools need to be rugged and reliable. Like the testo 310 flue gas analyzer. Designed especially for use in the field..

   Details

   Product Description

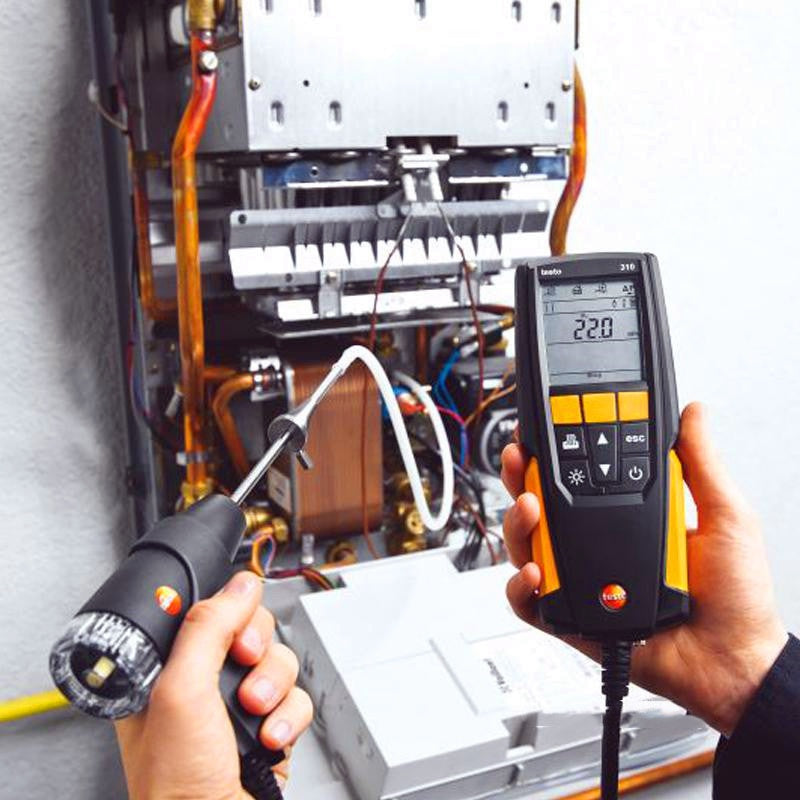

   Accurate readings, rugged design, easy-to-use: That’s what you as a professional want from a measurement tool so that you can carry out quick and reliable checks on heating systems. And that’s exactly what you get with the testo 310 flue gas analyzer.

   The testo 310 entry-level flue gas analyzer. For reliable heating system checks

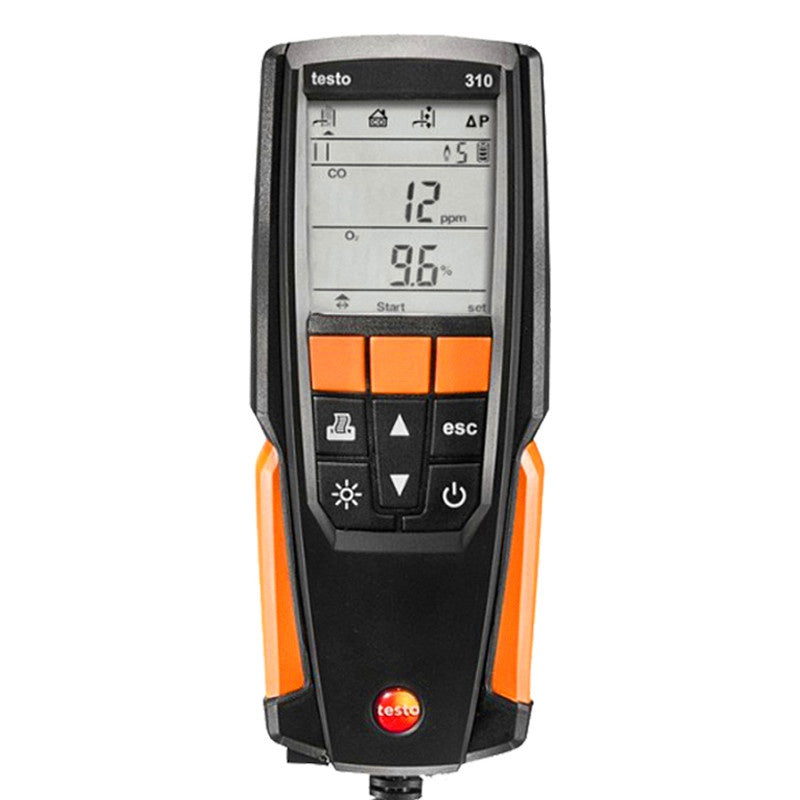

   The testo 310 has an easy-to-use menu guide, four integrated menus for flue gas, draft, CO ambient air and pressure measurements, a large, easy-to-read display and a backlight for use in all lighting conditions.

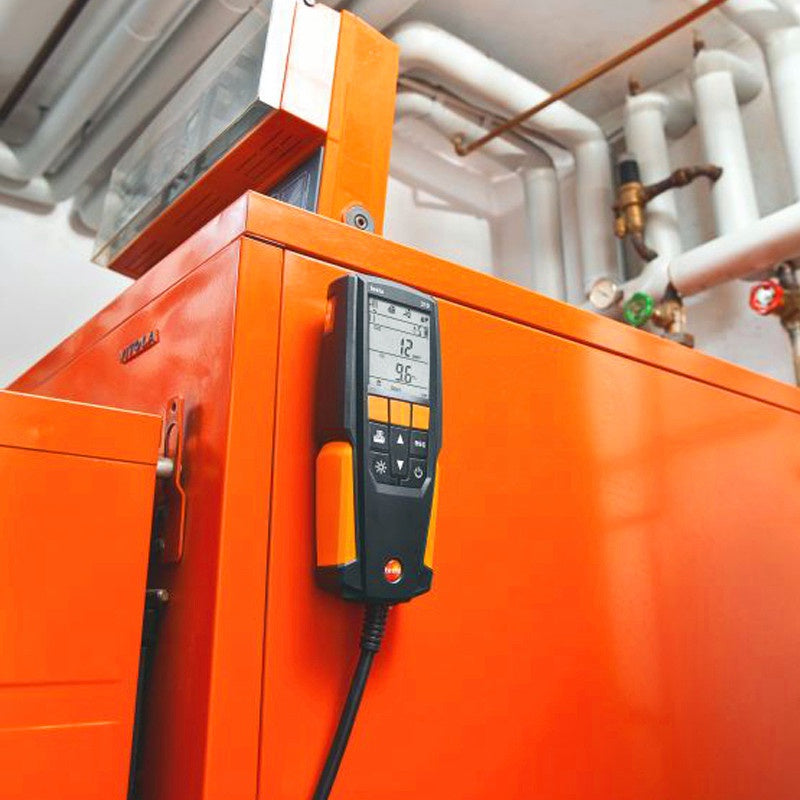

   But that is by no means all. The compact flue gas analyzer has a wide range of useful features that make it the ideal companion for plumbing and heating fitters. Thanks to the built-in magnet, it can stick to almost any metal object, like a burner for example, leaving both hands free for other tasks. The sensor can be zeroed in as little as 30 seconds and the sensor filter is just as easy to replace. In addition to that, the device has a rugged design which protects it against impact and damage and an easy-to-empty condensate collection tank.

   To round things off, the readings can also be transferred directly to your testo turbo printer (optional) via the analyzer’s infrared interface, allowing you to print out on site.

   What’s included

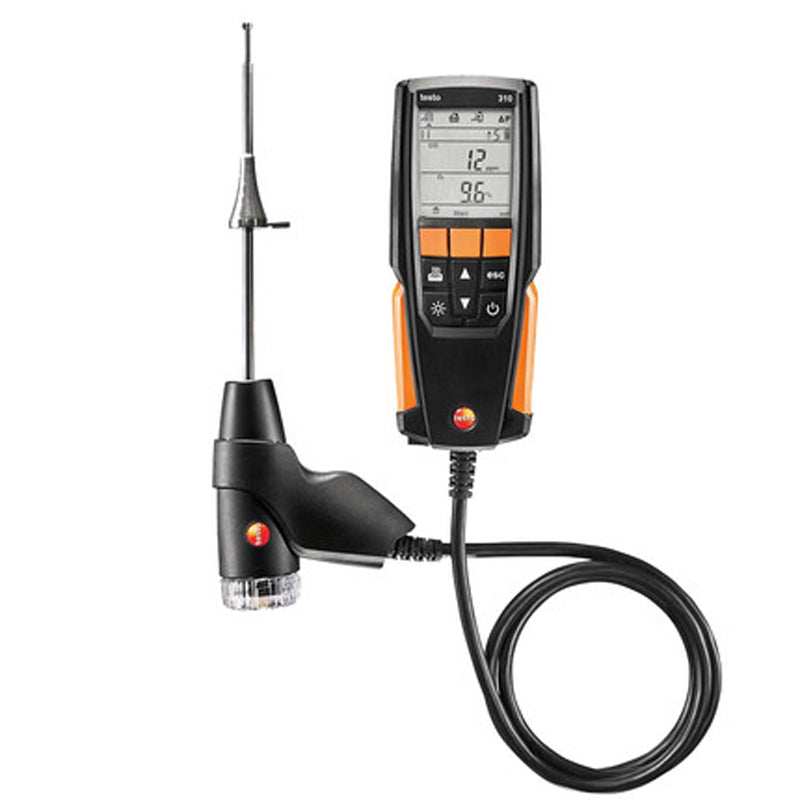

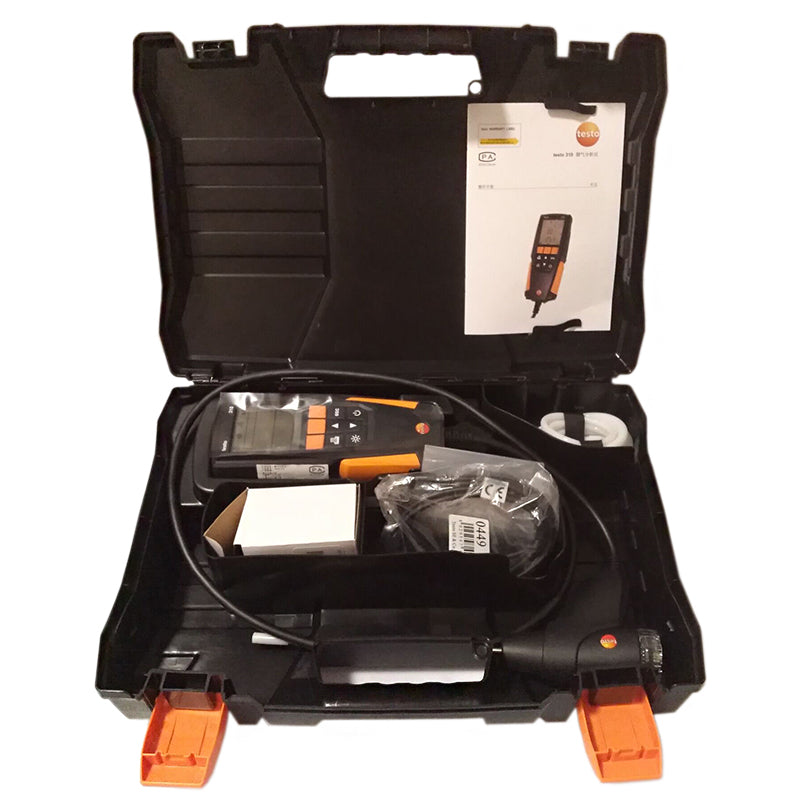

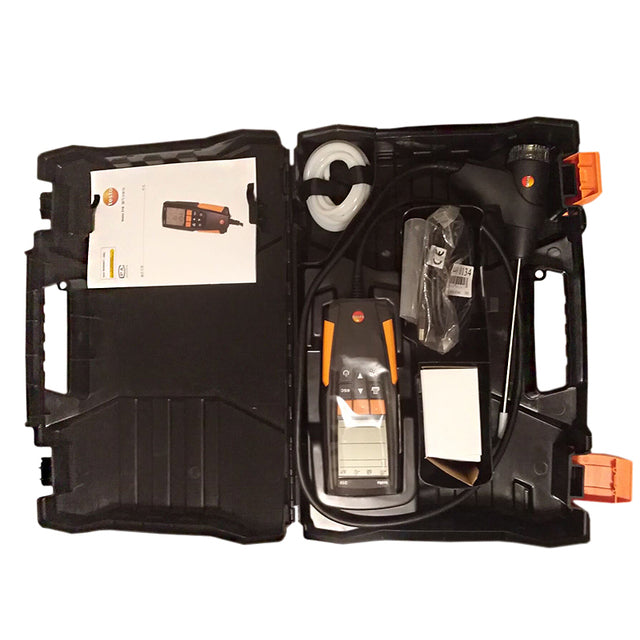

   testo 310 flue gas analyzer, rechargeable battery, calibration certificate for O2, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 10x particle filters, case.

   Delivery Scope

   testo 310 flue gas analyzer, rechargeable battery, calibration protocol for O2, CO, hPa and °C measurements, 7 in. conical sensor, silicone tube for pressure measurements, 5x particle filters, case.

   Technical Data

          General

technical data

              Weight

    (with probe)

Approx. 700 g

          Dimensions

    201 x 83 x 44

mm

          Operating

temperature

    -5 to +45 °C

          Display type

    LCD (Liquid

Crystal Display)

          Display

function

    Backlit 2-line

display

          Power supply

    Battery: 1500

mAh, mains unit 5V/1A

          Storage

temperature

    -20 to +50 °C

          Temperature -

TC Type K (NiCr-Ni)

              Measuring

range

    -20 to +100 °C

          Accuracy

    ±1 °C

          Resolution

    0.1 °C

          Reaction time

    < 50 s

 Temperature

(ambient temperature)

          Temperature -

TC Type J (Fe-CuNi)

              Measuring

range

    0 to +400 °C

          Accuracy

    ±1 °C (0 to

+100 °C)

±1.5 % of mv

(> 100 °C)

          Resolution

    0.1 °C

          Reaction time

    < 50 s

 Temperature

(flue gas)

          Flue gas O₂

              Measuring

range

    0 to 21 Vol.%

          Accuracy

    ±0.2 Vol.%

          Resolution

    0.1 Vol.%

          Reaction time

t₉₀

    30 s

          Differential

Pressure flue gas Draught - Piezoresistive

              Measuring

range

    -20 to +20 hPa

          Accuracy

    ±0.03 hPa

(-3.00 to +3.00 hPa)

±1.5 % of mv

(Remaining Range)

          Resolution

    0.01 hPa

          Flue gas

degree of effectivity, Eta (calculated)

              Measuring

range

    0 to 120 %

          Resolution

    0.1 %

          Flue gas loss

(calculated)

              Measuring

range

    0 to 99.9 %

          Resolution

    0.1 %

          Flue gas CO₂ calculation (calculated from O₂)

              Measuring

range

    0 to CO₂ max (Display range)

          Accuracy

    ±0.2 Vol.%

          Resolution

    0.1 Vol.%

          Reaction time

t₉₀

    < 40 s

          Pressure

measurement

              Measuring

range

    -40 to +40 hPa

          Accuracy

    ±0.5 hPa

          Resolution

    0.1 hPa

          Flue gas CO

(without H₂-compensation)

              Measuring

range

    0 to 4000 ppm

          Accuracy

    ±20 ppm (0 to

400 ppm)

±5 % of mv

(401 to 2000 ppm)

±10 % of mv

(2001 to 4000 ppm)

          Resolution

    1 ppm

          Reaction time

t₉₀

    60 s

          Ambient CO

              Measuring

range

    0 to 4000 ppm

          Accuracy

    ±20 ppm (0 to

400 ppm)

±5 % of mv

(401 to 2000 ppm)

±10 % of mv

(2001 to 4000 ppm)

          Resolution

    1 ppm

          Reaction time

    60 s
