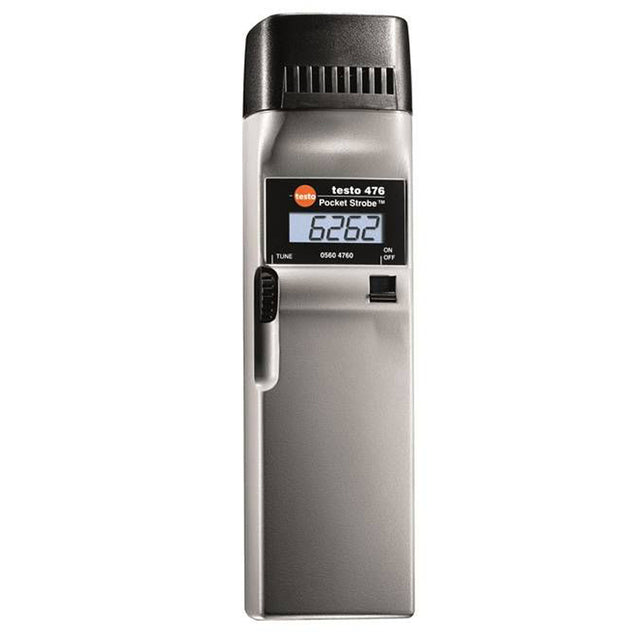

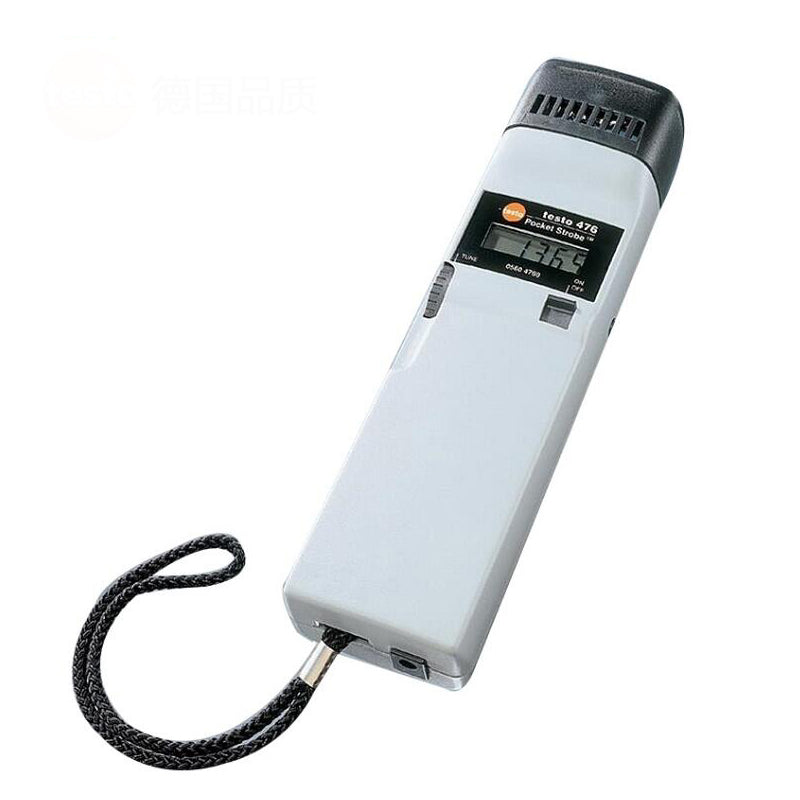

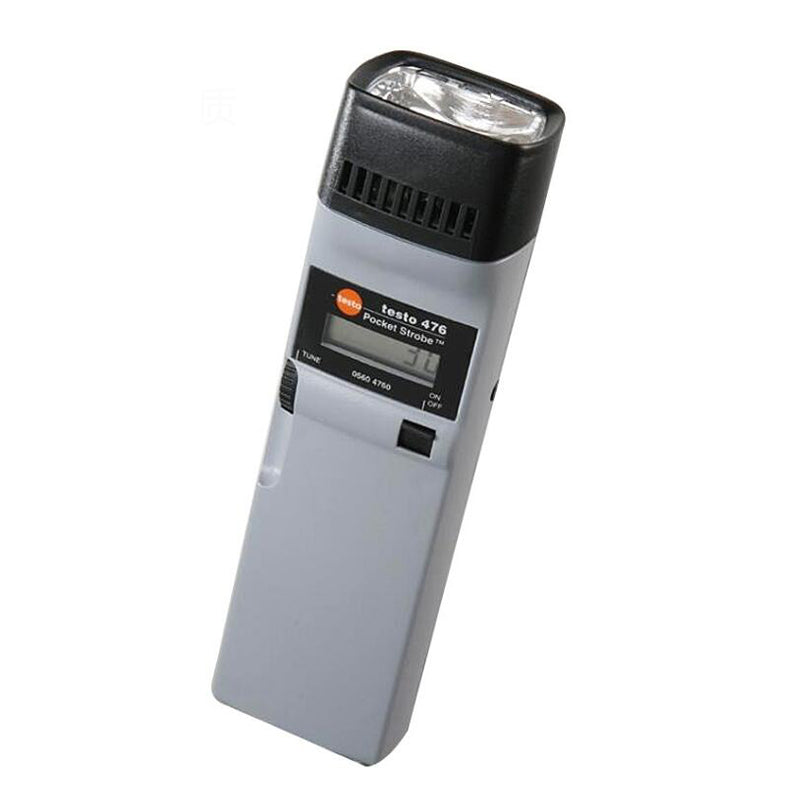

Testo 476 Handheld Stroboscope (Xenon) Ideal for Checking High-frequency Moving Parts Testo 476 0563 4760

      Product Description：

 The testo 476 hand-held Xenon stroboscope with high-intensity light allows fast-moving objects to appear in slow motion. In doing so, the hand-held stroboscope measures and checks rotational and vibratory movements. It enables measurement of very small objects or in inaccessible places – what is more, without any interruption to the production process. The testo 476 is therefore ideally suited for rpm measurement and for the inspection of parts moving at high frequencies.

   *High adjustment accuracy and stability thanks to dynamic setting dial

   *High light intensity thanks to high-performance xenon flashlamp

   *Powerful Li-Ion rechargeable battery pack for at least 2 hours of continuous operation

   *Extremely short flash duration (< 9 µs)

   *Ideal for rpm measurement and for the inspection of parts moving at high frequencies: the testo 476 hand-held stroboscope with high-intensity light.

Where the testo 476 hand-held stroboscope is used

Air conditioning/ventilation technology: monitoring/checking that HVAC systems are working properly

Textile industry: monitoring of thread guides on knitting machines (extremely fast flash frequency needed)

Automotive industry: detecting vibration hotspots in exhaust systems

Packaging machines: monitoring bottle sealing and labelling

Metal foil production: monitoring product quality

Vibratory conveying technology: checking for defects during operation

Printing industry/flexo printing/label printing: monitoring print quality

            rpm - Xenon

       Measuring range

   30 to 12500 rpm

       Accuracy

   ±0.01 % of mv

       Resolution

   1 rpm

       General technical data

       Illumination value

   1200 Lux at distance of approx. 20 cm

       Flash colour

   6000 to 6500 K

       Life-time flash lamp

   200,000,000 flashes

       Connection external trigger

   0 to 5 V DTL/TTL compatible; 3.5 mm / 1/8 Standard plug; Uout=7.2 V unregulated

       Display type

   LCD (Liquid Crystal Display)

       Display size

   one-line

       Display function

   5 digit LCD display

       Storage battery type

   NiMH rechargable battery pack

       Battery charging time

   max. 3.5 h

       Battery deep discharge protection

   yes

       Overload discharge protection

   yes

       Battery conservation charging

   yes

       Mains voltage rech. battery:

   100 to 240 V, 50/60 Hz
