Testo Smart Probes Heating Kit 0563 0004 10 Non-contact Temperature Measurement Testo 115i 510i 805i Case

 Description

Testo Smart Probes Heating Kit 0563 0004 10 Non-contact Temperature Measurement Testo 115i 510i 805i

 Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure

 Measurement menu for pressure-drop test including alarm function

 Display measurement data as a graph or table and analyze and send via testo Smart App

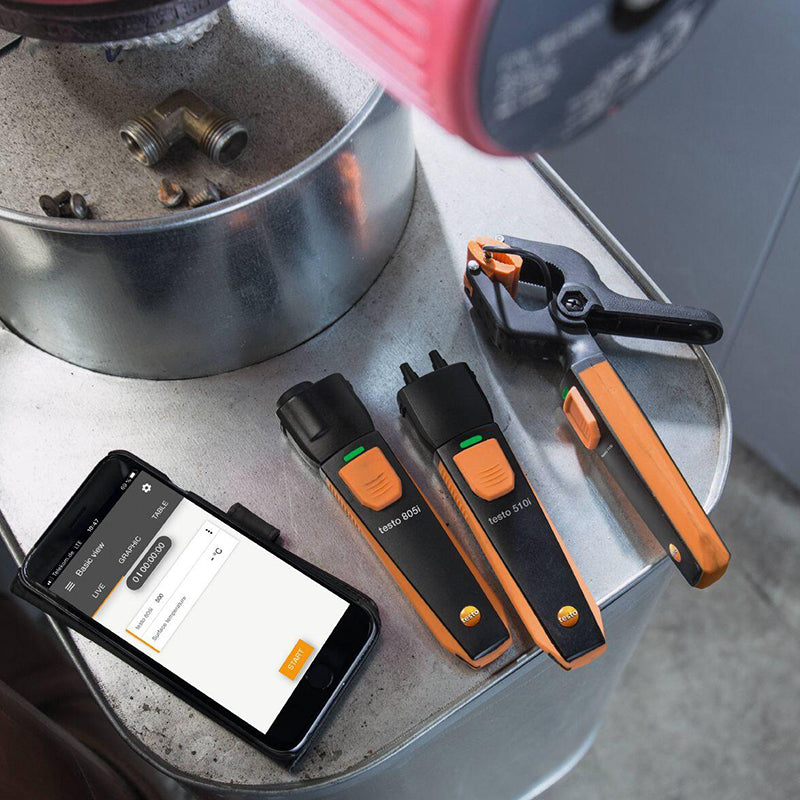

      In conjunction with your smartphone/tablet, measure and check all heating system temperatures and pressures

Product Description

For heating engineers: Compact kit containing three measuring instruments for carrying out your most important measuring tasks involving heating systems. The testo Smart App enables you to work more easily and efficiently: Use the measurement menus for pressure drop test with alarm function or for non-contact IR temperature measurement with image documentation including measuring value and measurement spot marking. Measurement data reports can be emailed directly as a PDF or Excel file.

Products in set

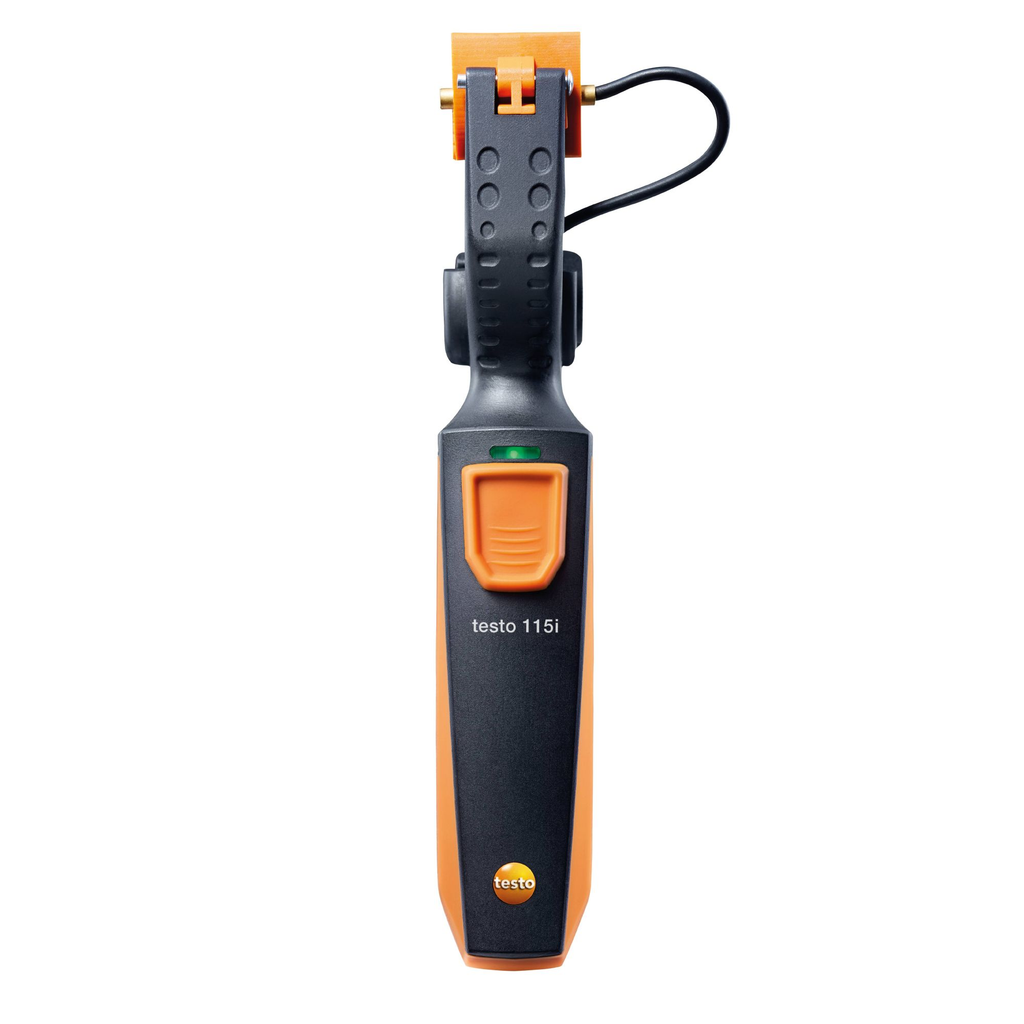

Testo 115i - Clamp thermometer operated via smartphone

Order-Nr. 0560 2115 02

Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

Fast identification of temperature changes by graphic progression display

Technical Data

            Temperature - NTC

         Measuring range

   -40 to +150 °C

       Accuracy

   ±1.3 °C (-20 to +85 °C)

       Resolution

   0.1 °C

            General technical data

         Weight

   127.4 g

       Dimensions

   183 x 90 x 30 mm

       Operating temperature

   -20 to +50 °C

       Product-/housing material

   Plastic

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0

       Product colour

   black/orange

       Battery type

   3 AAA micro batteries

       Battery life

   150 h

       Data transfer

   Bluetooth®

       Radio range

   100 m

       Storage temperature

   -20 to +60 °C

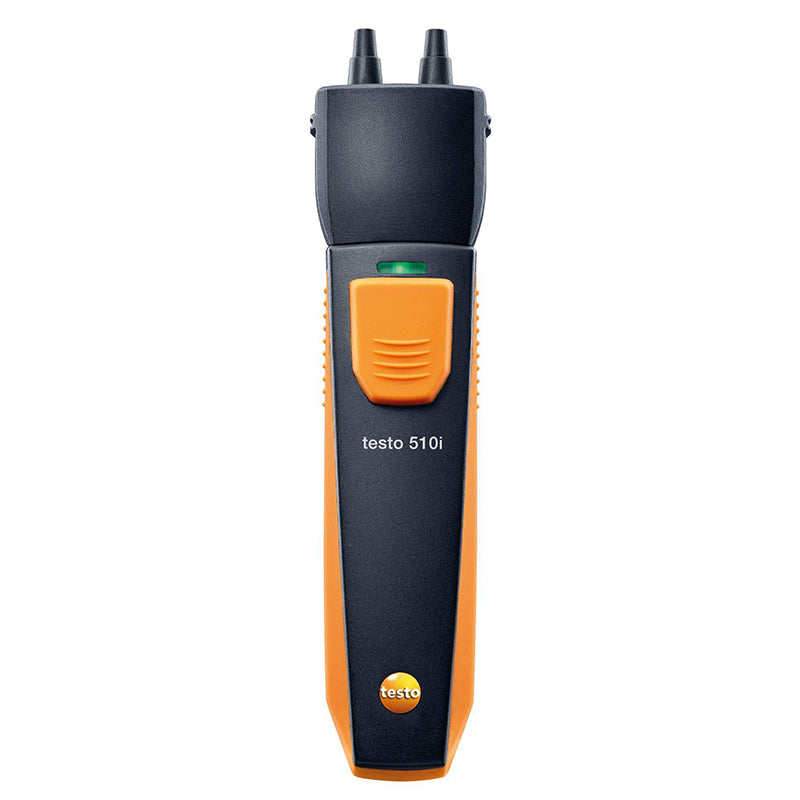

Testo 510i - differential pressure measuring instrument with smartphone operation

Order-Nr. 0560 1510

Measurement of gas flow and static pressure

Measurement menu for pressure drop test including alerts

Technical Data

            Differential pressure (internal sensor) - Piezoresistive

         Measuring range

   -150 to +150 hPa

       Accuracy

   ±0.05 hPa (0 to +1 hPa)

±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)

       Resolution

   0.01 hPa

            General technical data

         Weight

   92 g

       Dimensions

   148 x 36 x 23 mm

       Operating temperature

   -20 to +50 °C

       Product-/housing material

   ABS / TPE

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

       Product colour

   black/orange

       Battery life

   150 h

       Battery type

   3 AAA micro batteries

       Storage temperature

   -20 to +60 °C

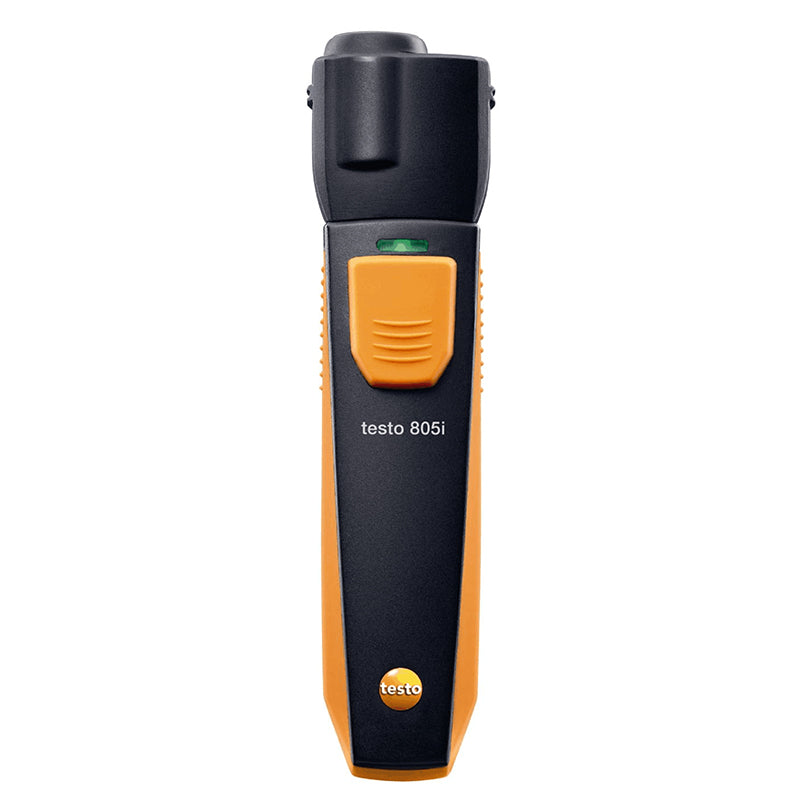

Testo 805 i - infrared thermometer with smartphone operation

Order-Nr. 0560 1805

Non-contact infrared measurement of surface temperature

Easy selection of emission level via stored materials list

Technical Data

            Temperature - Infrared

         Measuring range

   -30 to +250 °C

       Accuracy

   ±1.5 °C or ±1.5 % of mv (0 to +250 °C)

±2 °C (-20 to -0.1 °C)

±2.5 °C (-30 to -20.1 °C)

       Resolution

   0.1 °C

            General technical data

         Weight

   97 g

       Dimensions

   140 x 36 x 25 mm

       Operating temperature

   -10 to +50 °C

       Product-/housing material

   ABS / TPE

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

       Product colour

   black/orange

       Battery life

   30 h

       Battery type

   3 AAA micro batteries

       Storage temperature

   -20 to +60 °C

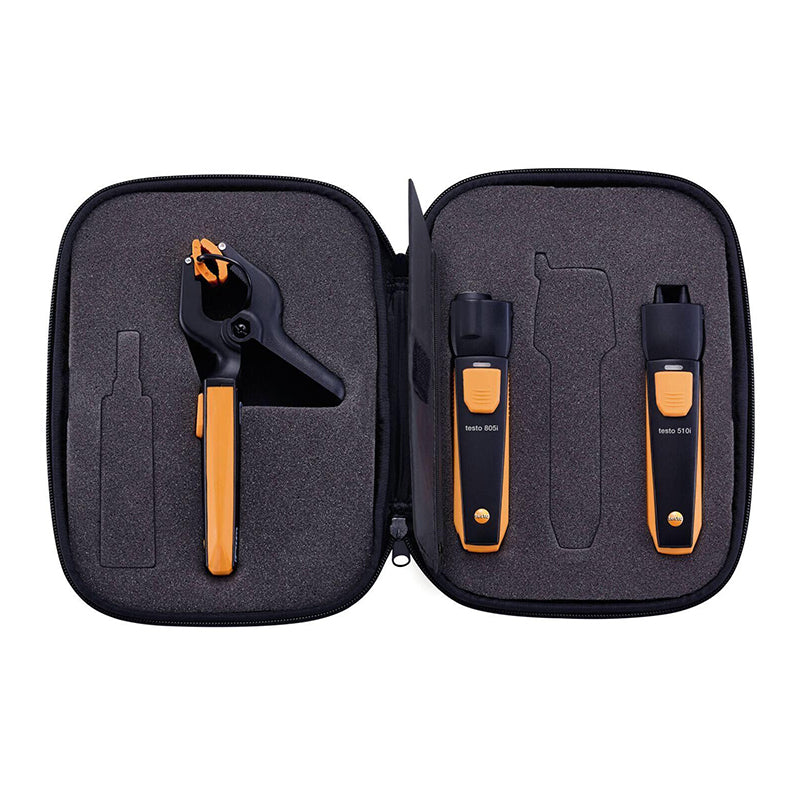

Testo Smart Case (Heating) - storage case for Smart Probes measuring instruments

Order-Nr. 0516 0270

Practical storage case for Smart Probes testo 115i, testo 510i, testo 805i, testo 410i and testo 549i (available separately)

Outer: impact-resistant, flexible hard shell with zip

Delivery Scope

1 x testo 115i surface thermometer operated via smartphone, including batteries and calibration protocol (0560 2115 02)

1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)

1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)

1 x testo Smart Case “Heating”, including foam insert (0516 0270)
