Testo Smart Probes VAC Kit   0563 0003 10 Non-contact Temperature Measurement  405i 410i 805i 605i Case

Product Description

For air-conditioning engineers: Compact kit containing four measuring instruments for your most important measuring tasks in, on and involving air conditioning systems. The testo Smart App enables you to work more easily and efficiently: Use intuitive measurement menus for volume flow measurement, for automatic calculation of the dew point and wet bulb temperature or for detecting areas susceptible to mould according to the traffic light principle. Measurement data reports can be emailed directly as a PDF or Excel file.

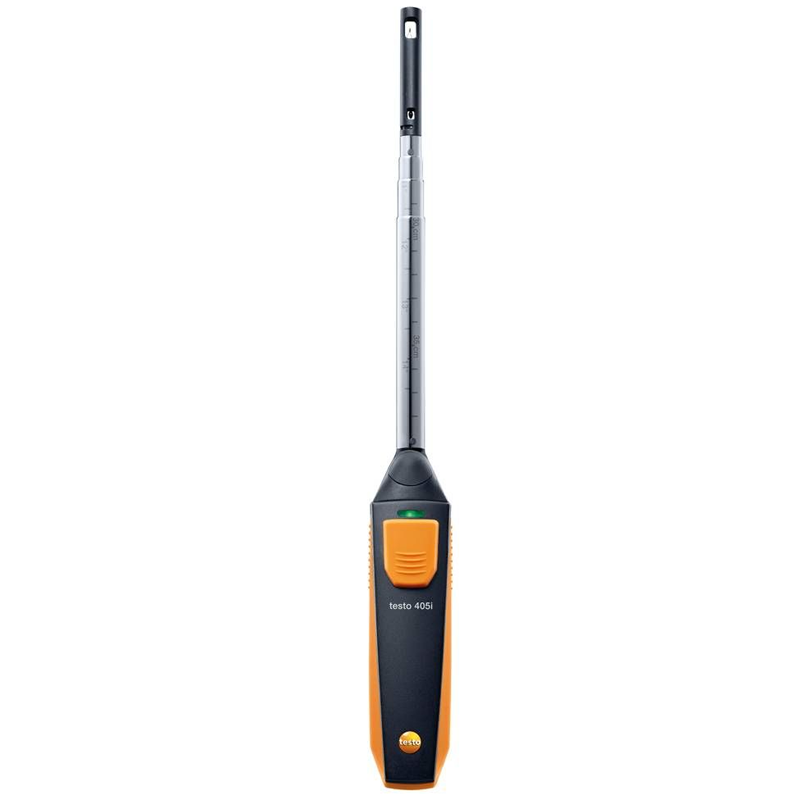

testo 405 i - thermal anemometer with smartphone operation

With the testo 405i hot wire anemometer, you can measure air velocities, temperatures and volume flows. Via Bluetooth, the readings are transmitted wirelessly straight to the testo Smart App on your smartphone or tablet. You can view the values conveniently and use numerous intelligent features:

      Technical Data

      General technical data

         Weight

   119.6 g

       Dimensions

   200 x 30 x 41 mm

       Operating temperature

   -20 to +50 °C

       Product-/housing material

   Plastic

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

       Product colour

   black/orange

       Battery life

   15 h

       Battery type

   3 AAA micro batteries

       Diameter probe shaft

   12 mm

       Diameter probe shaft tip

   9 mm

       Length probe shaft

   400 mm

       Storage temperature

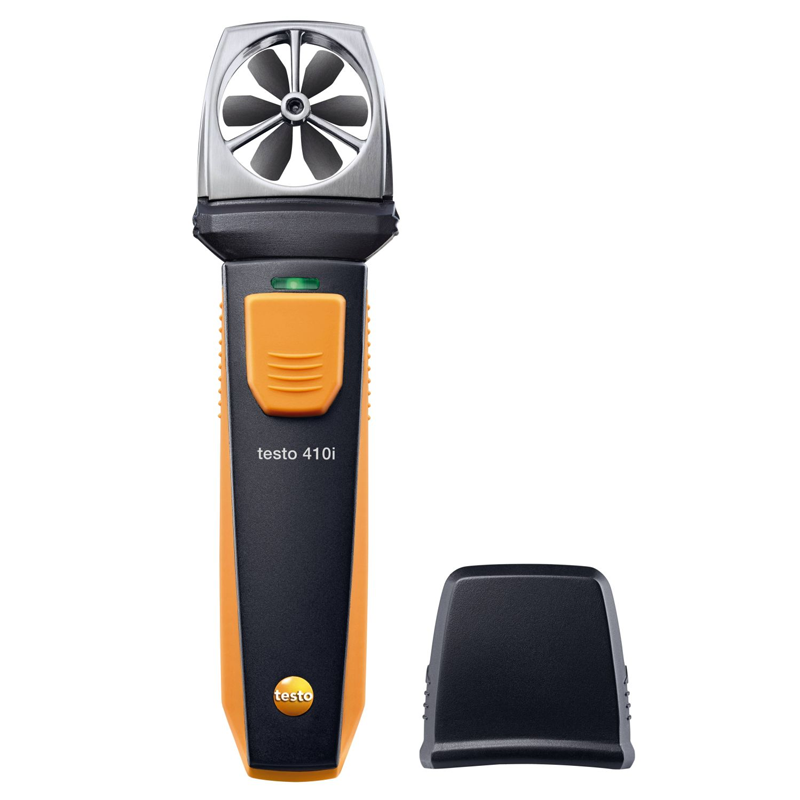

testo 410 i - vane anemometer with smartphone operation

 Professional measuring technology in a small format: the compact testo 410i vane anemometer with smartphone operation measures the volume flow, air velocity and temperature at air outlets quickly and reliably. The testo Smart App enables readings to be viewed conveniently and offers intelligent additional functions.

      Technical Data

      General technical data

         Weight

   117.8 g

       Dimensions

   154 x 43 x 21 mm

       Operating temperature

   -20 to +50 °C

       Product-/housing material

   Plastic

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

       Product colour

   black/orange

       Battery life

   130 h

       Battery type

   3 AAA micro batteries

       Diameter vane

   30 mm

       Storage temperature

   -20 to +60 °C

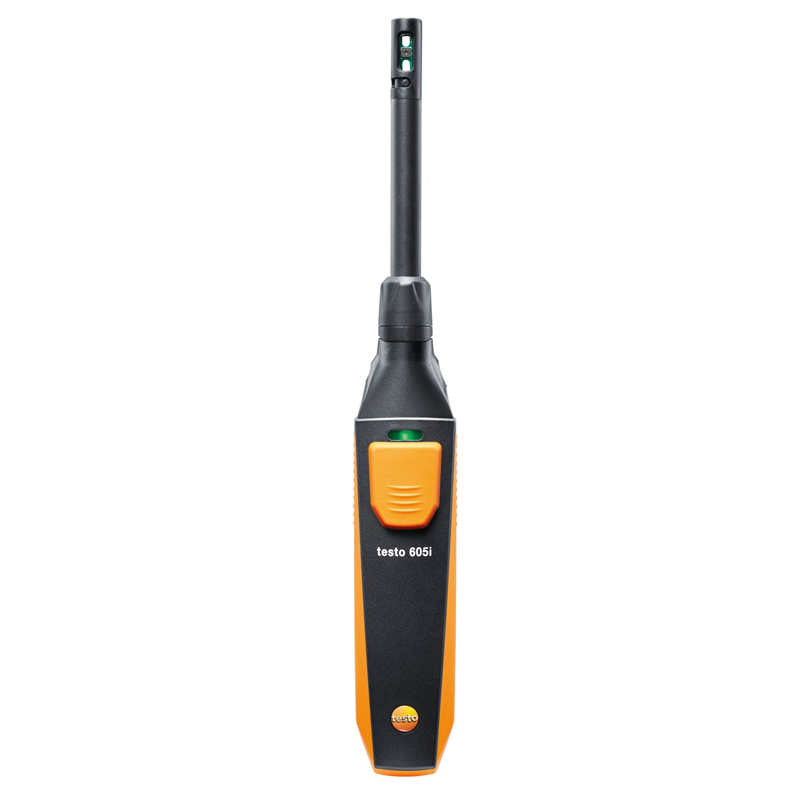

testo 605i - Thermohygrometer operated via smartphone

The compact testo 605i temperature and humidity measuring instrument with bendable probe head features professional measuring technology in an intelligent format: it can be used in conjunction with a smartphone/tablet and the testo Smart App to reliably measure air temperature and humidity in rooms and ducts.

      Technical Data

      General technical data

         Weight

   86.4 g

       Dimensions

   218 x 30 x 27 mm

       Operating temperature

   -20 to +50 °C

       Product-/housing material

   Plastic

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

       Product colour

   black/orange

       Battery life

   150 h

       Battery type

   3 AAA micro batteries

       Length probe shaft

   100 mm

       Data transfer

   Bluetooth®

       Radio range

   100

       Storage temperature

   -20 to +60 °C

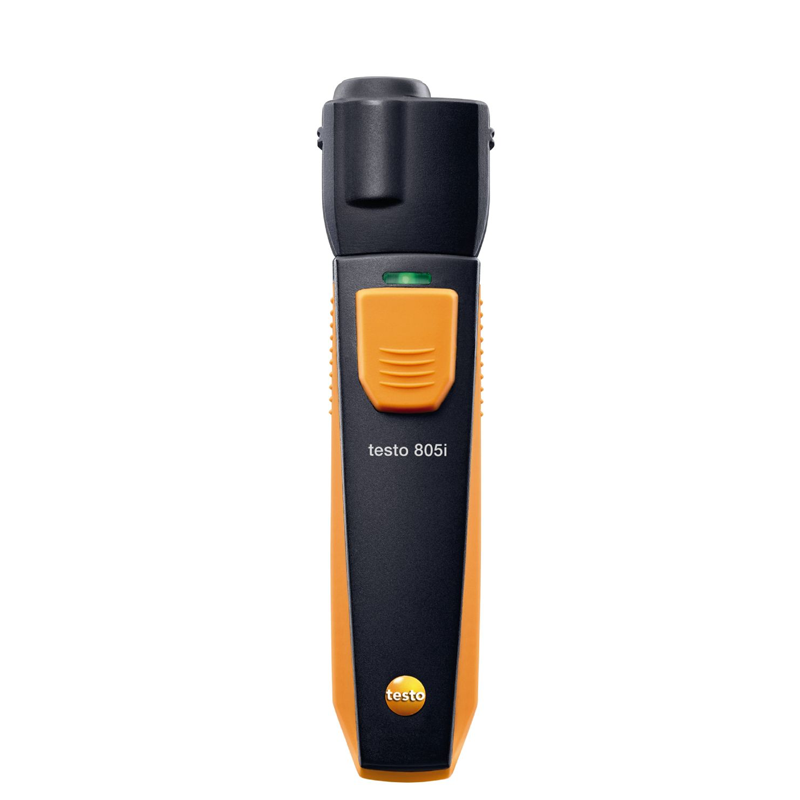

testo 805 i - infrared thermometer with smartphone operation

carry out non-contact and App-controlled measurement of wall temperatures, as well as fuse and component temperatures in air conditioning systems: with the professional testo 805i infrared thermometer with 8-point laser circle for highly visible measuring spot marking.

      Technical Data

      General technical data

         Weight

   97 g

       Dimensions

   140 x 36 x 25 mm

       Operating temperature

   -10 to +50 °C

       Product-/housing material

   ABS / TPE

       System requirements

   requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2

       Product colour

   black/orange

       Battery life

   30 h

       Battery type

   3 AAA micro batteries

       Storage temperature

   -20 to +60 °C

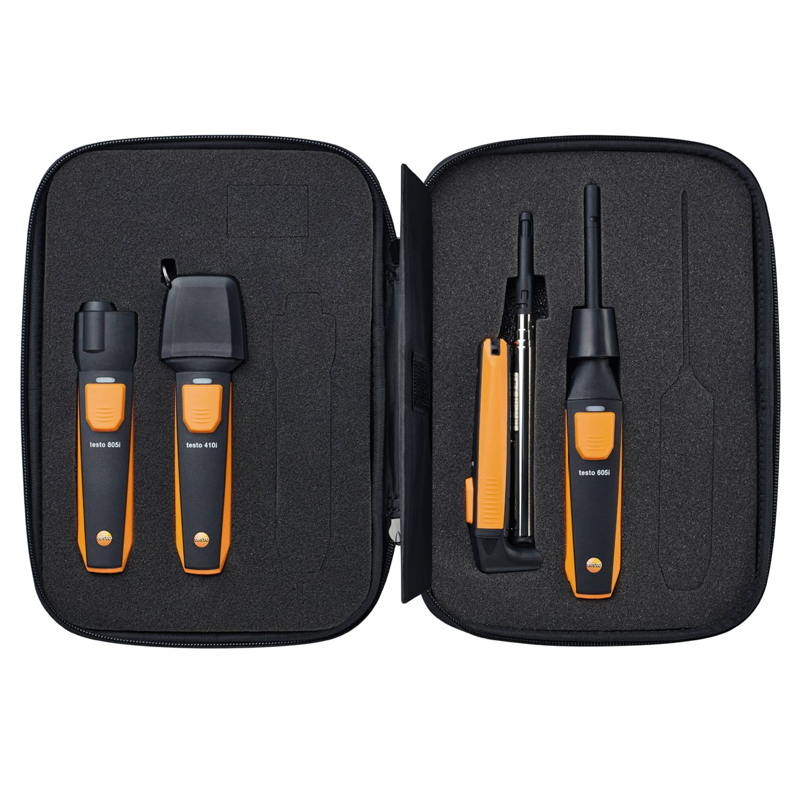

Delivery Scope

 1 x testo 405i thermal anemometer operated via smartphone, including extendable (400 mm) telescope, batteries and calibration protocol (0560 1405)

 1 x testo 410i vane anemometer operated via smartphone, including protective cap, batteries and calibration protocol (0560 1410)

 1 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)

 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)

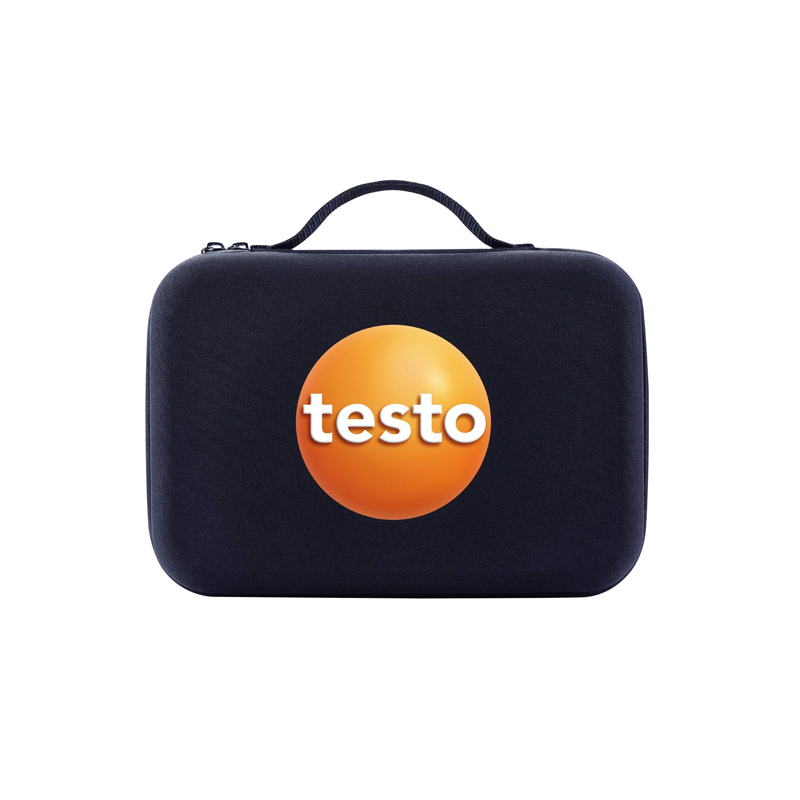

 1 x testo Smart Case “VAC”, including foam insert (0516 0260)
