Features:

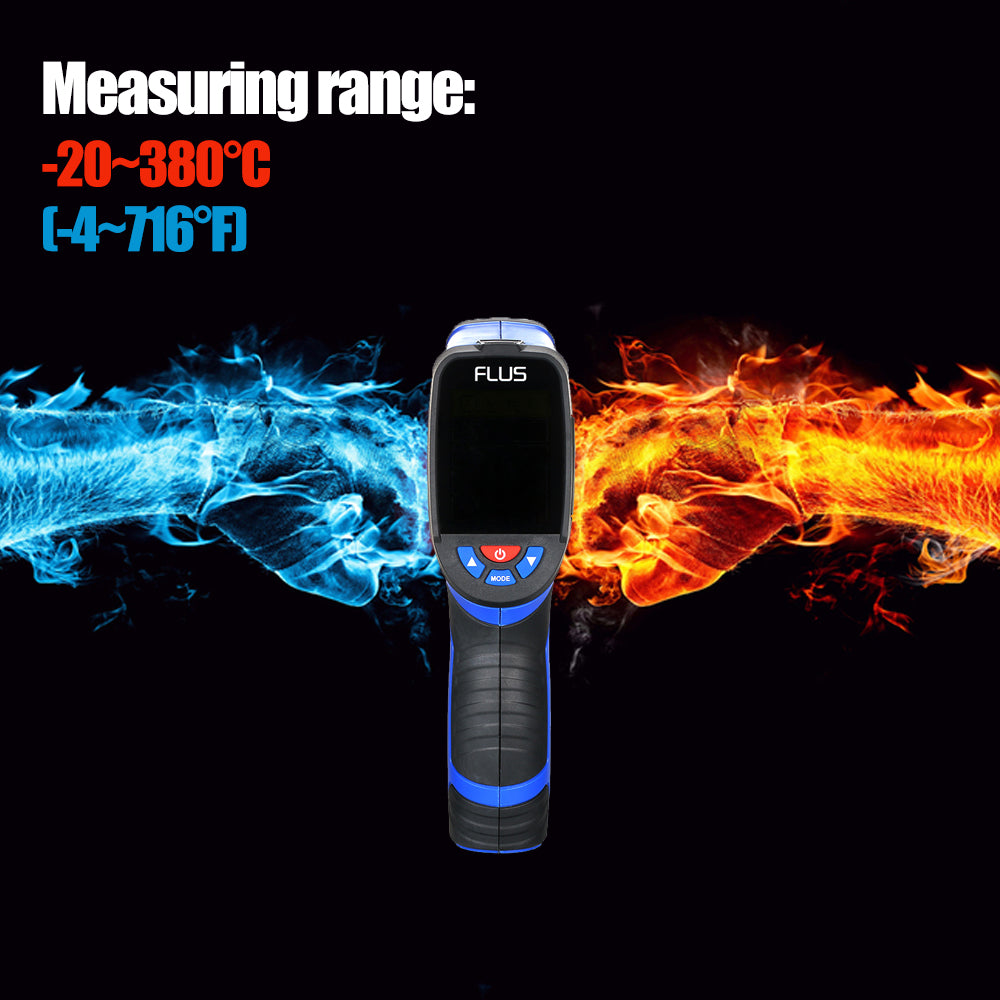

Wide temperature measurement range: -20~380°C / -4~716°F.

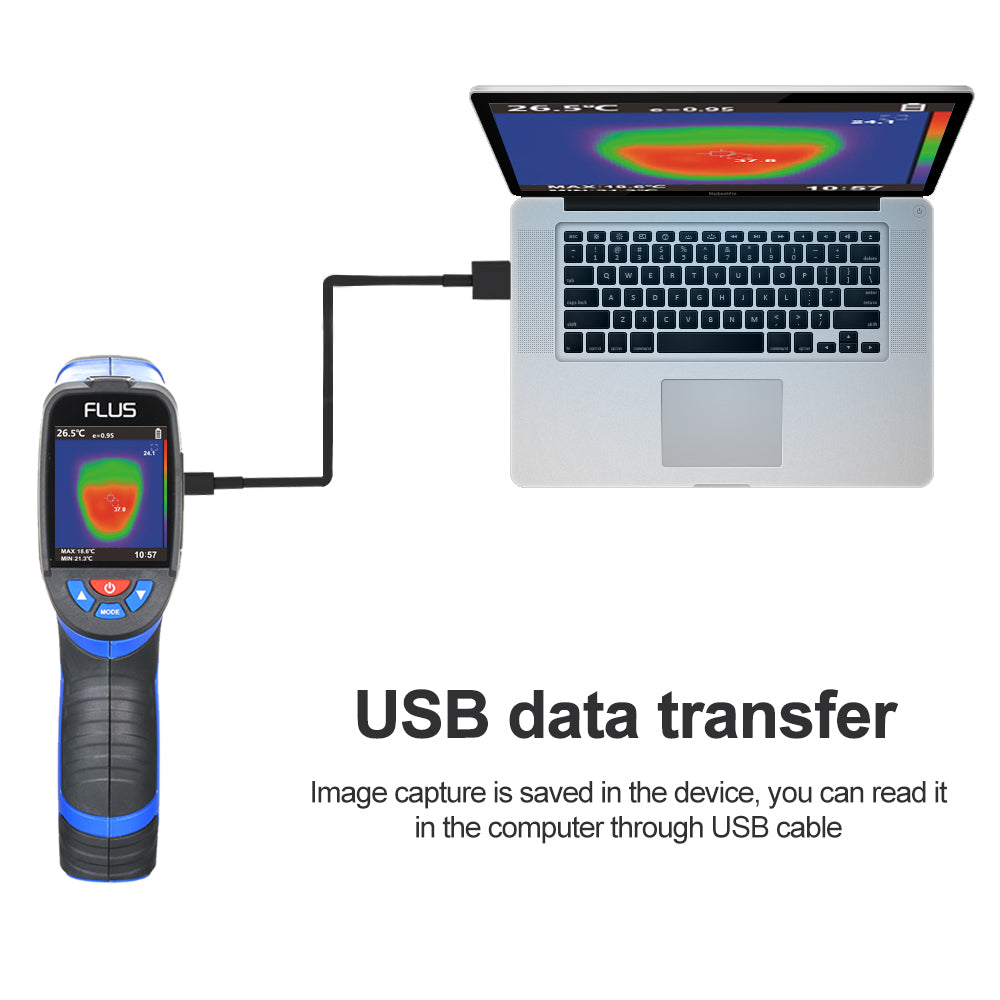

USB connect computer to check or download the thermal images that are stored in the thermal imager.
This real-time thermal imaging camera offers 5 different color palettes for a better-detailed display of the target, Ink color, black and white, rainbow color, ocean blue, iron red.
Our full color display screen shows thermal detection and visible light imagery in 240 x 320 display resolution, allowing the user to see the full range of infrared imagery.

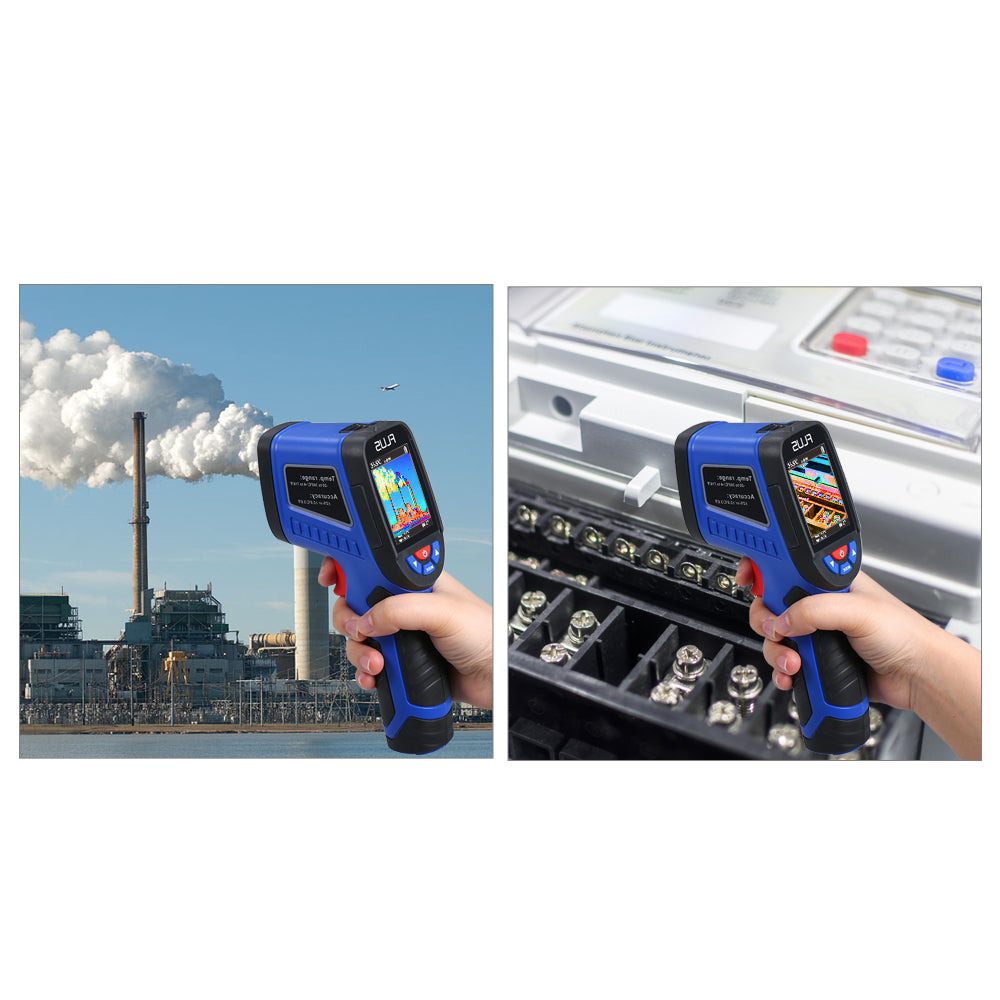

With this product, you can measure the temperature of the item quickly and safely.
Digital LCD display with backlight, convenient to read even in the dark environment.
Compact size, user-friendly structure and easy operation.
Equipped with 5 modes to adjust the mixed imaging from 0% to 100%.
Specifications:
Measuring range: -20~380°C(-4~716°F)
Infrared imaging resolution: 33 * 33 (1089 pixels)
Display resolution: 240 * 320 pixels
Visual imaging resolution: 300000 pixels
Field angle: 32 * 32 degrees
Best focus distance: 0.5m
Thermal sensitivity: 0.15°C/ 0.27°F
Spectral response: 8-14μm
Emissivity: adjustable from 0.1 to 1.0
Palette: ink color, black and white, rainbow color, ocean blue, iron red
Image frequency: 9HZ
Focus mode: fixed
Storage: 8GB Micro card
File format: BMP
Auto off: 3 min, 5 min, 10 min are optional
Powered by: 4 * LR6 AA and USB supply
Item size: 200 * 80 * 50mm / 7.87 * 3.15 * 1.97in
Item weight: 286g / 10.09 ounce
Package size: 245 * 155 * 80mm / 9.65 * 6.10 * 3.15in
Package weight: 734g / 25.89 ounce
Package List:
1 * Thermal Imager
1 * USB cable
1 * Card reader
1 * User manual(English)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
