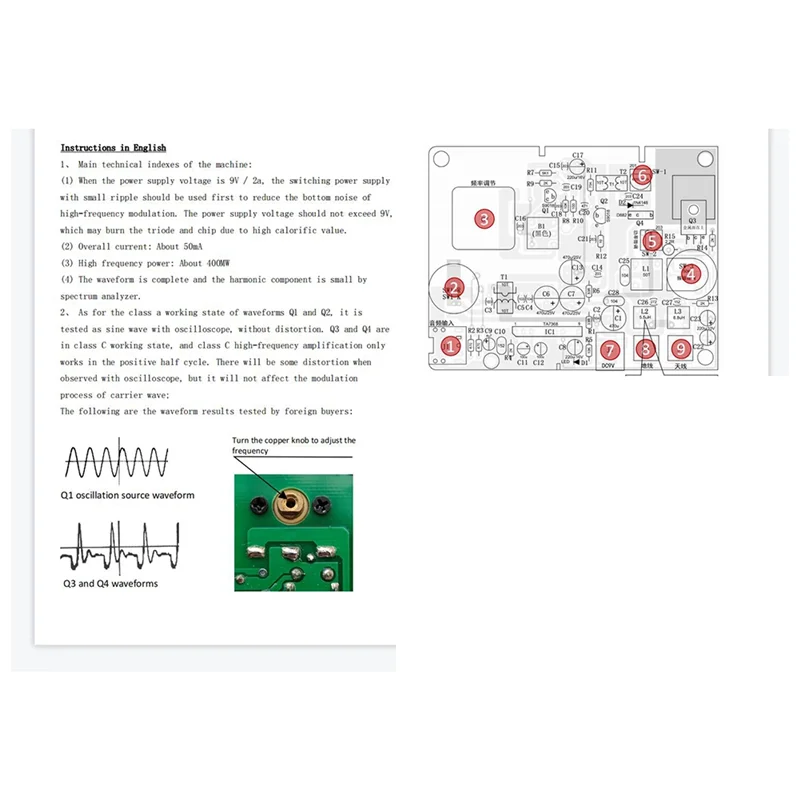

Assembly instructions for experimental AM transmitter (version 2023)

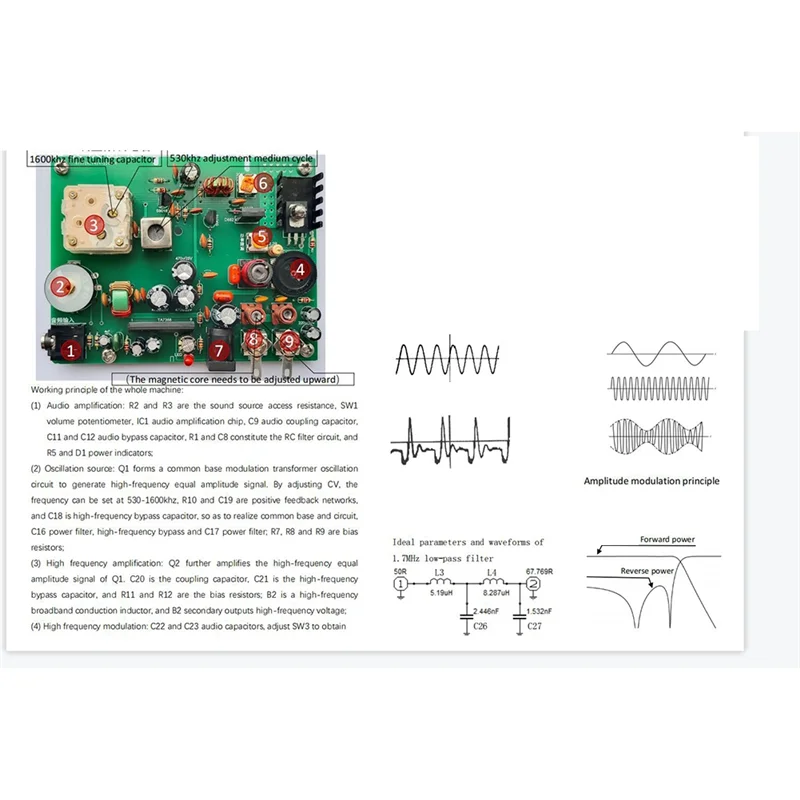

Objective: (1) Understand the principle of high frequency signal osci I lat of AM transmitter
(2)Understand the principle of high frequency signal amp I ification of AM transmitter

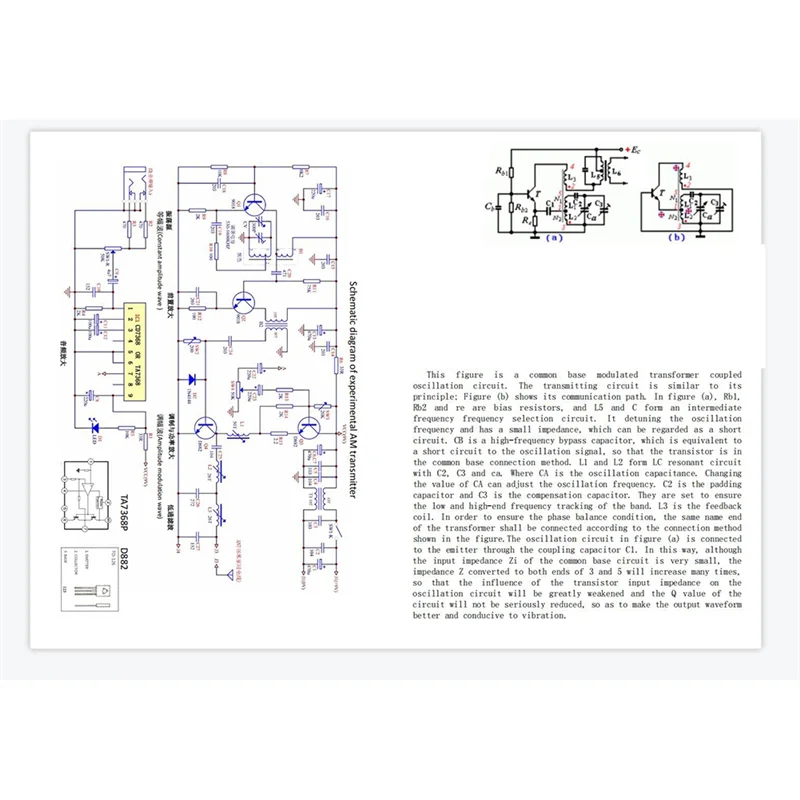

(3)Understand the modulation principle of AM transmitter
Use voltage: 5V-6V
Current : 60MA
Frequency range: 530~1600KHZ
Power consumption: 0.3W
External antenna 6M (1/50 wavelength) 75M (1/4 wavelength)(does not includeantenna)
Sound quality measurement 1 meter away from the antenna. Not susceptible to interference.
Non-directional reception 2-6 meters away from the antenna, there is a directional reception.
It may be interfered by household appliances.
From the antenna Greater than 6 meters seller unconditional test machine.
More than 3 times stronger than the student signal generator signal

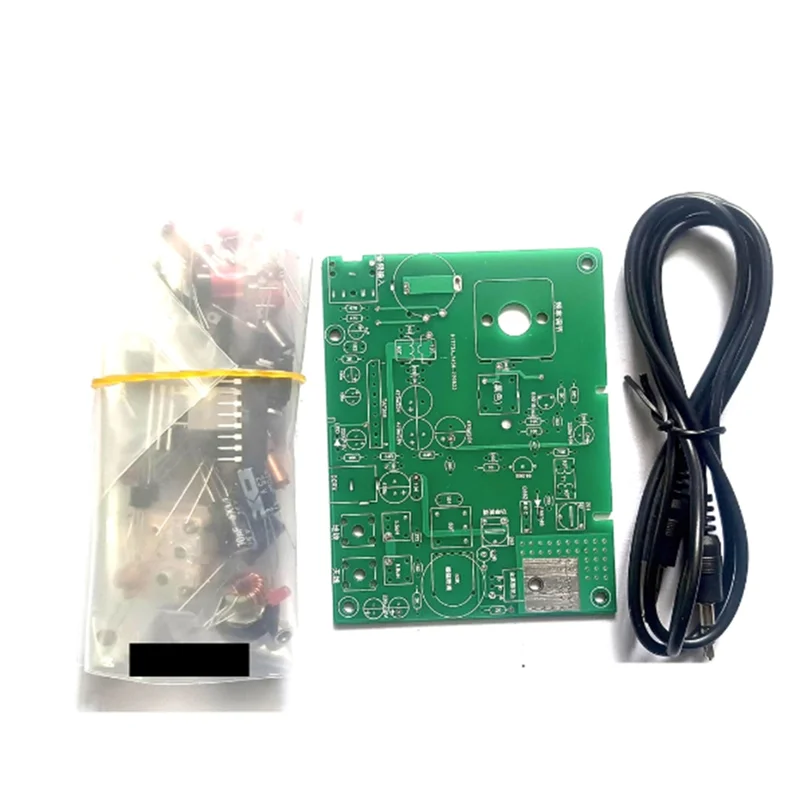

Specification: B-Finished version/A-DIY KITS
Color: As Shown
Material: PC+metal
Package Contents:
1 x AM transmitter
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
