Features:
High segmentation capability.
WiFI+RS485 communication,remote switching/closing, setting parameters.
Maintenance can be remotely locked, remotely unlocked, with mechanical lock.
Undervoltage protection: The undervoltage action value can be set, and the undervoltage function can be turned off.
Loss of voltage protection: When the undervoltage function is opened, there is loss of voltage protection, that is, power trip, at this time the product cannot be manually closed.
The operating values of voltage, current, leakage current and temperature can be set.

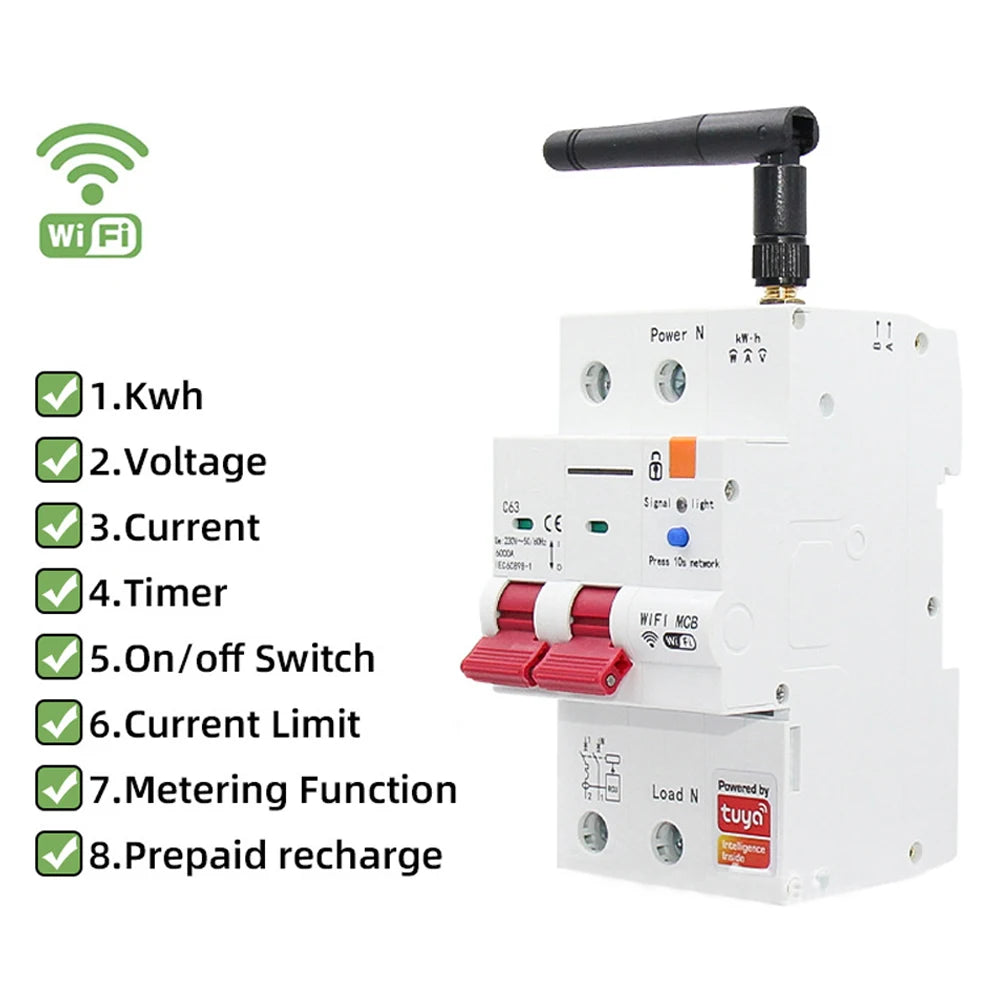

Can read real-time voltage, current, leakage current, temperature, power value, with metering function.
Manual/Automatic setting: Manual or automatic mode can be set.
Can withstand overpressure value: can operate reliablyunder overpressure (N-L:440V), and the product is not damaged.
Specifications:
Rated operating voltage: AC230V/400V
Frame grade current: 125A
Breaking Capability: lcs 6000A
Rated current In: In is 10A, 32A, 40A, 50A, 63A
Life: mechanical life 1 0000 times, electrical life 6000 times.
Operating characteristics under overpressure:
Setting range of overvoltage action value: AC240-300V
Overvoltage Recovery Uvor: AC 220-250V
Undervoltage action characteristics
Setting range of undervoltage action value: AC 140-190V
Undervoltage Recovery Value Uvur: AC 170-220V
Under voltage operation delay: 0.5S-6S
Power on again after power off: If the system is set to automatic mode, the system automatically closes when no fault is detected, and the closing time is less than 3S: If the system is set to manual mode, the system cannot automatically close.

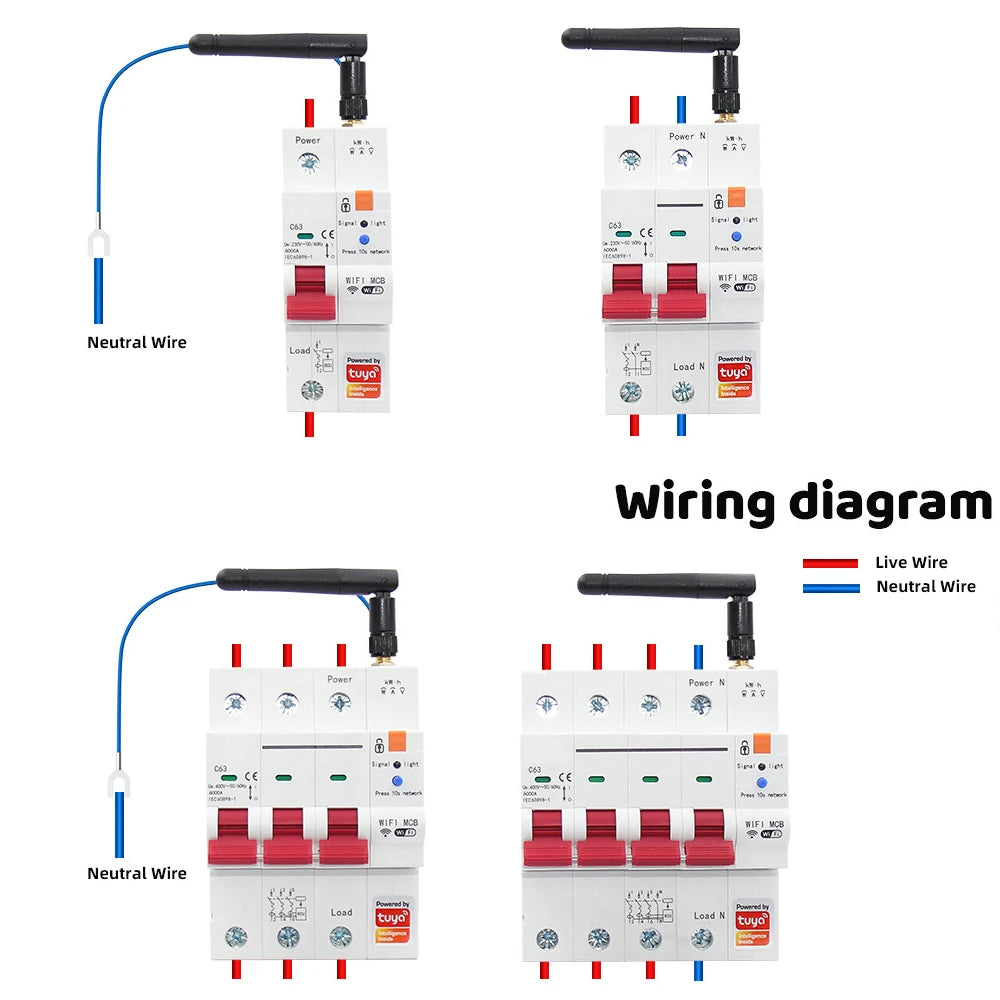

Wiring: Clamp wiring terminals are used.
Wire cross-sectional area up to 35mm2
Installation: Install on the 35.5X75mm standard guide rail
RS485 communication Baud rate: 9600: communication address range: 1-247
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1mm-1cm differences due to manual measurement.
Package Includes:
1x Leakage Circuit Breaker
