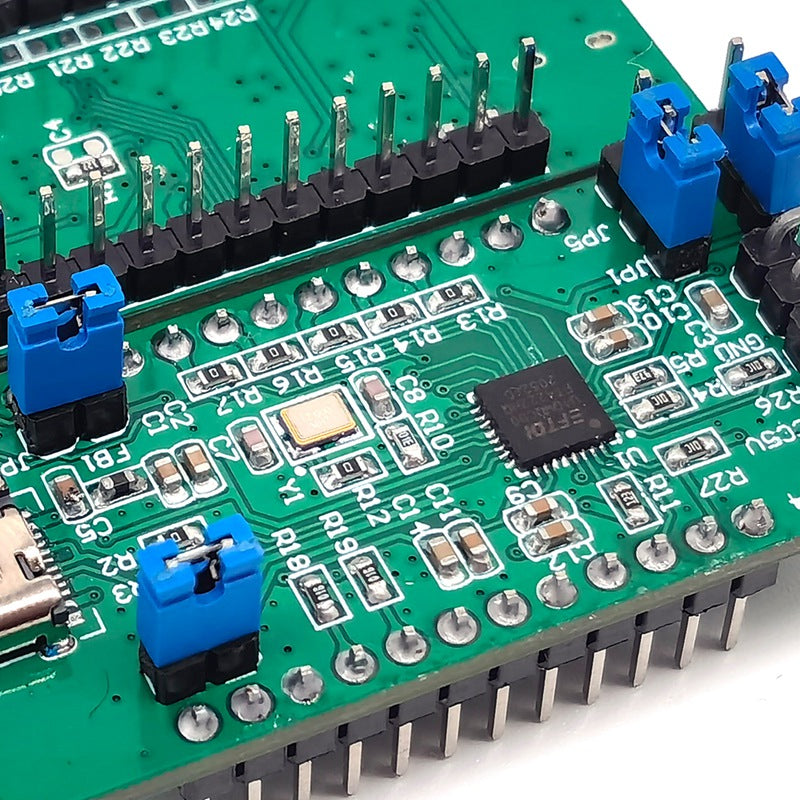

1.Single Hi-Speed USB 2.0 chip (FT4222H) to flexible and configurable SPI/I²C interfaces. SPI interface support for Single / Dual / Quad SPI Master Mode with configurable target operating speed. Up to 28Mbps data transfer rate in SPI mode with quad data mode. Support up to 4 slave selection control pins in SPI master mode. Support Single SPI Slave Mode with SCK operating frequency up to 20MHz.

2.I²C interface support 7-bits address and fully compatible to v2.1 and v3 specification for I2C Master/Slave Mode with configurable target operating speed for 100kbit/S standard mode, 400kbit/S fast mode 1Mbit/S Fast mode plus and 3.4Mbit/S high speed mode. Configurable GPIOs controlled by application software via USB bus. Fully support USB2.0 suspend/resume and remote wakeup.

3.Support Battery Charger Detection: OTP memory inside for USB Vendor ID (VID), Product ID (PID), device serial number, product description string and various other vendor specific data. USB Power Configurations; bus-powered and self-powered. On board jumper for FT4222H configuration mode, USB power configuration and VCCIO source selection.

4.Integrated power-on-reset circuit. True 3.3V CMOS drive output and TTL input. (operates down to 1.8V with external 1.8V power input to VCCIO) Support wide supply voltage range. USB2.0 Low operating and suspend current; 68mA (active-typ.) and 375uA (suspend-typ.).

5.Configurable I/O pin output drive strength: 4mA (min) and 16mA (max) UHCI / OHCI / EHCI / XHCI host controller compatible. FTDI's royalty-free Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.

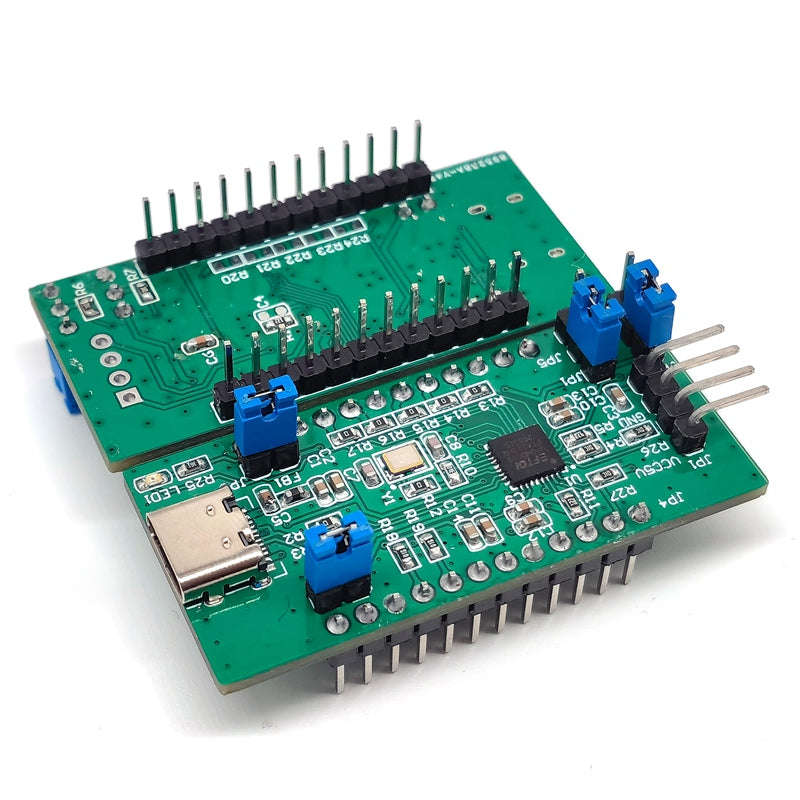

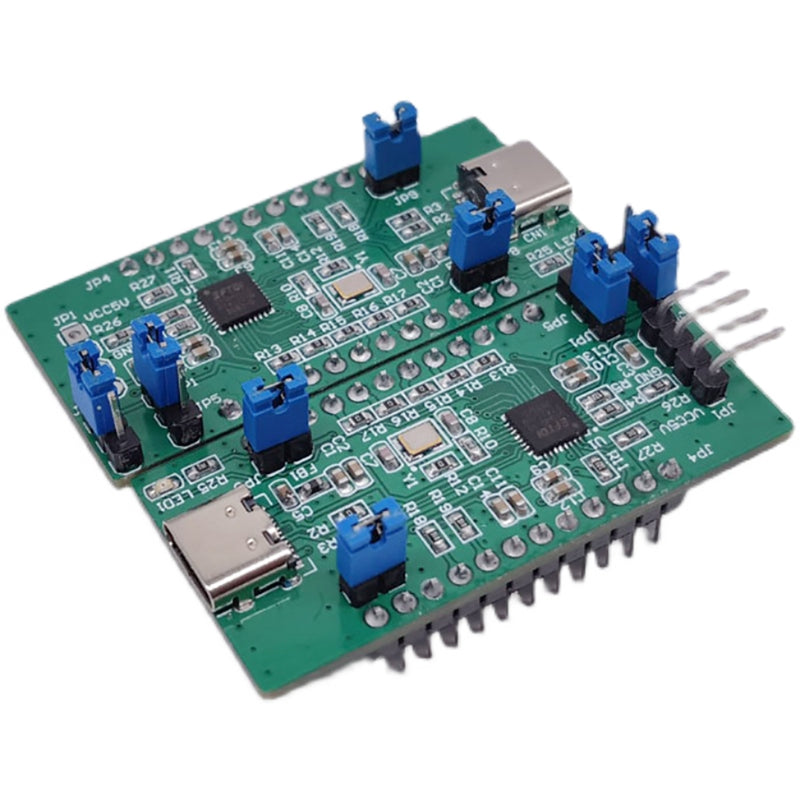

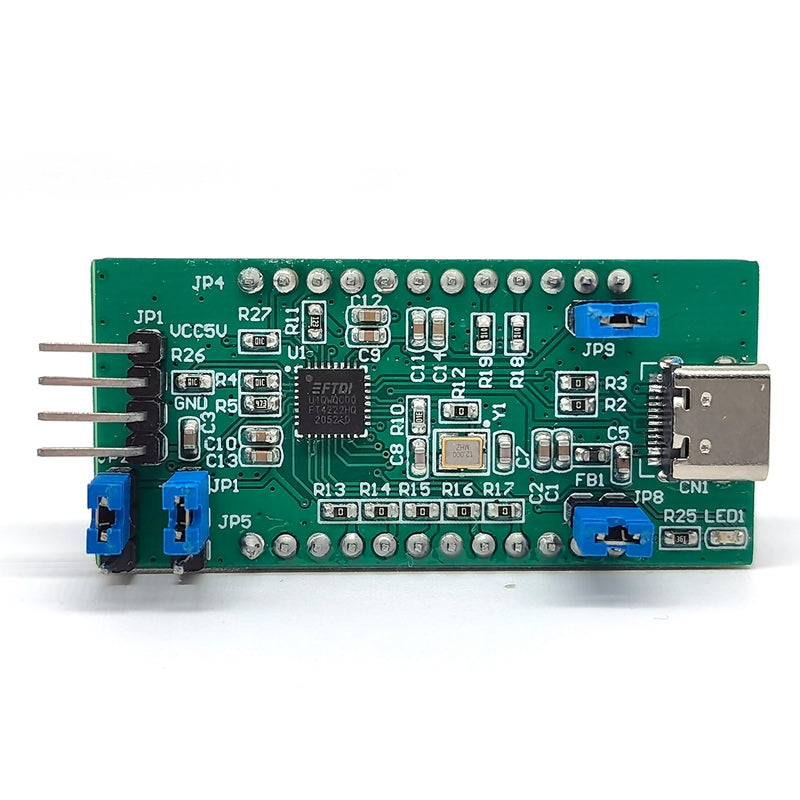

Supplied PCB designed to fit a standard 20.2mm (0.8 inch) wide 24 pin DIP socket. Pins are on a 2.54mm (0.1inch) pitch.

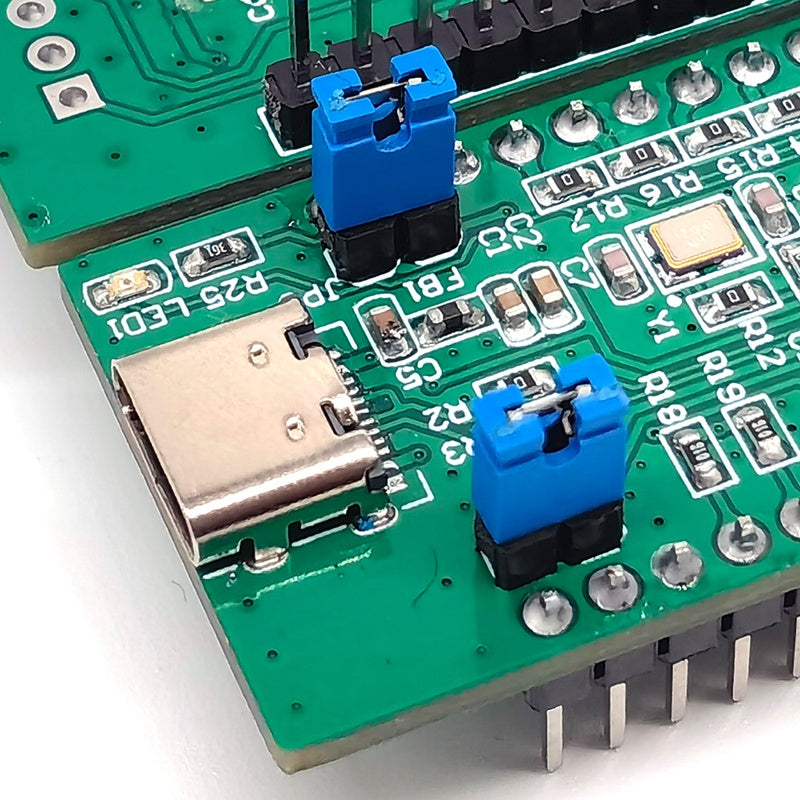

On board USB Micro-B receptacle allows module to be connected to a PC.

Applications

USB to single mode SPI master controller

USB to dual mode SPI master controller

USB to quad mode SPI master controller

USB to single SPI slave controller

USB to I²C master interface controller

USB to I²C slave interface controller

Utilizing USB to add system modularity

Incorporate USB interface to enable PC transfers for development system communication

USB Industrial Control

USB Data Acquisition

Accessory connectivity solutions for mobiles and tablets

USB dongle implementations for Software/Hardware Encryption and Wireless Modules

Detect USB dedicated charging ports, to allow for high current battery charging in portable devices

Driver Support

Royalty free D2XX Direct Drivers (USB Drivers + DLL S/W Interface)

Windows 8.1: 32, 64-bit

Windows 8: 32, 64-bit

Windows 7: 32, 64-bit

Win XP, Server 2003 and Server 2008

size:6.6 x 2.9cm

Material: PCB

colour: green

Package Contents:

1 x download module

Only the above package content, other products are not included.
