Features:
5V power supply, or 3 * 1.5V battery; 4 * 1.2V battery, current: 30mA - 120mA.

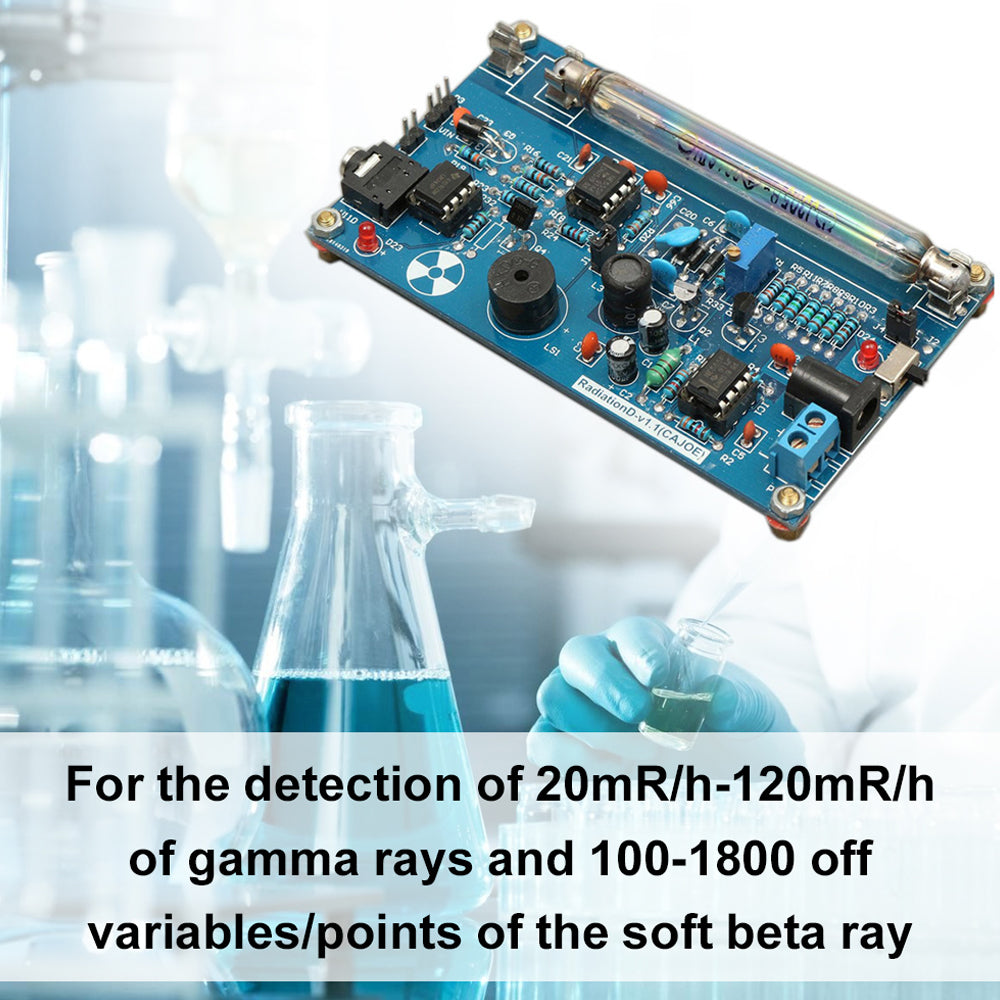

For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray.
Equipped with sound and light alarm.
Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330-600V operating voltage of the Geiger tube can be supported).
Support the computers (PC) data acquisition, Matlab analysis and processing.
Detection of nuclear radiation work (copy the following link to the browser to watch):
Http://v.youku.com/v_show/id_XNzI3MTU2NzQ0.html
Customers using our Geiger counter to record the video:
Http://v.youku.com/v_show/id_XOTE4ODIyNTIw.html
Compatible with:
(recommended UNOR3, or any other arbitrary with 5V and external interrupt INT)
Internet can be downloaded: S-PI example for Radiation Logger
Logger Radiation can be used as the host computers software to build radiation monitoring station.
Specifications:
Material: electronic component
Geiger tube parameters:
Technical parameters diameter: Φ10±0.5mm
Total length: 90±2mm
Starting voltage: < 350V
Recommended operating voltage: 380V
Minimum plateau length: 80V
Maximum plateau slope: 10%/80V
Extreme operating voltage: 550V
The maximum count rate: 25 times / min
Medium temperature: -40 to 55 ℃
Item size: 108 * 63 * 20mm / 4.25 * 2.48 * 0.79in
Item weight: 100g / 3.53ounce
Package size: 120 * 80 * 40mm / 4.72 * 3.15 * 1.57in
Package weight: 150g / 5.29ounce
Packing List:

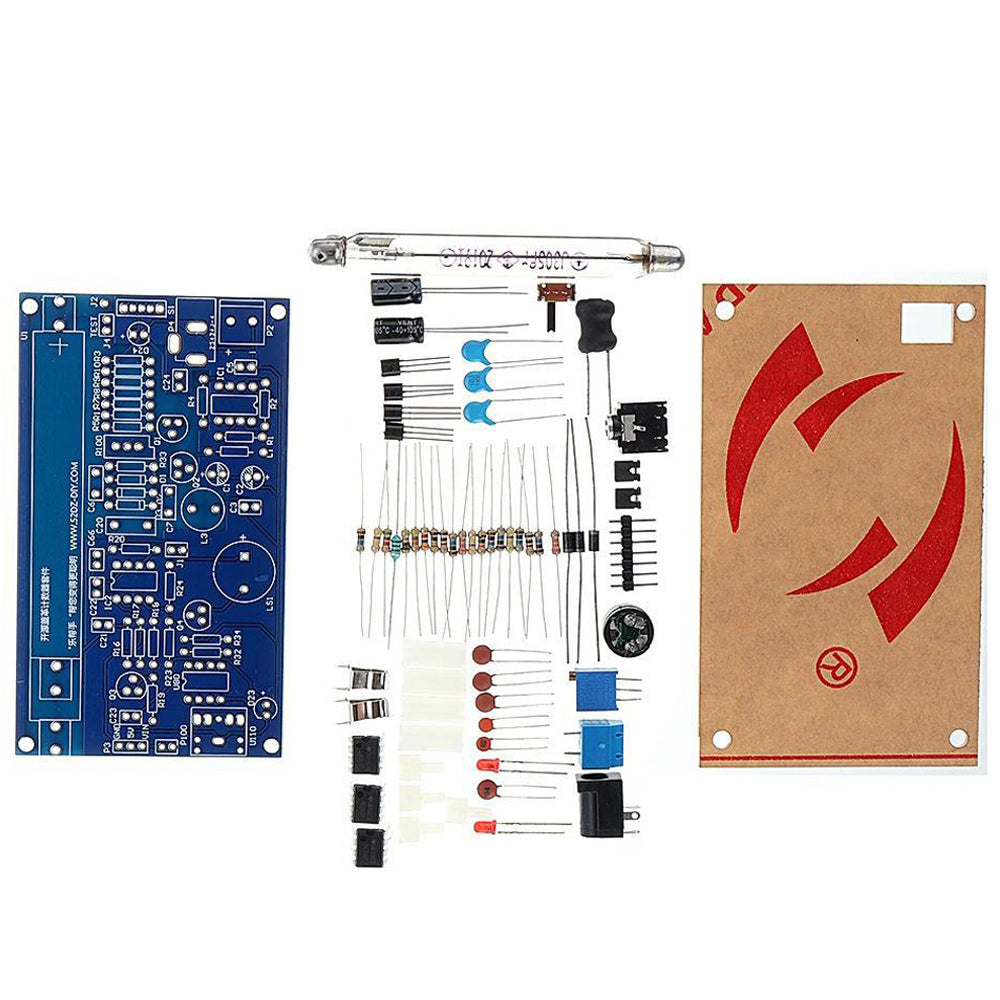

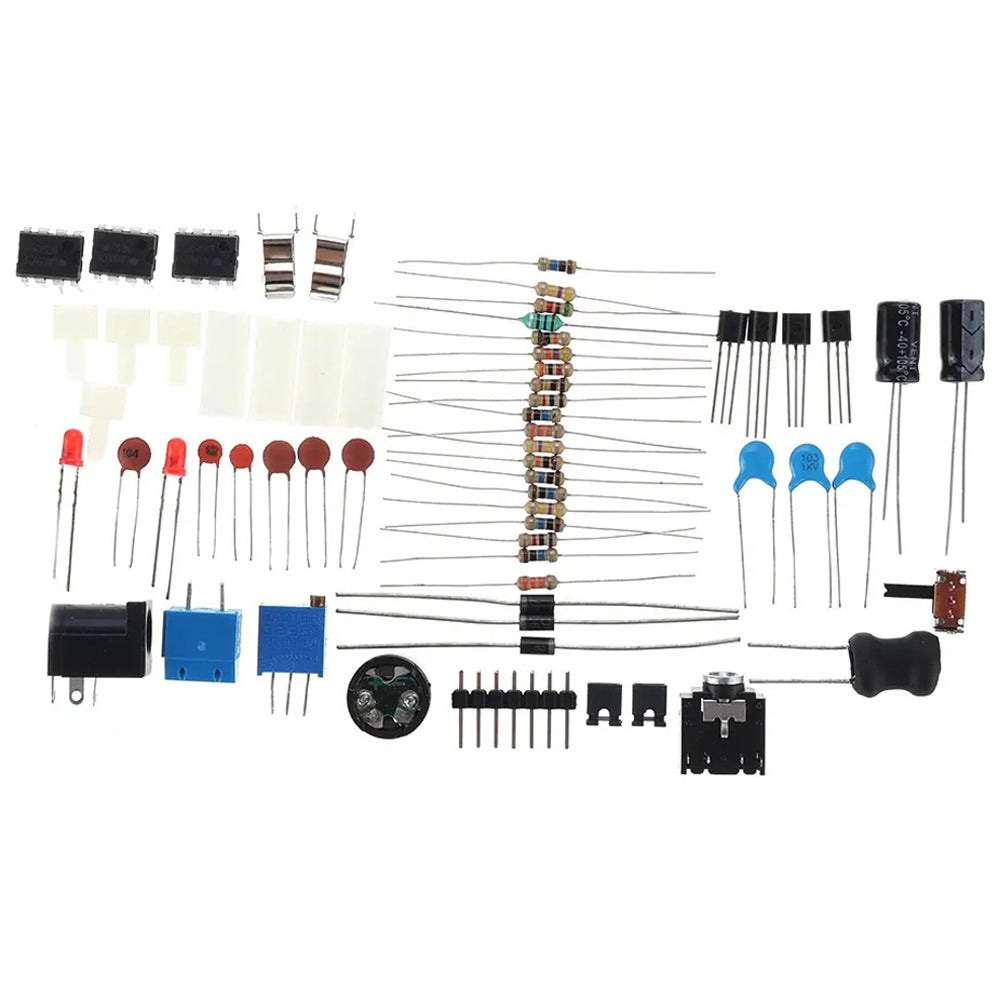

1 * Unassembled Radiation Detector Module Set
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
