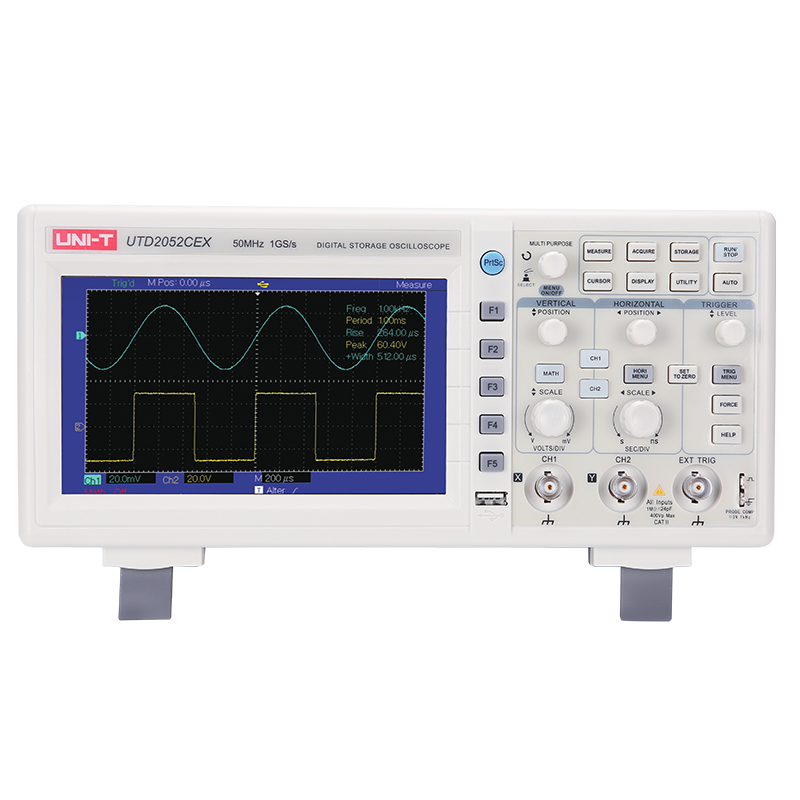

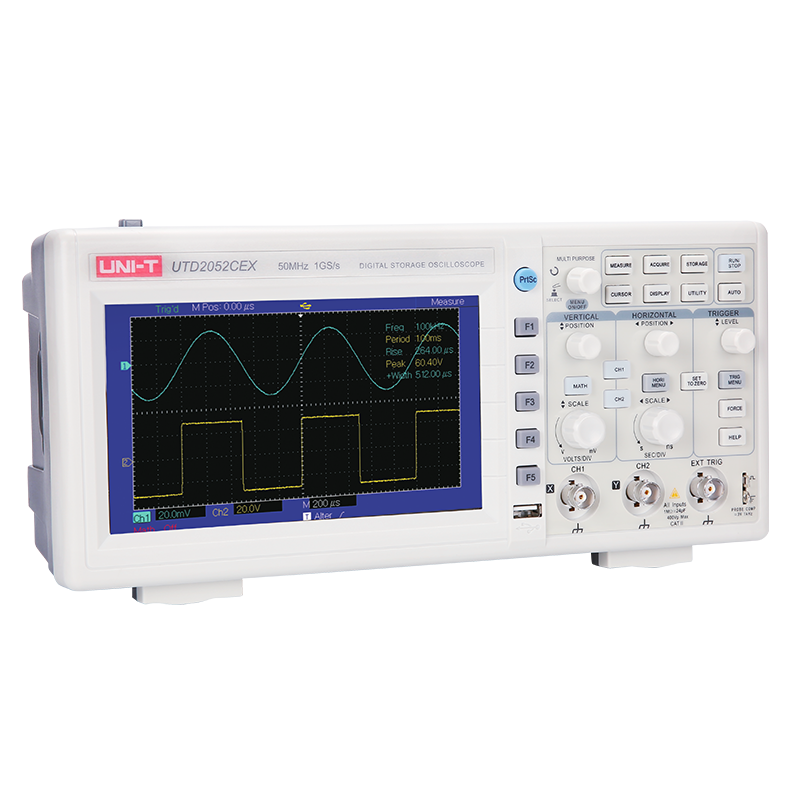

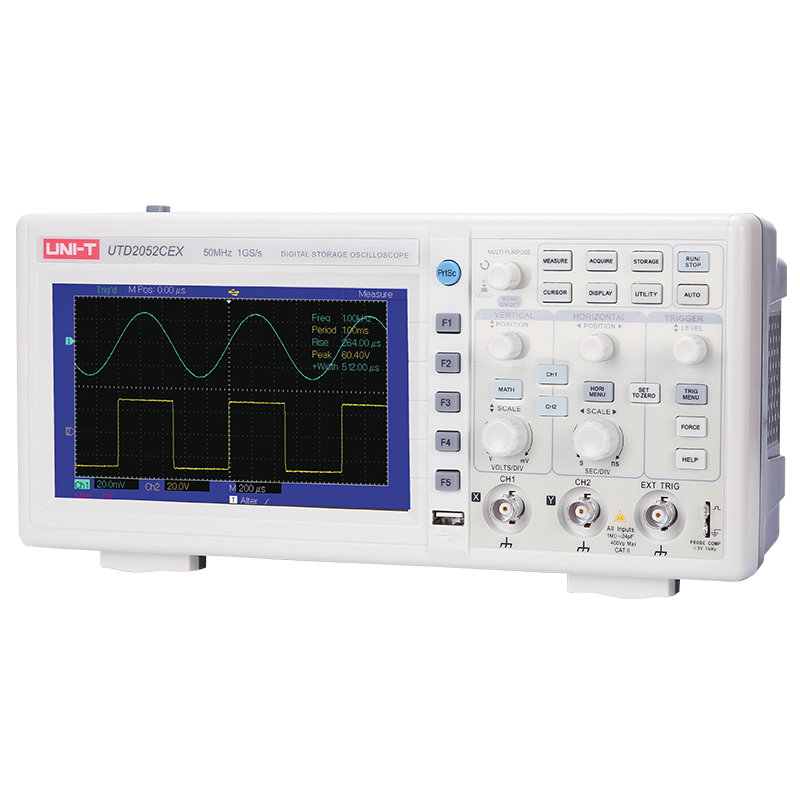

Uni-T 50MHz Digital Oscilloscope UTD2052CEX With 50MHz Bandwidth 2 Channel 1Gas/s
UNI-T UTD2052CEX Digital Oscilliscope Key Features
USB interface
Edge, Pulse and Alternate trigger modes
Setup, Wave and Bitmap storage
Time-based range of 2ns/div-50s/div
Vertical sensitivity of 1mV/div - 20V/div
Waveform acquisition rate - ≥2000wfms/s
Rise time of ≤7ns
Sample rate of 1gs/s
50MHz bandwidth
Dual channel
Large 7 inch colour screen
UNI-T UTD2052CEX Technical Specifications
Channels
2
Bandwidth
50Mhz
Sample Rate
1GS/s
Rise Time
≤7ns
Memory Depth
25kpts
Waveform Acquisition Rate
≥2000wfms/s
Vertical Sensitivity
1mv/div-20V/div
Time-Based Range
5ns/div-50s/div
Storage
Setup, Wave, Bitmap
Trigger Modes
Edge, Pulse, Alternate
Interfaces
USB OTG
Display
7" 64K Colour TFT LCD (400 x 240)
Power
100-240V AC, 40-440Hz

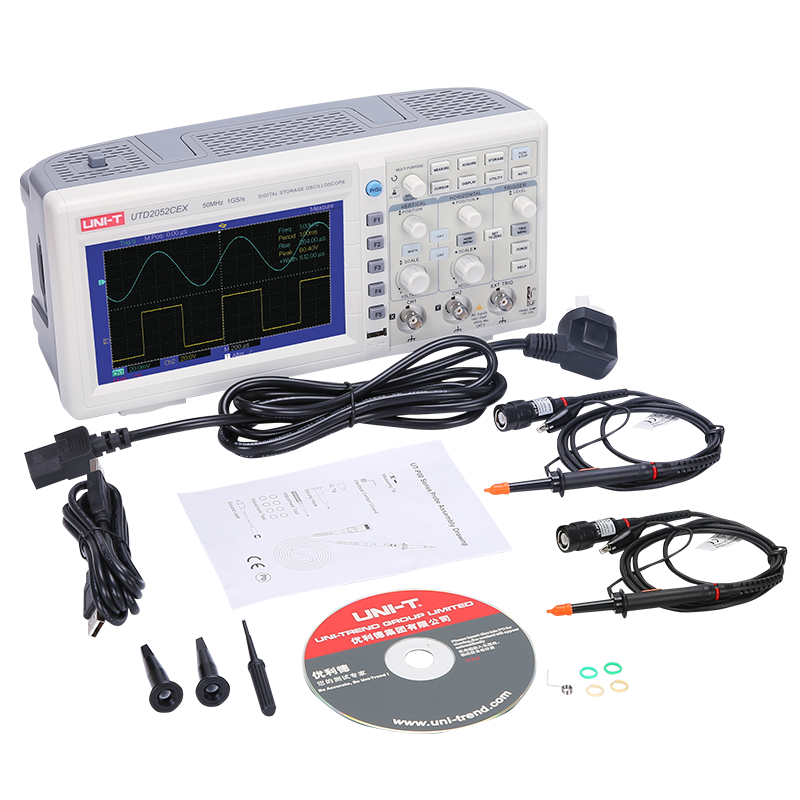

Full List of Products Included
UNI-T UT2052CEX Digital Oscilloscope
Probe x 2 (1x, 10x Switchable)
Power Cord
USB Cable
PC Software CD
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
