Description:

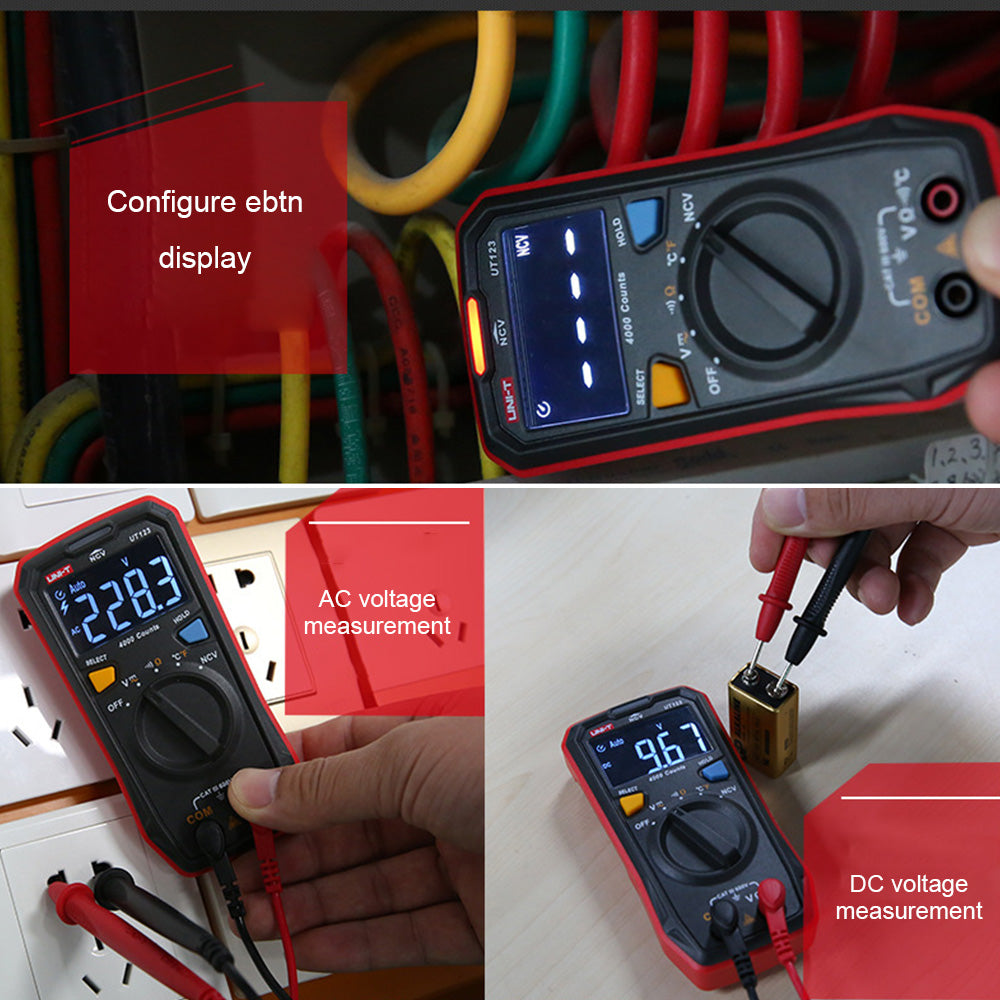

HD EBTN color screen. The contrast and clarity are higher, and the operating temperature can be as low as -10℃.
With DC voltage, AC voltage, resistance, conductivity.

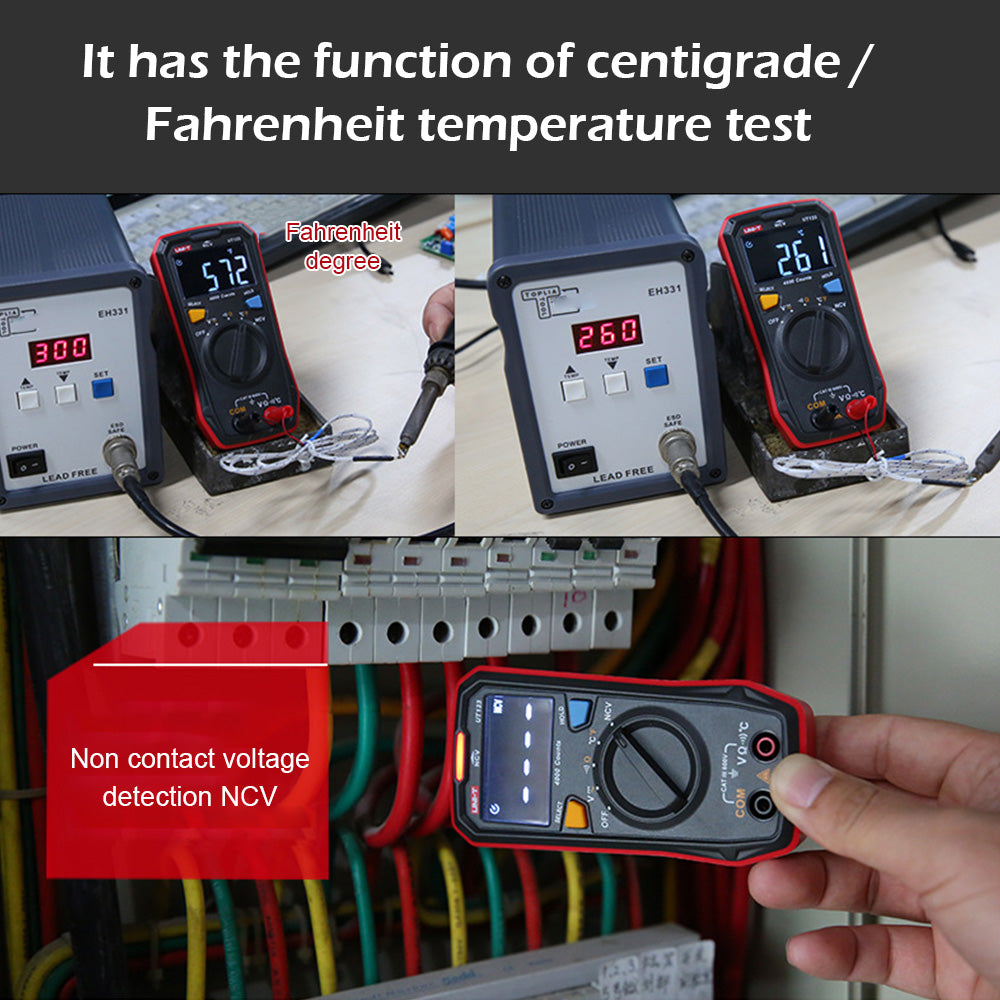

It has a temperature test at °C/°F. Mini size,portable,high accurancy
With non - contact voltage detection NCV, acousto-optic indication alarm.
Full range protection function, let the user use more safe, rest assured.
Specifications:
Item type: Residential Multimeter
Material: Plastic
Color: Red&gray

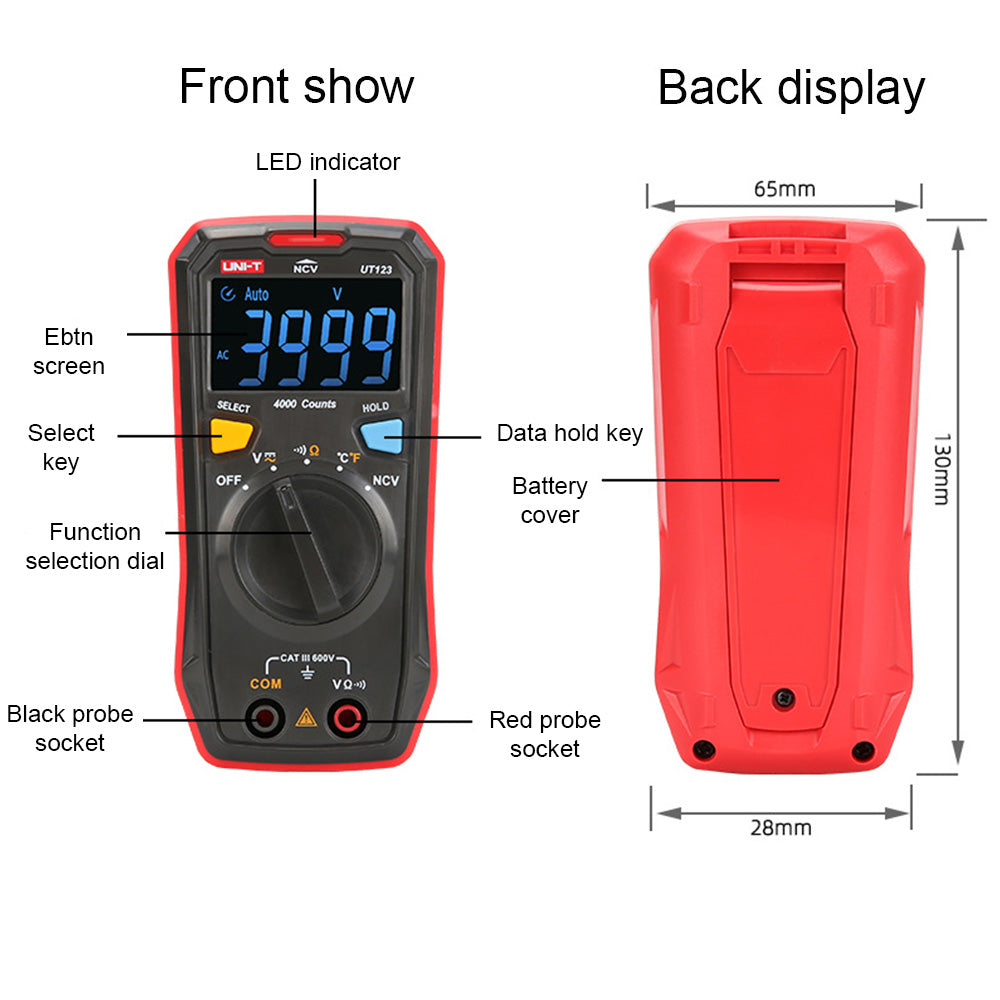

Size: 130x65x28mm
DC voltage (DCV): 4V/40V/400V/600V ±(0.5% + 2)
AC voltage (ACV) : 4V/40V/400V/600V ±(1.0%+3)
Resistance(Ω): 400.0Ω/4.000kΩ/40.000kΩ/400.000kΩ/4.000MΩ/20.000МΩ ±(1.2%+3)
Centigrade temperature (°C):-40~40℃/ >40 ~ 300 ℃ ±4°C/±(1.0%+5)
Fahrenheit temperature (°F) : 40~ 104°F / >104 ~ 572°F ±6°F/±(2.0%+6)
Frequency: 40Hz~400Hz
On off test: <=30Ω beep sound
NCV: Acousto-optic + analog bar prompt
Automatic range: Display number 4000
Automatic shutdown: Press the button to wake up in about 15 minutes
Low voltage display: Power on indicator light
Keeping data: HOLD key
The LCD display: EBTN screen
Backlit: Yes
CAT class: Full range protection function CATIII 600V
Note:
Battery not included!
There might be little error of size for manual measurement.
The colors deviation might differ due to different monitor settings, please kindly understand.

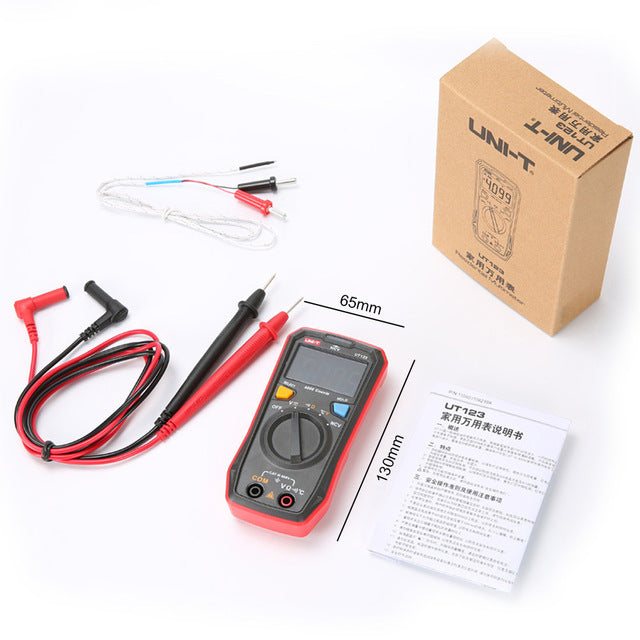

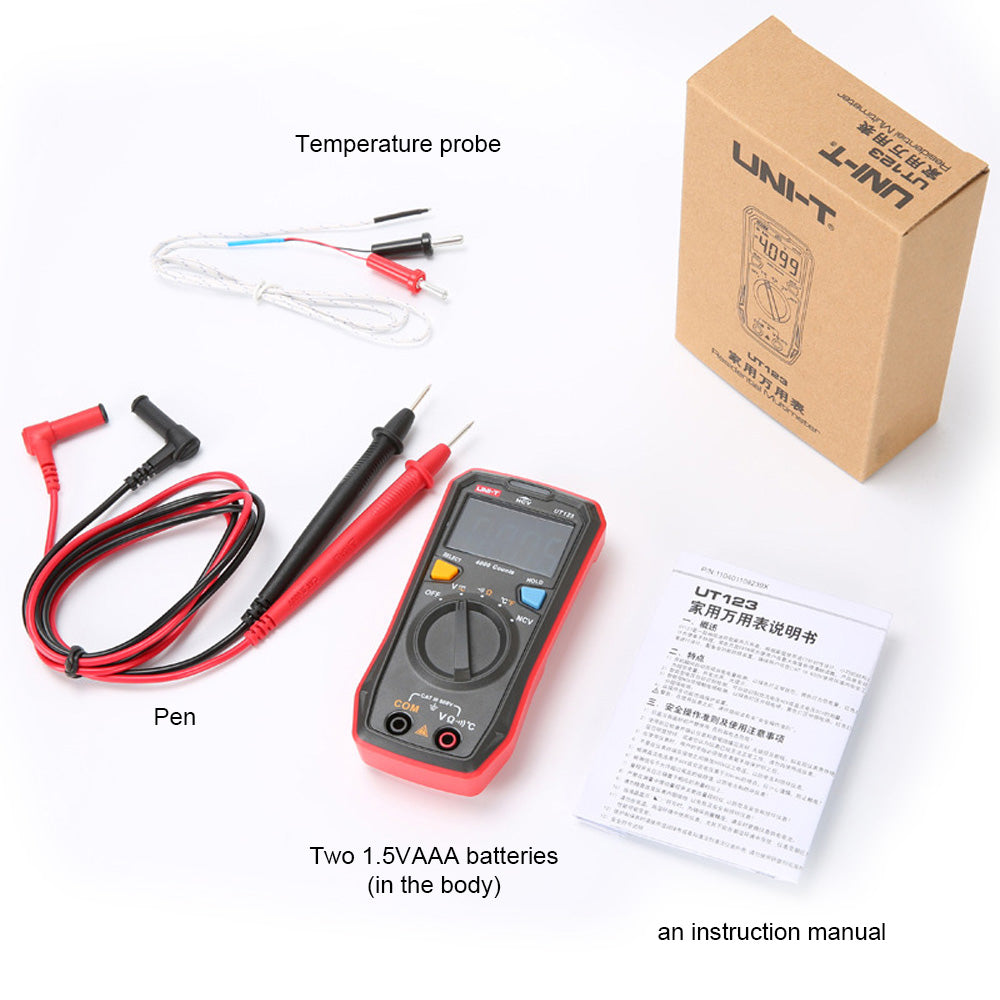

Packing list： 1 x UT123 Pocket-sized Residential Multimeter
1 x Test Leads
1 x Englist Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
