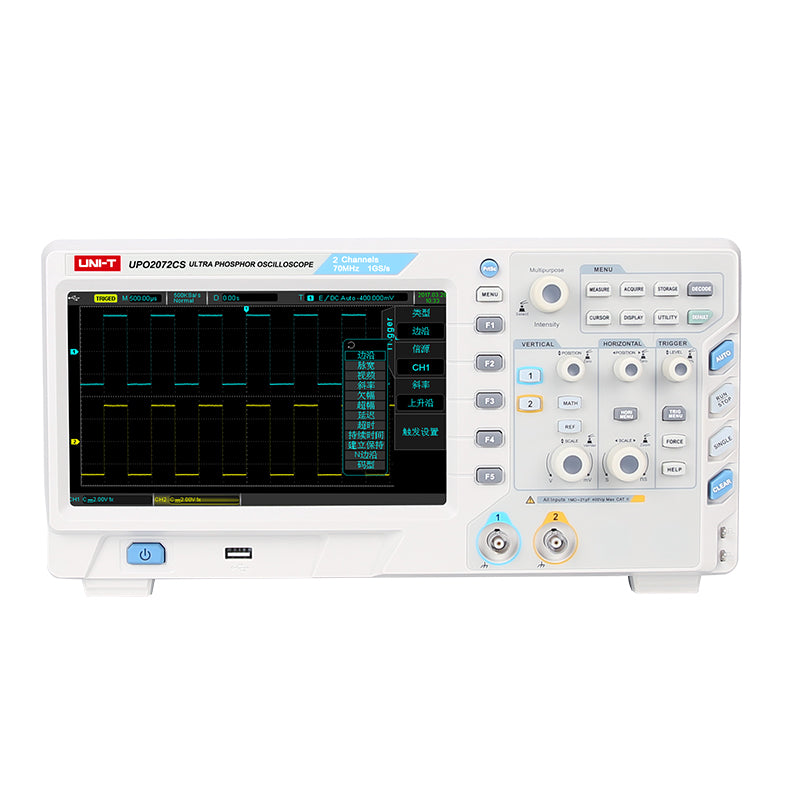

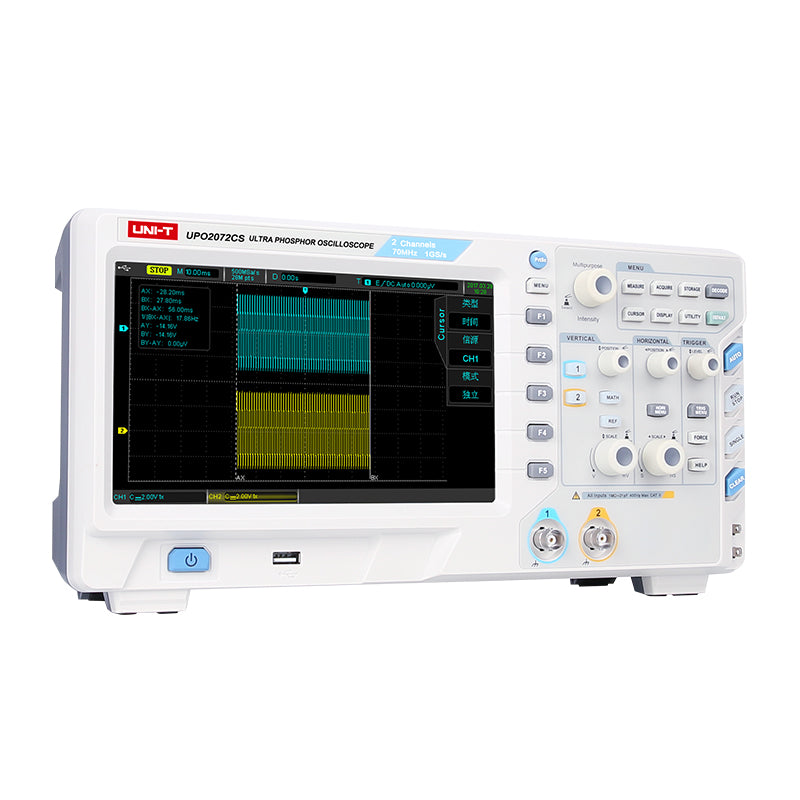

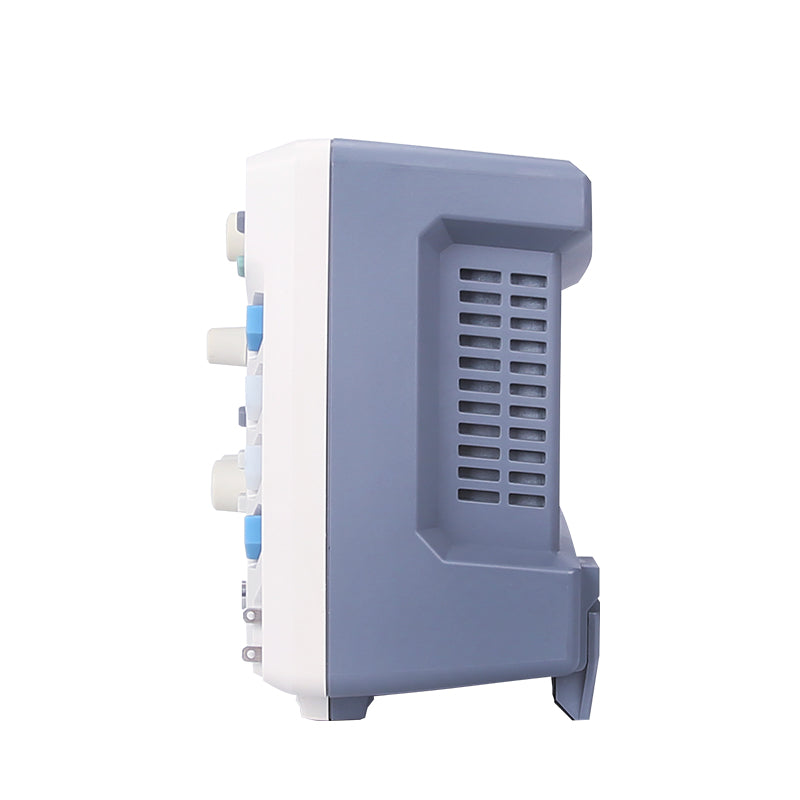

UNI-T UPO2072CS Ultra Phosphor Oscilloscope 2 CHANNELS 70 MHz Bandwidth
1GS/s 28Mpts 8 Inches TFT LCD
UPO2000CS series digital oscilloscope is based on UNI-T’s unique Ultra Phosphor technology. A multi-functional, high performance oscilloscope that is easy to use, with excellent technical specifications, a perfect combination of many functionalities that can help users to quickly complete testing. UPO2000CS series is aimed at satisfying the most extensive oscilloscope markets, including communications, semiconductors, computers, aerospace, defense, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D, education, etc.
Technical Parameters
Specifications
UPO2072CS
Analog Bandwidth
70 MHz
Channels
2
Sample Rate
1GS/s(Single Channel)
Memory Depth
28Mpts(Each Channel)
Waveform Capture Rate
50,000wfms/s
Time Based Scale
5ns/div~ 50s/div
Input Impedance
(1MΩ±2%)//(20pF±3pF)
Vertical Sensitivity Scale
1 mV/div ~20 V/div（1 MΩ）
DC Gain Accuracy
±3% Full Scale
Waveform Record
MAX, 65,000 Frames
Trigger (Optional Accessories)
Edge, Pulse Width, Alternate,Runt,Nth Edge, Delay, Duration,
Setup/Hold, Slope, Vedio, Pattern,RS232/UART, I2C, SPI
Bus Decode (Optional Accessories)
RS232/UART、I2C、SPI
Waveform Operation
A+B, A-B, A×B, A/B, FFT, Logic Operation, Editable Advanced
Auto Measurement
Maximum,Minimum, Peak-Peak, Top, Bottom, Amplitude, Cycle Mean, Mean, Middle, Cycle RMS, RMS, Overshoot, Preshoot, Frequency, Cyle, Rise Time, Fall Time,Positive Pulse, Negative Pulse, Positive Duty Ratio,
Negative Duty Ratio,DelayA→B, DelayA→B, PhaseA→B, PhaseA→B,
Area, Cycle Area Measurment
Number of Measurements
Display 5 measurements at the same time
Measurement Statistic
Average, Max, Min, Standard Deviation, Number of Measurements
Frequency Counter
Hardware 6 bits counter
Display Type
8 Inches TFT LCD
Display Resolution
800 Horizontal×RGB×480 Vertical Pixels

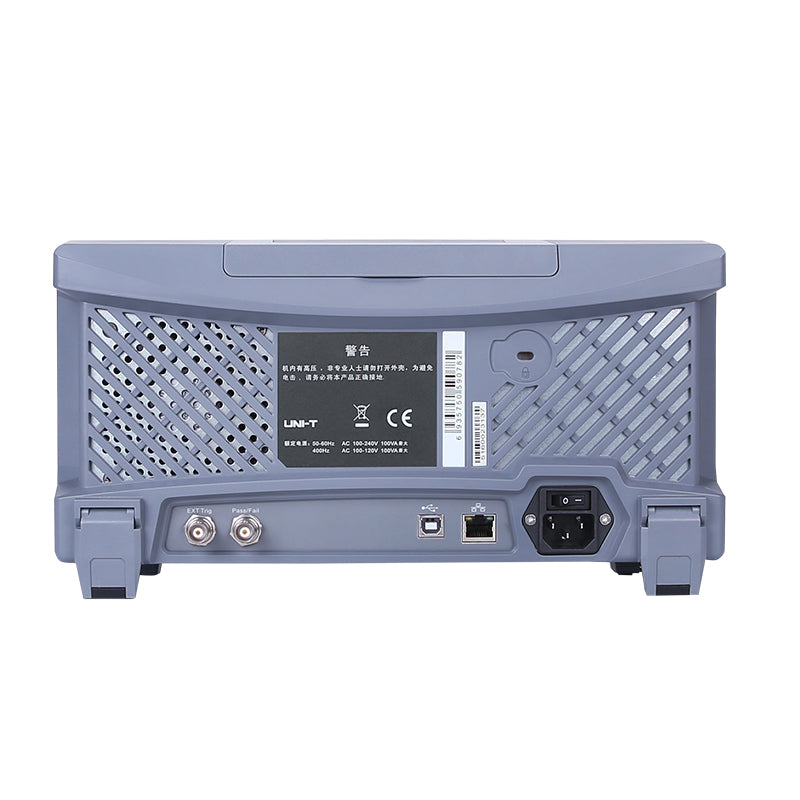

Standard Interface
USB Host、USB Device、LAN、AUX OUT
General Parameters
Power
100V～240VACrms，50Hz/60Hz
LCD Size
8 Inches TFT LCD,WVGA(800×480)
Product Color
Ivory White and Gray
Product Weight
3.5 kg
Product Size（W×H×D）
336mm×163.8mm×105mm
Standard Accessories
Probe×2(1×, 10×switchable, 2 channels), Probe×4(1×,
10×switchable, 4 channels), National Standard Power Cord,
USB Cable, Software CD, Quick Guidance
Standard Individual Packing
Carton
Standard Quantity Per Carton
2 PCs
Standard Carton Measurement
(L×W×H)
550mm×220mm×325mm
Standard Carton Gross Weight
9.5 kg
Optional Accessories*
LA Module, 25MHz Function/Arbitrary Waveform Generator
Decoding Options: RS232/UART Decoding Suites, I2C Decoding Suite, SPI Decoding Suite
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
