"Universal 24Ghz Millimeter Microwave Radar, Blind Spot Detection System, BSD, LCA Lane Change Assistance, Reversing Warning, Door Opening Warning, Two-color Light, GPS Speed Measurement

Features:

Function introduction: install this system (BSD), after the vehicle is started, the microwave radar sensors on both sides of the rear of the vehicle send out microwave detection signals backwards, when it detects that there is a vehicle approaching in the blind area (when the speed of the vehicle behind is greater than that of the vehicle), this system For reflection signal processing, when it is determined that an object is approaching, it will actively send out corresponding sound and light signals to remind the driver to drive safely.

BSD blind spot monitoring: when there is a vehicle approaching in the blind spot behind the car, the LED light on the corresponding side will light up yellow to remind that there is a vehicle approaching behind.

LCA lane change assistance: when there is a vehicle approaching in the blind spot behind the vehicle, if the driver changes lanes to the side of the blind spot and turns on the corresponding turn signal, the LED will flash and the buzzer will sound to remind steering is dangerous. At the same time, it supports the shielding of the third lane, support GPS precise speed measurement.

Reversing warning: BSD has the feature of reversing lateral collision avoidance warning. When reversing, when the radar detects that there are moving objects approaching, the indicator lights of the rearview mirrors on both sides will flash.

Door opening warning: within 50 seconds after the engine is turned off, the radar detects the road conditions within 15 meters behind, and it will not make a sound for stationary objects, and the moving objects will have a flashing reminder to indicate that there are moving objects approaching behind, please pay attention to the road conditions behind and then open the door to get off.

Application environment: rainy day, snowing day, foggy day, night.

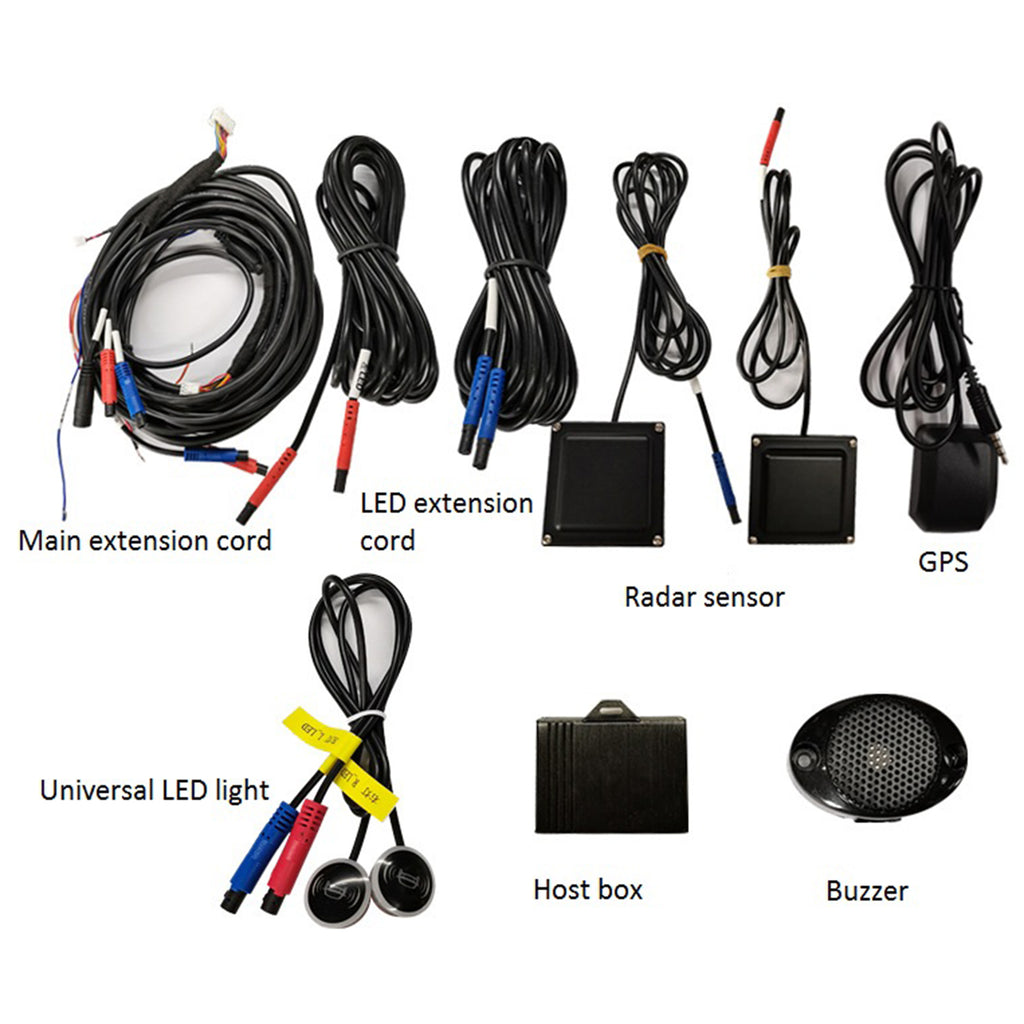

Packing List: Main harness*1. Warning light extension cable*2. Radar sensor*2. GPS*1. LED warning light*2 . Host box*1. External buzzer*1. User manual*1. Package box*1.

Specifications:

Features: BSD, LCA Lane Change Assistance, Reversing Warning, Door Opening Warning, Third lane shielding, Two-color Light, GPS Speed Measurement.

Applicable conditions: Universal (There must be no metal objects in front of the 2 radar signals to block the radar).

Sensor frequency: 24Ghz

Electricity voltage: 12V

NOTE: The power supply of this system is 12v, and it cannot be connected to vehicles with 24v power supply such as trucks.

Detection accuracy: 0.25CM

Maximum detection range: Pedestrian: 0.3M-15M. Motorcycle: 0.3M-15M. Car truck: 0.3M-20M.

Alarm measurement range: 0.3-20 meters

System Efficiency: Automotive>98%. Pedestrians >95%.

Alarm mode: 1: LED is always on. 2: LED flashing + buzzer.

Waterproof grade: IP67

Working current: <130MA

Working voltage: 9V-16V

Working temperature: -30℃ to 80℃/-22℉ to 176℉

Storage temperature: -40℃ to 85℃/-40℉ to 185℉

Detection speed range: 1km/h-120km/h

Detection angle: horizontal 54°, vertical 28°.

Note:

It is recommended that the installation be carried out by professionals.

The installation angle of radar will affect the detection distance and effect. Please install it strictly according to the instructions.

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm."
