Model name:
|
ZYXEL NR5103E
|
|
5G Dual-mode:
|
Windows: 7/8/8.1,Vista, SP1/SP2,XP,SP3 Mac: OS X 10.7/10.8/10.9 with latest upgrades
|
|
Download Speed
|
4.7GBPS
|
|
Upload Speed
|
250Mbps
|
|
4G LTE
|
CAT 19
|
|
Download Speed
|
1.6GBPS
|
|
Upload Speed
|
150Mbps
|
|
5G Bands
|
Full NSA and SA 5G: n1.n3.n5.n7.n8.n20.n28.n38.n40.n41.n77.n78
|
|
4G/LTE Bands
|
B1.B3.B5.B7.B8.B20.B28.B32.B38.B40.B41.B42.B43
|
|
Wireless Frequency Band
|
2.4GHz & 5GHz, dual-band auto-selection
|
|
Number of Wi-Fi Connections Supported
|
64
|
|
Transmission Standard
|
WiFi 6 (802.11ax, 4×4 UL/DL MU-MIMO
|
|
Antenna Type
|
External 5G/LTE main & diversity antennas (Optional)
|
|
Dimensions:
|
227 x 134mm x 125mm
|
|
Weight:
|
650g
|
|
Operating temperature
|
0 °C ~ 40 °C
|
|
Storage temperature
|
-20 °C ~ +70 °C
|
|
Humidity
|
5% ~ 95% (non-condensing)
|
Description
Unlocked ZYXEL NR5103E 5G WIFI 6 + Mesh Router 4.7Gbps NSA/SA 4×4 MIMO Home Office 5G 4G LTE CAT19 1.6Gbps SIM Modem CPE Router.
3 NETWORK ZYXEL NR5103E 4.7GBPS 5G Wi-Fi 6 ROUTER (WHITE)
Contents:
1 x Zyxel NR5103E 5G Wi-Fi 6 Router (White)
1 x Quick Start Guide
4 x External Antennas (Optional)
Condition:
All products are Original Zyxel NR5103E THREE LOGO 5G Routers and UNLOCKED to any other carriers which has the same 5G/4G band.
Specification of Zyxel NR5103E 5G Router:
5G NR, DL 4.7Gbps
NSA & SA modes
Wi-Fi 6 (11ax)
Bridge Mode
Band Steering
DL 4×4 MIMO
Wi-Fi 6 & EasyMesh R2 certified
Remote management
FOTA
Zyxel mobile app
Speeds:
5G:
Download Speed: 4.7GBPS
Upload Speed: 250Mbps
4G LTE (CAT 19):
Download Speed:1.6GBPS
Upload Speed: 150Mbps
Operating Frequencies:
5G Bands: Full NSA and SA 5G: n1.n3.n5.n7.n8.n20.n28.n38.n40.n41.n77.n78
4G/LTE Bands: B1.B3.B5.B7.B8.B20.B28.B32.B38.B40.B41.B42.B43
Connection Types:
Wireless Frequency Band: 2.4GHz & 5GHz, dual-band auto-selection
Number of Wi-Fi Connections Supported: 64
Transmission Standard: WiFi 6 (802.11ax, 4×4 UL/DL MU-MIMO
Antenna Type: External 5G/LTE main & diversity antennas (Optional)

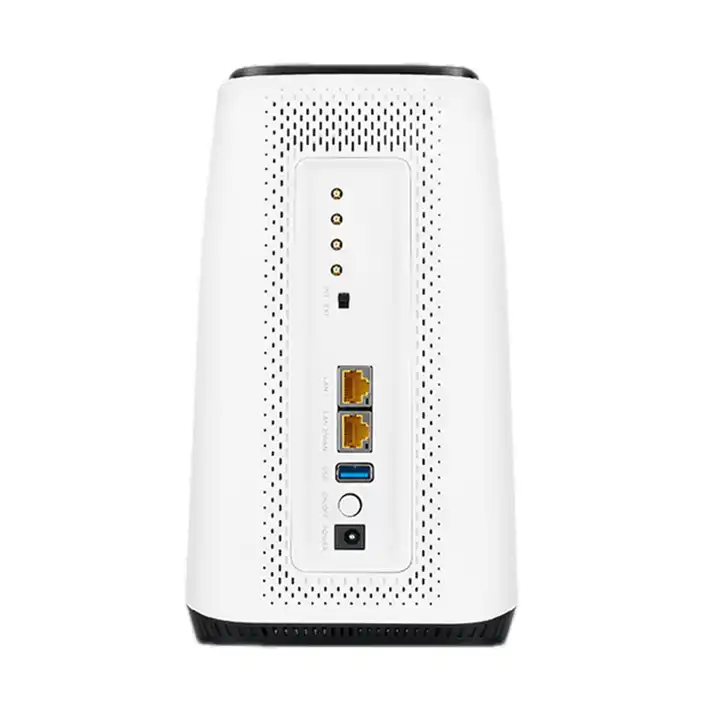

Ports:
1 x Power Adaptor Port
1 x LAN GE Port (RJ45)
1 x LAN/WAN GE Port (RJ45)

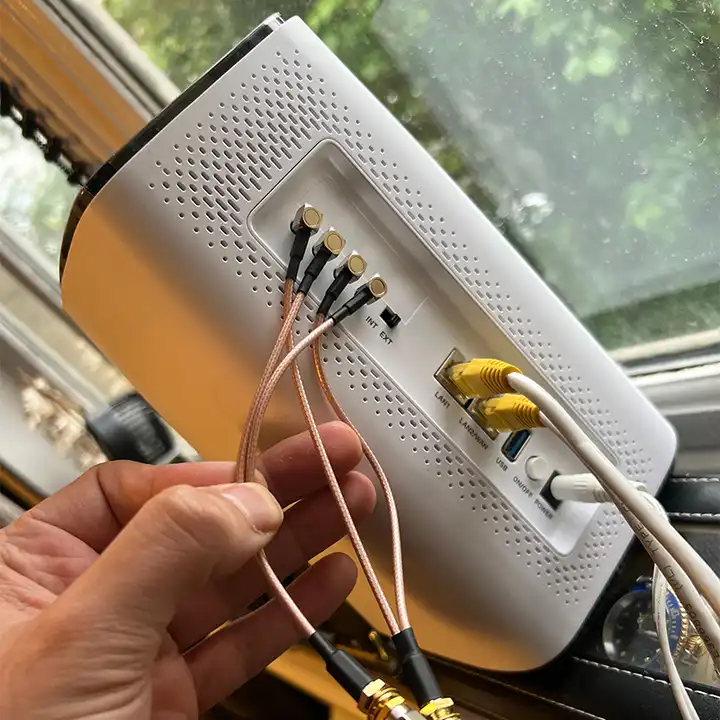

4 x External LTE Antenna Ports (Antennas Optional)
1 x Micro-SIM card slot
1 X USB Port 3.0
Dimensions:
227 x 134mm x 125mm
Weight:
650g
Compatible Operating Systems:
Windows: 7/8/8.1,Vista, SP1/SP2,XP,SP3
Mac: OS X 10.7/10.8/10.9 with latest upgrades
Linux
Environment:
Temperature:
Operating temperature: 0 °C ~ 40 °C,
Storage temperature: -20 °C ~ +70 °C
Humidity: 5% ~ 95% (non-condensing)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
