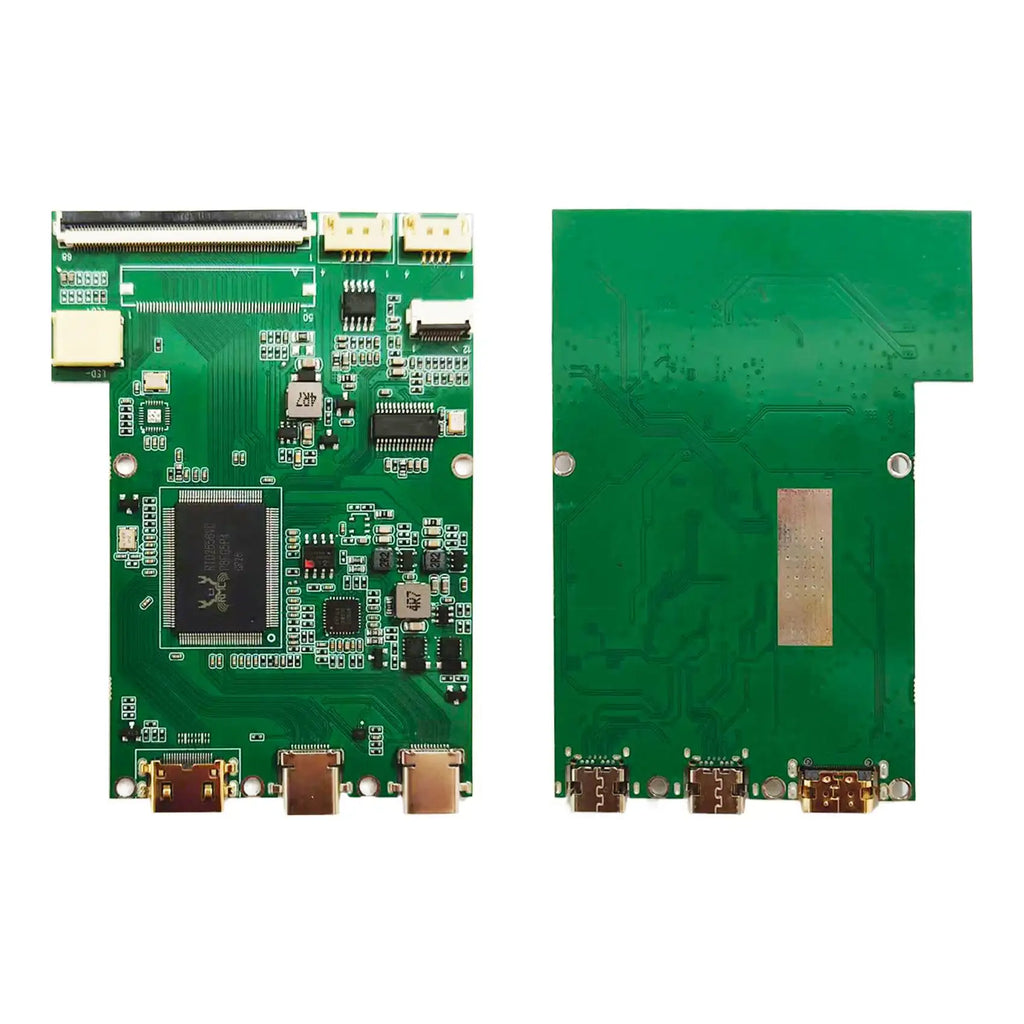

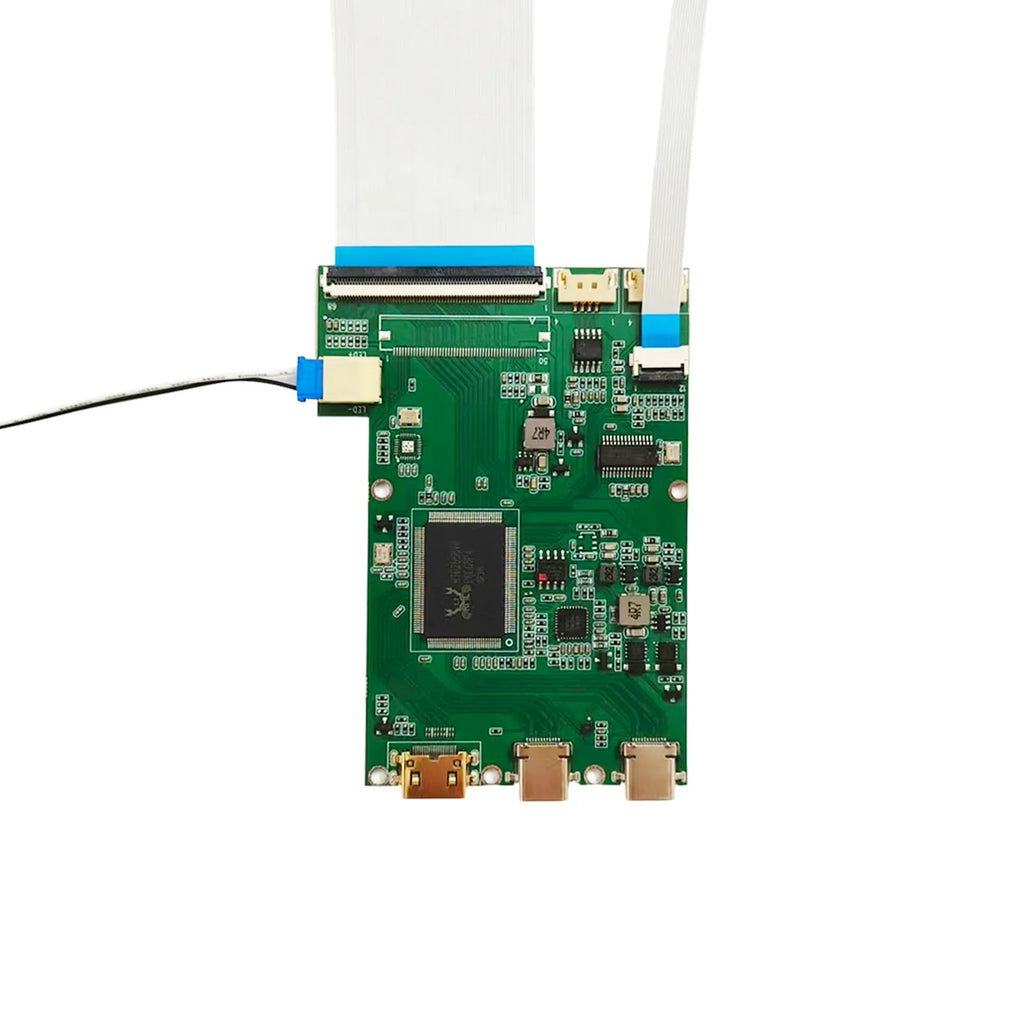

LCD Controller Board:
H/D Type C Control Board Work for LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini H/D
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 60.8mm x 60.2mm x 4mm

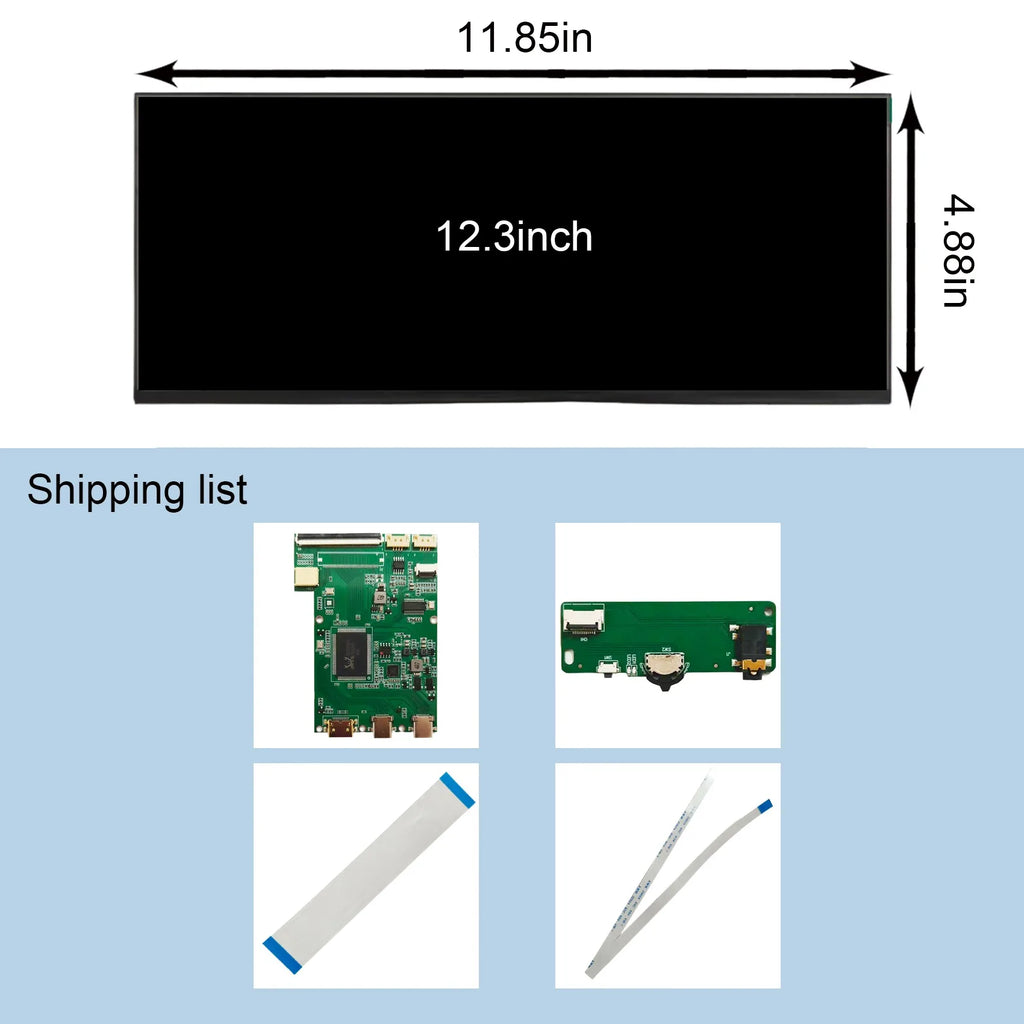

12.3" VS123GF-01 2400X900 LCD Screen:
Display Mode ADS, Normally Black, Transmissive
Resolution 2400(RGB)×900
Outline Size 300 ×123.3×3.5 (H×V×D)
Display Area 291.6× 109.35 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel LVDS (2 ch, 8-bit) , 68 pins , FPC
Backlight WLED
Input Voltage 3.3V (Typ.)
