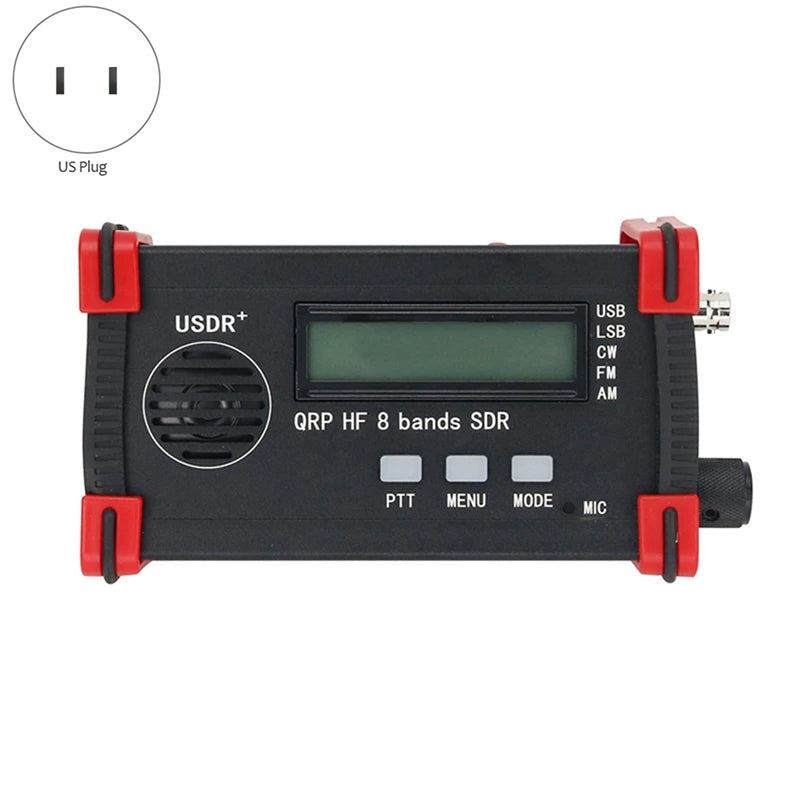

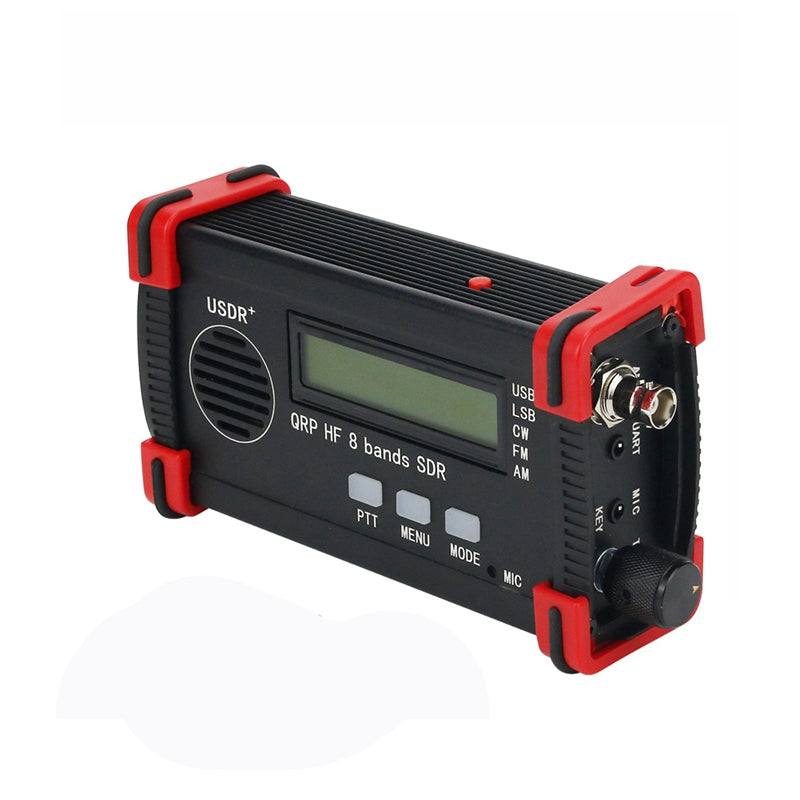

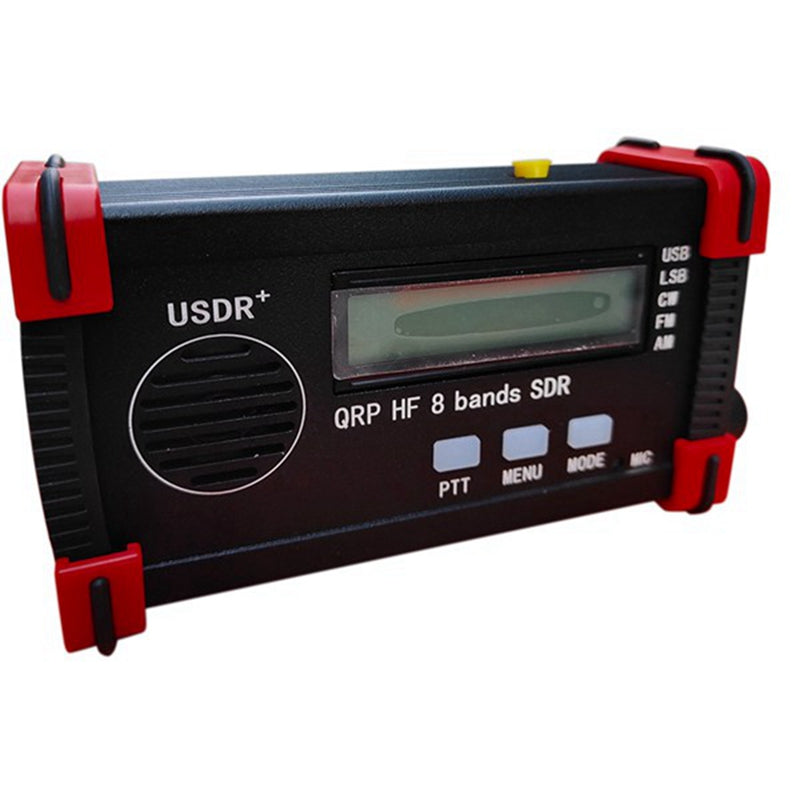

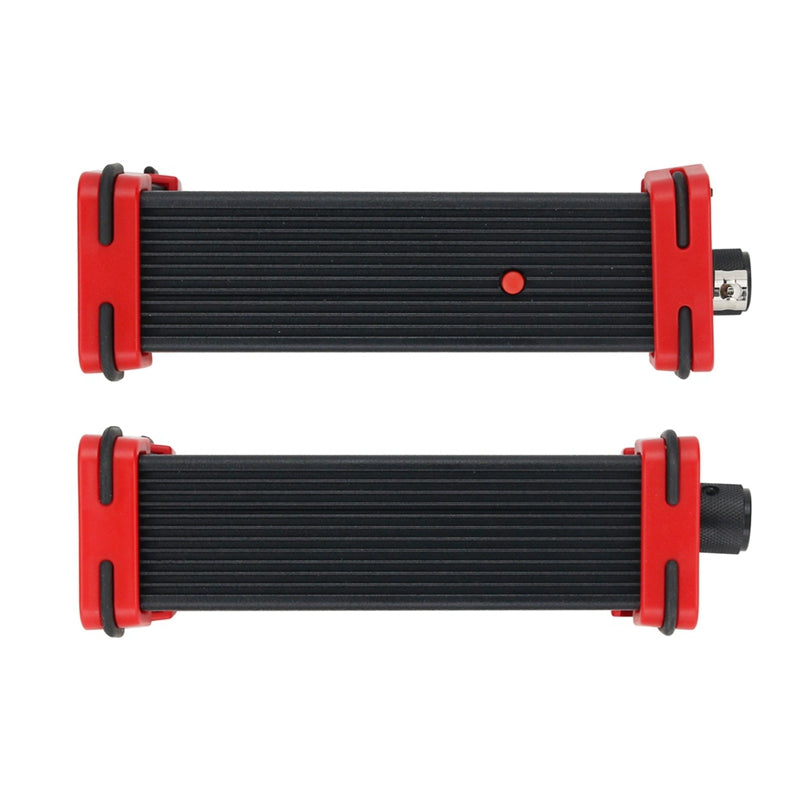

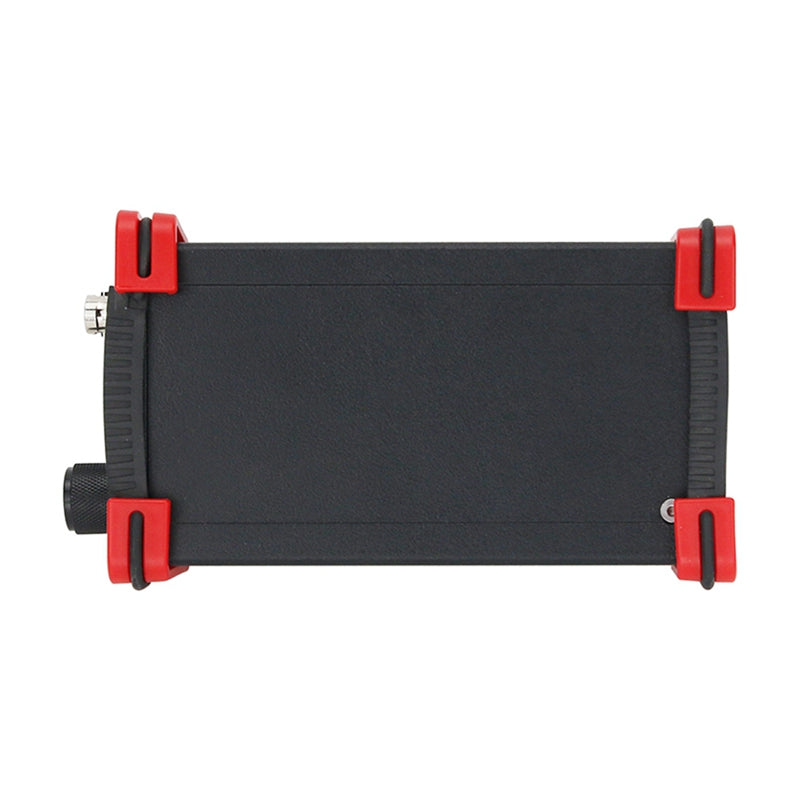

USDX USDR HF QRP SDR Transceiver SSB/CW Transceiver 8-Band 5W DSP SDR Black Shell

2 sold in last 8 hours
mickcara
1100151-1
In stock
$222.00
Size Guide
Color *
000
$222.00
customers are viewing this product
Tags:




           Using IRF series launch tube, durable - Can be used by connecting the antenna (M seat)

8 bands. Power standing wave digital display! External 13.8v maximum power 10w! Built-in 12.6v battery

Dimensions: 76 x 46 x130mm/3 x 1.8 x 5.1inch - Provide ft8 option connector later

Use TCXO for KDS. Accuracy 0.5PPM (1PPM per year) - Aluminum shell lidar marking

All-aluminum knobs! Translucent silica gel button (receive green, emit red)

Software:

https://github.com/threeme3/QCX-SSB/tree/feature-rx-improved

This is a shortwave QRP SSB/CW transceiver. It boasts 1602 screen, built-in battery, equipped with charger, built-in mic, built-in speaker! It can be connected to an automatic key, and can be decoded by cw.

Port Introduction:

Charge: Charging port of the built-in lithium battery and you can only use the supplied charger! It is forbidden to use other chargers!

Switch: OFF to shut down. BAT: Built-in battery power supply. 13.8: External power supply

DC13.8V/3A: External power supply port

KEY: automatic key body connection (A, B, single key)

PA: External power amplifier, PTT signal

MIC: External microphone port

UART: Serial communication port (command compatible with TS-480)

SPK: External speaker

Type: HF QRP SDR Transceiver

Mode: SSB/CW

Rf output: 10W max at 13.8V exit DC in

Frequency range: 3.5-30MHz

Built-in MIC

Antenna/connector: 50ohms/SO-239

Plug Type: US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the United States, the Philippines and so on. / Plug Type: EU Plug, it applies to Indonesia, Germany, France, Spain, Italy and so on.

Colour: black

Material: aluminum alloy



Package Contents:

1 * Transceiver Host

1 * Charger



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
