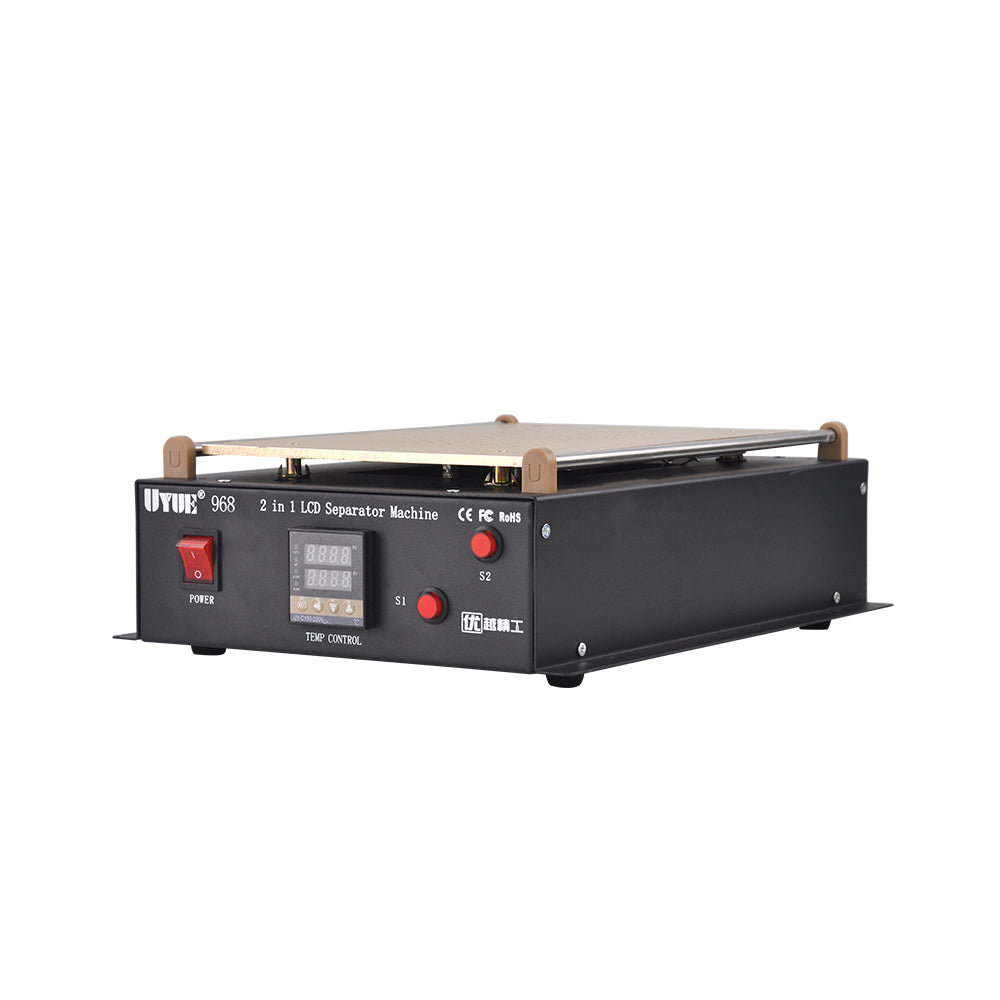

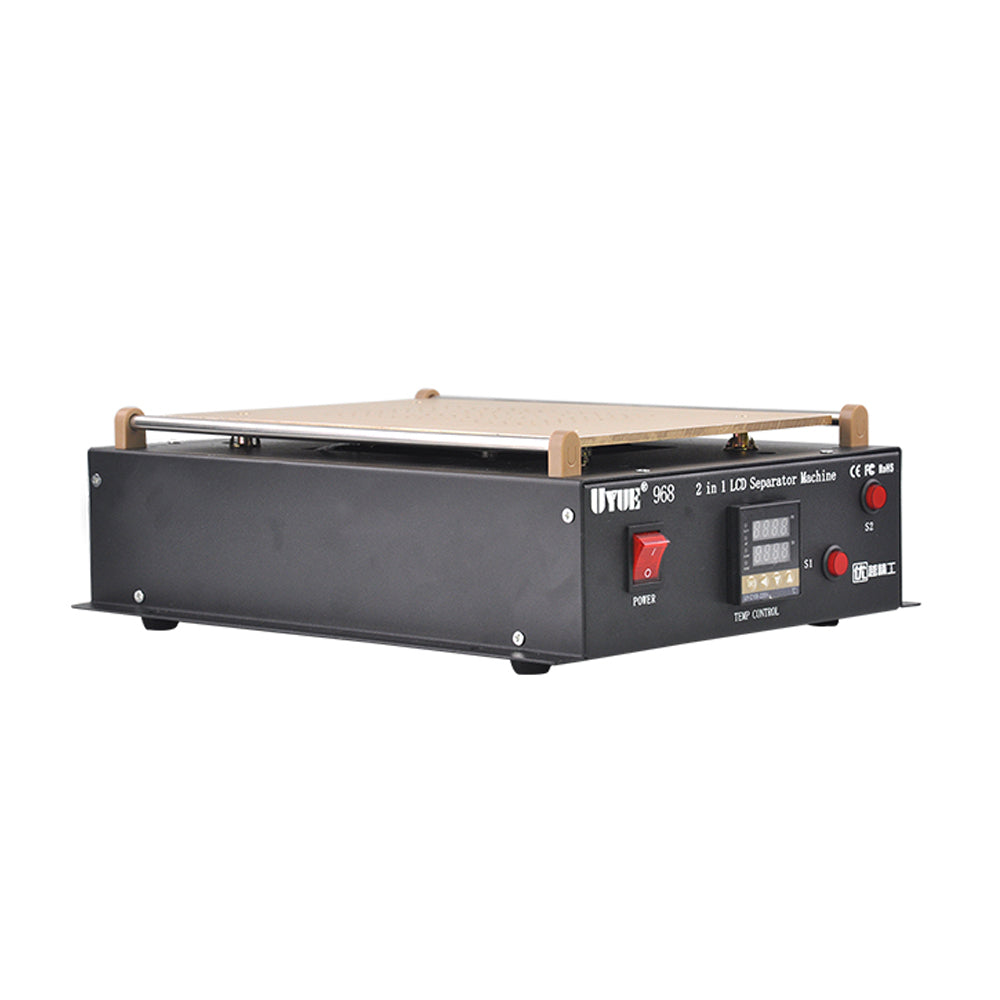

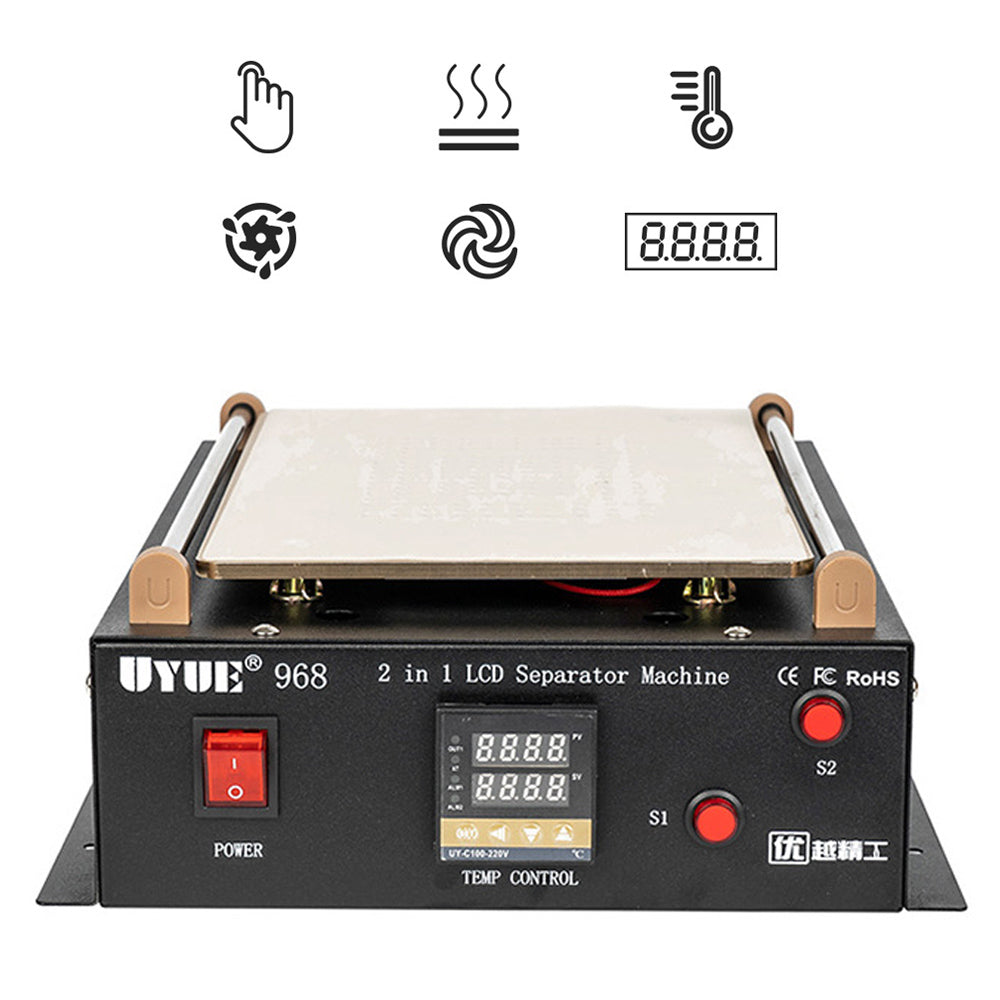

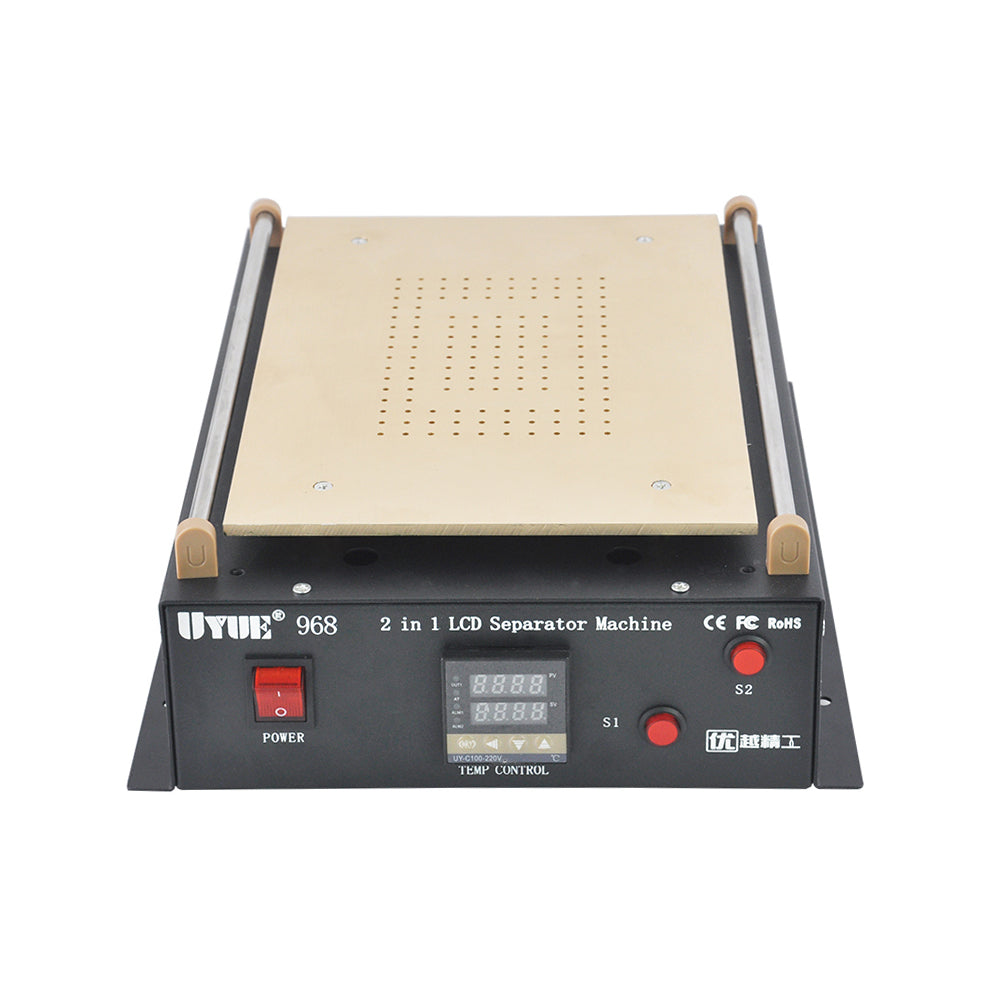

UYUE 968 Build-in Dual Vacuum Pump 13 Inch Separating Machine For iPad Samsung Tablet PC LCD Separator Screen Repair Machine
Feature:
1. Auto heating metal plate, maximum temperature is 180 centigrade
2. Safety power system inside, avoiding the electric leakage problem
3. Anti static body material, prevent the LCD and the flex cable being damaged from the static
4. Easy installation
5. Silicon mat to stick the touch screen without any damaged
6. Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhone and galaxy series
7. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform
8. Compatible for LCD or LED screen assembly
Name: Screen Separator Machine
Condition: Brand New From Factory
Main Color: Blue
Main Material: Metal
Voltage: AC 100-240V
Power: 600W
Temperature Range: 50-180Celsius
Machine Size: 353 * 277 * 118mm
Weight: about 5.5KG
Compatible:
For universal for mat & all mobile phones which the touch screen size is 13 inch or below
Application:
Step 1: Put rubber mat on heating plate.
Step 2: Turn vacuum button (s1/ s2) on, put LCD screen on rubber mat and fix tightly.
Step 3: Turn on the machine and wait for the metal plate become 80-100 degree.
Step 4: Start to separate the LCD off the glass with cutting wire, then right and left movement with wire between the LCD and the glass, please notice that you must using gentle power and keep wire stay on the LCD surface, so that it will avoid the damage of touch screen.
Step 5: Finally you have finished the separating work, and do a good job
Note:
1. Do not produce the heat more than 110 degree when operating; otherwise the high temperature may destroy the phone accessories
2. We have 220V and 110V item on sale, please tell us what kind of item do you need, or we will send the item out according to your own countrys voltage.
