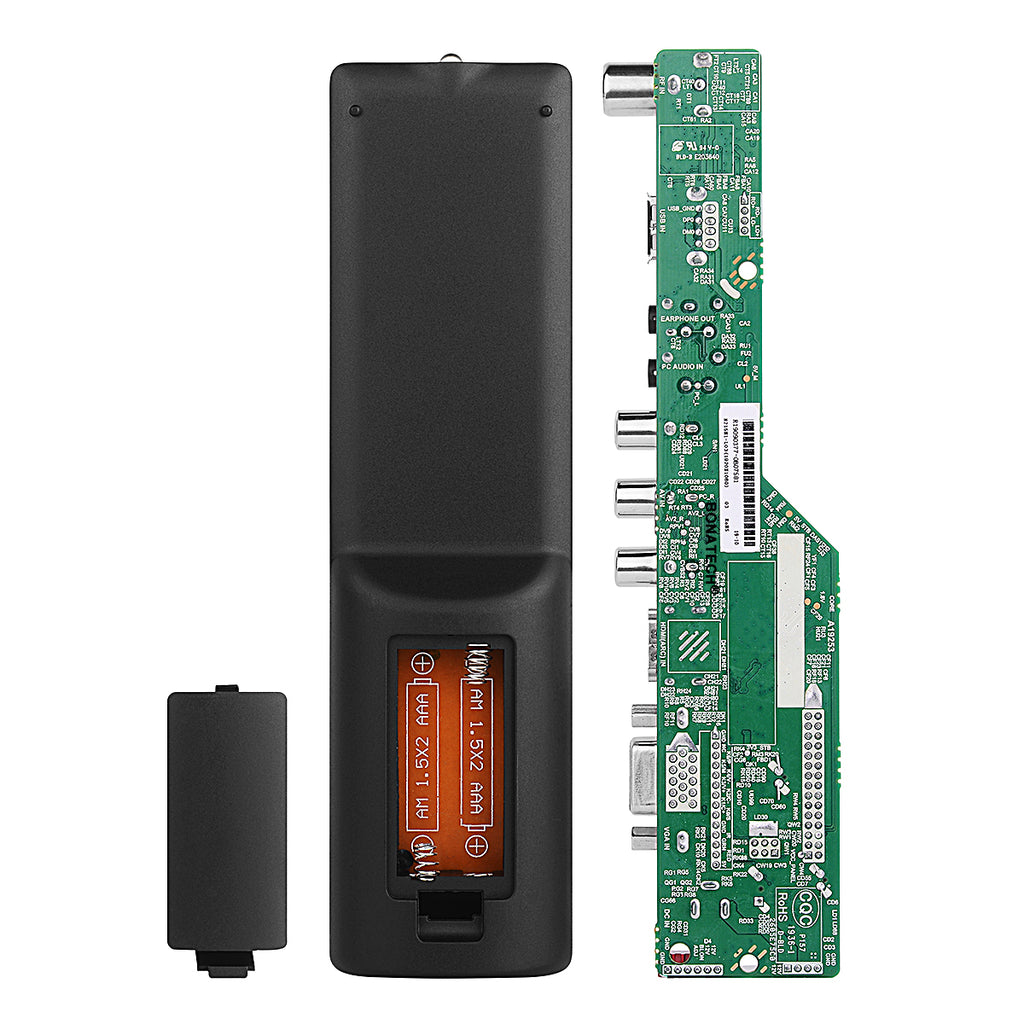

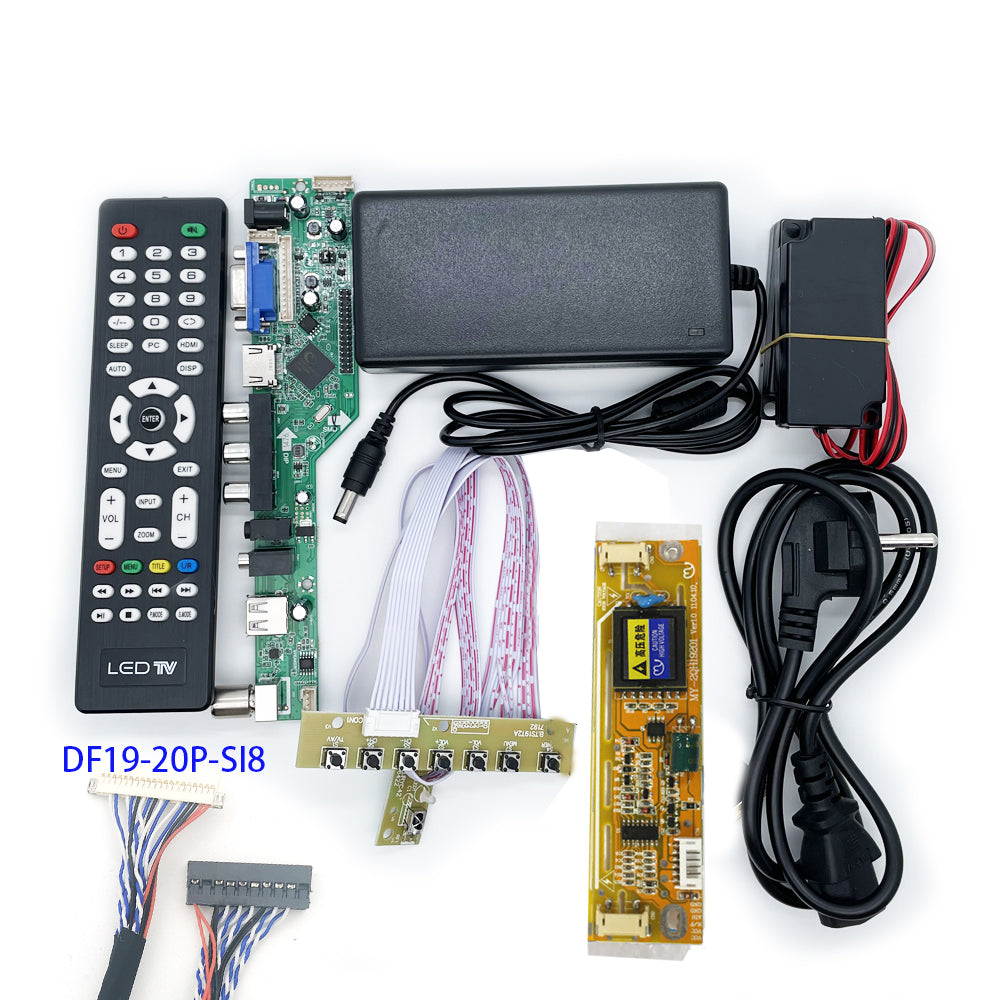

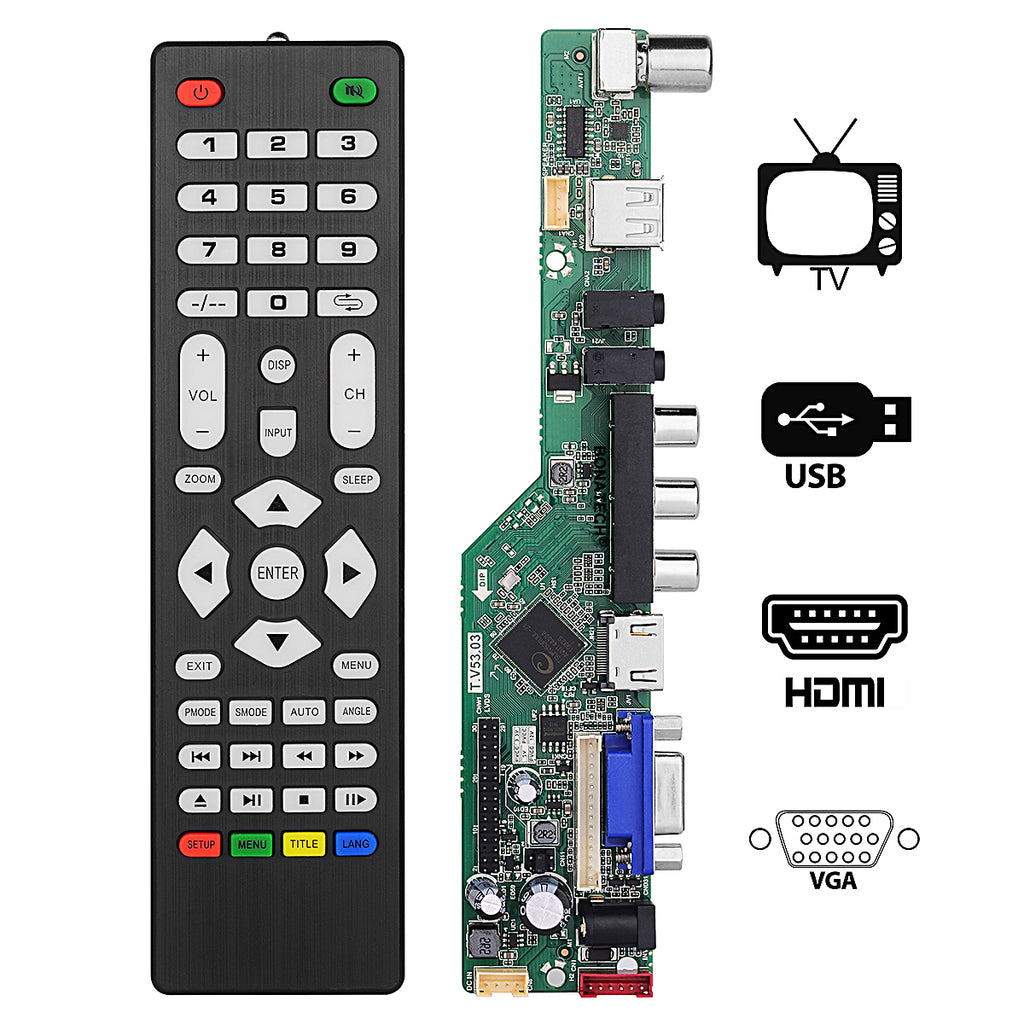

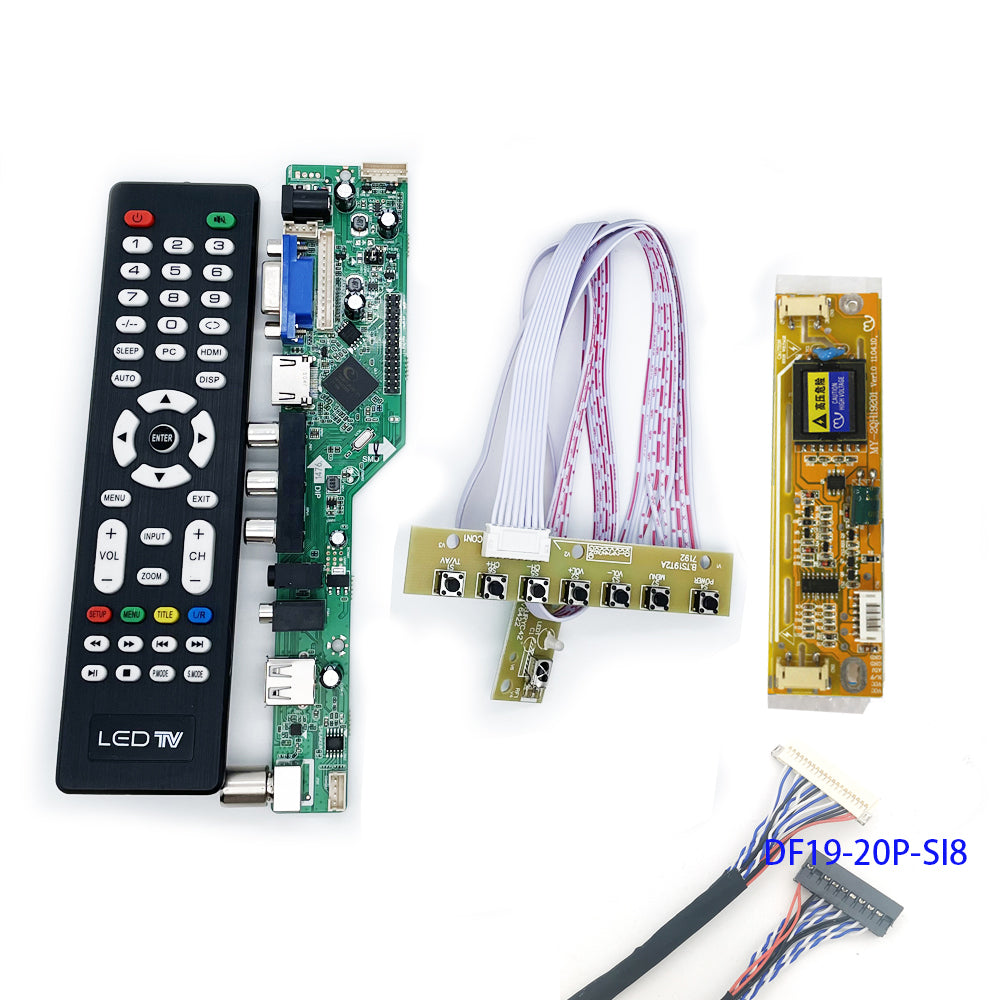

This kit support the panel in following condition:

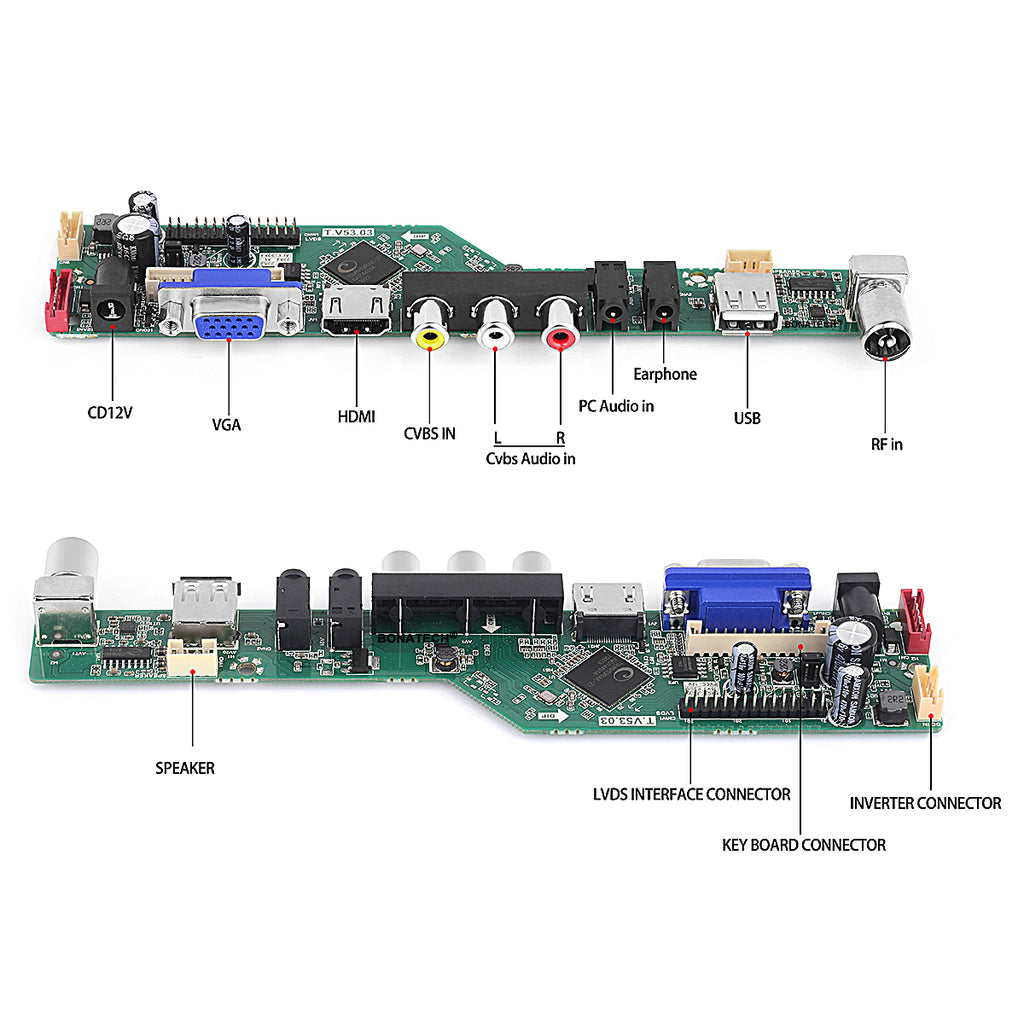

Interface Type:LVDS (1 ch, 8-bit) , 20 pins , Connector（2.1cm wide lvds interface）
Light Source:2 pcs CCFL wide interface
As following specification:
Firmware Download:
https://drive.google.com/file/d/1Dr46NBxl4sRfxnhPFBUJy7LJi8quBEsF
Program update method:
1. Prepare a USB flash drive and download the program we provide
select the required firmware from the file (select firmware according your screen resolution)and copy Z53BK1.bin to the USB flash drive.
2.set the voltage on board(it is according your screen input voltage :3.3v/5v/12v)
3.plug U disc to the board, and plug 7 key board,then plug power adapter,power on. then you can see the light on key board will be flashing. it is mean the board is installing program. (at this moment , don't let power off!)
4. after few minutes, the led will be stop flashing, mean finished. then power off, Pull out the USB , then plug lvds cable and inverter. power on . On screen "no signal" , done.
Note:
voltage should be set correctly(3.3v/5v/12v);
The power requirement of 12V4A;
don't let power off when installing program;
The screen line not to reverse and dislocation;
select lvds cable and inverter should according your panel specs.if you can't select, pls offer panel number to us, we will help you.
Configuration & General Precautions
1.Protect the board from static electricity to avoid damage to the IC.
2.Keep the board away from conductor when it is working.
3.Don’t press, distort or disassemble the board.
4.Clean the board with soft dry cloth when it’s dirty.
5.Don’t switch on the power supply before panel is correctly connected.
6.The brightness of panel is influenced greatly by temperature, you should measure it after power on 10~30 minutes.
7.Keep the board surface clean. Check the appearance of the board if there has any defective parts, such as damaged,
weighty nick, etc.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
