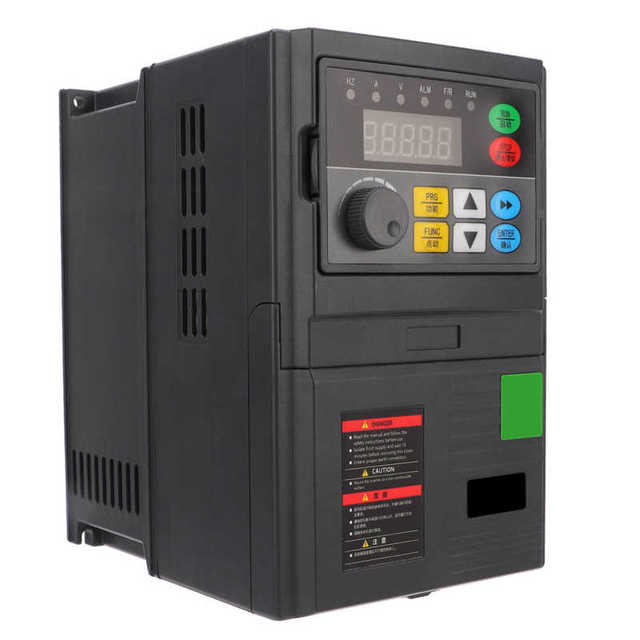

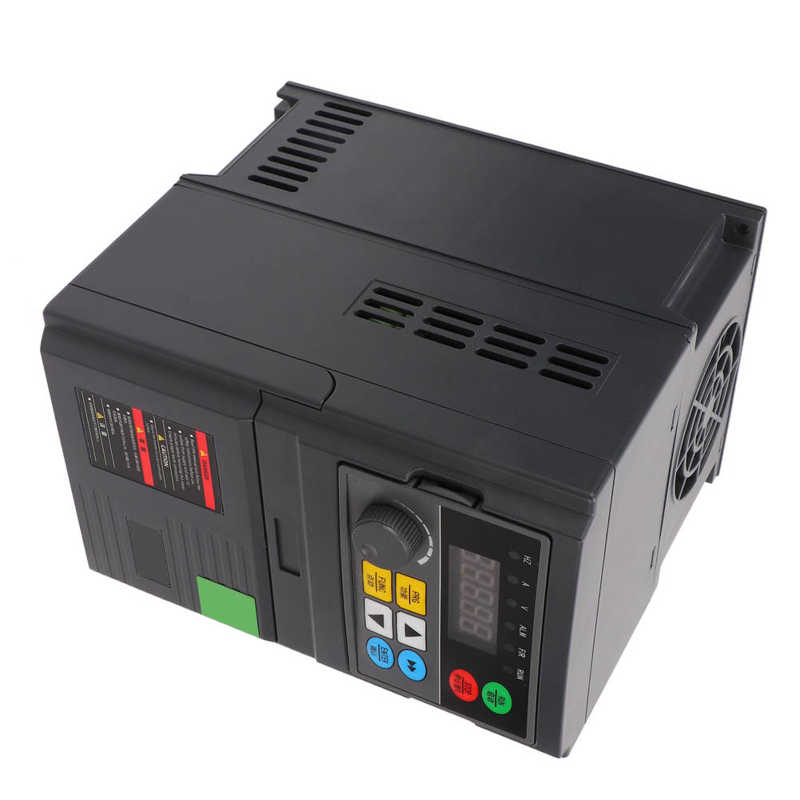

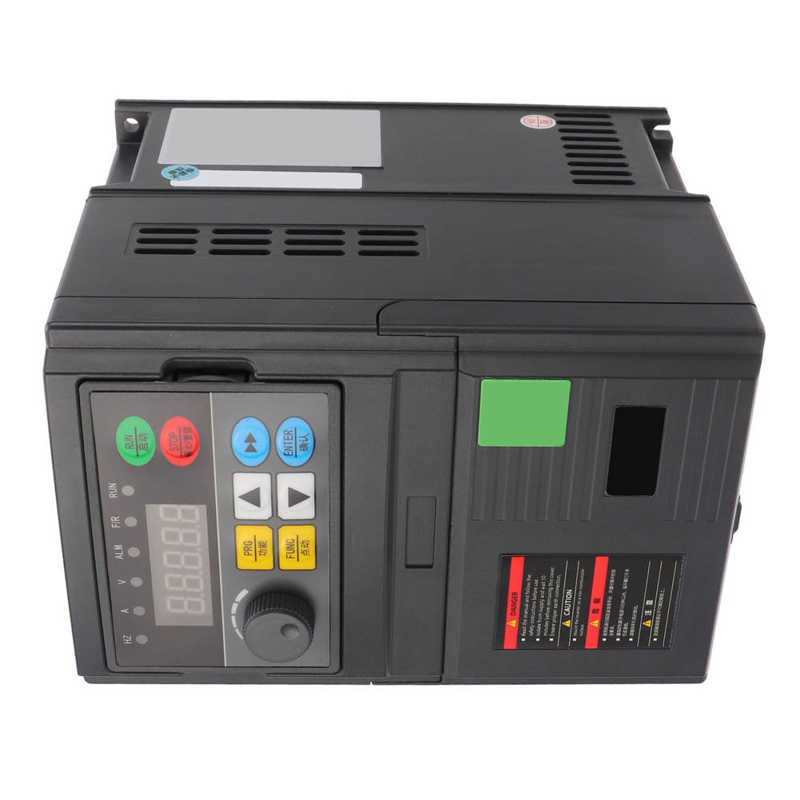

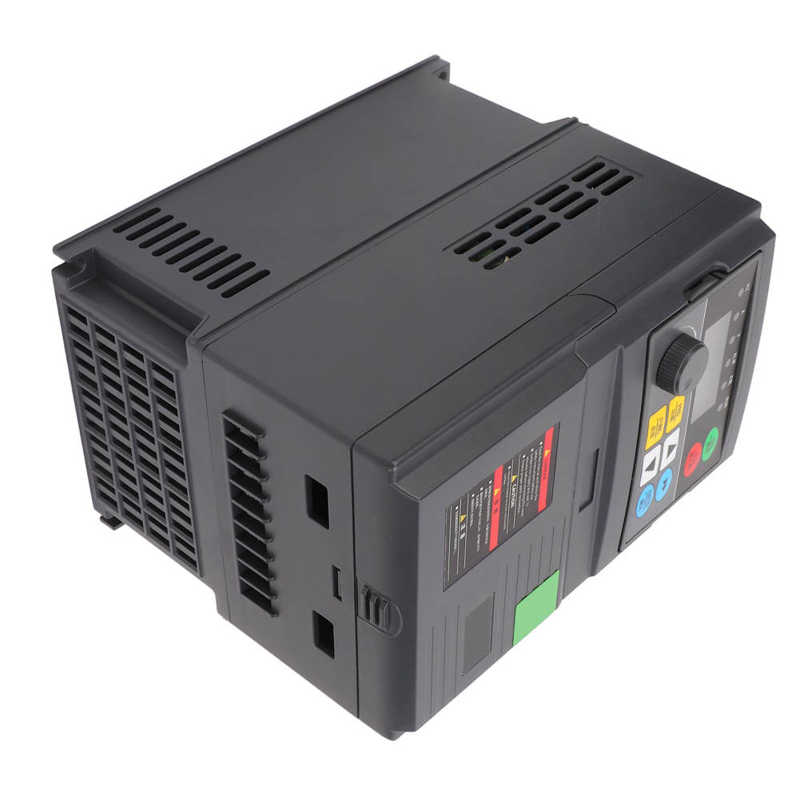

Feature:

   1. FULL PATCH DESIGN: The internal components of the inverter all adopt the SMD design, which greatly increases the stability of the machine.

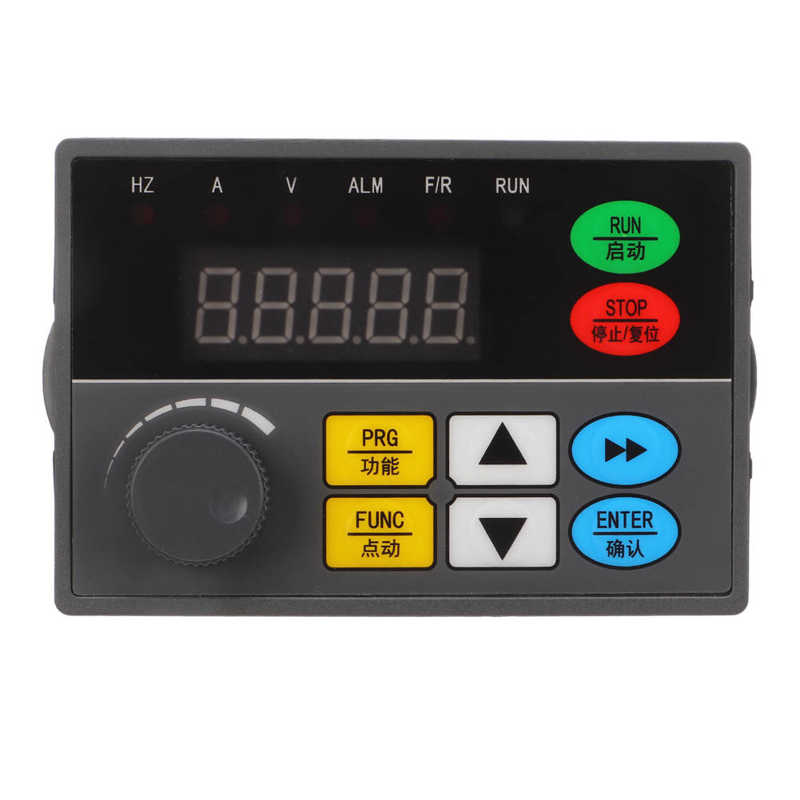

2. HUMANIZED KEYBOARD: The inverter has a humanized keyboard design and a digital display, which is easy to operate and clear.

3. INDUSTRIAL ABS MATERIAL: The shell is made of industrial grade flame retardant ABS plastic, which has high impact resistance, high heat resistance, strong flame retardancy and good comprehensive performance.

4. SUPER HEAT DISSIPATION: There are super large heat sinks inside the inverter, which are about 3 times larger than the heat sinks of similar products. The cooling fan ensures low noise and assists good heat dissipation.

5. COMPLETE FUNCTIONS: The frequency converter adopts cutting edge mainboard, which is intelligent and efficient, with strong protection performance and complete functions.

Specification:

Item Type: Variable Frequency Drive

Material: ABS

Input Voltage: 3 phase AC380-440V

Output Voltage: 3 phase AC0-440V

Package List:

1 x Variable Frequency Drive1 x Instruction

Note:

           1. Before wiring, please confirm whether the input power is in a power off state.

           2. For wiring work, please professional electrical engineering personnel.

           3. The grounding terminal must be grounded.

           4. After the emergency stop circuit wiring is completed, be sure to check whether the action is valid.

           5. Do not connect the output wire of the inverter with the shell, and do not short‑circuit the output wire.

           6. Please confirm whether the voltage of the AC main circuit power supply is consistent with the rated voltage of the inverter.

           7. Do not perform withstand voltage test on the inverter.

           8. Please connect the braking resistor according to the wiring diagram.

           9. Do not connect the power cord to the output U, V, W terminals.

           10. Do not connect the contactor to the output circuit.

           11. Be sure to install the protective cover before powering on. When removing the cover, be sure to disconnect the power.

           12. The inverter that selects the reset and retry function should not be close to the mechanical equipment. Because it will restart suddenly when the alarm stops.

           13. After confirming that the running signal is cut off, the alarm can be reset. If the alarm is reset in the state of running signal, the inverter may start suddenly.

           14. Do not touch the terminals of the inverter. There is high voltage on the terminals, which is very dangerous.

           15. During power‑on, do not change wiring and terminal disassembly.

           16. Cut off the main circuit power before inspection and maintenance can be carried out.

           17. Do not modify the inverter without authorization.
