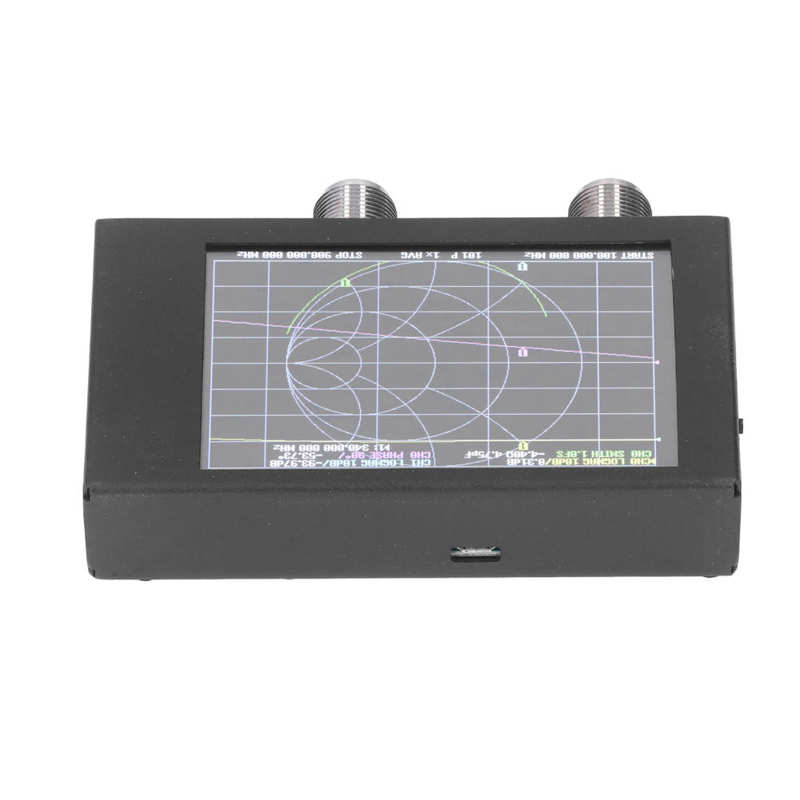

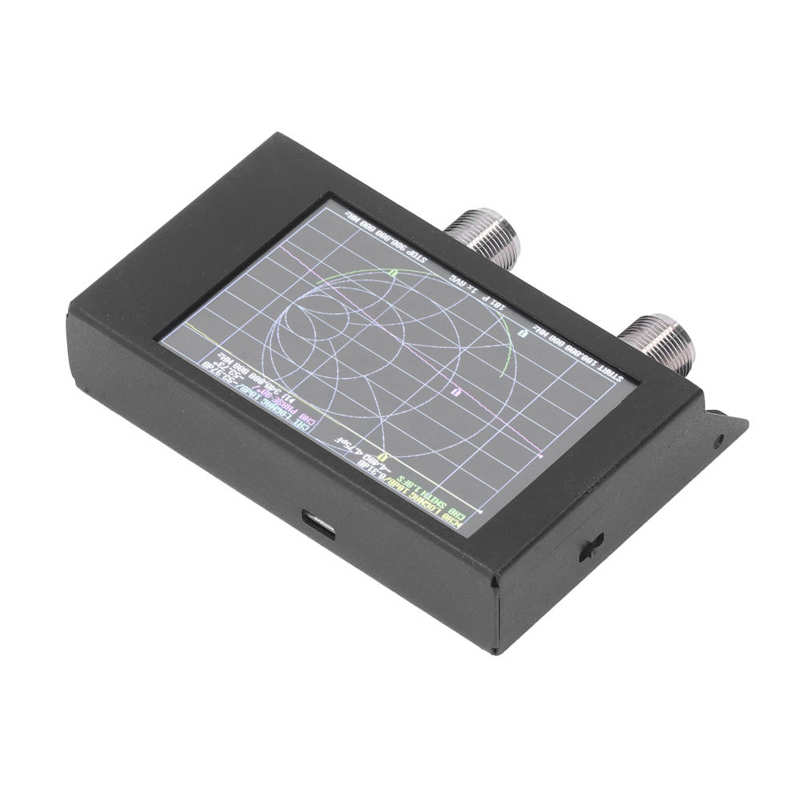

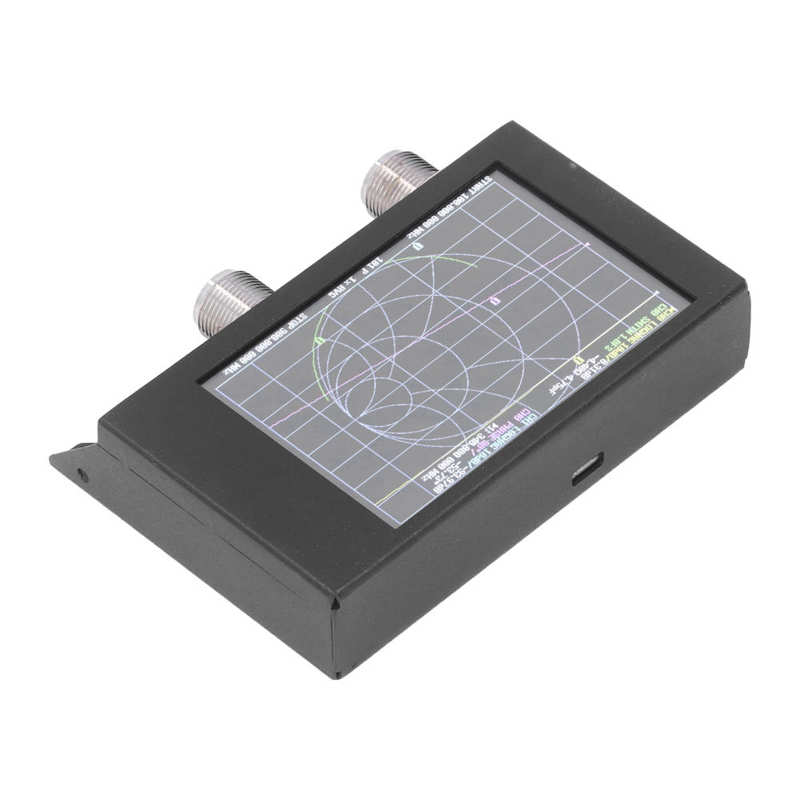

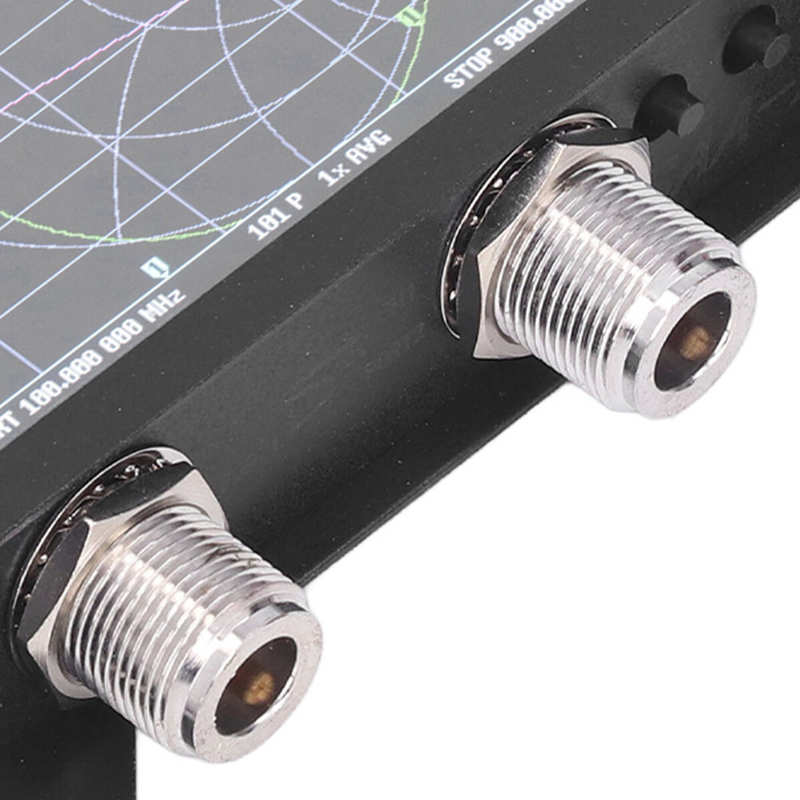

Feature:

   1. MULTI FUNCTION: Not only can test the standing wave impedance of the antenna, but also can debug the duplexer, the insertion loss of the filter, isolate and attenuate test cable, shorten the coefficient of antenna amplifier, phase, amplification

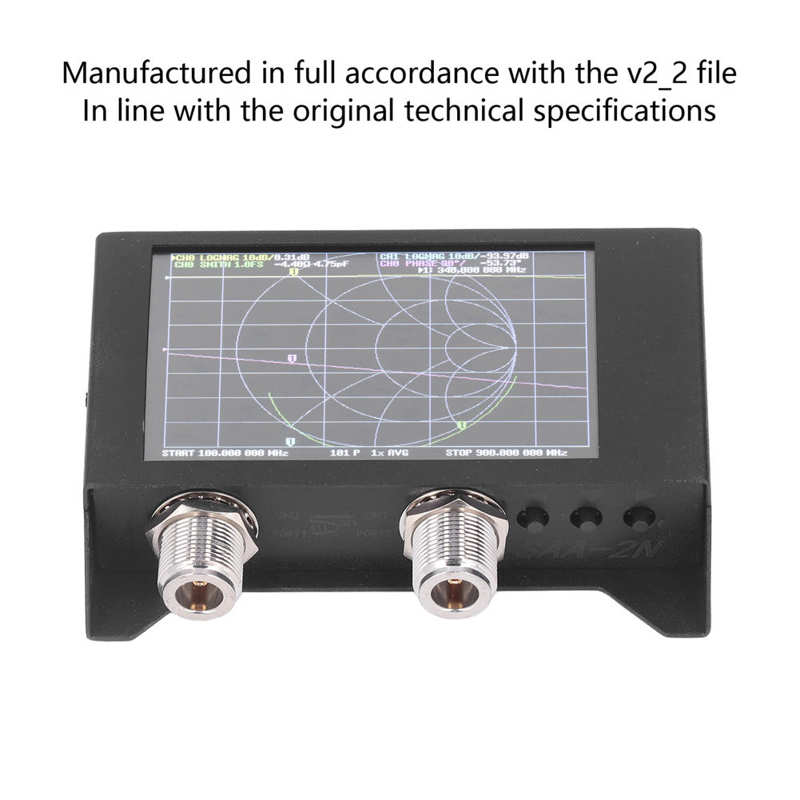

2. MEET ORIGINAL TECHNICAL SPECIFICATIONS: 3GHz vector analyzer is co designed with for OwOComm. According to the LGPL license agreement, manufactured in full accordance with the v2_2 file released by the development department of for OwOComm, in line with the original technical specifications, please go to the following path to update the firmware: github vna‑v2, VNA2‑firmware, release

3. RE CALIBRATED OR RECALLED WHEN FREQUENCY CHANGE: SAA‑2N/VNA_V2.2 uses a similar user interface to VNA, but uses a different technical architecture, will not load initial calibration data at startup, nor will automatically insert calibration data after the user changes the frequency data, must be re calibrated or recalled after each power on and frequency change

4. TRANSMISSION MEASUREMENT: S21 support 70dB (50KHz‑1.5GHz), 60dB (1.5GHz‑3GHz). Reflection measurement S11 for ‑50dB (50KHz‑1.5GHz) and ‑40dB (1.5GHz‑3GHz); Antenna analyzer support 1.005 (50KHz‑1.5GHz), 1.02 (1.5GHz‑3GHz); You can flip the display to easy to use

5. FOR VARIOUS SOFTWARE: The device can be controlled from a PC via for VNA-QT software and supports for , for (7+), for OS X plans. Also supports VNA-Saver to extract data for display on computer and save to for Touchstore file

Specification:

Item Type: Vector Analyzer

Frequency Range: 50kHz - 3GHz

System Dynamic Range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)

S11 Noise Floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)

Frequency Sweep: 100 points per second

Display: 4in, 320 x 480

USB Interface: Micro USB

Power Supply: USB, maximum charging current 1A

Battery: 3000mAh Li ion

Battery Connector: JST-XH 2.54mm

Maximum Scan Points (on device): 201

Maximum Number of Scan Points (USB): 1024

Port 2 Return Loss (1.5GHz): 20dB typ

Port 2 Return Loss (3GHz): 13dB min

VNA-QT Software Support Platform: For , for (7+), for OS X plan

Package List:

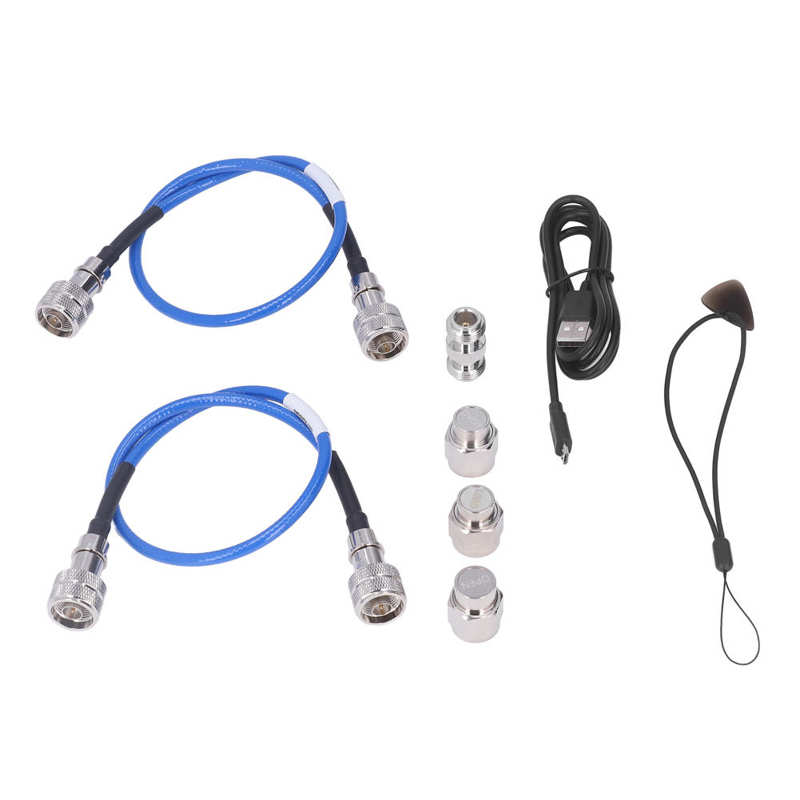

1 x SAA-2N Host

2 x Type N Male to Male RG142-PUR RF Cable

1 x Micro USB Cable

1 x Touchscreen Picks And Lanyards

1 x Type N Male Calibration Kit - OPEN

1 x Type N Male Calibration Kit - LOAD

1 x Type N Male Calibration Kit - SHORT

1 x Type N Female To Female Connector

1 x EVA Storage Bag

1 x User Manual

Note:

Please read the user manual carefully before use to avoid damage to the device.
