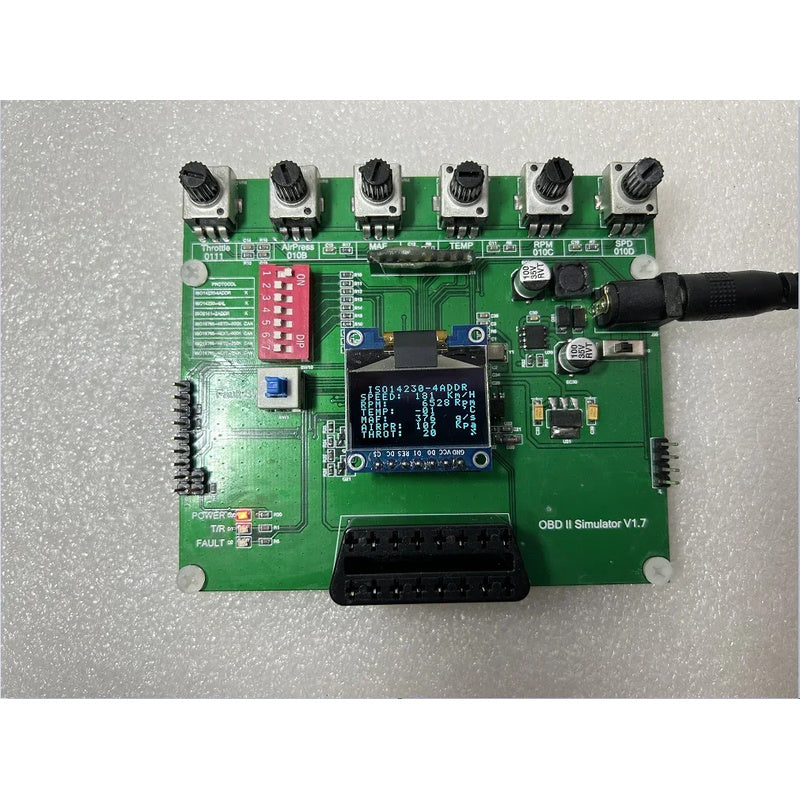

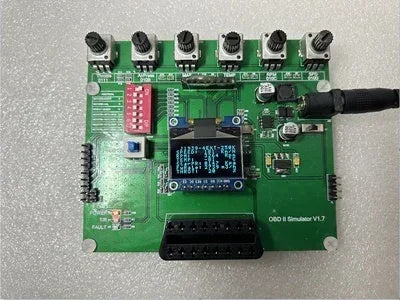

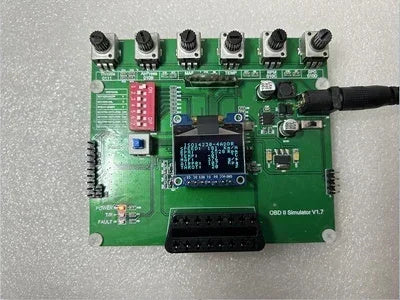

Type 1: 0.96 inch OLED small screen size _128*64
Type 2: 0.96-inch OLED small screen size _ supports J1939

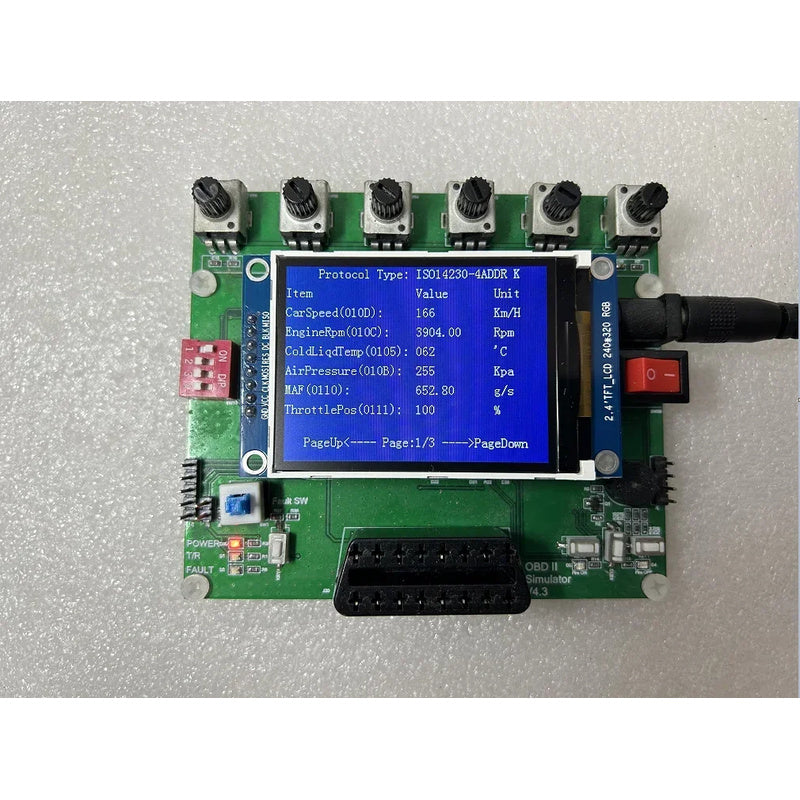

Type 3: 2.4-inch TFT multi-screen specification _320*240

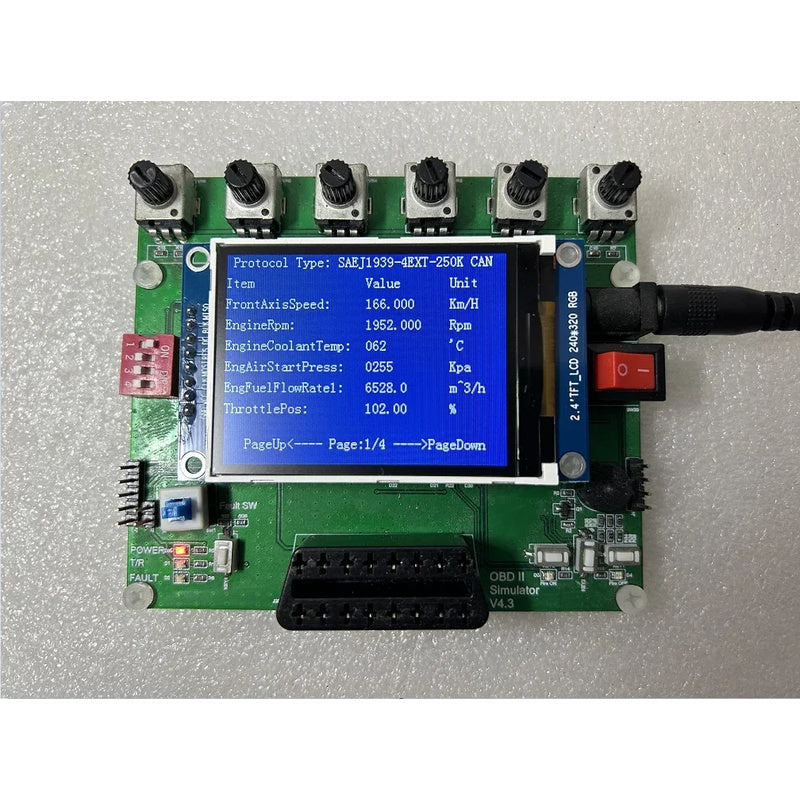

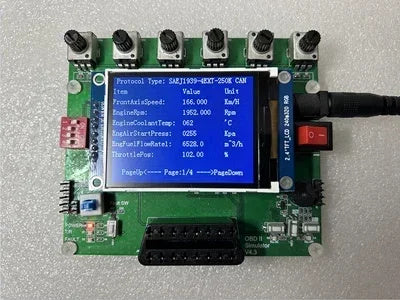

Type 4: 2.4-inch TFT multi-screen specification _ supports J1939

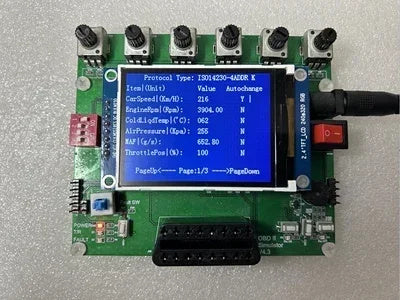

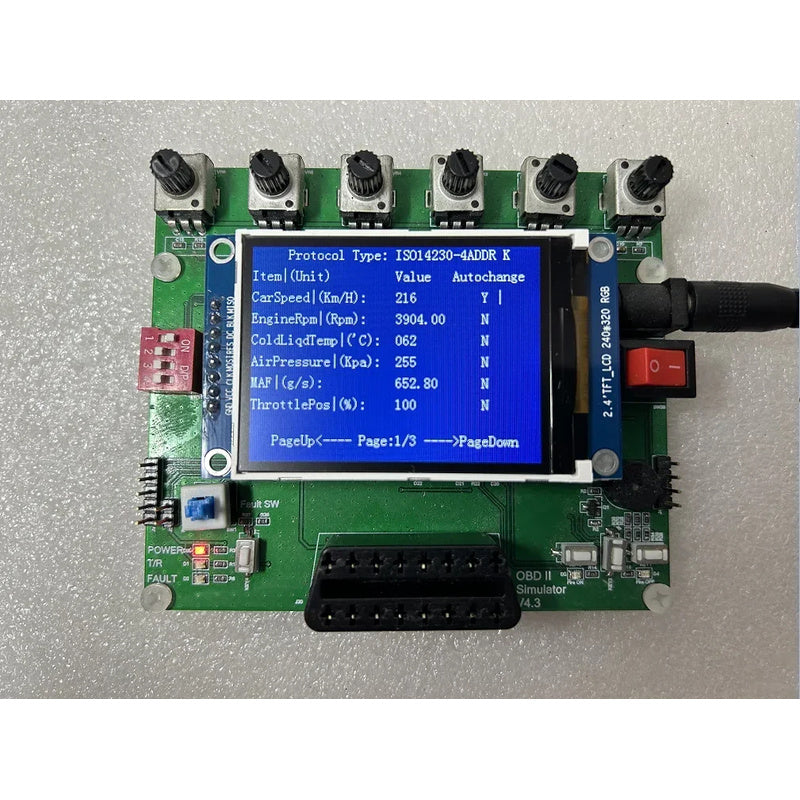

Type 5: 2.4-inch TFT multi-screen specification _ automatic jump and change

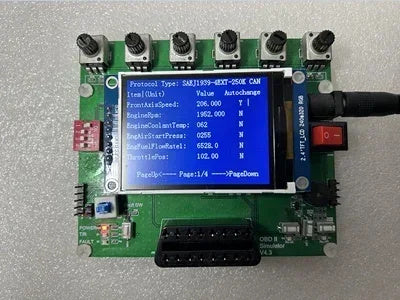

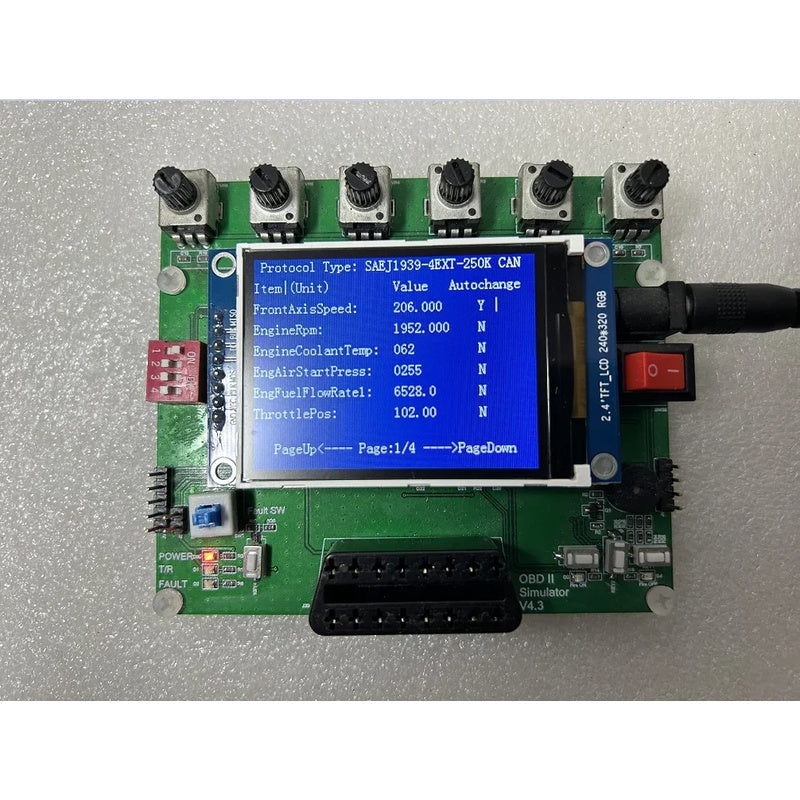

Type 6: 2.4-inch TFT multi-screen specification _ jump and change J1939
Description:
vehicle OBD simulator is a simulator device that simulates vehicle OBD bus protocol. With dynamic simulation, real-time LCD display of the main parameters of the function, very convenient and practical!
provides more than 150 real-time simulation data, close to the real car environment, can let you save fuel and car
supports frame number modification and saving, as well as simulation of three fault codes
provides 220V to 12V power adapter, so that the simulated environment can more realistically approximate the real car environment
More than 7 configuration specifications at your choice
Main features:
board carries LQFP48 STM32F103CBT6 chip (Flash:128KB,RAM:20KB), rich interface, powerful function, fast running speed
board carries the standard 16pin OBD connector

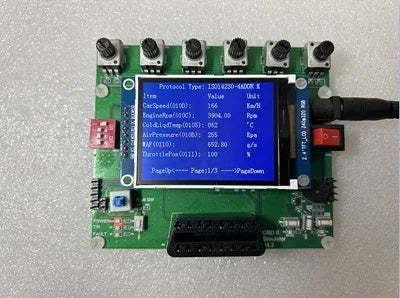

board with 320*240 LCD screen display, convenient for real-time data display
board is equipped with a 7-bit dial-code switch to facilitate switching between various protocols
board is equipped with 3 LED indicator lights and 1 self-locking switch input to facilitate the simulation and prompt of various fault codes
board contains the output of the buzzer for convenient prompt sound
board contains three user-defined keys - left and right keys for page turning - and the middle keys are temporarily disabled for future ignition/flame-out simulations
OBD emulators support the following seven protocols...
1 ISO14230 addr - 4 K
2 ISO14230-4 K hl
3 ISO9141 addr - 2 K
4 CAN ISO15765 - STD - 500 k
5 ISO15765-4 ext - 500 k CAN
6 CAN ISO15765 - STD - 250 k
7 ISO15765-4 ext - 250 k CAN
Our OBD simulator is a passive unit that simulates OBD data in a car. It needs to issue a command before it returns all kinds of parameter data. If you want to buy data that is used to simulate your car, you should first understand the OBD protocol format of your car before you decide!!
If the OBD protocol of your car happens to be supported by our OBD simulator, you can buy it. If you buy it, you can simulate it and you can use it. Please keep this in mind!!
4. Hardware resources of on-board OBD simulator
1OBD simulator
1 12V power adapter
5. On-board OBD simulator software data
1. Rar -- including serial port operation instruction manual and on-board PID definition instruction manual
2. Device data used in vehicle OBD simulator. Rar
3. On-board OBD simulator demonstration software package. Rar
4. PL2303HX serial port chip driver on vehicle OBD simulator. Rar
5. Various OBD protocols for vehicle OBD simulator. Rar
General characteristics
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
