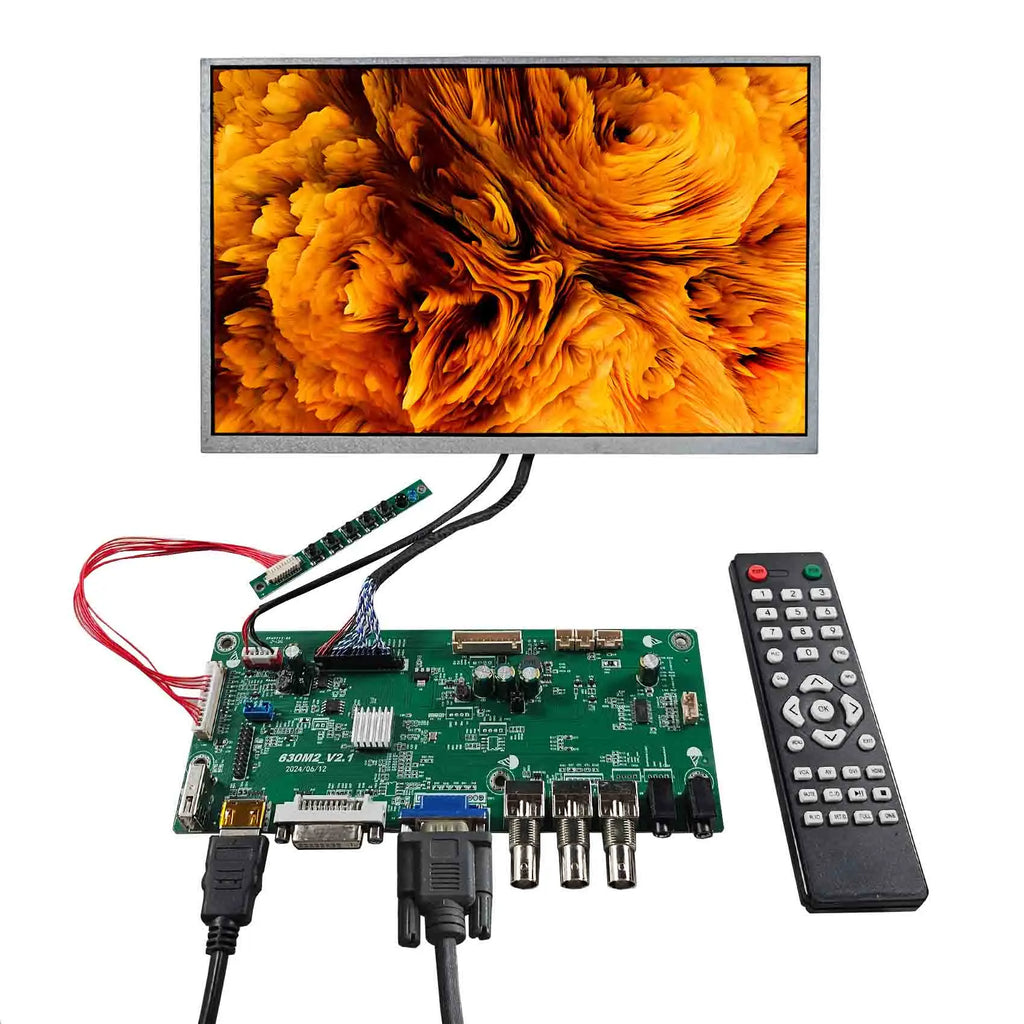

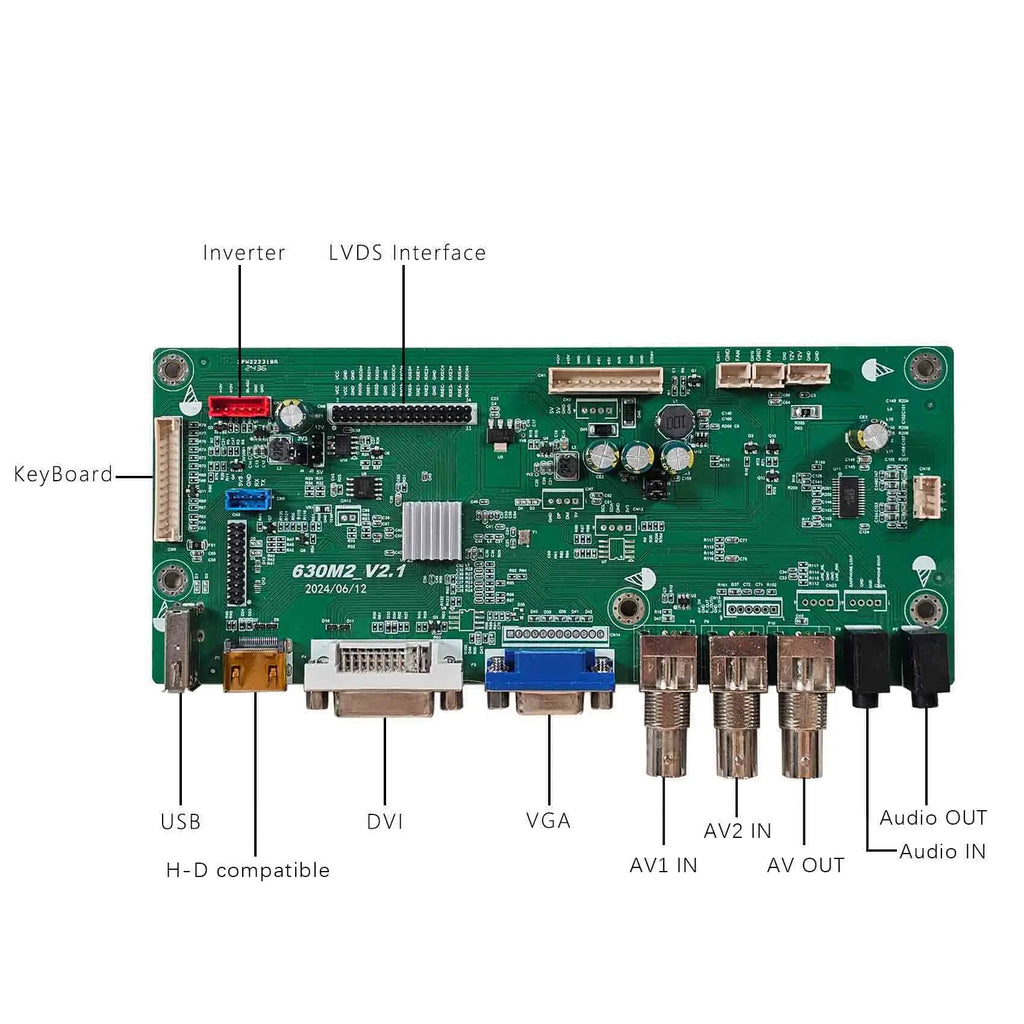

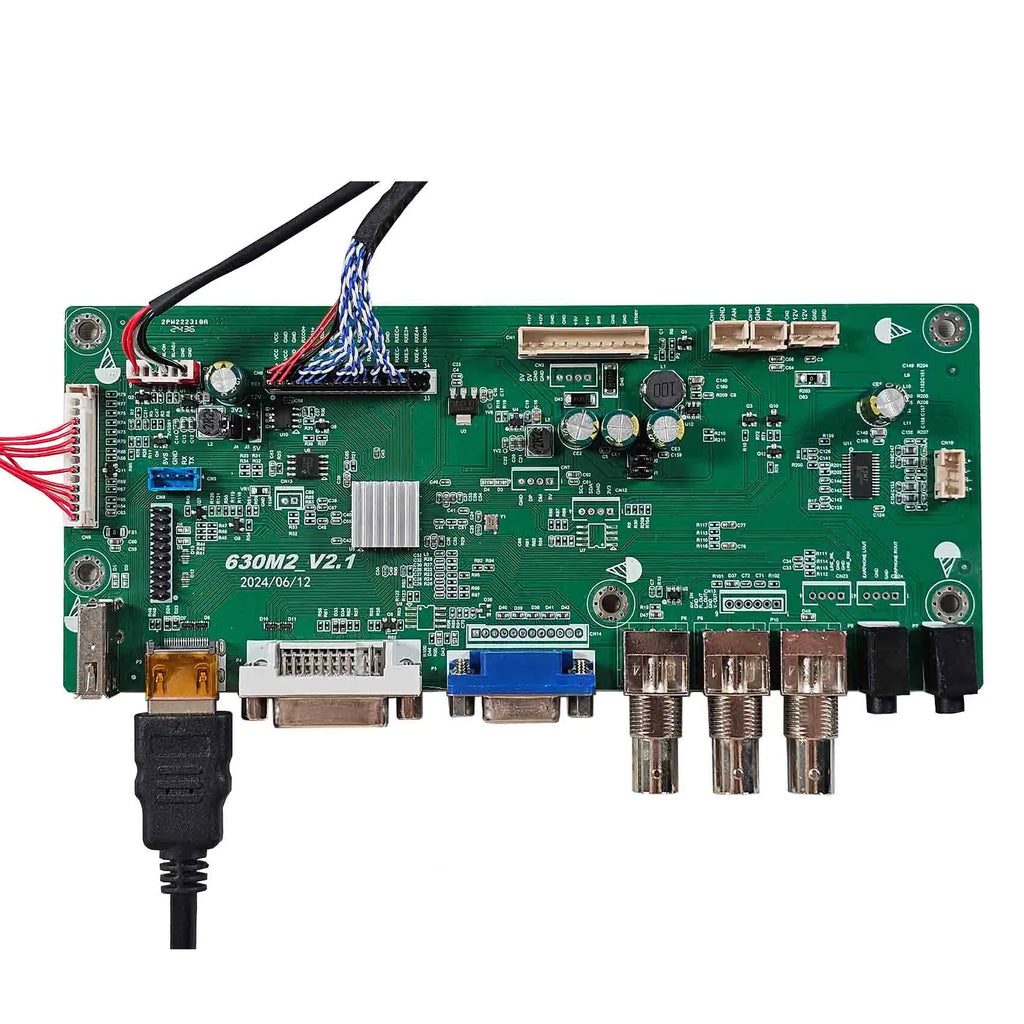

LCD Controller Board:
H-D Compatible DVI VGA AV1 AV2 USB AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D VGA AV1 AV2 USB
Audio Input: H-D AV1 AV2（BNC)
Audio Output: Earphone Speaker Connector
H-D Compatible: Support 840×2160＠30HZ input
Output: CVBS(BNC)
USB: Support video/picture decoding, power-on automatic playback
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 195mm x 82.5mm x 18mm
12.1" G121HAX01 1920X1200 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1920RGB)×1200
Outline Size 269.8× 175.2×6(H×V×D)
Display Area 258× 161 (H×V)
Brightness 600 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS(2ch 8bit) Connector 30Pin
Touch Panel：In cell touch
Backlight WLED
Input Voltage 3.3V (Typ.)
