Wanptek GPS DC Regulated Power Supply Four Digital Display Adjustable Phones Electrical Appliances Maintenance Power Supply
Describe
The GPS series DC power supply is a switch-type DC regulated power supply with a single output and a blue double digital tube display. The machine is finished
The whole operation protection function, high performance, low ripple, high stability and small size. Current limiting protection can
Protect the GPS power supply and load from accidental damage. The GPS series power supply has a temperature control circuit and low intelligent cooling noise.
Characteristics
High performance, full power
Low ripple, small size, light weight
Voltage, current blue LED display, beautiful
Regulated, current limited, easy to operate
Temperature controlled fan heat dissipation, low noise and long life
Application area
1. Production line testing.
2. Mobile phone, electrical maintenance.
3. Product aging.
4. Charge the battery.
4. Laboratory, research and teaching.
6. Everything else needs a DC regulated power supply.
Main technical parameters
Input voltage: AC 230V ± 10%; 50Hz.
Output regulation value: 0~32V continuously adjustable.
Output constant current value: 0~5.2A continuously adjustable.
Ripple voltage: Vpp ≤ 1%
Machine efficiency: ≥89%.
Digital display: four LED blue digital tube display.
Display resolution: 00.01V / 0.001A.
Display accuracy: ±0.5%+3digits.
Working temperature: (-10 ~ 40) °C.
Product characteristics
Net weight: 1.6Kg, gross weight: 1.95Kg

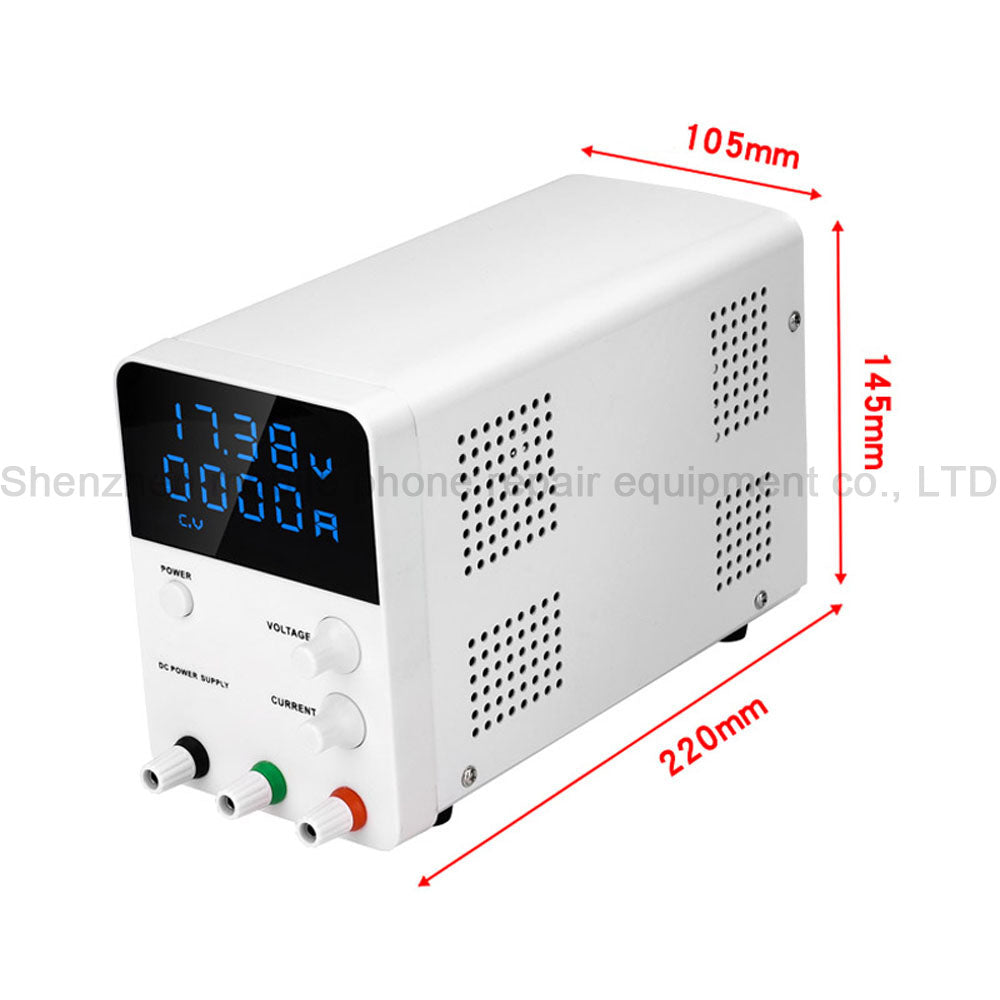

Machine size (mm): 105 (width) × 145 (height) × 220 (long)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
