Description:
Brand New Marine Grade Product.
Suitable for applications in boats, yachts & caravans.

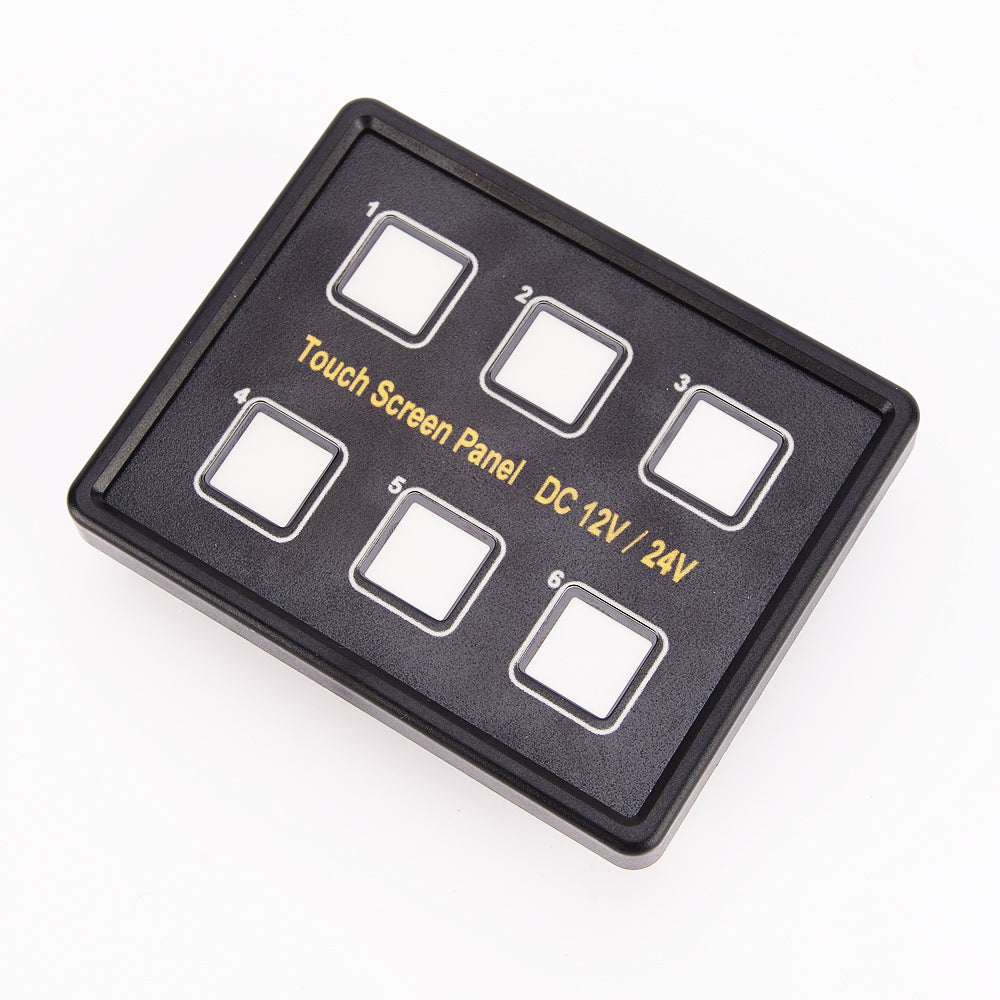

Slim Face Plate.
Designed for those with mounting space behind the cockpit console and those who are looking for the new style switch panel that reduces the mess of wiring at the back of the switch (that you get with current switch panels).
Compact Design Face Plate with almost no mounting depth required (less than 10mm).
Specification:

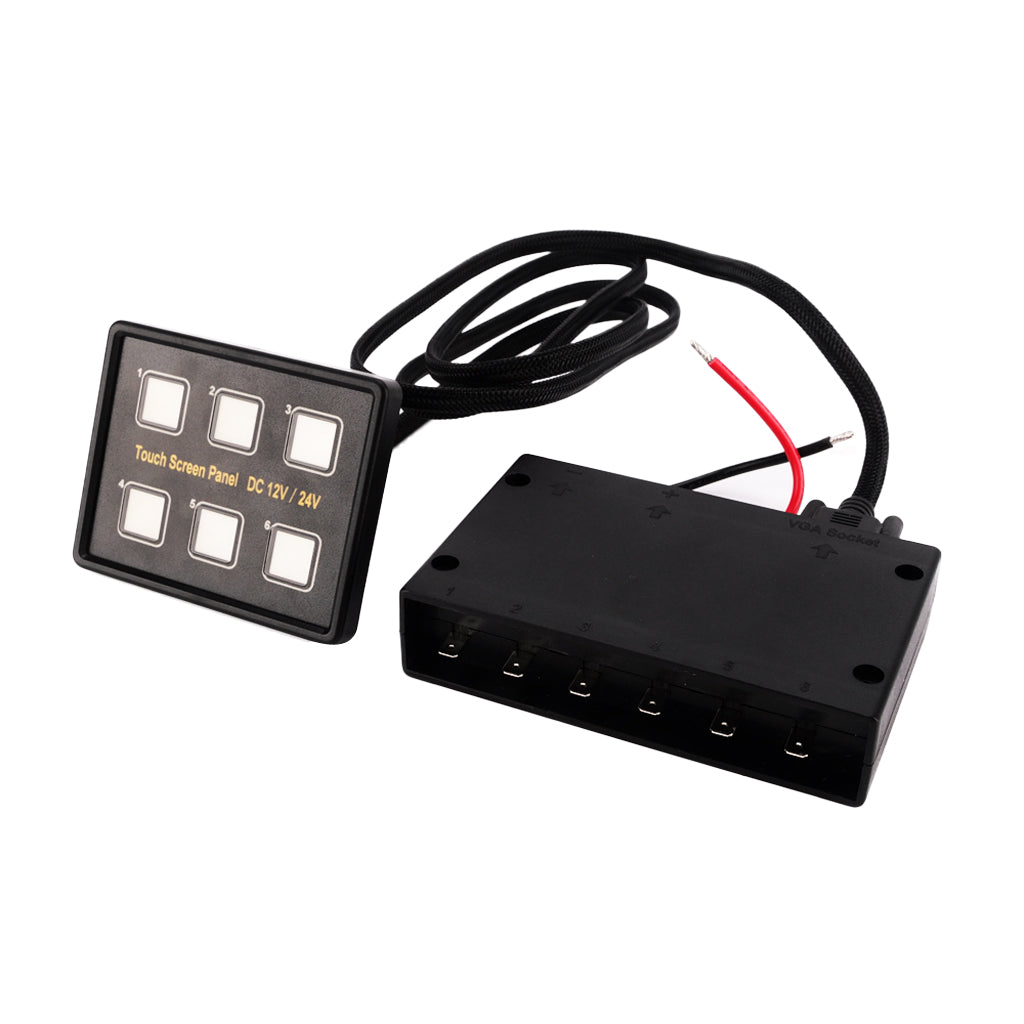

Remotely installed controlled box with 1m flat connecting cable to connect face plate to control box,making the back of the cockpit space clean and with less wires (as seen with current switch panels)
12V & 24V DC Applications
Built-in resettable fuse ()
10 Amp rating per switch
LED Backlight (Switches from white to blue LED once switch is in use)IP 66 Rating - Suitable for marine applications and installations
Capacitive Touch Screen Panel
15-pin VGA Transmission Cable
Input:12V/24V DC
Output:12V 10A/24V 10A DC
Maximum Power:960W
Reverse Polarity Protection
Overvoltage Protection
Overcurrent Protection
Built In Resettable Fuse()
Operating temperature:-10°C ~ +C
Installation
1.Location suitable position for the panel.Take not the panel size is 100mm(W)*80mm(H)
2.Cut out a 20mm H*50W hole for the wiring to run through the back of the control Panel
3.Mount the control panel onto location with the supplied Adhesive Sheet(this has been cut size with the 20mm*50mm hole to allow the wiring to pass through
4.Mount control box at suitable location
5.Connect the 15-pin connection cable from the control panel to the control box
6.Connect input cables(positive and negative)&also connect the output cables(positive)for the accessories, please not negative on the accessories is to go to an external buss bar(not supplied)
Package Includes:
Gang Capacitive Touch
Gang Circuit Control Box
1 x 15-pin VGA Transmission Cable
1 x Double sided adhesive (for mounting control panel)
20 Stickers
2 input wires
6 Output Wire
4 x Stainless screws
