For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.
DESCRIPTION
PoE Ethernet / USB HUB HAT For Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-Compliant
PoE Ethernet / USB HUB HAT
Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant
Features At A Glance

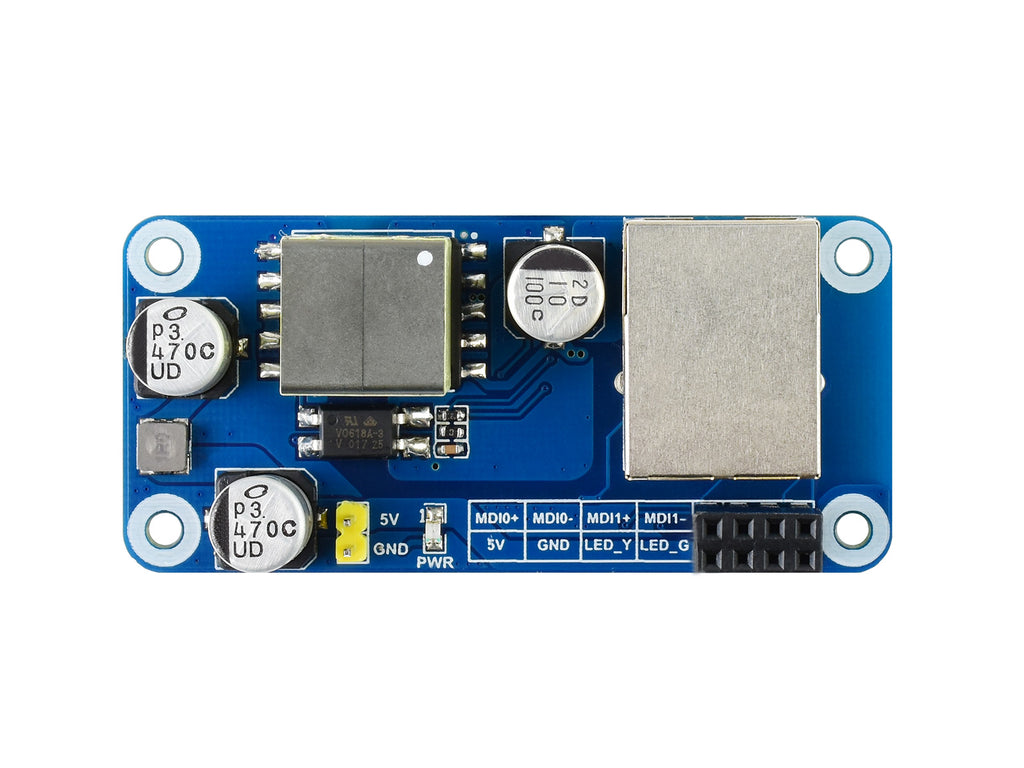

ThePoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.
Designed for Raspberry Pi Zero, compatible with Zero series boards
Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1
Specifications
POE POWER INPUT
37V ~ 57V DC in
POWER OUTPUT
5V 2.5A DC out
NETWORK STANDARD
IEEE 802.3af-compliant PoE
DIMENSIONS
23.10 �� 65.00 mm

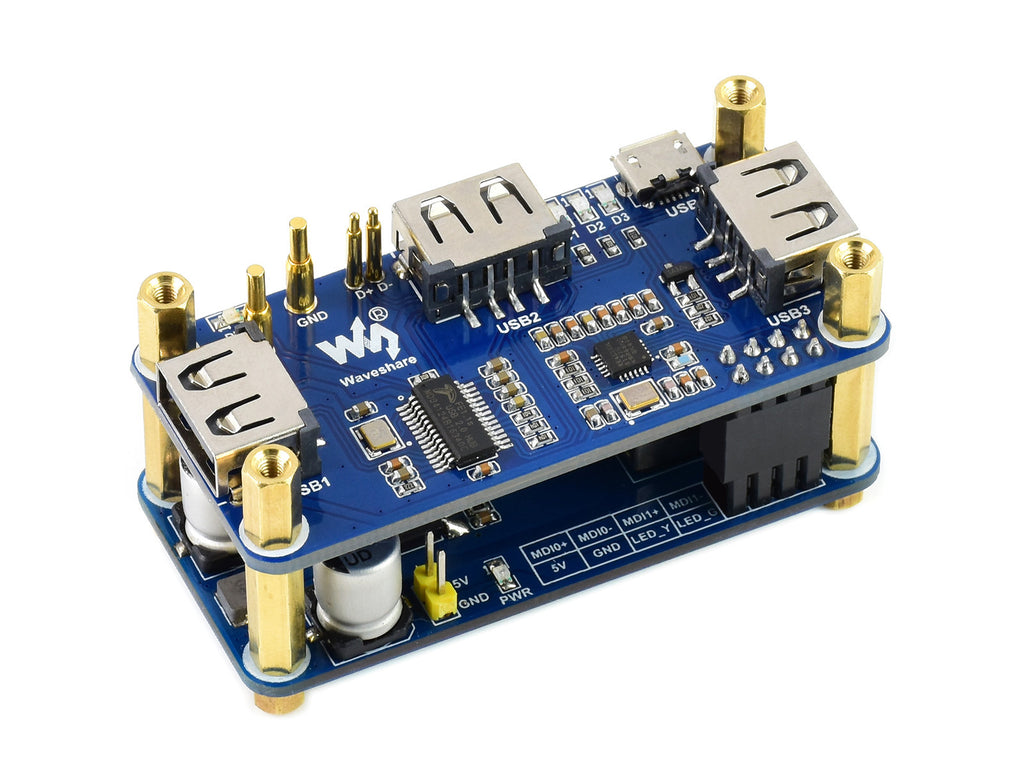

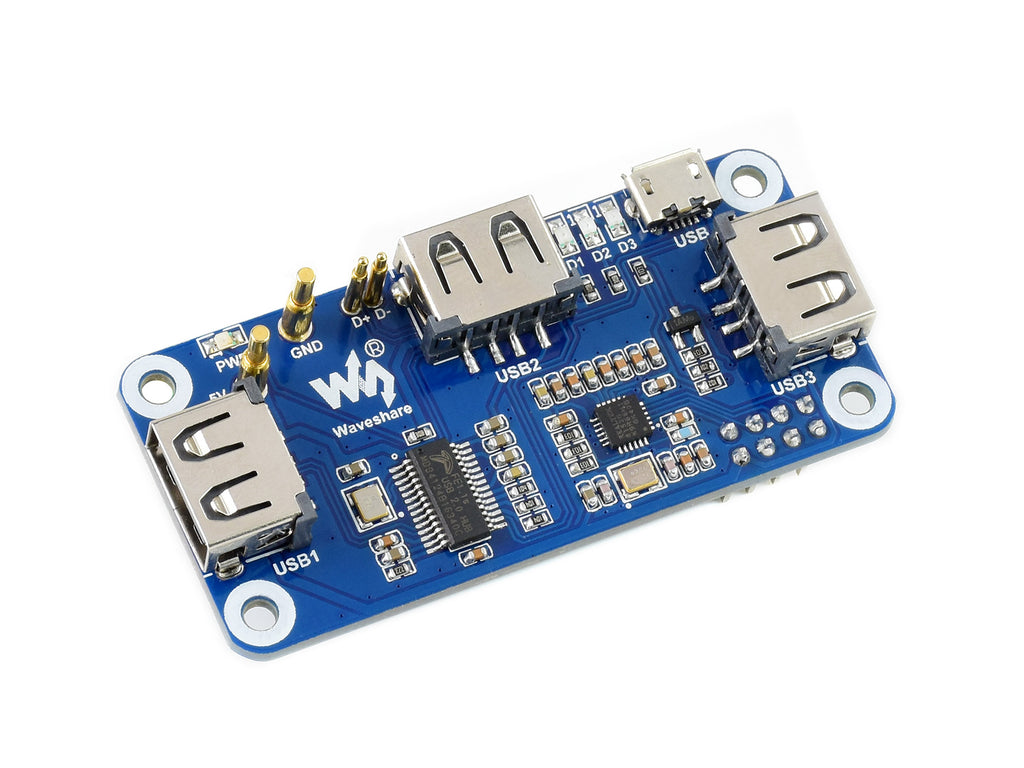

3x Extended USB 2.0 Ports
USB1 ~ USB3, Compatible With USB 2.0 / 1.1
Extended Ethernet Port
USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

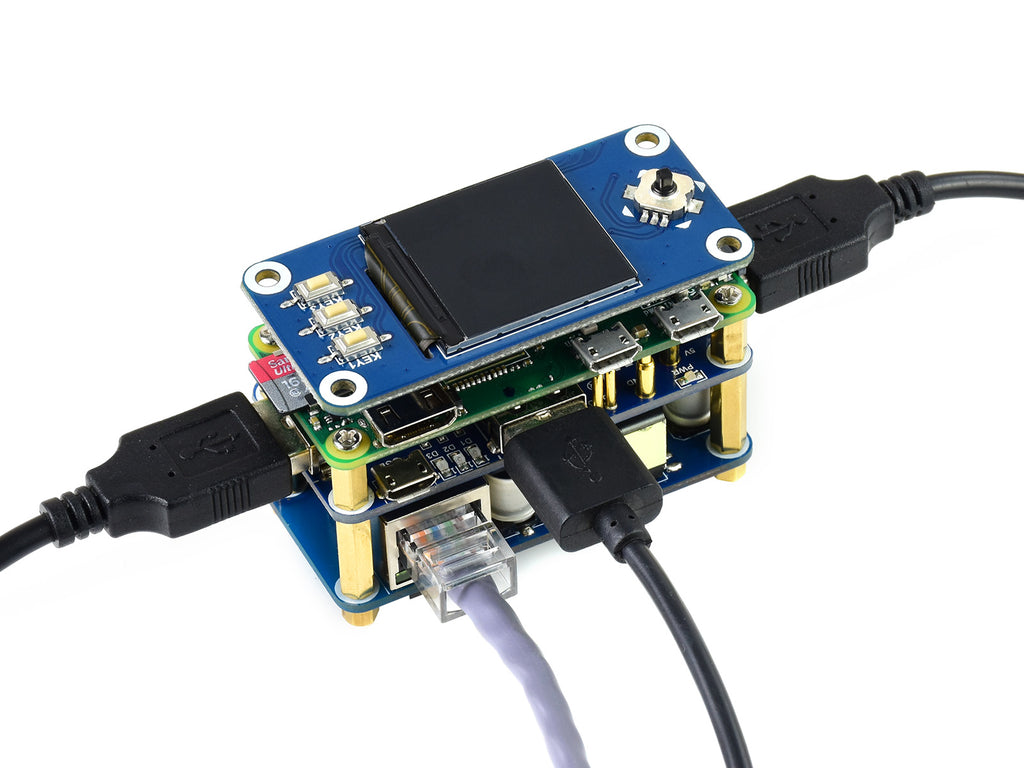

Application Example
For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.
Outline Dimensions
Resources & Services
Wiki:www.waveshare.com/wiki/PoE/ETH/USB_HUB_HAT
PACKAGE CONTENT
Weight:0.063 kg
PoE/ETH/USB HUB HAT x1
USB HUB Board x1
Screws pack x1
Screwdriver x1
