* for reference ONLY, the Raspberry Pi Zero, display module, and MicroSD card are NOT included.
PACKAGE CONTENT
Weight:0.041 kg
UPS HAT (C) x1
1000mAh Li-po battery x1
Screws pack x1
1 2 3
DESCRIPTION

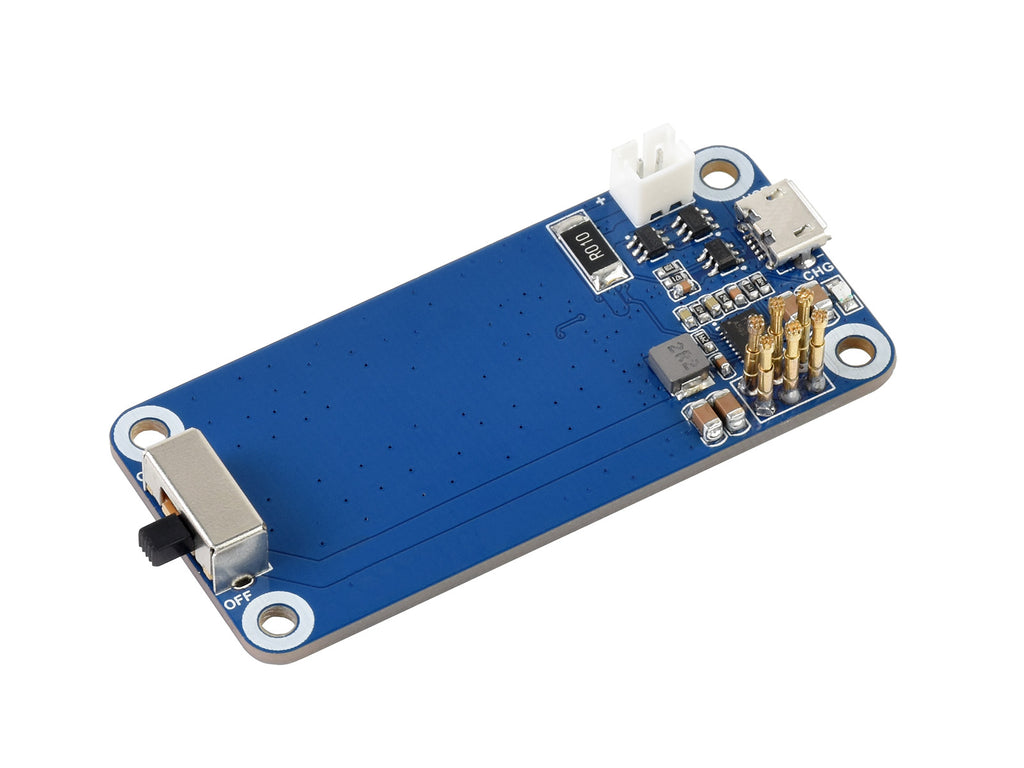

UPS HAT (C) For Raspberry Pi Zero, 5V Uninterruptible Power Supply, Multi Battery Protection Circuits
Uninterruptible Power Supply For Pi Zero
Power Your Pi Zero Seamlessly From Power Connection OR The Backup Batteries
Supports Recharging And Regulated 5V Output At The Same Time, I2C Monitoring
Features At A Glance
TheUPS HAT (C)is an uninterruptible power supply module specialized for Raspberry Pi Zero series. It incorporates Li-po battery switching charger with path management, voltage boost chip, and voltage/current monitor which allows monitoring the battery operating status via I2C bus.
Onboard spring pogo pins for connecting with Raspberry Pi Zero series boards
Li-po battery recharge chip, with dynamic path management, more stable power supply
Voltage boost chip, providing regulated 5V power output
I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, and short circuit protection, more safe and stable
Recharging indicator for monitoring the battery operating status
Comes with development resources and manual
Specifications
OUTPUT VOLTAGE
5V
CHARGER
5V
CONTROL BUS
I2C

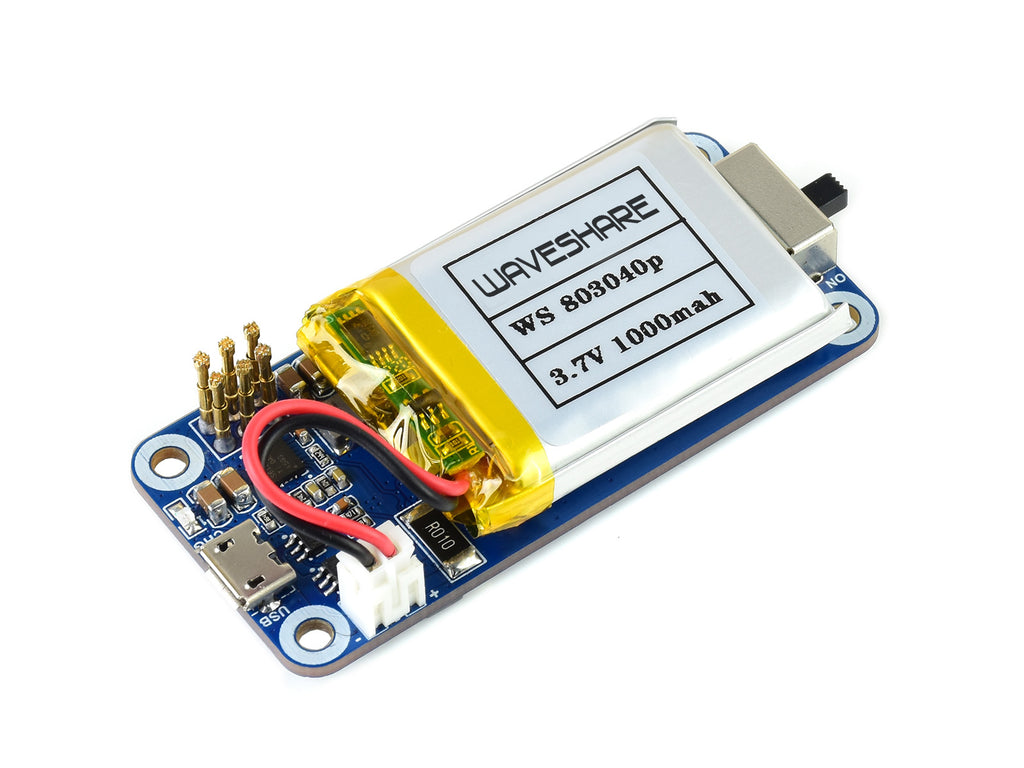

BATTERY
803040 Li-po battery
1000mAh 3.7V
MOUNTING HOLE SIZE
3.0mm
DIMENSIONS
65 �� 30mm
Uninterruptible Power
It is able to recharge the battery and provide power output at the same time from external power supply
Automatically switch over to battery output if external power supply is unavailable, keeps the system running without any trouble

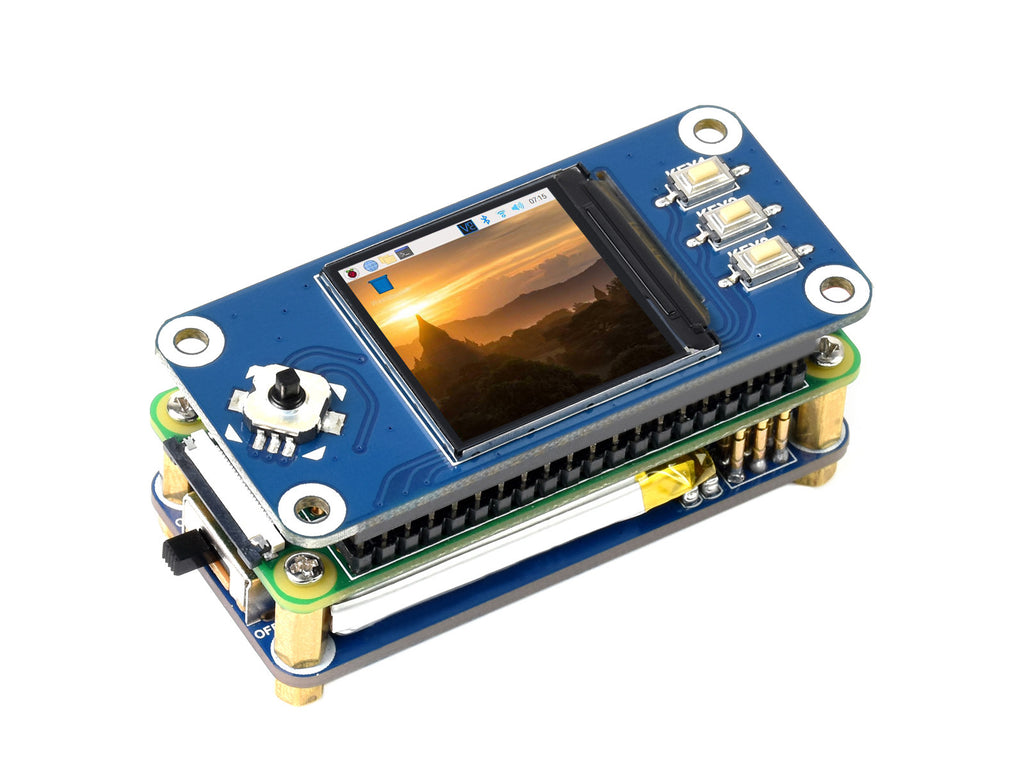

* for reference ONLY, the Raspberry Pi Zero, display module, and MicroSD card are NOT included.

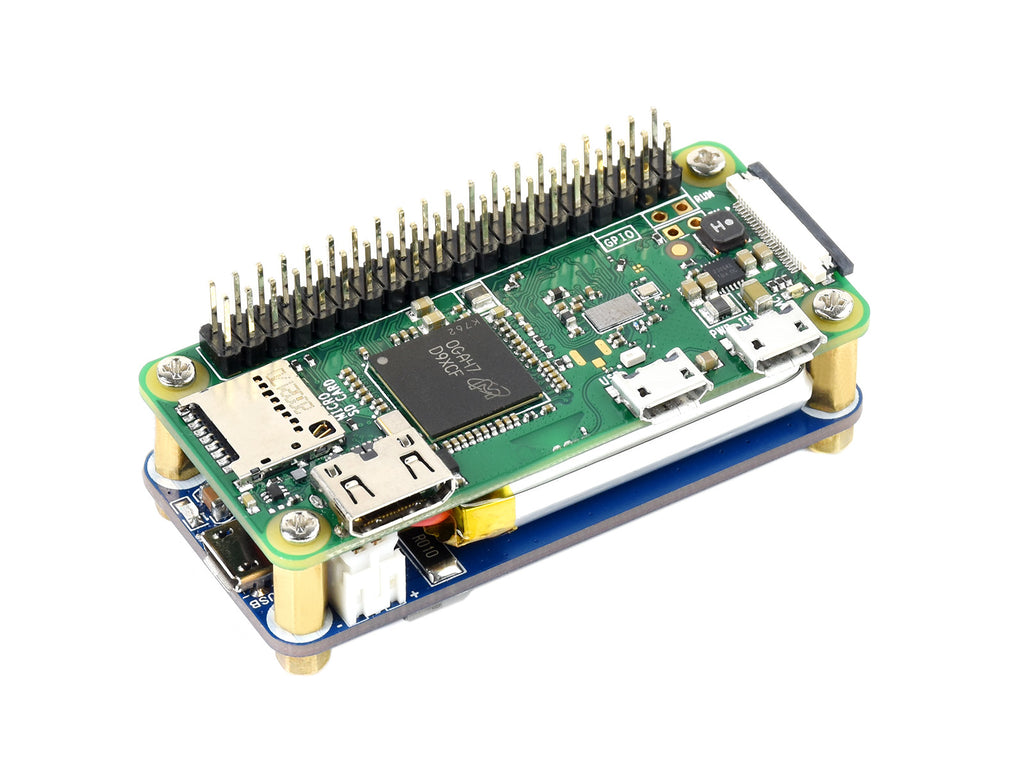

Designed For Raspberry Pi Zero Series
Bottom Pogo Pin Connection, Allows Attaching Other HATs On The Top
Real Time Monitoring
Monitoring The Battery Voltage, Current, Power, And Remaining Capacity Via I2C
When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

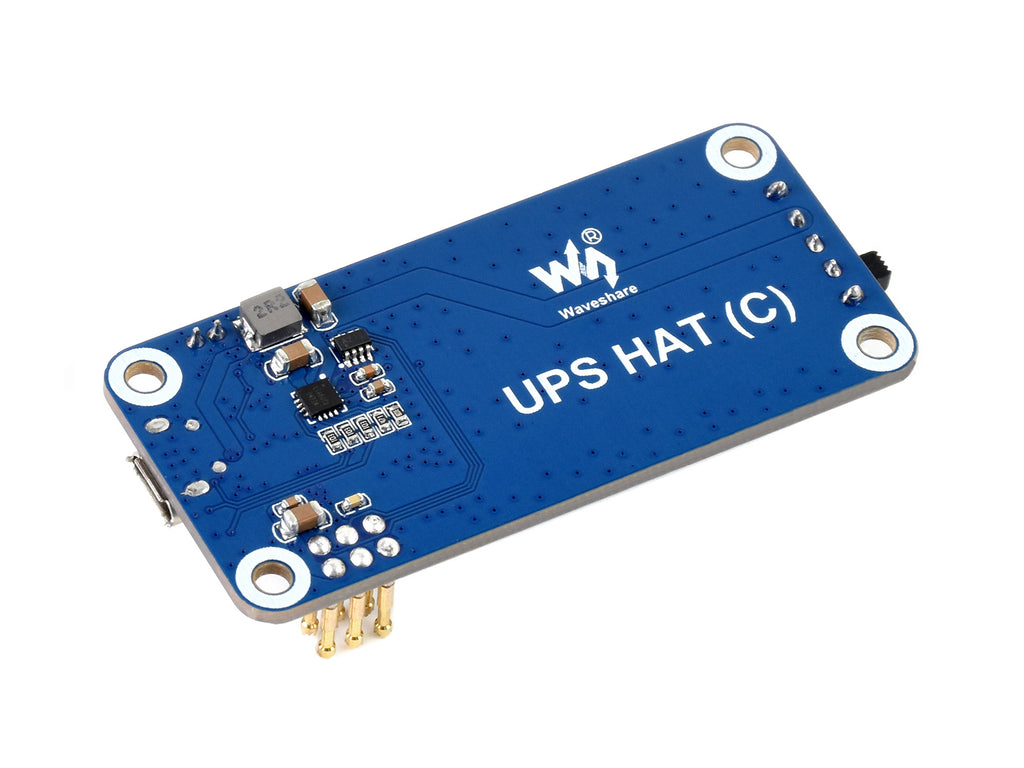

What's On Board
ETA6003:recharge manager
TPS61088:voltage boost chip
INA219:voltage/current monitor
S8261:Li-po battery protection chip
FS8205:Li-po battery protection MOS
6.Pogo pins:for connecting with Raspberry Pi Zero
7.USB recharge port:5V charger input
8.Battery header:for connecting 803040 Li-po battery
9.Power indicator
10.Recharging indicator
Pinout Definition
Outline Dimensions
Resources & Services
WIKI:www.waveshare.com/wiki/UPS_HAT_(C)
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
