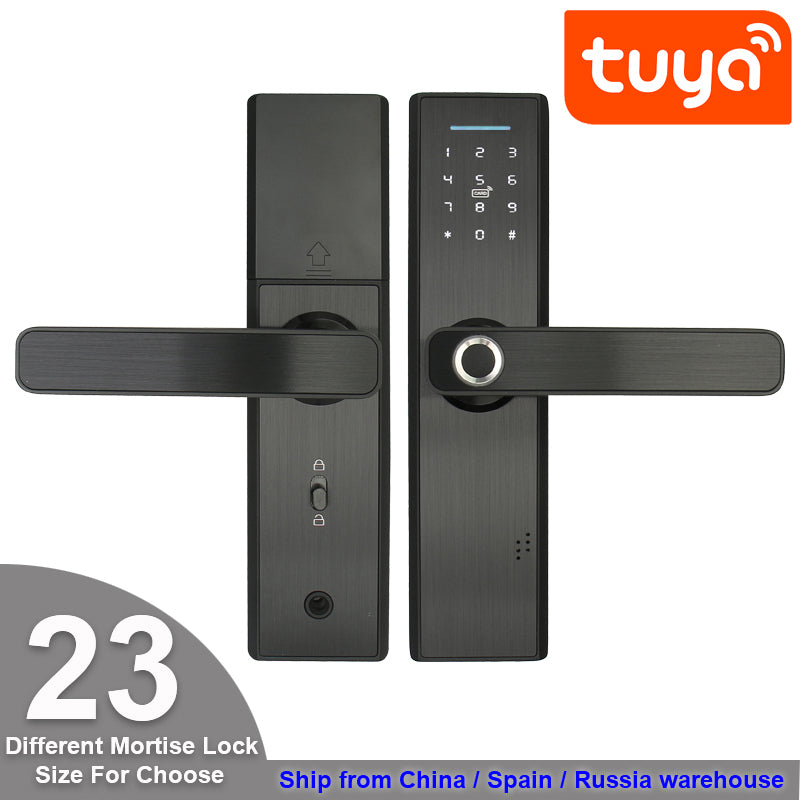

Wifi Tuya Version

Temporary password

Phone APP / Fingerprint / Password / Smart Card / Key Unlock

Support Normal Open Mode (access free)

Diffrence Mortise Lock Size

English Voice

Wire Drawing Panel

Frosted Shell

Universal Both for Right or Left Door

       We Recommend the R-FG6 Tuya, the battery energy conservation is better then the R-FG5

       (Battery life longer then the R-FG5)

    About the Tuya version Working principle

         here is the comparison between the TT lock and Tuya APP

Obviously, the TT lock (bluetooth) version is better.

    if you want to buy the Bluetooth version, please click here.if you want to buy the Bluetooth version, please click here.

       The Tuya APP functions:

1. Remotely control the lock

2. Get the unlock records

    3. Temporary password

       Products Details:

   Semiconductor Fingerprint Reader

       Reading speed under 1 second

       Max Support 90 fingerprint

   M1 Smart Card Reader

       Max support 50 cards

Item default with 5pcs, if you need more, please contact us.

   Touch Keypad

       4-8 digitals

Support the Anti-Peeping Virtual Password enter

   Reverse Locking Switch

       can not open the lock from outdoor,unless the Master

   Back-up Unlock Method

       1. Use Mechanical key

2. Power bank input by the Micro USB

(prevent the battery dead)

   Low Consume Design

       With low power warning

Battery Size: 4pcs AAA 1.5V (battery not include in the package)

   Reset Button

       Press about 5 seconds, all user will be deleted,

please program master and user information again

   Fashion Design

       Wire drawing Panel

Frosted shell

    Standby Mode: no display the digital

       Now is the most important things about the Installtion:

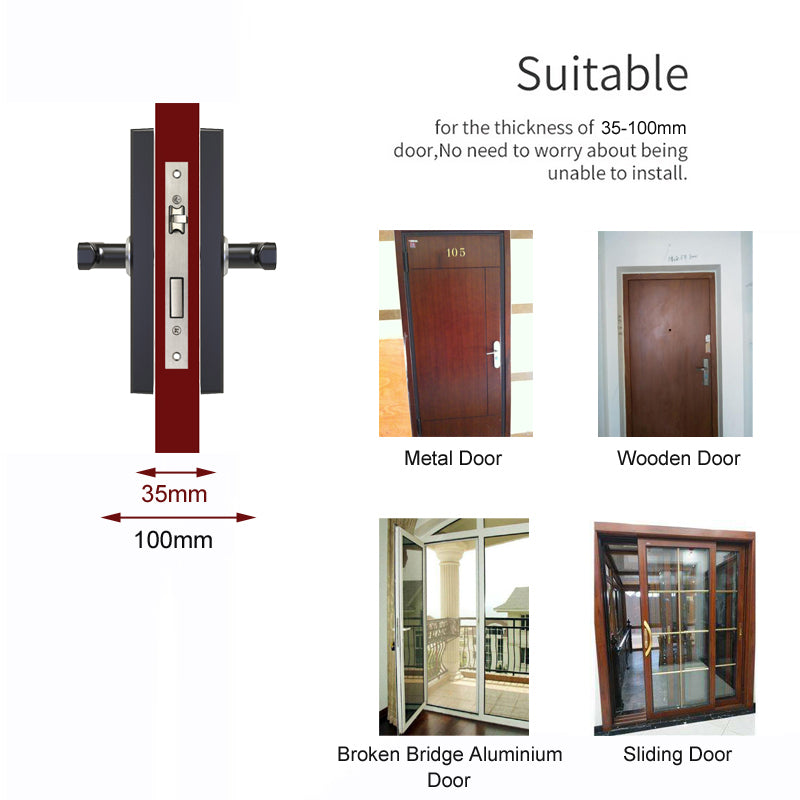

    35-100mm door thickness are suitable

    For Metal door / Wooden door / Sliding door / Broken bridge aluminum door

         Replace perfectly for those two types original lock.

Very easy to upgraded a Smart Door Lock From us.

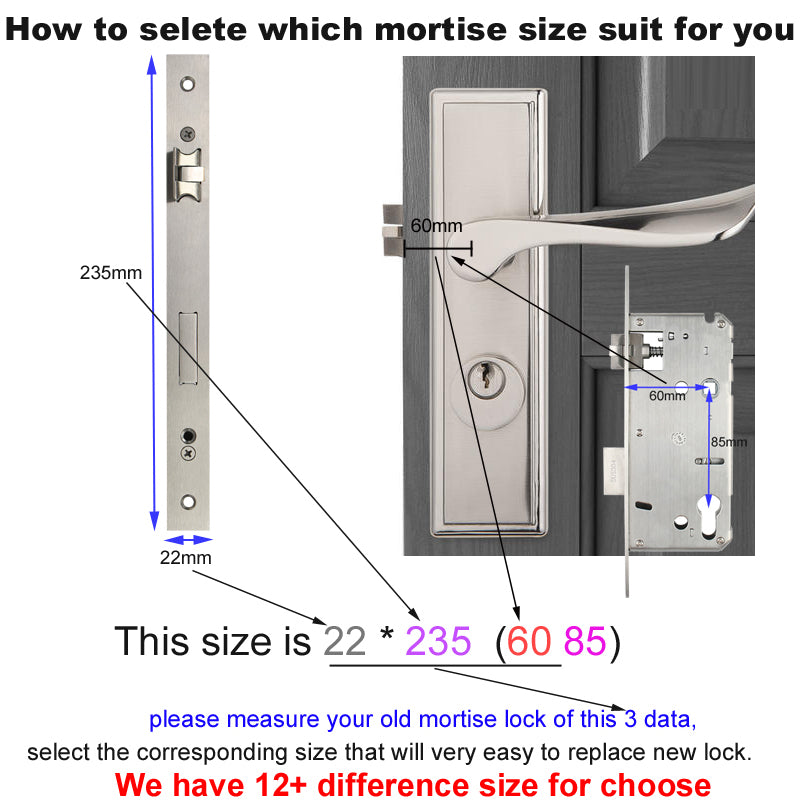

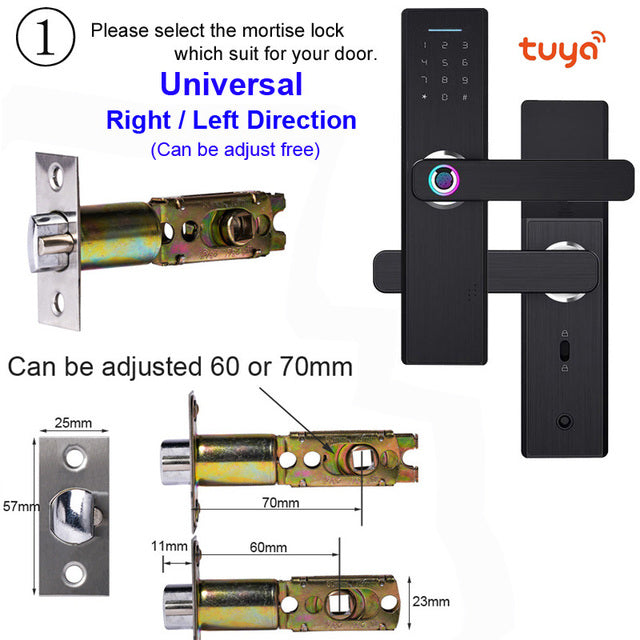

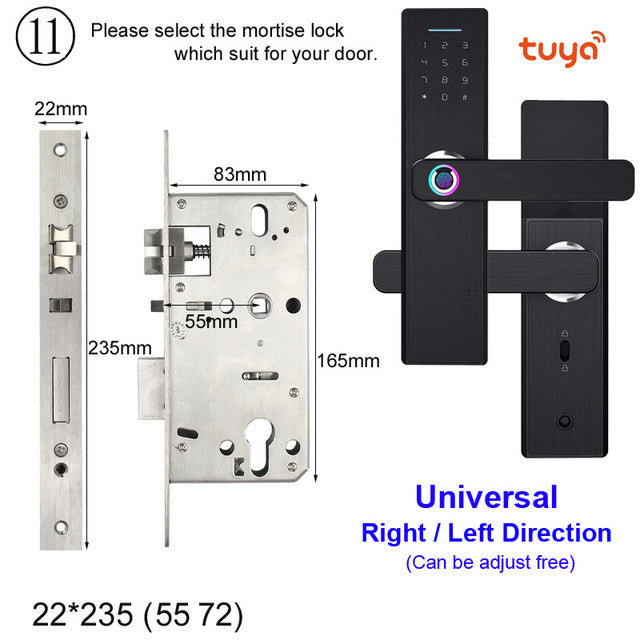

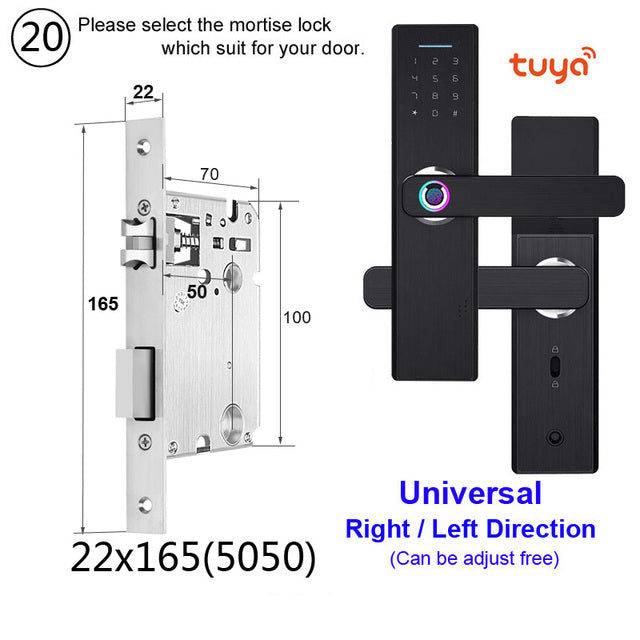

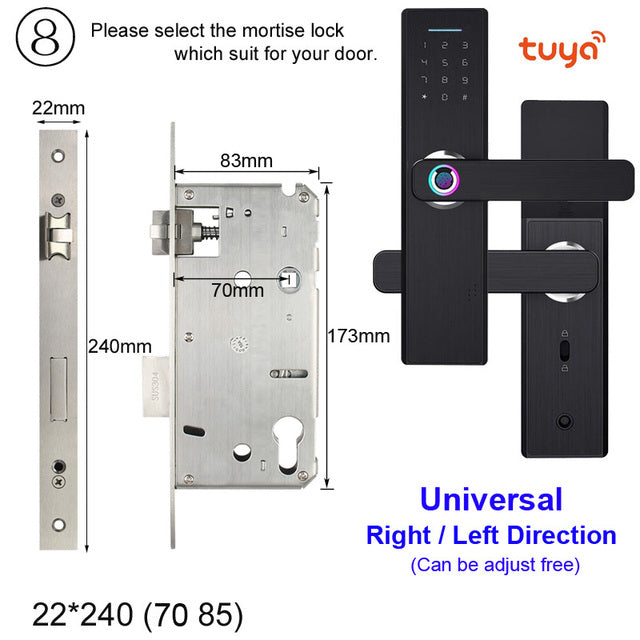

         Measure the old mortise lock:

     please select our size follow your Original lock size,that you would replace new lock very easy.

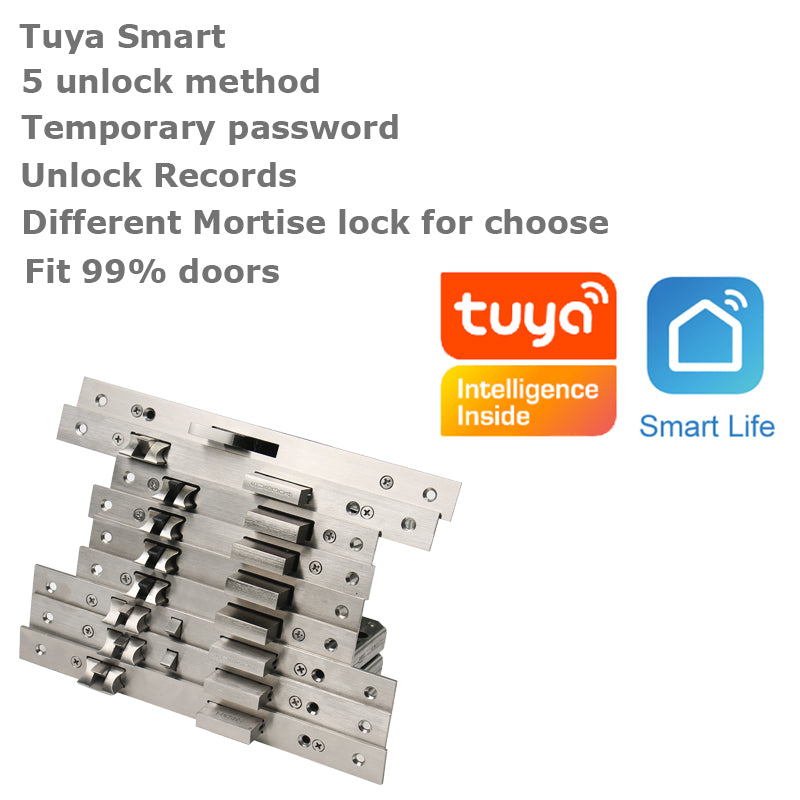

We have 13 different sizes mortise lock for choose

     Measure the door thickness: (35-100mm is suitable)

Installation accessories:

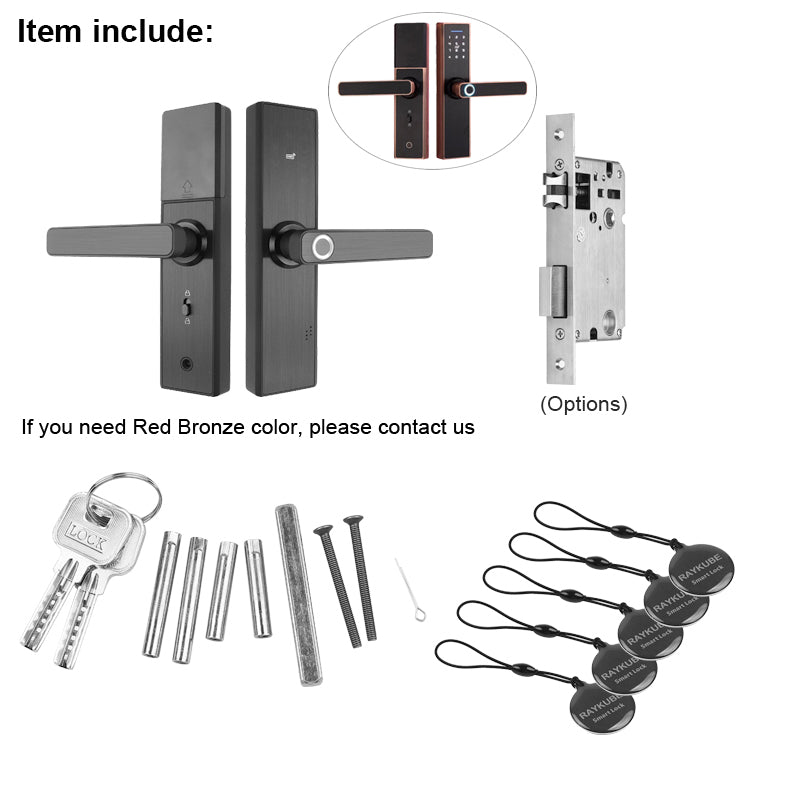

      Package includes:

      Front panel x 1

Rear panel x 1

Mortise lock x 1

Smart card x 5

Mechanical Key x 2

Screw Kit x 1

      Specifications:

   Brand:   RAYKUBE

Model:   R-FG5 Plus

Support Wifi connecting: Tuya Version

Material:   Aluminium Alloy

Unlock mode: APP /  Fingerprint / Password / Smart card / Key

Fingerprint read:    FPC Sensor (Semiconductor Sensor)

Color:  Black

Card User:  50

Fingerprint User:  50

Chip Type:   Dual Core Driver

Read time:   0.3seconds

Touch screen:  IML Material

Working power:   4 x AAA 1.5V batteries (not include)

Operating temperature:   -25 to 55 Centigrade

Password function:   support virtual password

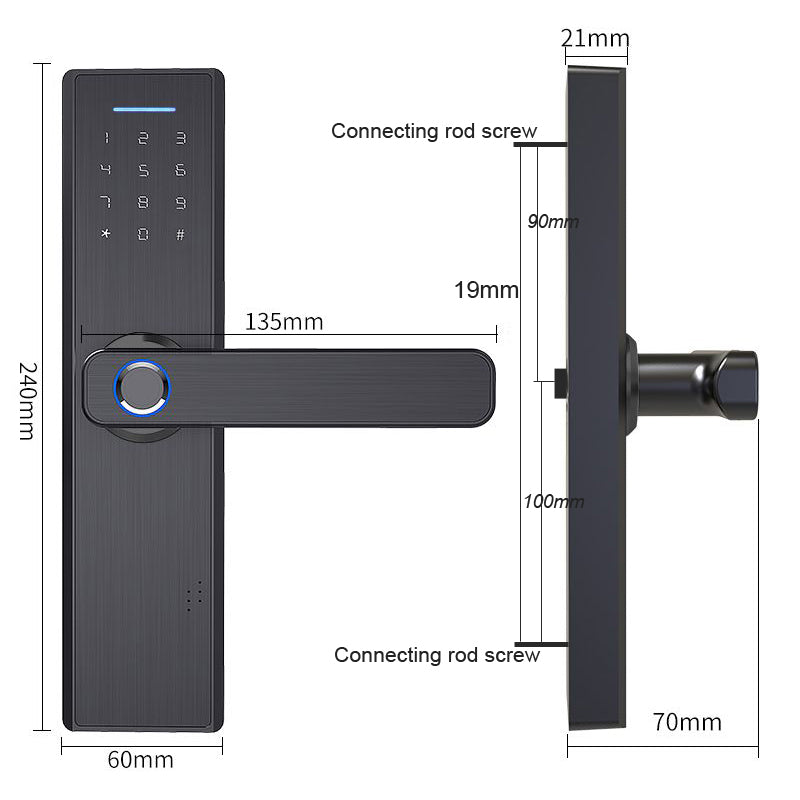

Suit for the door thickness about 35 -100mm

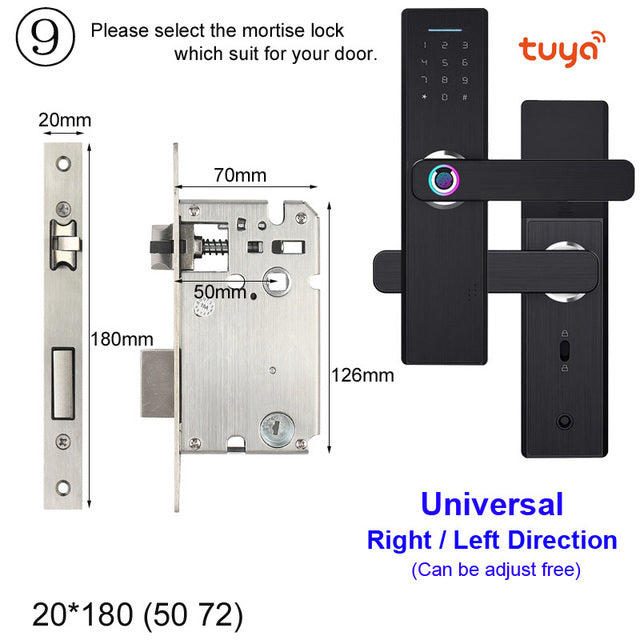

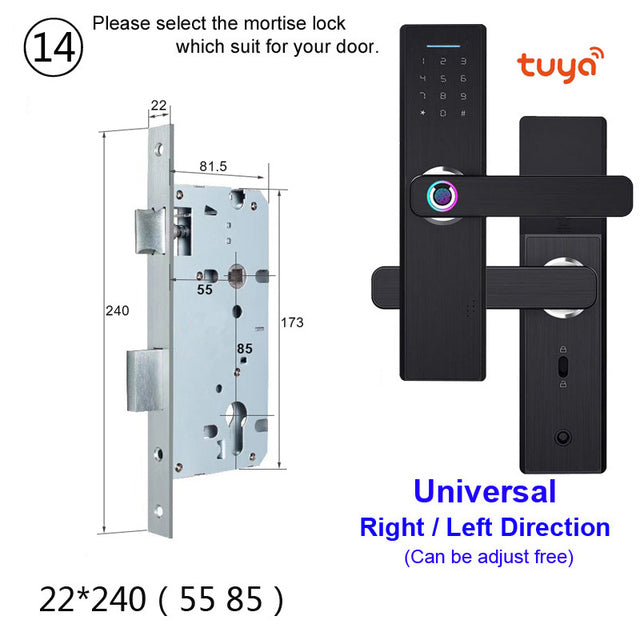

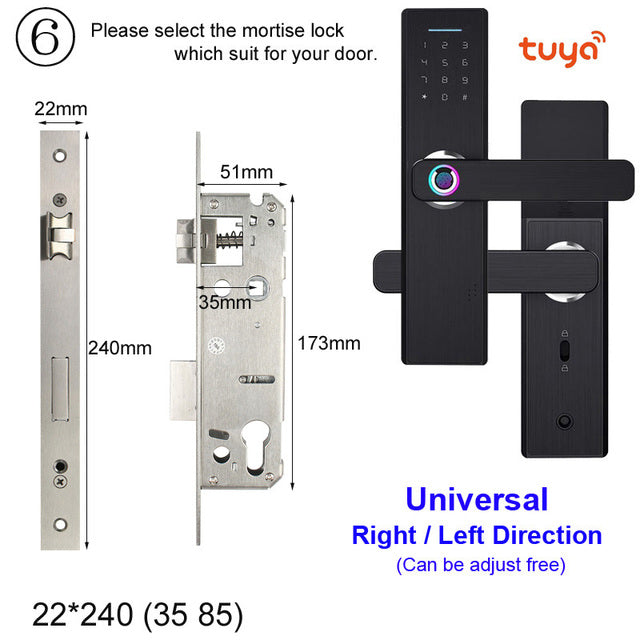

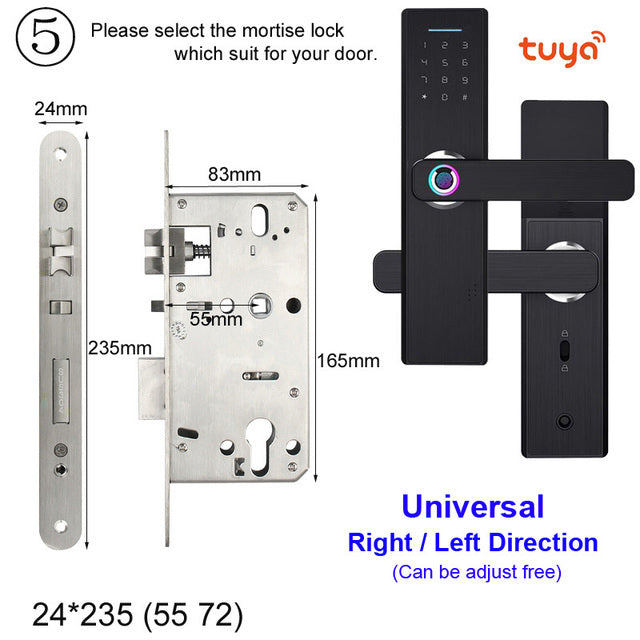

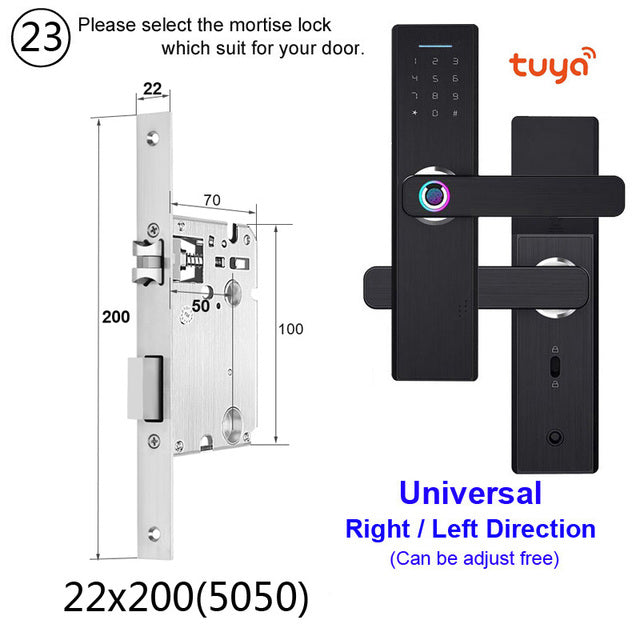

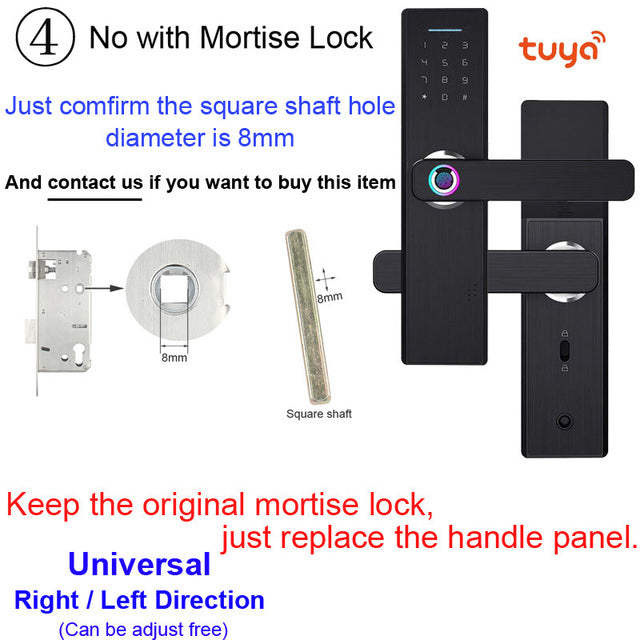

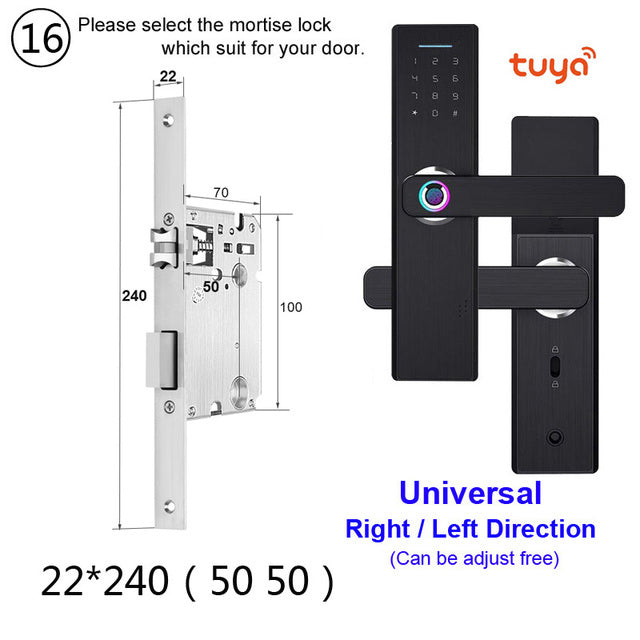

You can see all kinds of the Mortise Lock size here:
