Wireless Module WIFI Bluetooth 3.5 Inch Display 5V Relay Expansion Development Board For Arduino

2 sold in last 8 hours
mickcara
1100033-1
In stock
$69.00
Size Guide
Plug Type *
$69.00
customers are viewing this product
Tags:




           Double-layer USB expansion port:Output 5V 1A

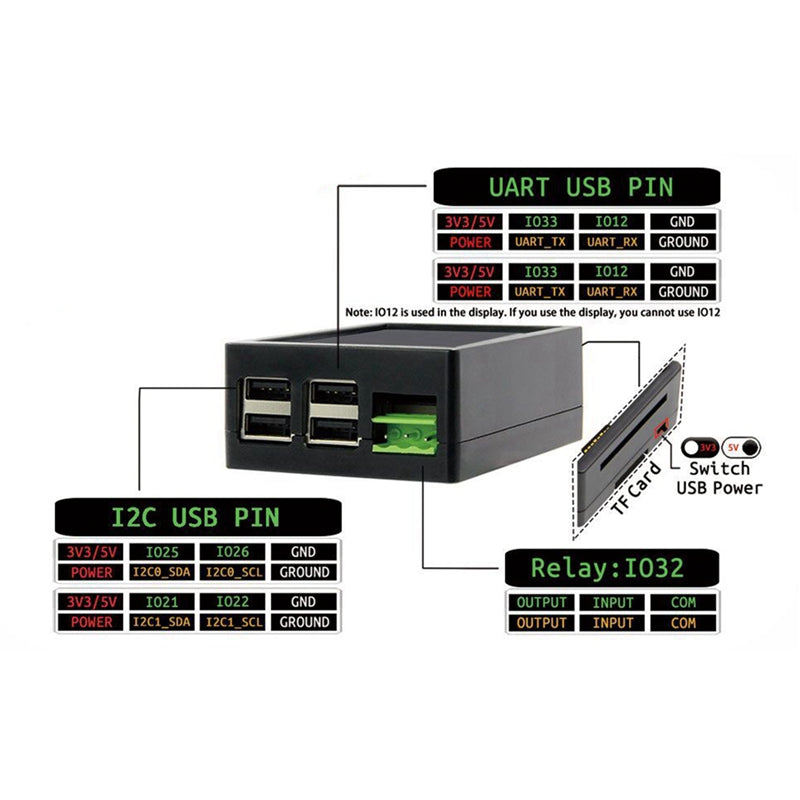

 Double-layer USB interface:They are I2C/UART functions

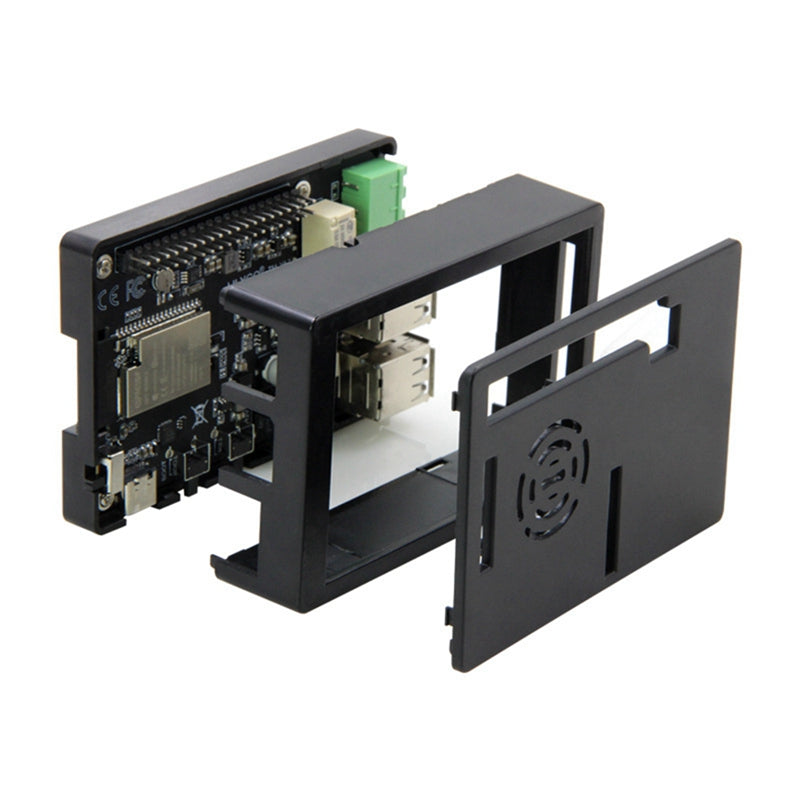

 Functionally based on ES32-WROVER (WIFI/Bluetooth) module, 5V relay, buttons, RTC, battery-powered interface, DC socket (5-12V input) battery-powered switch, USB expansion port I2C/UART, USB expansion port are designed The output power supply can supply power and control the current of equipment below 1A.

 The back side retains the TF card socket in the same position as the Raspberry Pi, which is a self-popping card socket, which is convenient for plugging in and out.

 Chip:ESP32-WAROVER

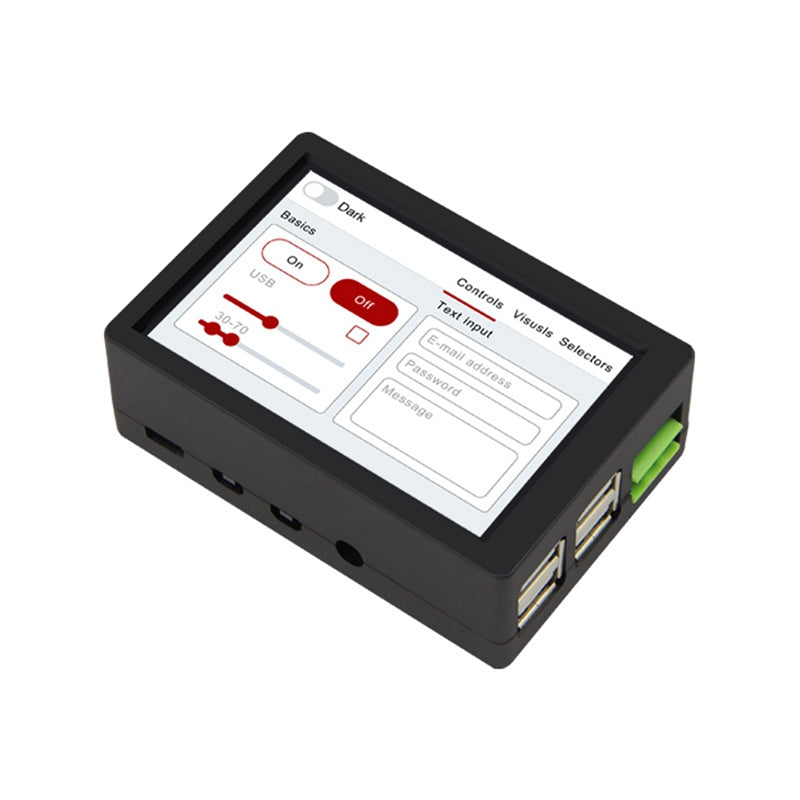

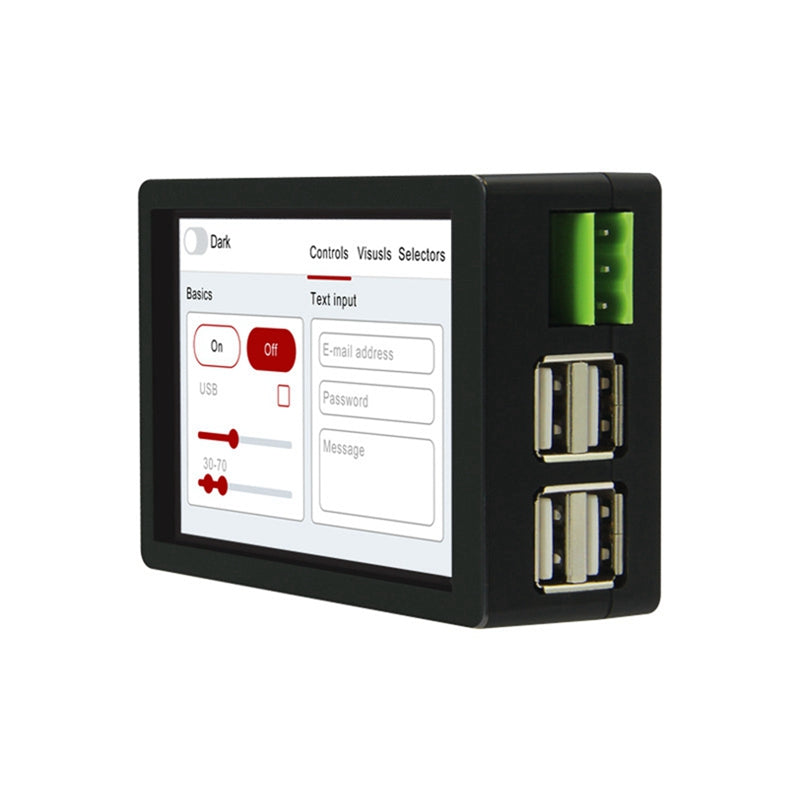

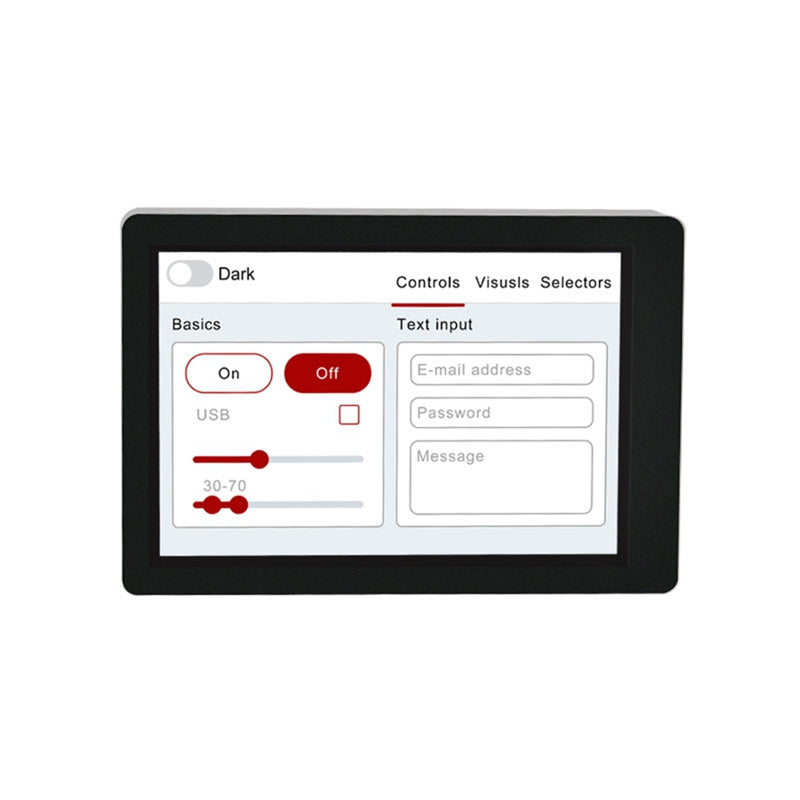

 LCD:3.5 inch capacitive touch screen     ST7796 FT6X36/ILI9481 GT911

 USB TO TTL:CH9102F

 Relay:HFD3 5V 2A

 Relay connector:5.08

 DC-DC input:5-12V

 DC Block Specifications:5.5X2.1

 TYPE-C input:5V

 USB output:5V 1A

 Battery Specifications:3.7V lithium battery

 Battery switch:Toggle Switches

 Button:RST button, custom button

 RTC:PCF8563

 Extension pin:2.54 2X20

 Colour:black

 Material:Plastic + Metal



 Package Contents:

 1 x host

 1 x line



 Only the above package content, other products are not included.

 Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
