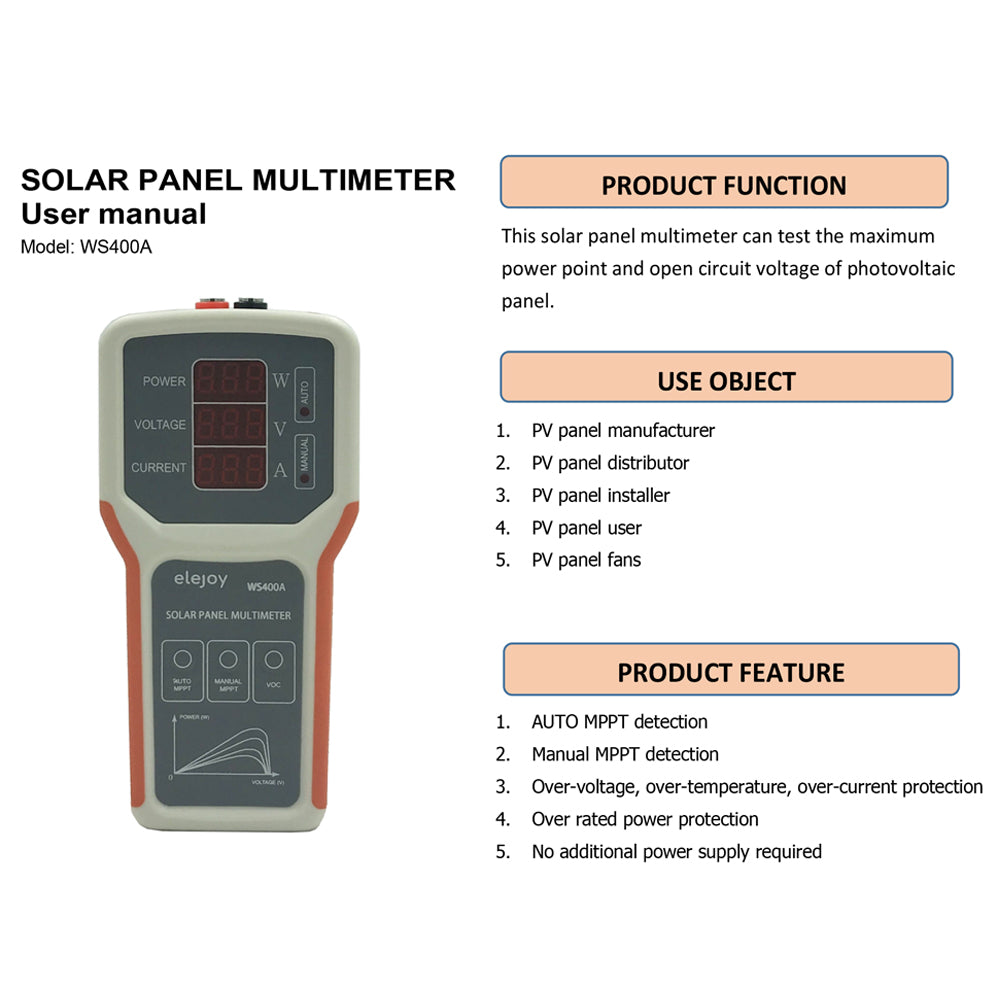

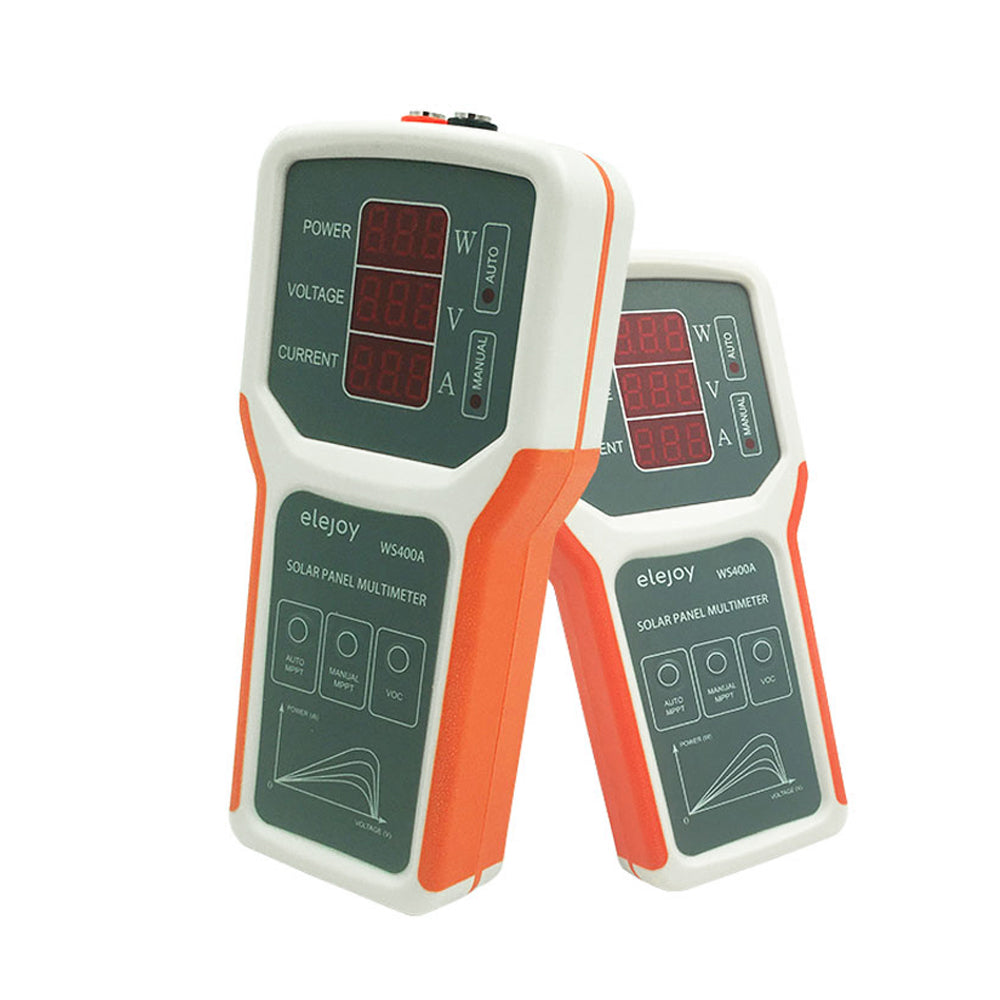

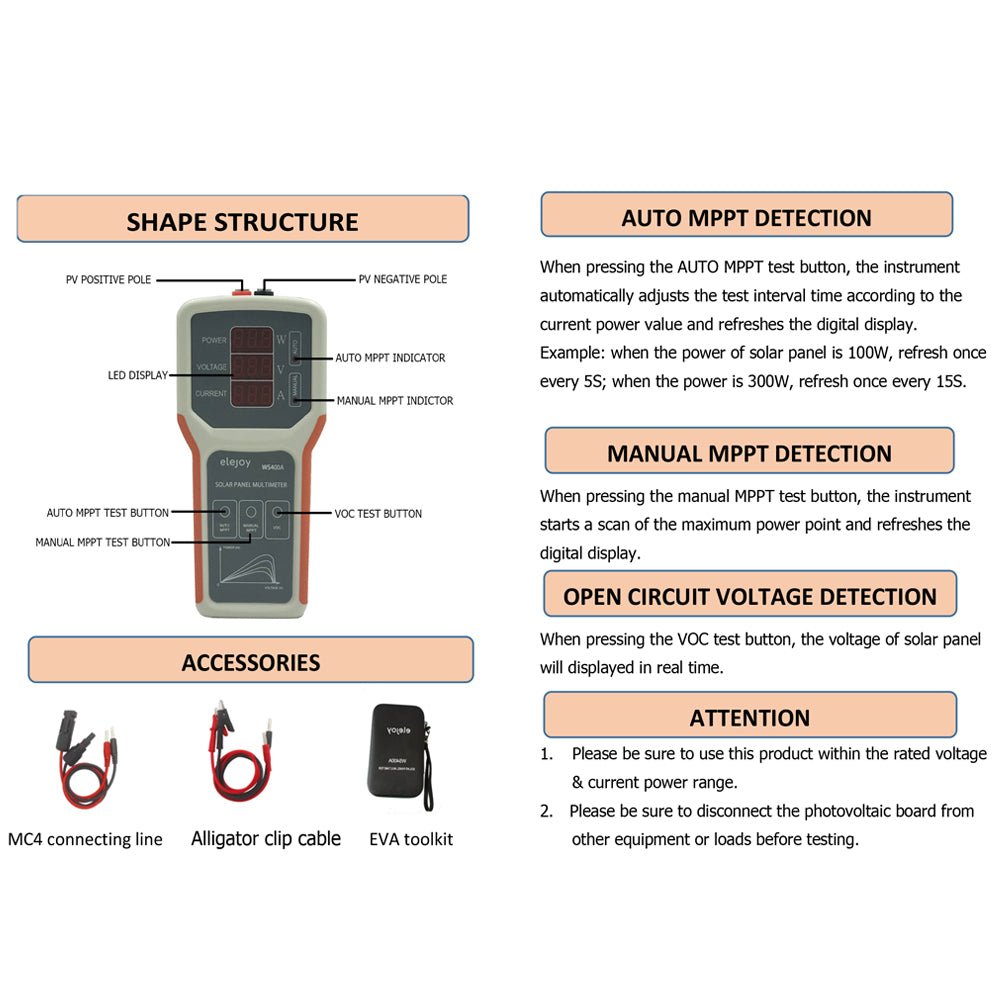

WS400A

 This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel, also using the photovoltaic panel to supplys power. With the portable design, easy to hold. Come on and try it, it will not let you down.

Features:

Auto MPPT detection: When pressing the AUTO MPPT test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display. For example when the power of solar panel is 100W, refresh once every 5S, when the power is 300W, refresh once every 15S.

Manual MPPT detection: When pressing the manual MPPT test button, the instrument starts a scan of the maximum power point and refreshes the digital display.

Open circuit voltage detection: When pressing the VOC test button, the voltage of solar panel will displayed in real time.

Multi-protections: over-voltage pro-tection, over-temperature pro-tection, over-current pro-tection and over rated power pro-tection.

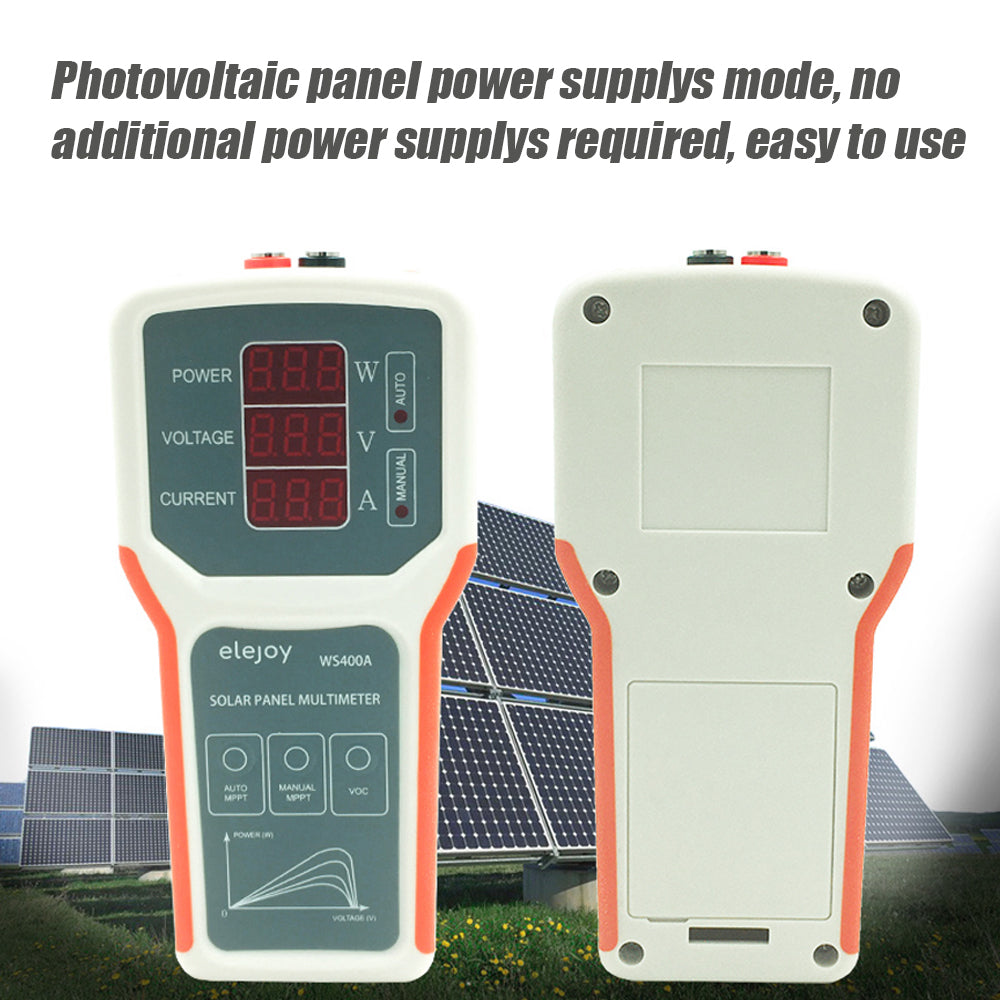

Photovoltaic panel power supplys mode, no additional power supplys required, easy to use.

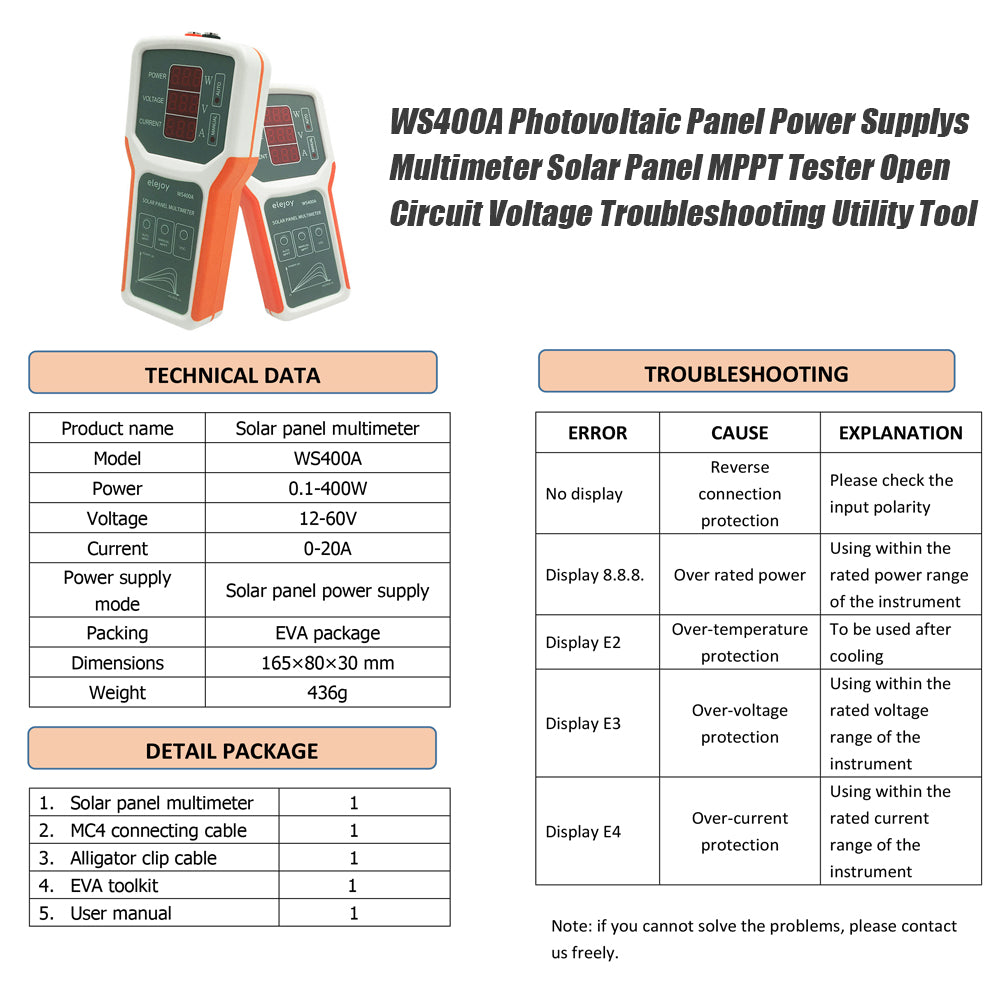

Specifications:

Material: ABS

Power supplys mode: solar panel power supplys

Power: 0.1~400W

Voltage: 12~60V

Current: 0~20A

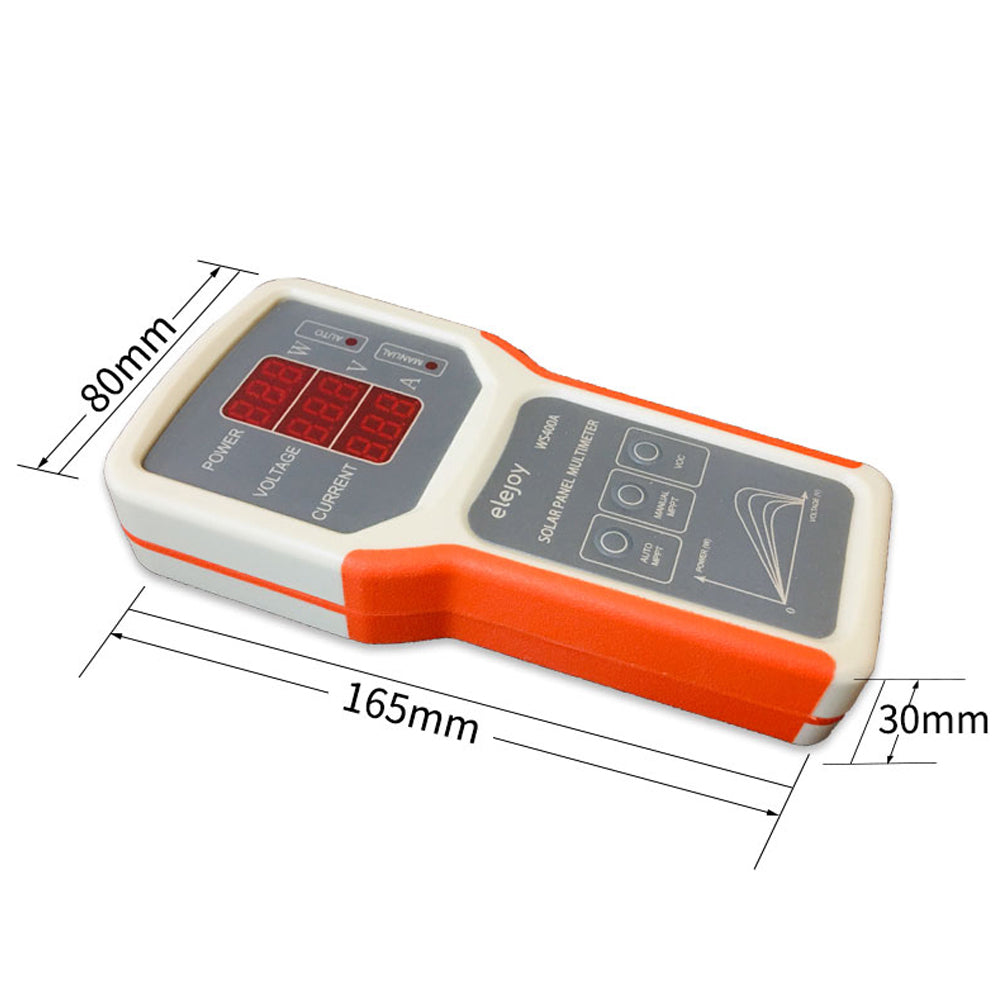

Item size: 165 * 80 * 30mm / 6.5 * 3.1 * 1.2in

Item weight: 436g / 1.0lb

Package size: 250 * 130 * 65mm / 9.8 * 5.1 * 2.6in

Package weight: 500g / 1.1lb

Packing list:

1 * Multimeter

1 * MC-4 Connecting Cable

1 * Alligator Clip Cable

1 * User Manual

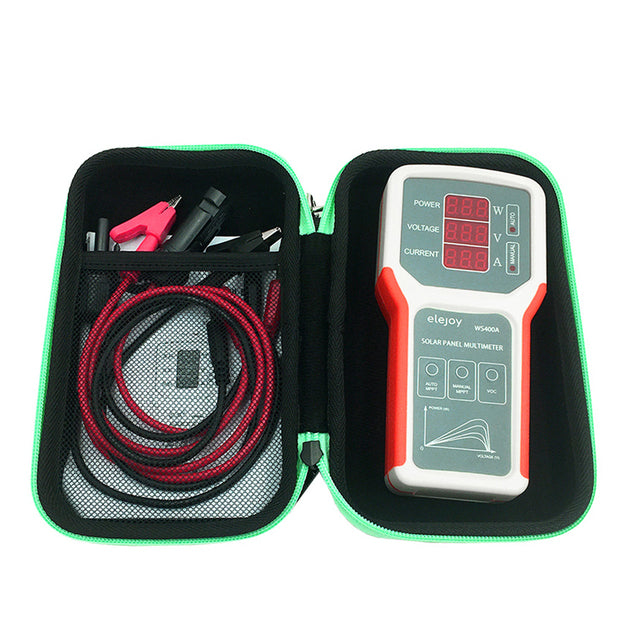

1 * EVA Toolkit

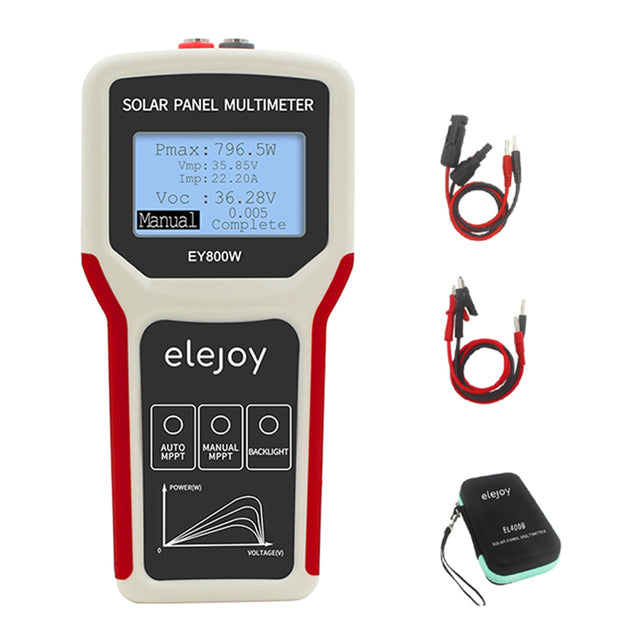

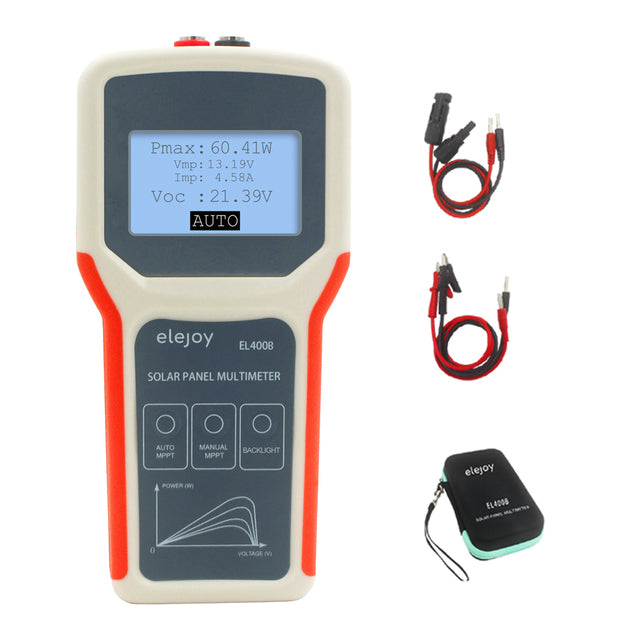

 EL400B/EY800W

   This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel. The photovoltaic panel power supplys method is more energy-saving and does not require additional electricity. If you are looking for this product, come and have a try, it will not let you down.

Features:

Auto MPPT Detection: When pressing the AUTO MPPT test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display. For example, when the power of solar panel is 100W, refresh once every 5S.

Manual MPPT Detection: When pressing the manual MPPT test button, the instrument starts a scan of the maximum power point and refreshes the digital display.

Open Circuit Voltage Realtime Display: The open circuit voltage will display on the large LCD screen at any time, giving you a better experience.

Large LCD Display with Backlight: The upgraded screen adopts large LCD with backlight, you can turn on or turn off the screen with your like.

Multi-protections: over-voltage protects, over-temperature protects, over-current protects and over rated power protects.

Wide Applications: This multimeter can be widely used by PV panel manufacturers, PV panel distributors, PV panel installers, PV panel users and PV panel fans.

Note:

There are two different types of multimeter for you to choose: EL400B/EY800W. The difference between these two types is the power of EL400B is 0.1-400W, the power of EY800W is 5-800W. The current of EL400B is 0-20A and the current of EY800W is 0-35A.

Specifications:

Material: ABS

Type: EL400B/EY800W (optional)

Power supplys mode: solar panel power supplys

Voltage: 12~60V

Power:

EL400B: 0.1~400W

EY800W: 5-800W

Current:

EL400B: 0~20A

EY800W: 0~35A

Item size: 165 * 80 * 30mm / 6.5 * 3.1 * 1.2in

Item weight: 470g / 1.0lb

Package size: 250 * 130 * 65mm / 9.8 * 5.1 * 2.6in

Package weight: 500g / 1.1lb

Packing list:

1 * Solar Panel Multimeter

1 * Connecting Cable

1 * Alligator Clip Cable

1 * EVA Toolkit

1 * User Manual
