Feature:

 1. Micro‑inverter, support high‑speed maximum power point tracking (MPPT), reverse power transmission.

 2. Input and output are completely isolated for power consumption, which is safer and more reliable.

 3. Support multiple parallel stacking, global voltage/frequency self‑adaptation.

 4. Built‑in high‑accuracy electric meter, high‑accuracy voltage‑type induction micro‑grid mode.

 5. Solar inverter, has good water resistance and are widely used on roofs and outdoors.

 6. 5G Web of Things platform data management, with mobile phone APP monitoring system.

 7. Forward full‑bridge topology high‑frequency modulation grid‑connected mode, free of installation and maintenance.

     Specification:

     Item Type: Micro Inverter

 Material: Aluminum Alloy + Electronic Components

 Model: WVC-1200

 Maximum Input Power: 1200W

 Product Use: Solar Power Generation Equipment

 Applicable Scenarios: Solar Power System (Roof, Outdoor)

 Weight: Approx. 3675g / 129.6oz

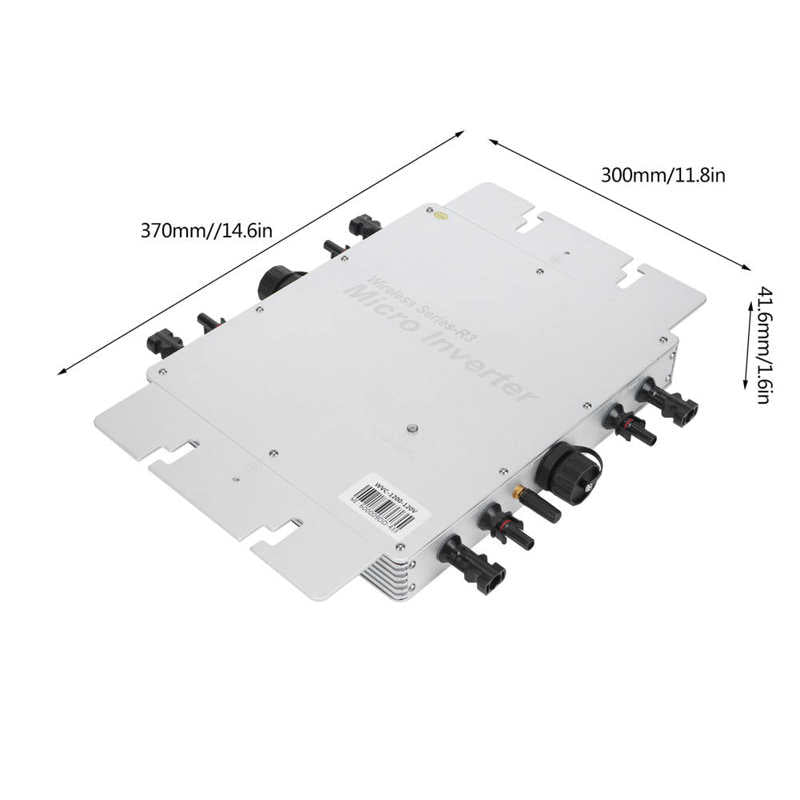

 Product Size: Approx. 370x300x41.6mm / 14.6x11.8x1.6in

                       Parameter                     Output Voltage Mode         Automatic switching                     Solar Panel Open Circuit Voltage Range         30-60VOC                     Peak Power Tracking Voltage         22-60V                     Min/Max Starting Voltage         22-60V                     Maximum DC Short Circuit Current         55A                     Maximum Input Working Current         48A                     Output Parameters         At 120V         At 230V                     Peak Output Power         1200Watt         1200Watt                     Rated Output Power         1150Watt         1150Watt                     Rated Output Current         10A         5.22A                     Rated Voltage Range         80-160VAC         180-280VAC                     Rated Frequency Range         48-51Hz/58-61Hz         48-51Hz/58-61Hz                     Power Factor         >95%         >95%                     Number of Connected Units Per String         3 sets (single phase)         6 sets (single phase)                     Output Efficiency         At 120V         At 230V                     Static MPPT Efficiency         99.50%         99.50%                     Maximum Output Efficiency         95%         95%                     Power Loss at Night         <0.5W         <0.5W                     Total Harmonic Distortion         <5%         <5%                     Appearance and Technical Characteristics                     Range of Working Temperature         -40℃ to +65℃                     Waterproof Level         IP65 NEMA3R                     Cooling Method         Self-cooling                     Communication Mode         433MHz/WiFi                     Power Transmission Mode         Reverse transmission, load priority use                     Surveillance System         Mobile APP, browser                     Electromagnetic Compatibility         EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012                     Grid Disturbance         EN50549-1, EN 50549-2, NBR 16149:2013, UL1741                     Grid Detection         IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEEE 1547

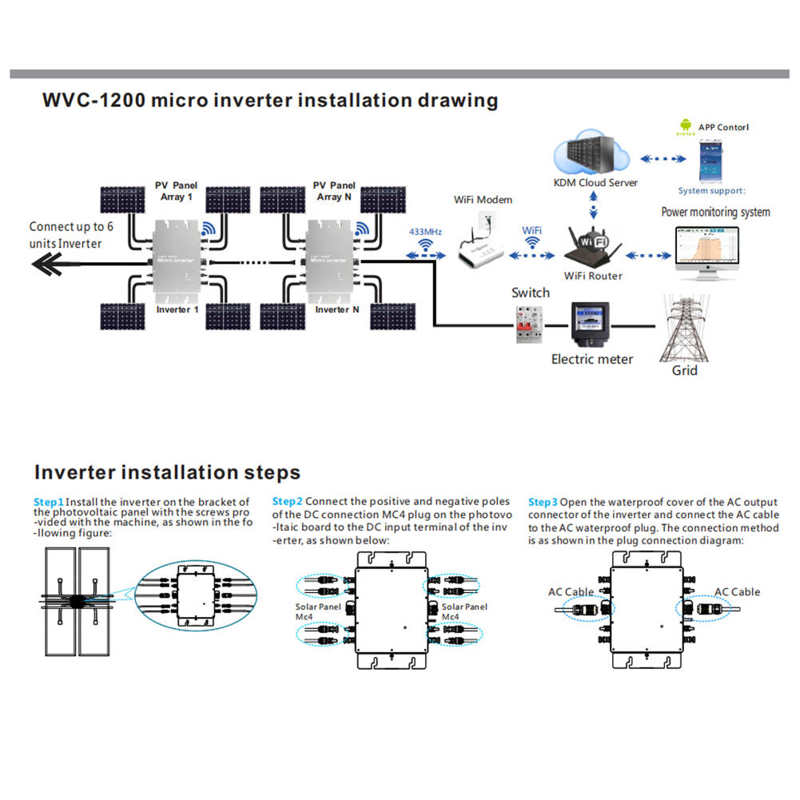

     Inverter Installation Steps:

 Step 1: Fix the inverter on the bracket of the photovoltaic panel with the screws attached to the machine.

 Step 2: Connect the positive and negative poles of the DC connection plugs on the photovoltaic panel to the DC input terminals of the inverter.

 Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.

 Step 4: Connect the AC output line to the AC main cable;

 Step 5: Repeat steps 1 to 3 to install and connect all inverters;

 Step 6: Connect the AC main cable to the mains grid to start your green energy journey.

 Note: Before installing WVC series micro-inverter products, please read this manual first and pay attention to the installation details.

 This manual contains important instructions that should be followed when installing and maintaining Micro-inverters. In order to reduce

 When reducing the risks of electric shock and ensuring safe installation and operation, always follow the following safety symbols present in this document to indicate dangerous situations and important safety instructions.

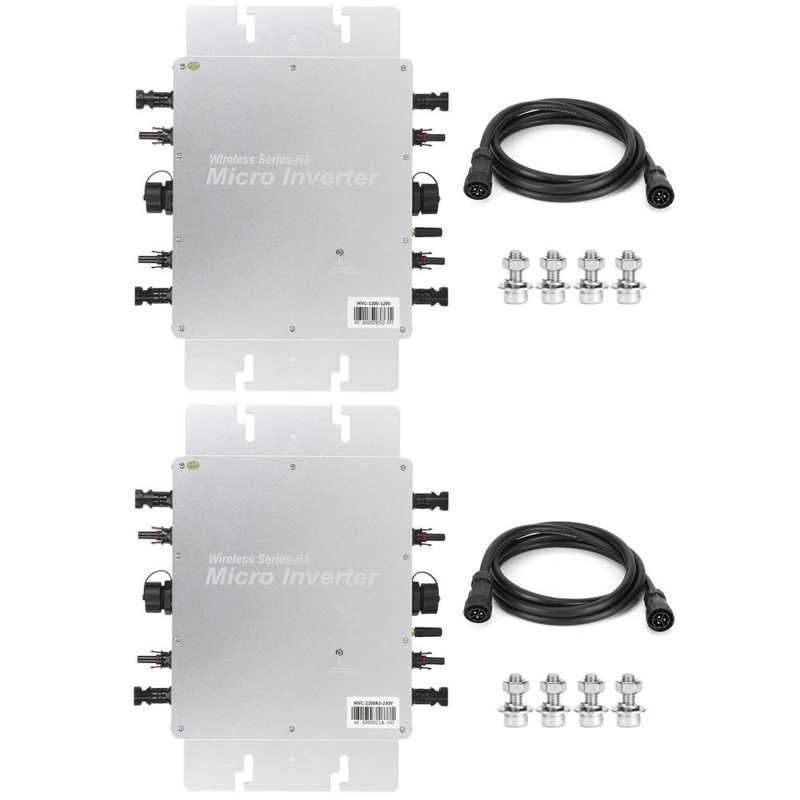

     Package List:

     1 x Micro Inverter

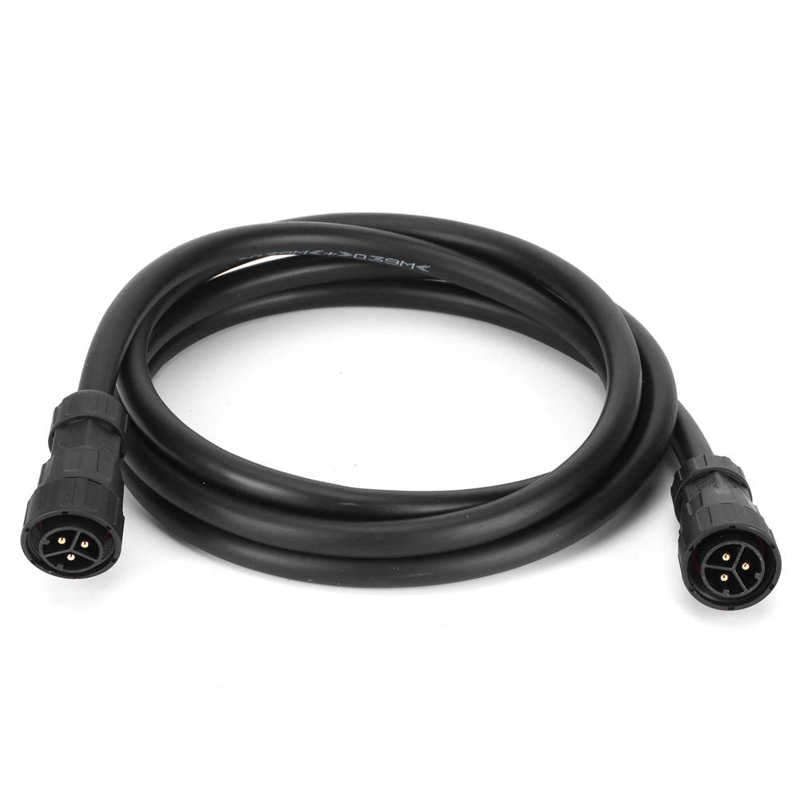

     1 x Cable

     1 x English Manual

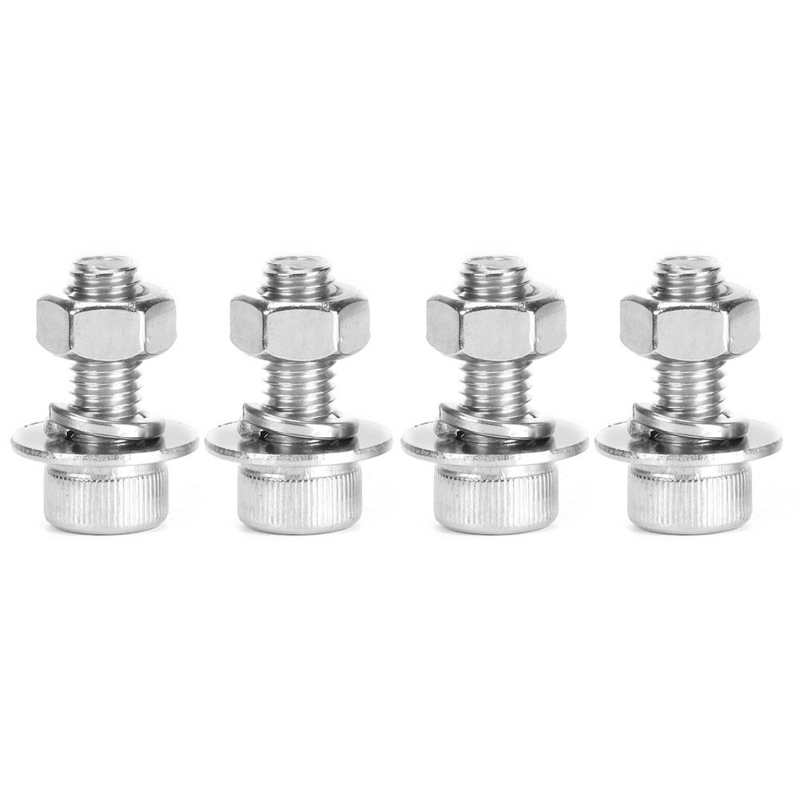

     2 x Accessory Kit (4 x Screw, 4 x Nut, 8 x Accessory)
