X3 Battery Box Power Bank for ELECRAFT KX3 Transceiver + Canvas Bag Ham Radio
Note:
- Batteries are not included in the package.
- Elecraft KX3 is not included in the package.
- X3 lithium battery box is suitable for flat head 18650 lithium-ion batteries without built-in protection board. The rated voltage of electrical core is 3.6V or 3.7V. It is not suitable for lithium-iron phosphate electrical core or the ones with other rated voltages. It is recommended to be used wtih NCR18650B 3400mAh battery.
X3 Battery Box:
Description:
X3 lithium battery box is designed for KX3 shortwave radio. Made of aluminum alloy, it can be filled with 9pcs 18650 lithium-ion batteries. With built-in protection circuit, it can provides ample power for KX3.

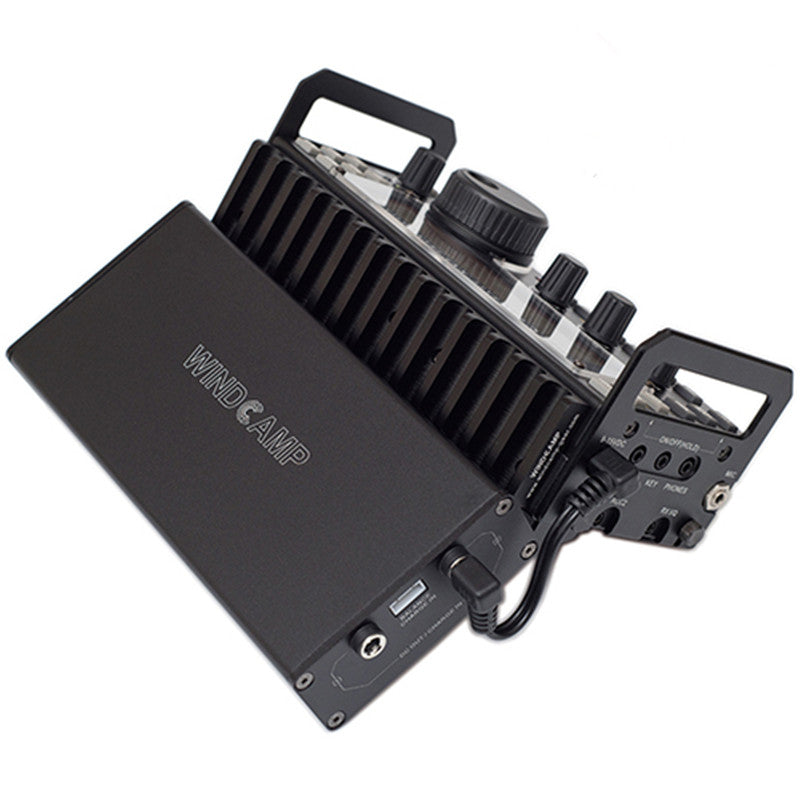

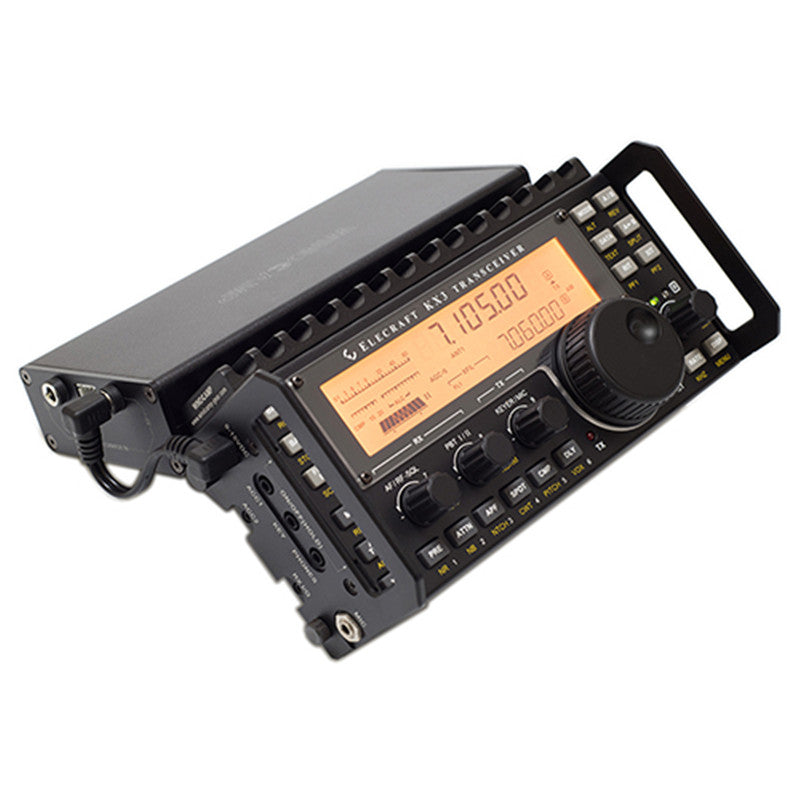

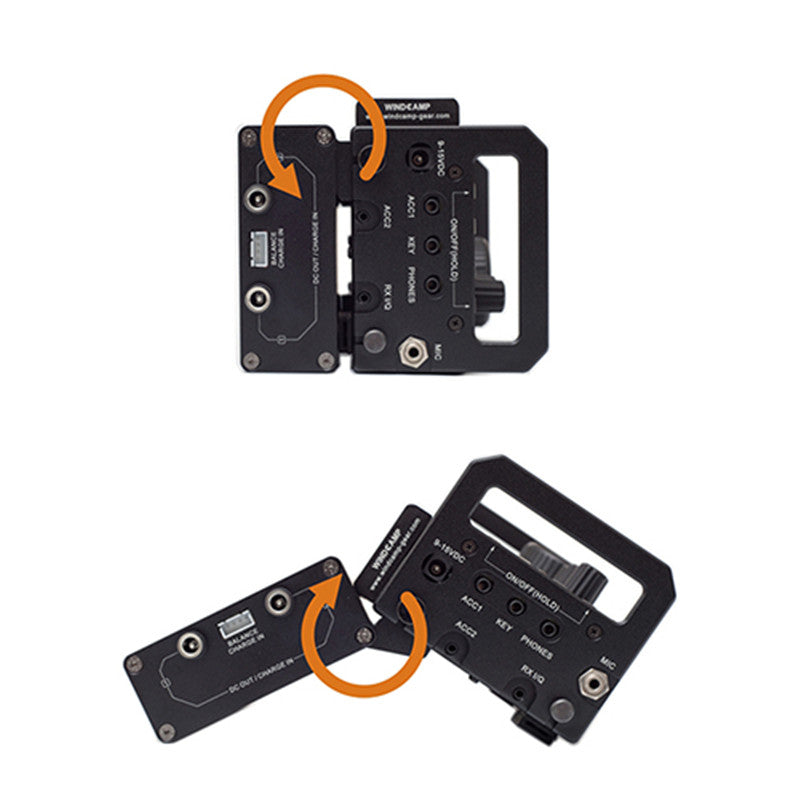

It is connected to KX3 radio with two hinge connectors. It has a tripod function after unfolding. It is the same size as the KX3 when closed, making it easy to move and store.
Technical Parameters:
- Rated Output Voltage: 10.80V
- Capacity: 10.20Ah / 110.16Wh (Base on 9pcs NCR18650B 3400mAh batteries. Batteries are not included)
- Output Voltage Range: 9-12.60V
- Charging Voltage Limit: 12.60V
- Maximum Discharge Current: 10A
- Overcharge Protection Threshold: 12.60V (±0.15V)
- Over-Discharge Protection Threshold: 8.70V (±0.15V)
- Protection Function: Short-Circuit Protection, Over-Current Protection, Over-Discharge Protection, Overcharge Protection and Balance Protection
- Net Weight: 0.4Kg (without Battery)
- Overall Dimensions: 196 x 88 x 35mm (W*D*H)

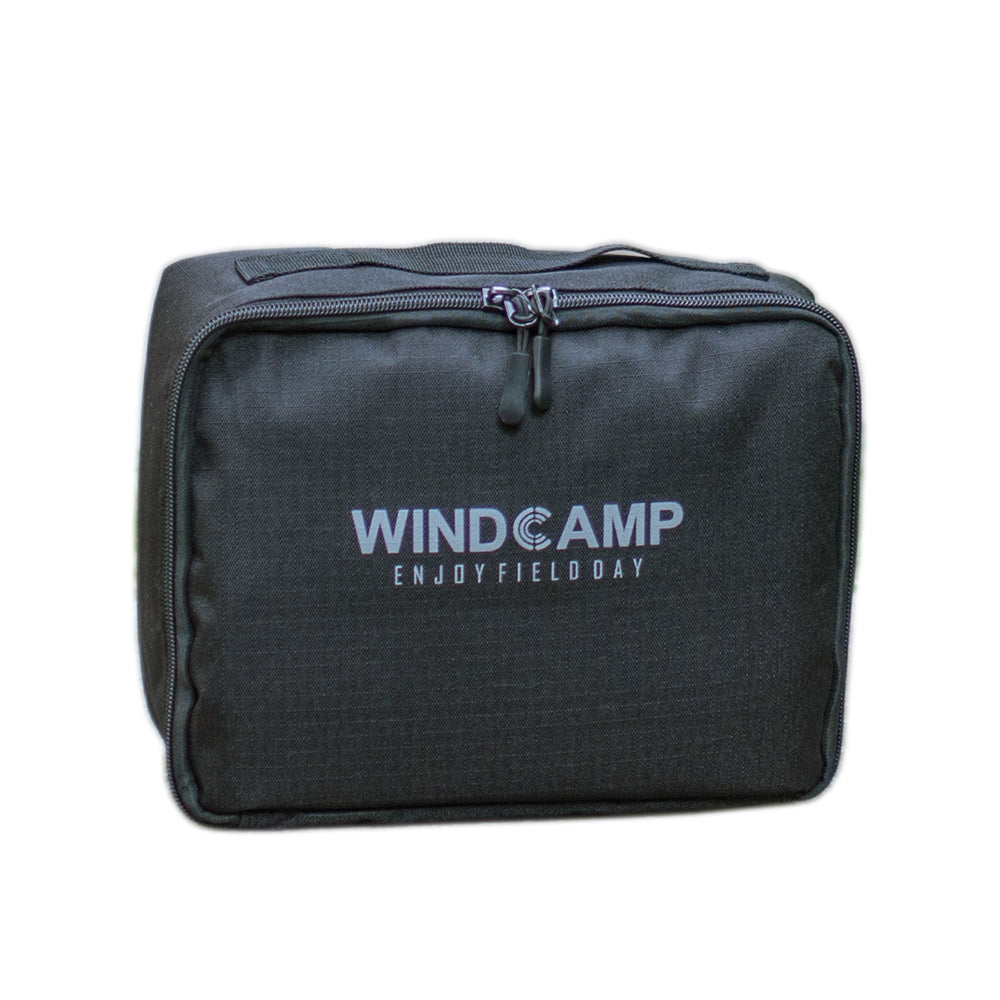

B3 Radio Bag:
B3 radio bag is designed for Elecraft KX3. The fabric is made of nylon plaid and lined with shock-proof material to protect your radio.
It can be used to store X3 lithium battery box, KX3 radio, power cords, hand microphones and other accessories. It is designed with a built-in soft partition that can be removed for sorting equipment and accessories.

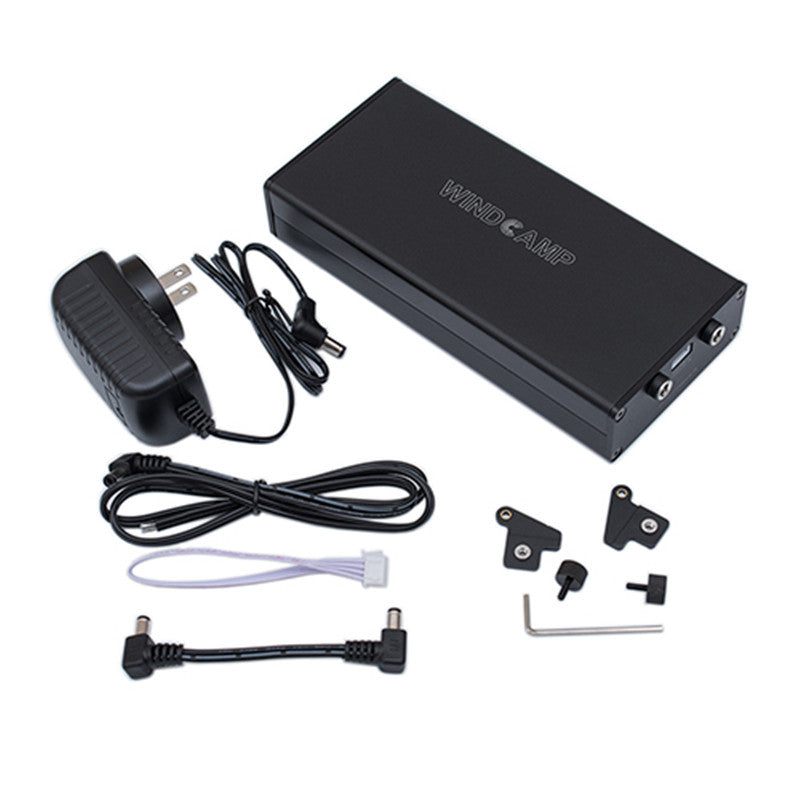

Package Included:
- 1 x X3 Li-ion Battery Box
- 1 x Charger
- 1 x KX3 Power Cord
- 1 x Spare Power Cord
- 1 x Balance Charging Cable
- 2 x Shaft Connectors
- 2 x Screws
- 1 x Allen Wrench
- 1 x User Manual
- 1 x Installation Manual
- 1 x B3 Portable Bag
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
