Do not measure charged elements when using. Discharge must be measured before capacitance measurement.
Inadvertent measurement of charged components causes improper use.
It can detect and replace the front-end protection Elements 1N4148 by itself.
Please do not pick up the earth, nor touch other charged objects!
L 0.05uh--2000h R 0.1 milliohm --20 trillion C 1p--20 micrometer method
Fuction:
Test parameters: L,C,R,D,Q,ESR
Basic accuracy: 0.3%-0.5%
Equivalent circuit Series
Range Mode Auto
Test Speed: Fast: 2.5, medium : 2, Slow: 1 (times / sec.)
Calibration function: Auto
Test terminal configuration: The BNC test line
Display: 2004 LCD
Test signal
Test signal frequency: 100Hz, 1kHz,7.831kHz
Test signal level: 1.75Vrms(max)
Test Range
R 0.0002 Ω - 9.999 MΩ
C 0.1 pF - 10000uF or more
L 0.01 μH - 1000 H
D,Q 0.001 - 9999
Operating temperature and humidity: 0°C－40°C, ≤90%RH
Power voltage: AC110V or 220v to DC 9V
Frequency: 50Hz
Power consumption: ≤0.45W
Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines,Taiwan and so on.
Voltage: AC100-240V
Material: metal+plastic
colour: as shown

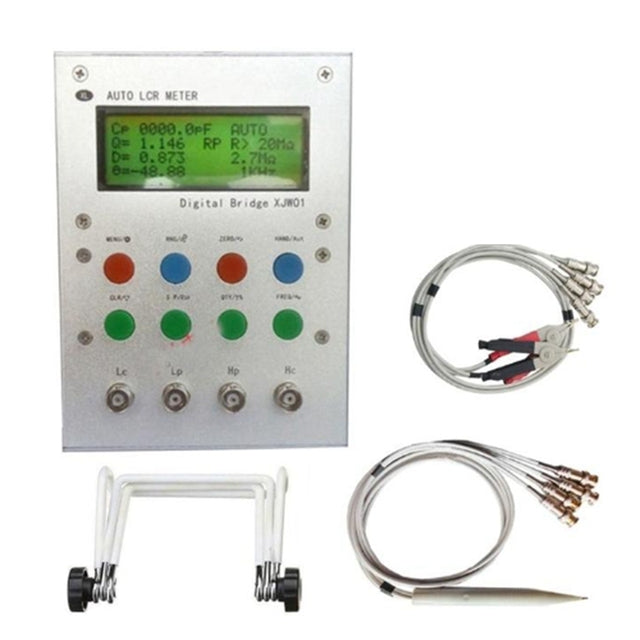

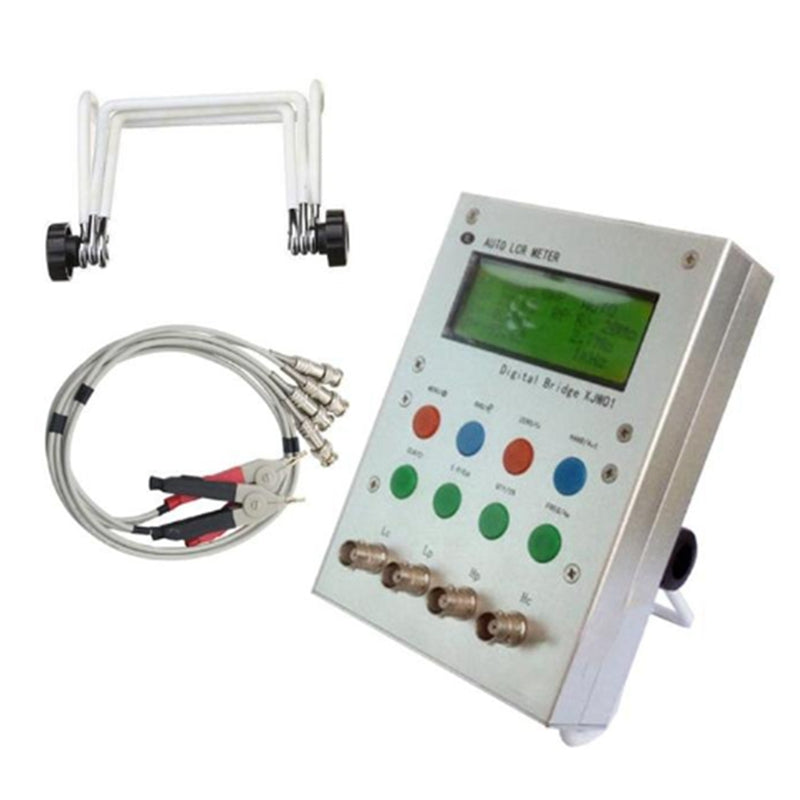

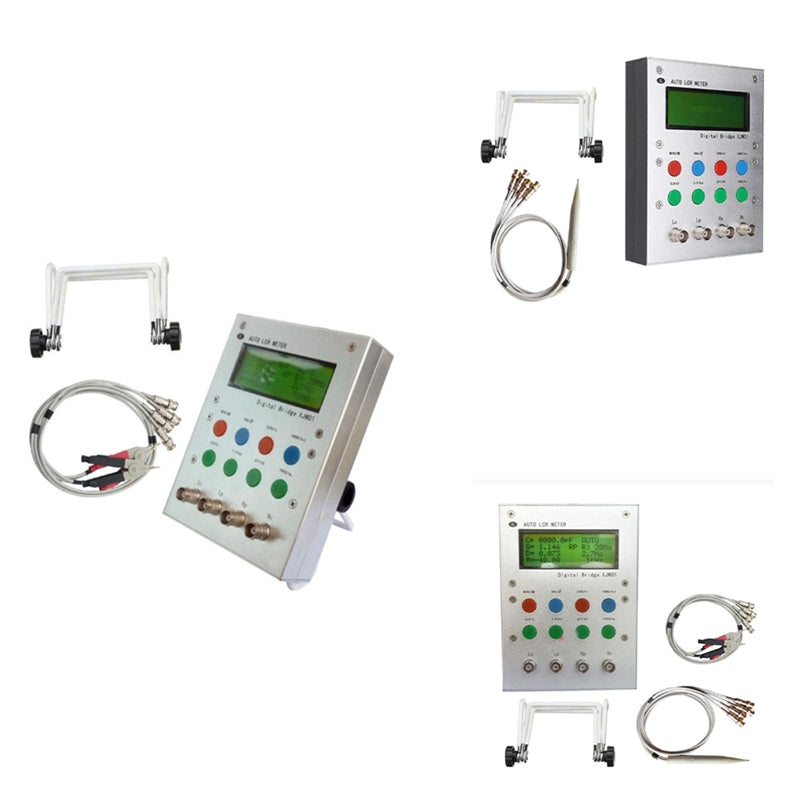

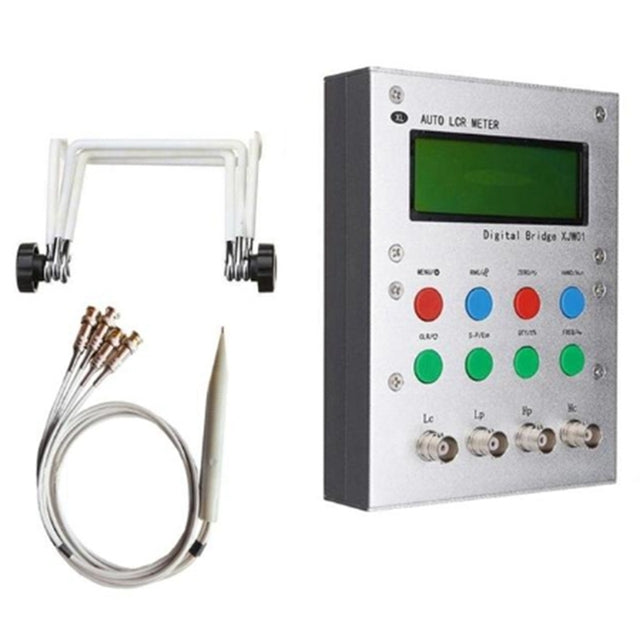

Package Contents:
1 x digital bridge Kit(A)
/
1 x digital bridge Kit(B)
/
1 x digital bridge Kit(C)
