Function:

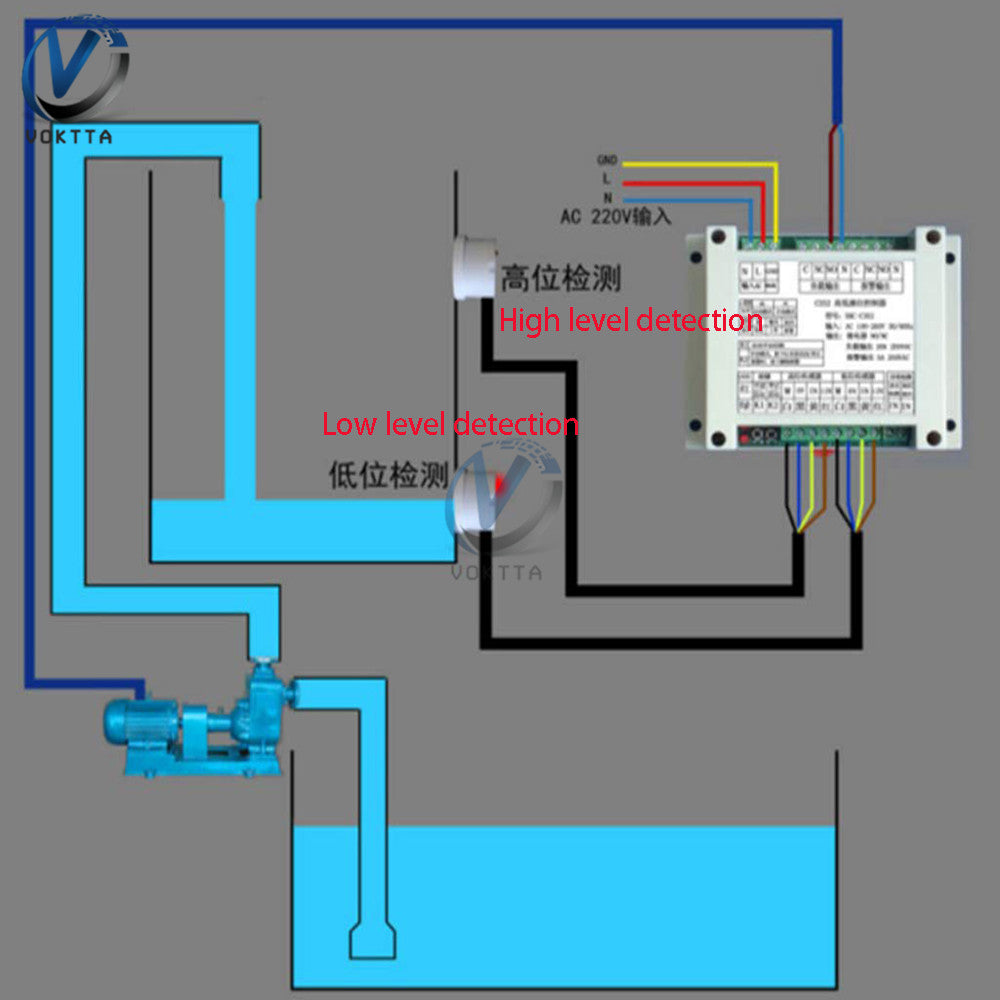

1>. Water level automatic control: water level is lower than the low position induction probe, automatically start the pump, the water level rises to high level, and automatically closes the pump
2>. Idling delay pump: after starting, if the water supply pipe is detected without water, then delay 3-5 minutes to close the pump. During the pumping process, if the water flow stopped for more than 3 seconds, the pump was closed immediately
3>. Automatic tracking water source: after idling pump stop, start pumping once every two hours, until the water is full, pump stops
4>. Manual automatic switching: press K1 button to switch mode of work, red light to automatic mode, kill mode is manual mode

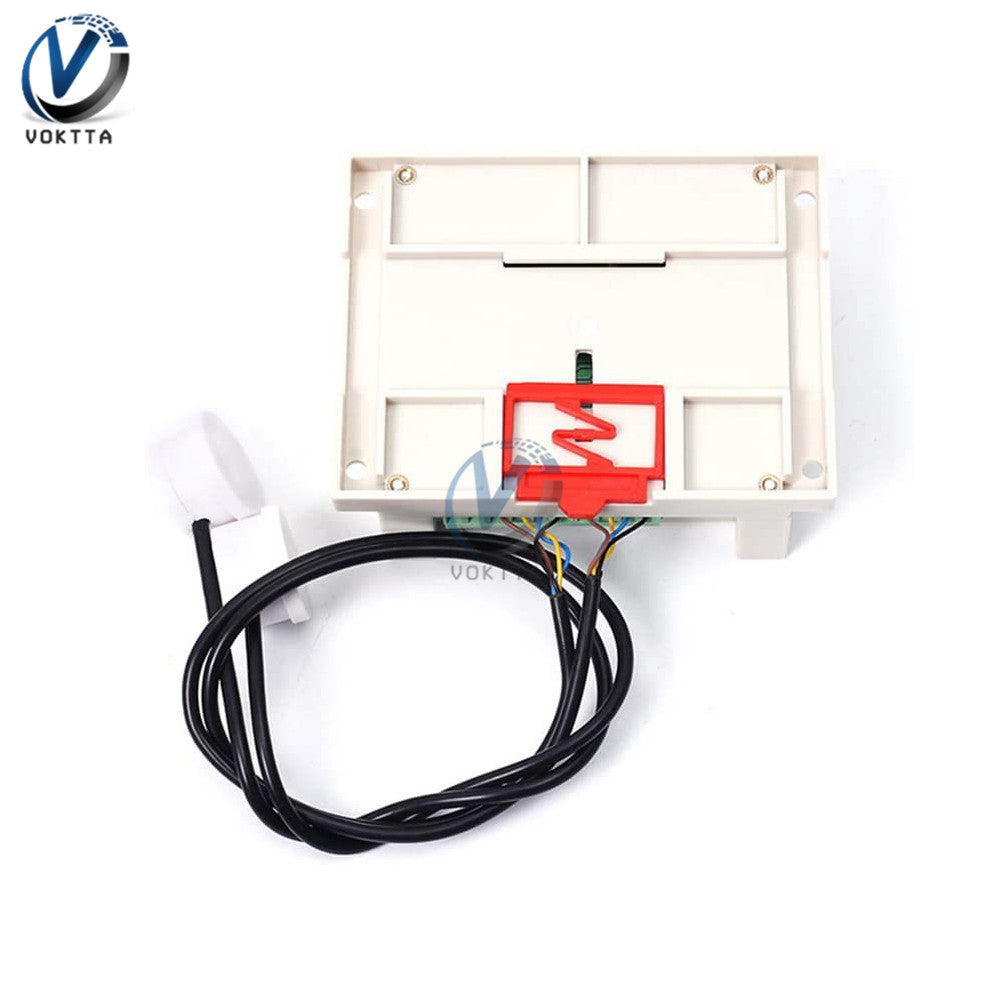

5>. Non contact inductive probe: durable probe, strong anti-interference ability, sensitive induction, no contact with liquid, corrosion resistance, safety, environmental protection and no pollution.
Application: Suitable for controlling radiotube, water pumps, etc, as it can achieve the automatic control of high and low water level as well as keep level stable.
Specification:
Material: ABS
Type: Liquid Level Controller

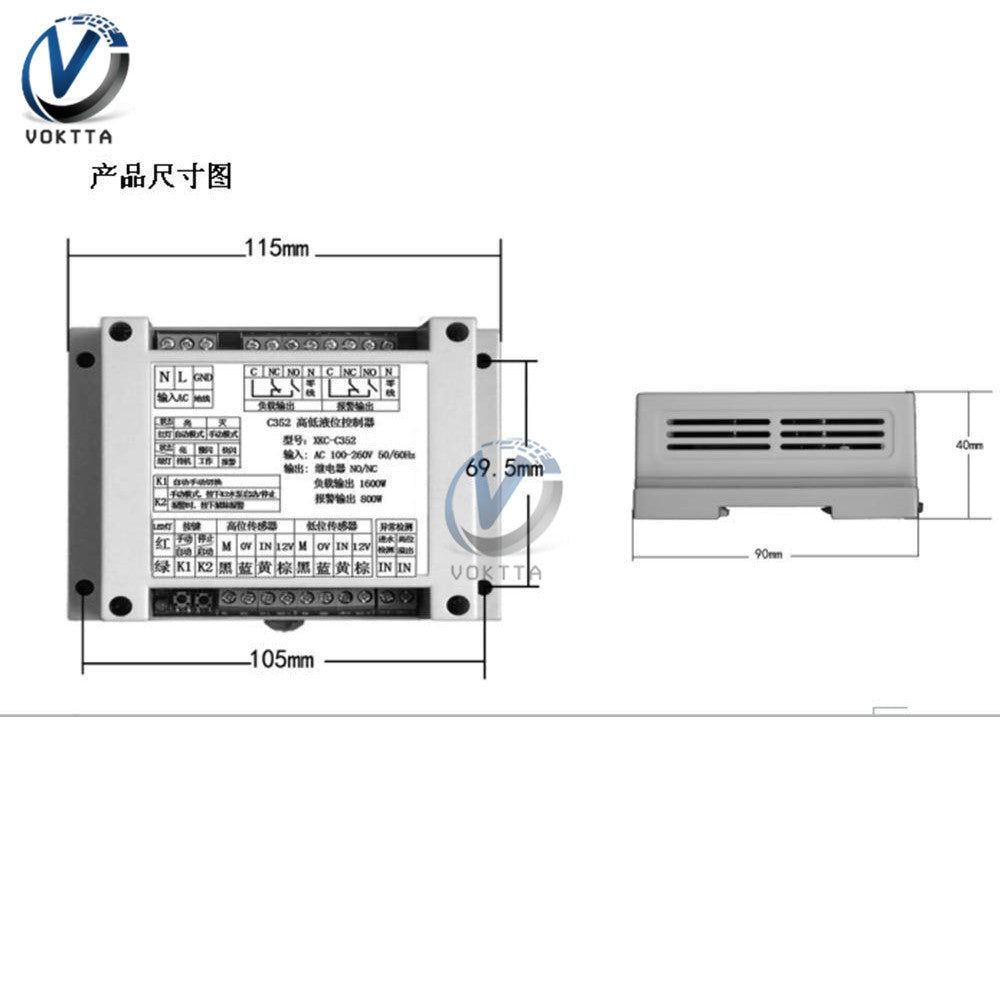

Package Size: 19 x 11 x 5cm(7.48 x 4.33 x 21.65in)
Quantity: 1 Pc
Electricity Parameters:
Input Voltage: AV100V-220V,50/60Hz
Operating Voltage: DC12V
Operating Current:
Working current<=110mA,
Static consumption current<=20mA

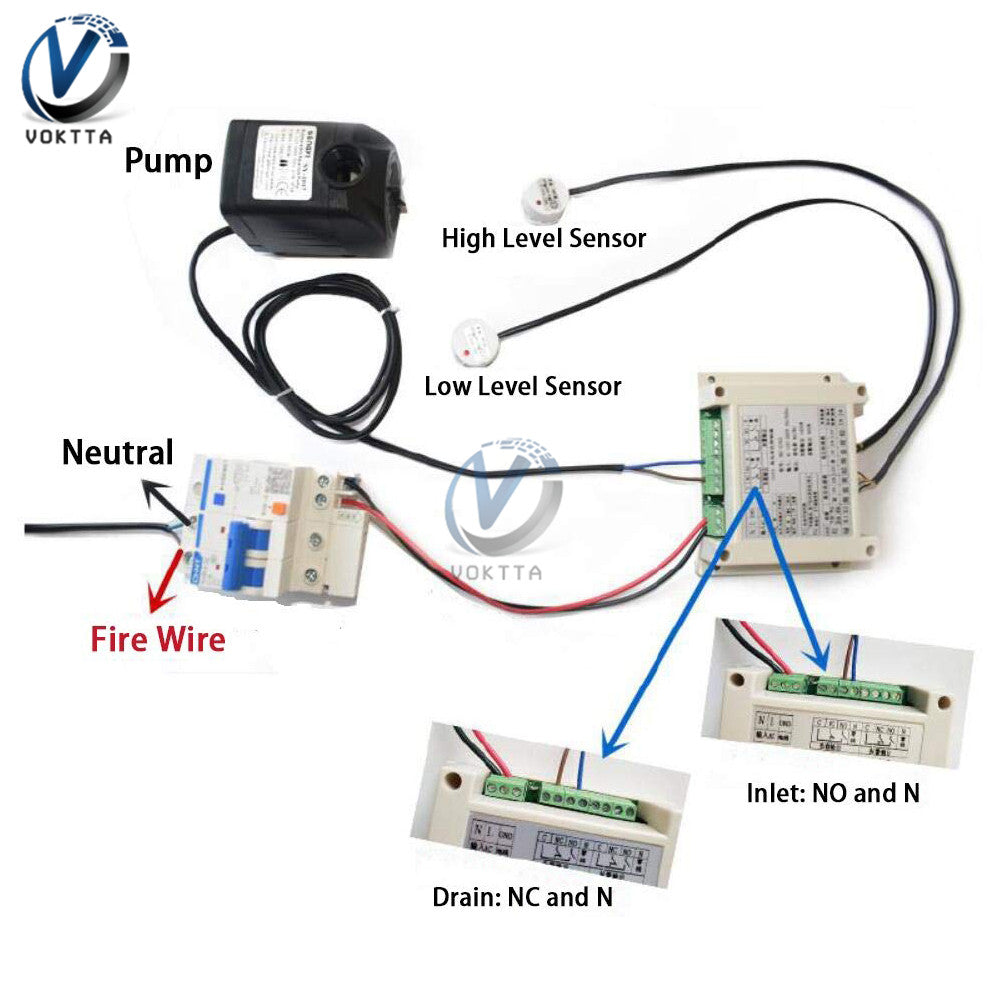

Load Power: <1.6KW(Installation of AC contactor is needed for overloading or 3-phase pumps)
Alarm Output: 800W (Resistive Load) Frequent On/Off Output
Interface Voltage: DC 12V
Working Temperature: -10 - 75℃
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
