Specification

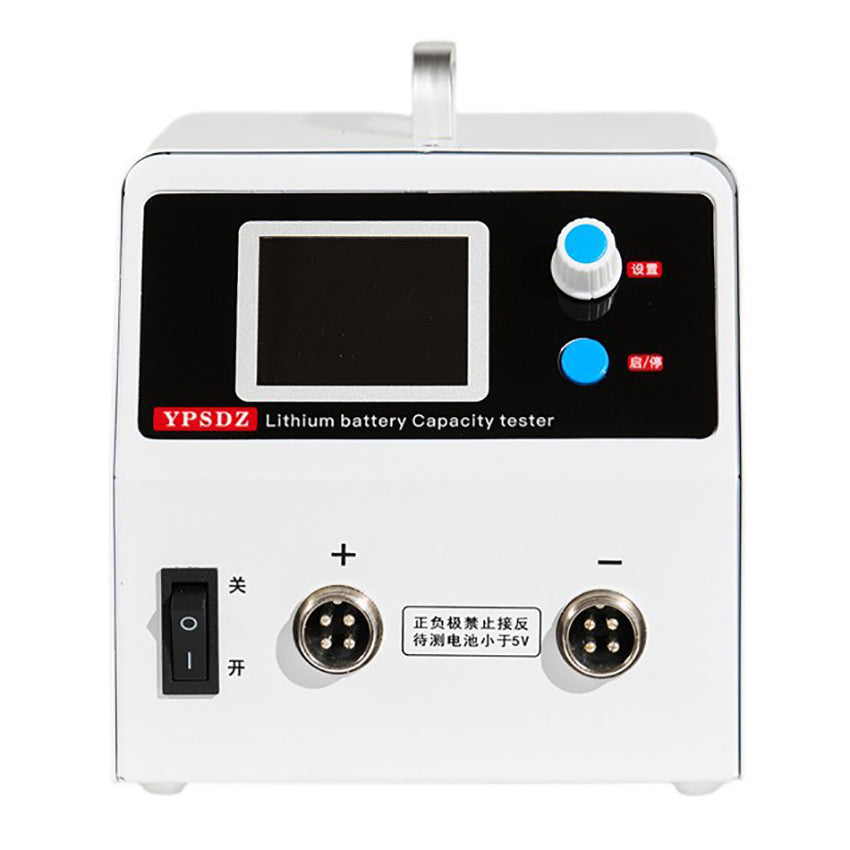

Name: Lithium Battery Capacity Tester
Model: YPSDZ-0550
Voltage: 220V/110V (optional)
Language: Chinese/English switchable
Charging voltage: 1-5V adjustable
Charging current: 0.5-50A adjustable
Discharge voltage: 1-5V adjustable
Discharge current: 0.5-50A adjustable
Charging mode: constant current and constant voltage
Discharge mode: constant current discharge (no spike pulse)
Working mode: charge/discharge/cycle 1-5 times
Alarm protection: Battery over-voltage/reverse battery
/battery disconnect/high temperature alarm and protection
Calibration mode: factory calibration + third party professional calibration
(traceable to the State Bureau of Weights and Measures)
Accuracy: voltage ± 0.1%, current ± 0.3% (allows authorized users to calibrate)
Heat dissipation: temperature-controlled fan 40 ℃ open
(please regularly check and maintain the normal operation of the fan)
Working environment: 0-40 ℃ ventilation, do not let the heat accumulated around the machine
Net weight: 2kg
Size: 150*215*170 (L*W*H)
Package Included:
Lithium Battery Capacity Tester*1
Power Adapter*1
Manual*1
Please note:
This product can't test more than 5V battery
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
