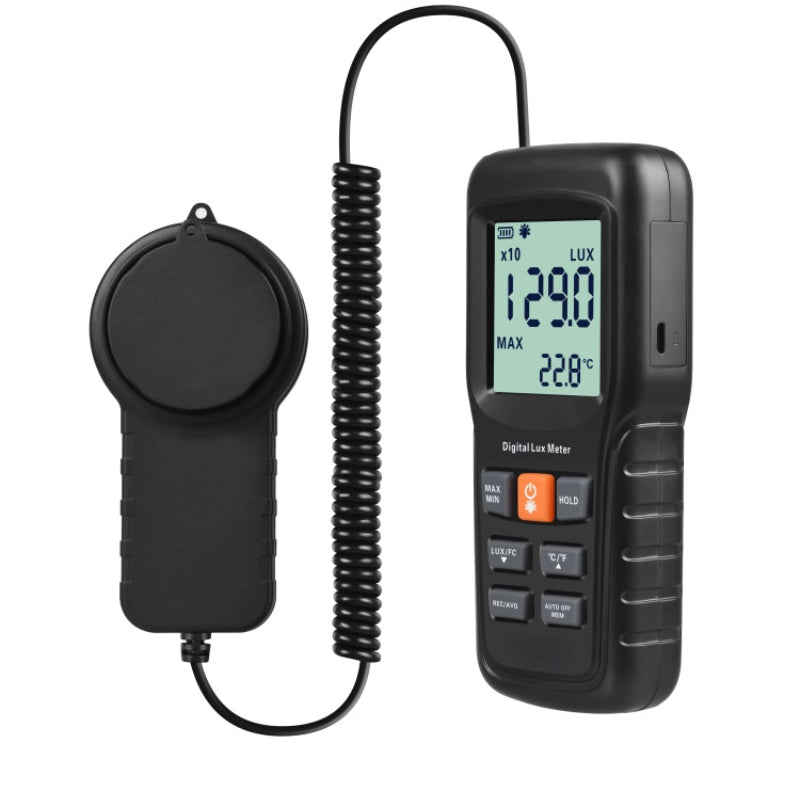

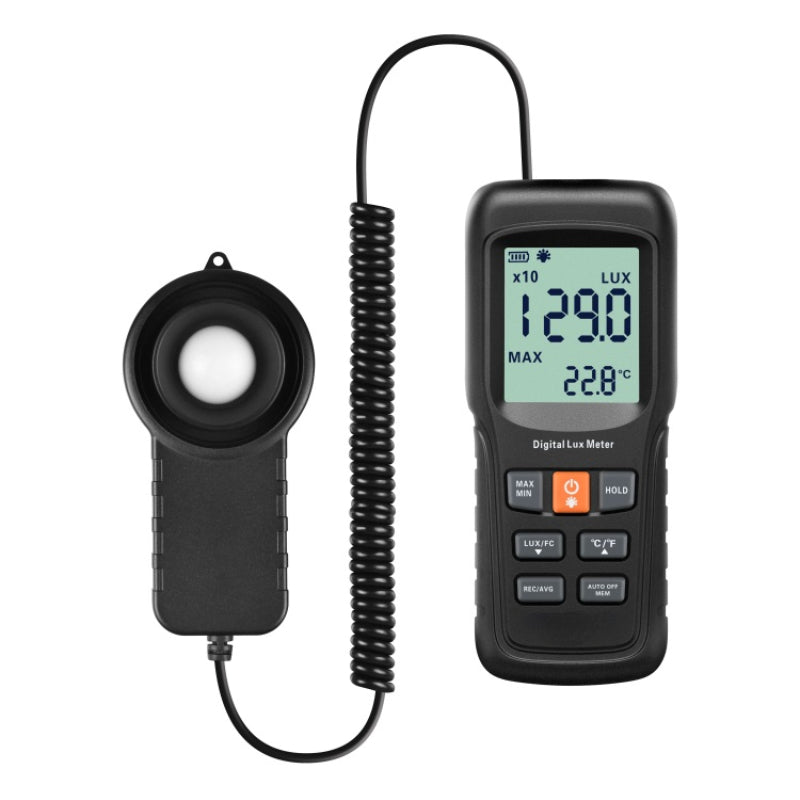

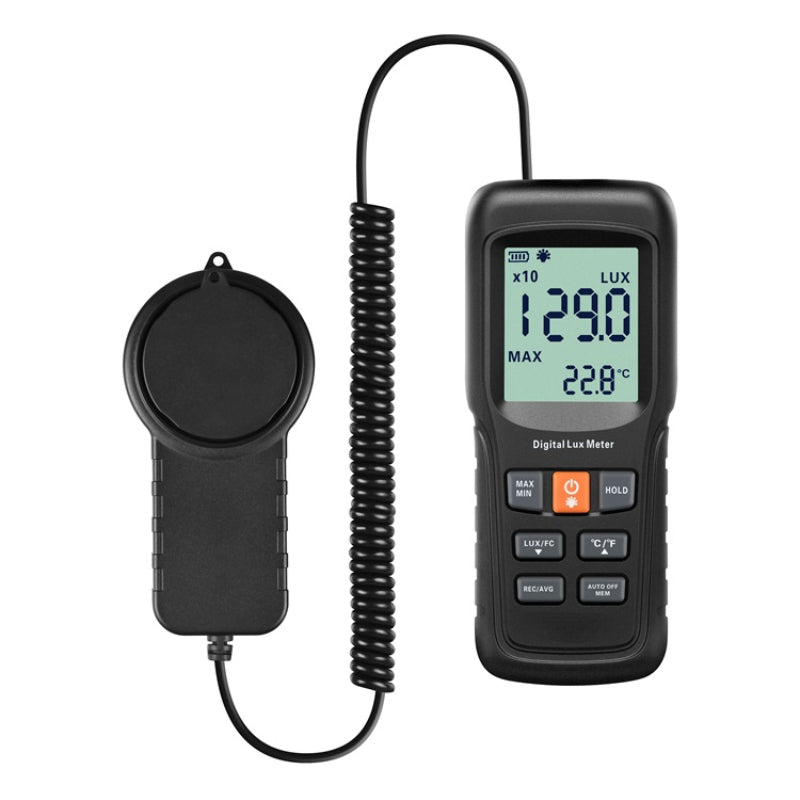

YW-552 Flexible Digital Lux Meter

     Specifications

                       Model      YW-552                Measurement parameters      Illuminance      Environment temperature                Measurement range      0~200000Lux      -10~50℃                0~20000Fc      14~140℉                Accuracy      ±3%rdg±10dgts(≤10000Lux)      ±1.0℃                ±4%rdg±10dgts(Other range)                Resolution      0.1Lux      0.1℃                Sampling rate      2 times/second                Repeplicate test      ±2%                Unit      Lux, Fc      ℃, ℉                Operating environment      Temperature: -10~50℃                Humidity: 10~90%RH                Storage environment      Temperature: -10~55℃                Humidity: 10~95%RH                Power supply      2 pcs of 1.5V AA alkaline batteries                2 pcs of 1.2V AA rechargeable batteries                5V USB                Dimensions      Host: 153*65*30mm                Photosensitive probe: 58*58*30mm                Protection level      IP41                Material      ABS                Weight      About 194g(No battery)

     Product Description

     YW-552 is a special instrument for measuring illuminance, which can be used in factories, lighting industry, planting industry, schools, offices, laboratories and street lamp construction, etc.

 Features:

 Equipped with high-sensitivity photosensitive probe

 Measures even in low light conditions. Its large range of 0~200000Lux can meet the measurement requirements of users in different environments.

 Maximum/minimum measurement modes are available

 The maximum or minimum value displayed by the instrument will change according to the real-time measurement results, and the user can obtain the maximum or minimum illuminance value currently measured at any time.

 Data logging and viewing functions

 Up to 60 data can be recorded. At the same time, the instrument can automatically calculate the average value. After the user has recorded the data, the average value of these data can be obtained as long as he enters the average value viewing interface.

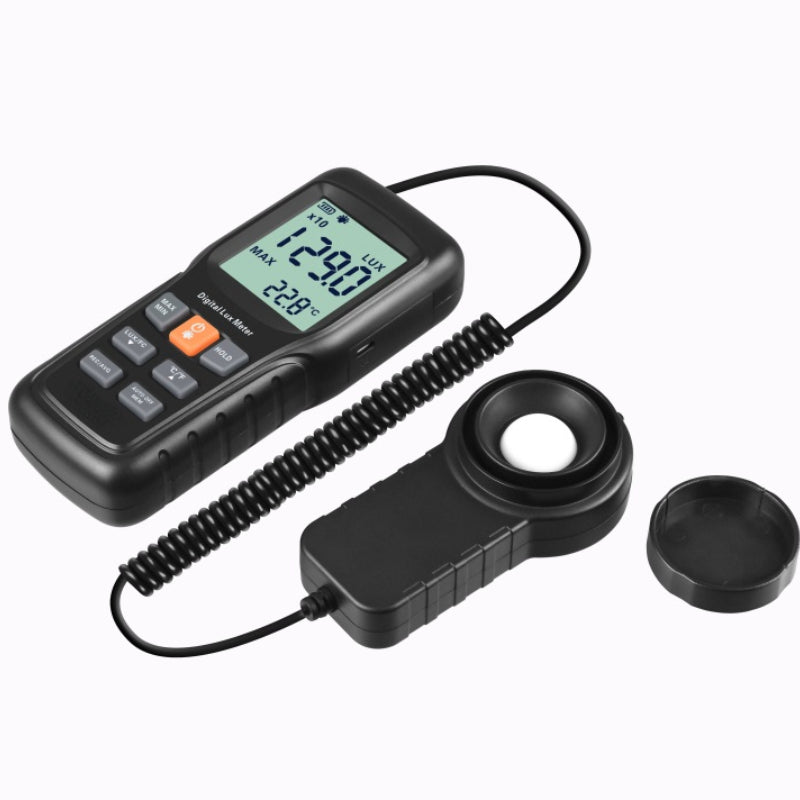

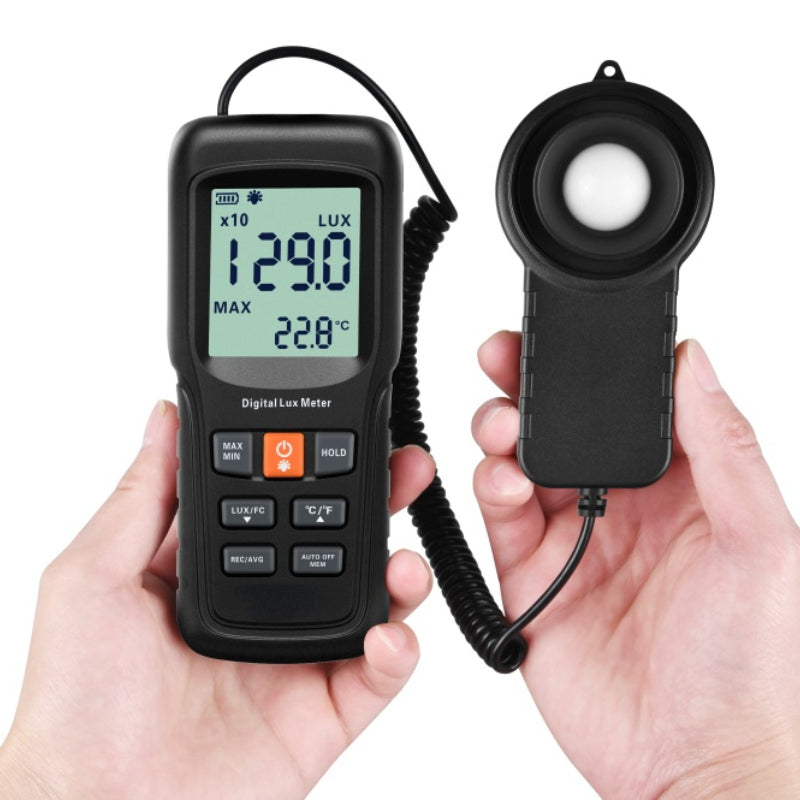

 Split design

 During measurement, the distance between the probe and the object to be measured can be adjusted flexibly.

     Product Display
