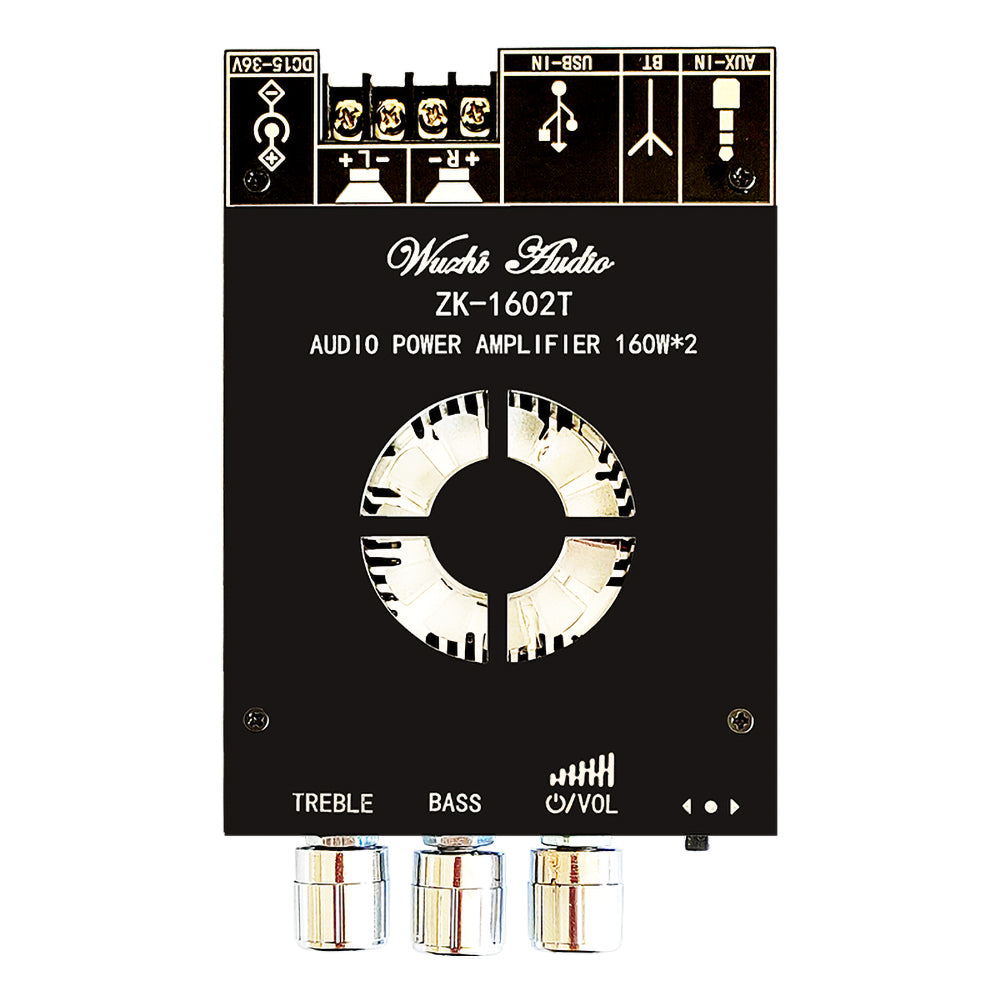

ZK-1602T TDA7498E 160WX2 High And Bass Adjustment for Bluetooth Audio Power Amplifier Board Module
Features
1: Power amplifier chip: TDA7498E
2: Widely used
3: Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection
4: Long-life ultra-quiet fan (blocked rotor does not burn, no noise)
5: Simple to use and easy to understand
Product parameter
Product name: 2.0 channel Bluetooth audio power amplifier module
Product model: ZK-1602T
Bluetooth version: 5.0 (unobstructed, 10 meters)

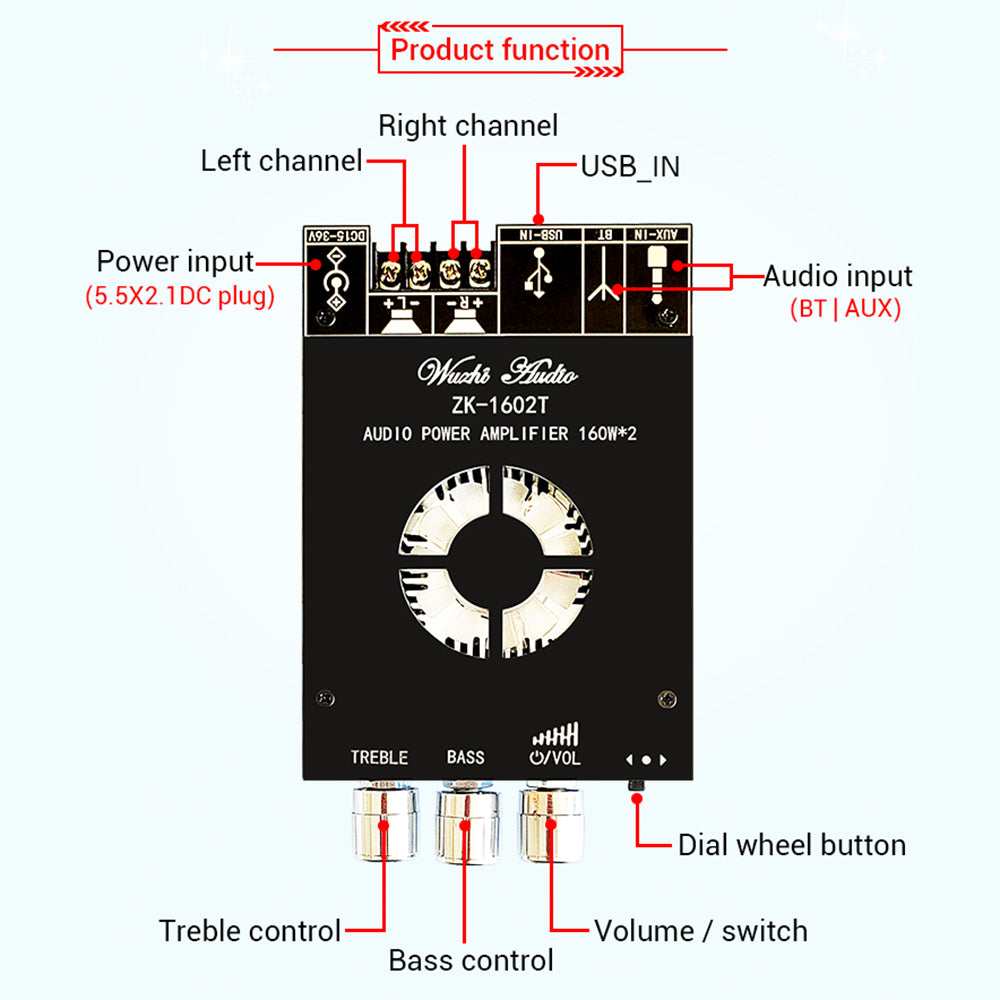

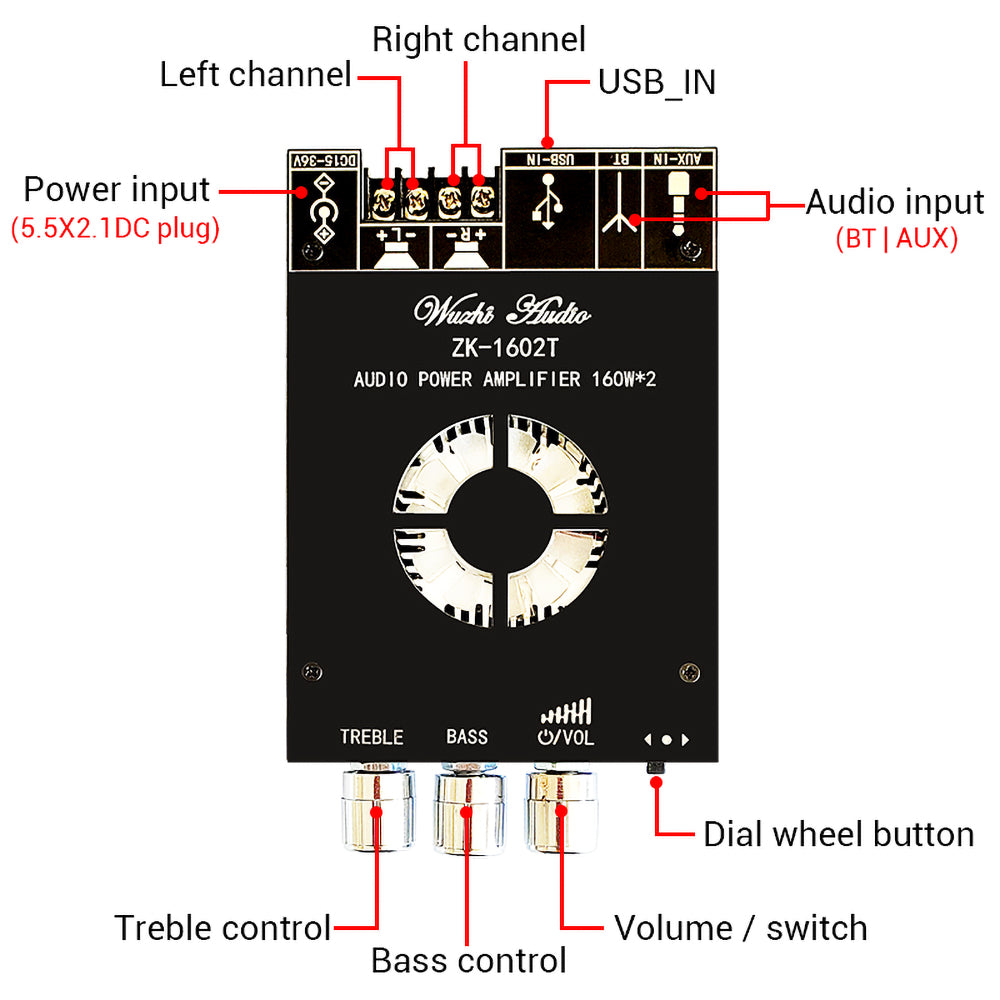

Input method: AUX + for Bluetooth + USB (switching mode and song by dial button)
Number of channels: 2.0 channels (left channel + right channel)
Amplifier chip: TDA7498E
Adapter power supply: DC15~36 V (under voltage protection below 9V, 12V power supply can also be supported)
Adapted speaker: 30-200W, 4-8Ω
Output power: left and right channels ≤160w
Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection
Product size: 134*80*28mm
Product weight: net weight 209g, including packaging 257g
Tip: When the audio signal input is large enough and the power supply voltage/current is large enough, there will be enough
Output Power!
The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! Please make sure that the power of the adaptor is greater than the actual working power of the amplifier!
Checklist
1*Power amplifier board module
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
