Specification:
Origin: Mainland China
Type: Module
Condition: New
Hign-concerned Chemical: None
Adaptive power supply: working voltage range 18-50VDC, limit 53V. It is recommended to use a DC power supply with a voltage of 36-48V and a current of more than 10A. The higher the voltage, the greater the output power.
Adaptive speakers: 3-8 ohms, 50-300W in BTL dual-channel mode; 2-8 ohms, 100-600W in PBTL mono mode.

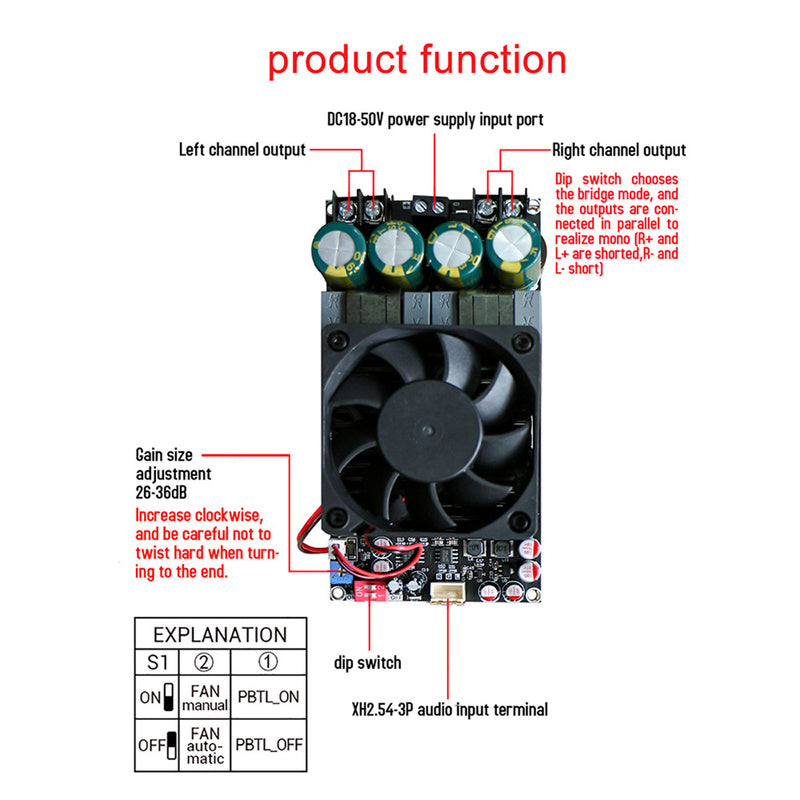

Gain selection: Potentiometer 10-level adjustment, 26dB-36dB

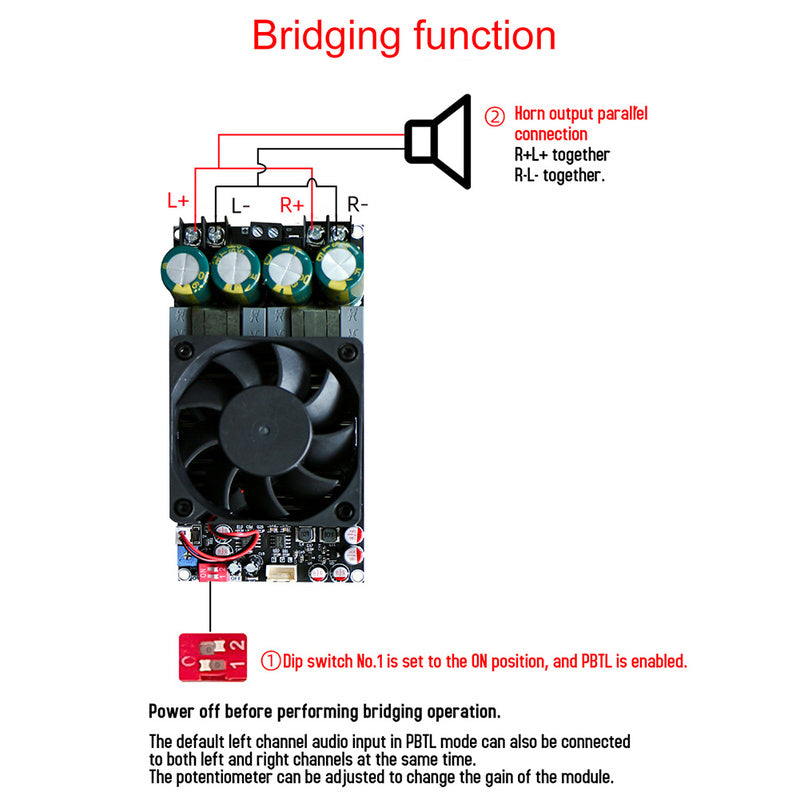

Bridge mode: Power off first, turn the No. 1 DIP switch to the ON position, output R+L+ short-circuit parallel output, R-L- short-circuit parallel output
Maximum power: In BTL mode, 2*300W@50V 4Ω, 160W@50V 8Ω; In PBTL mode, 600W@50V2Ω, 300W@50V 4Ω, 160W@50V 8Ω
Material: PC

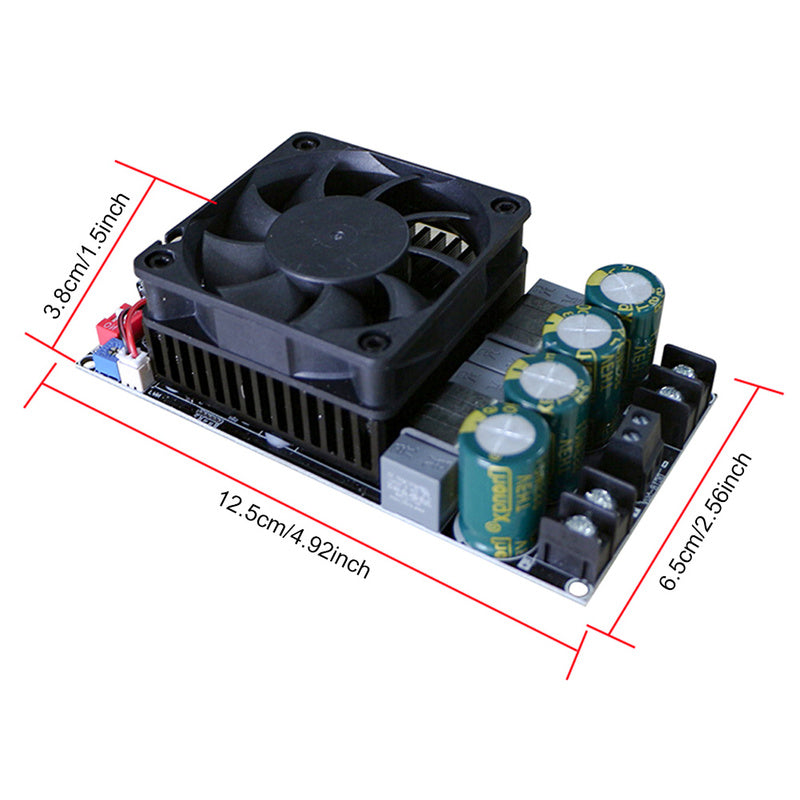

Product size: about 125.00x65.00x38.00mm
Product size: 4.92x2.56x1.5inch
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
