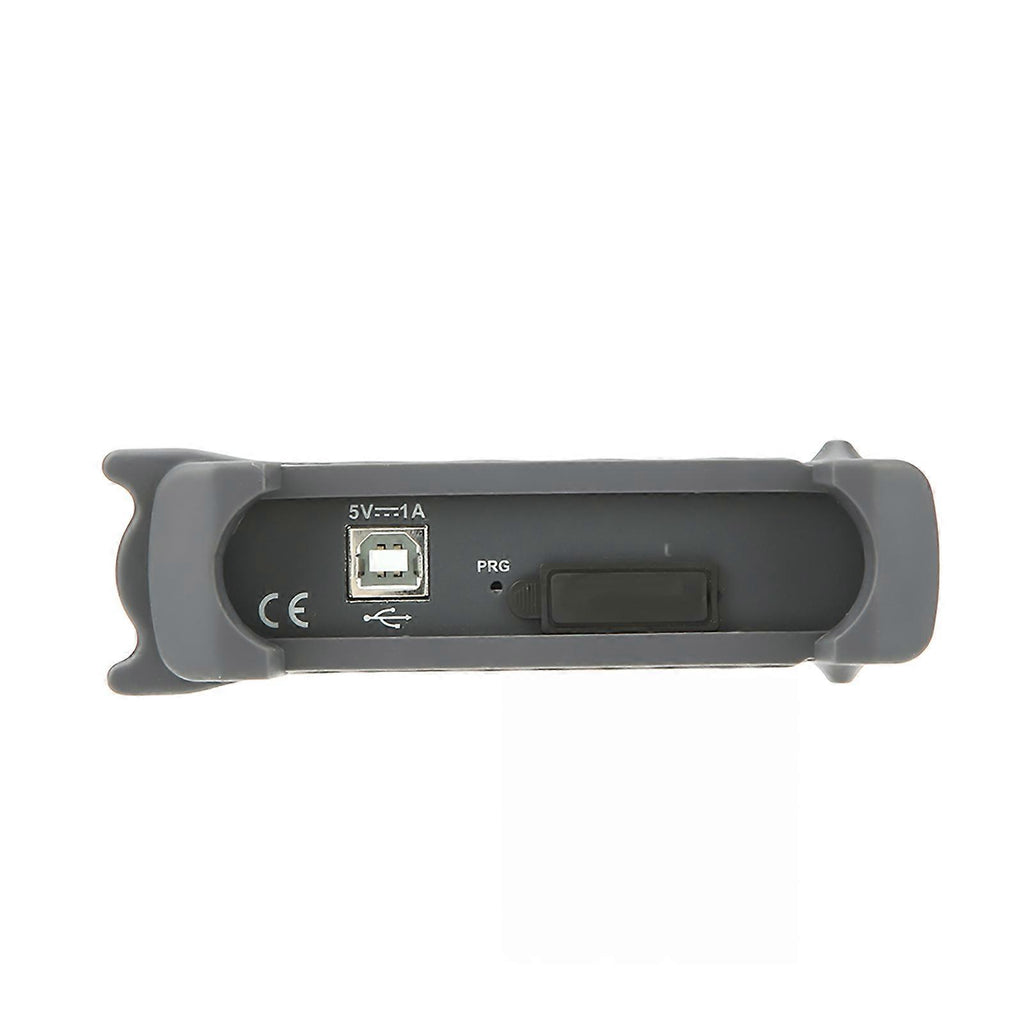

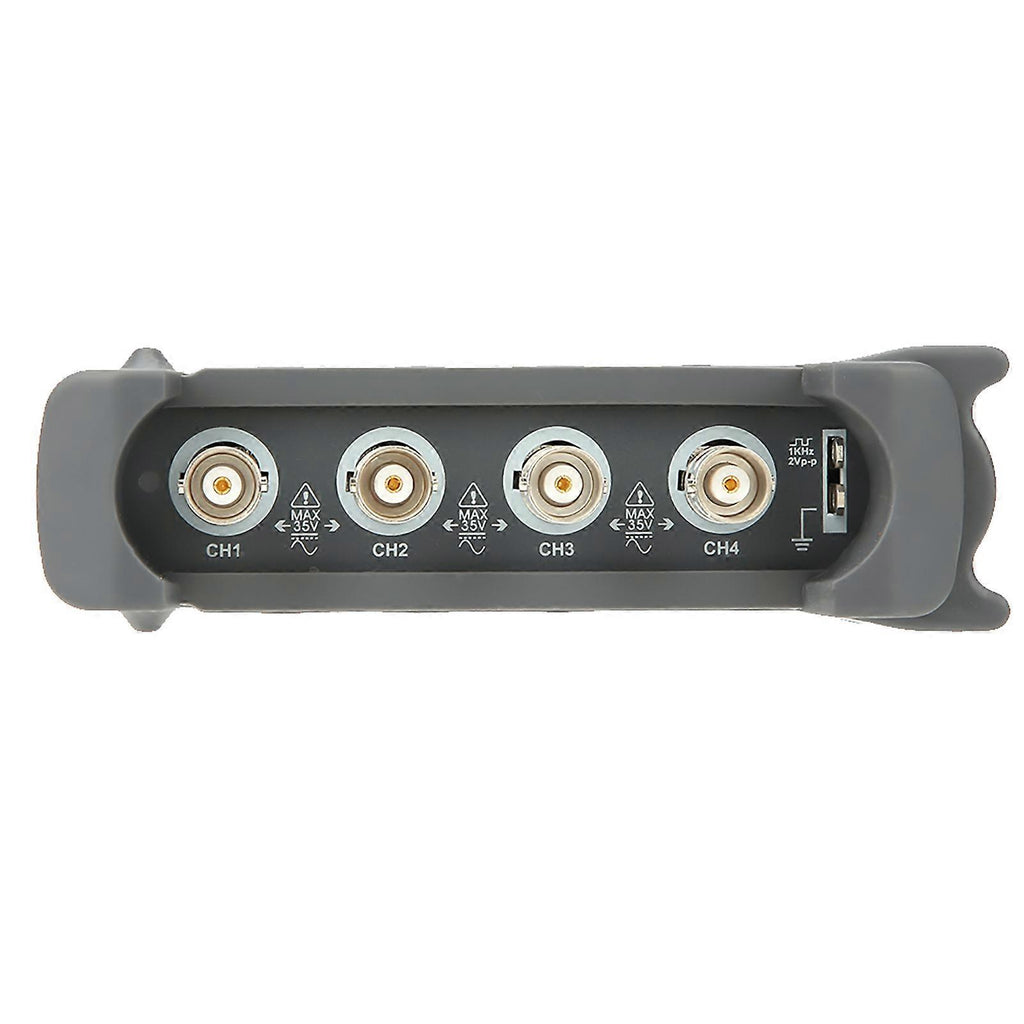

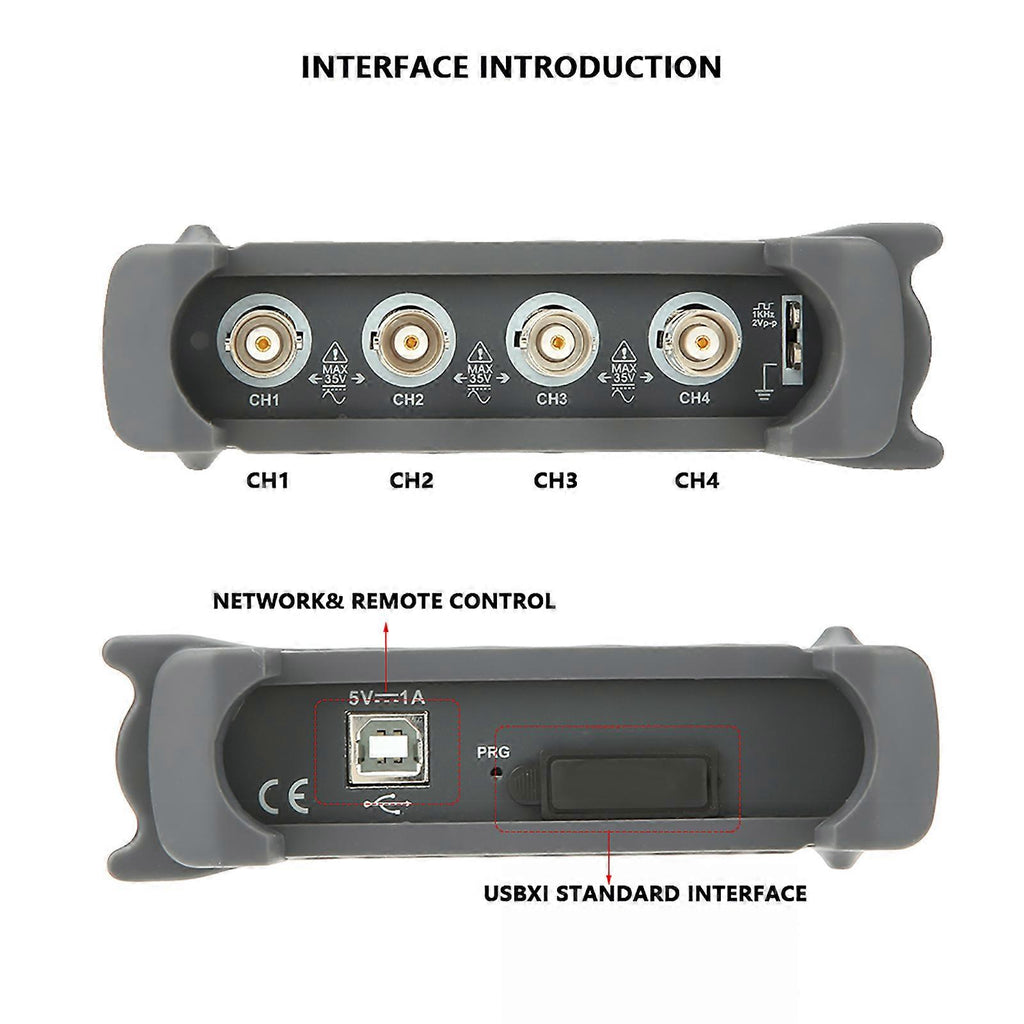

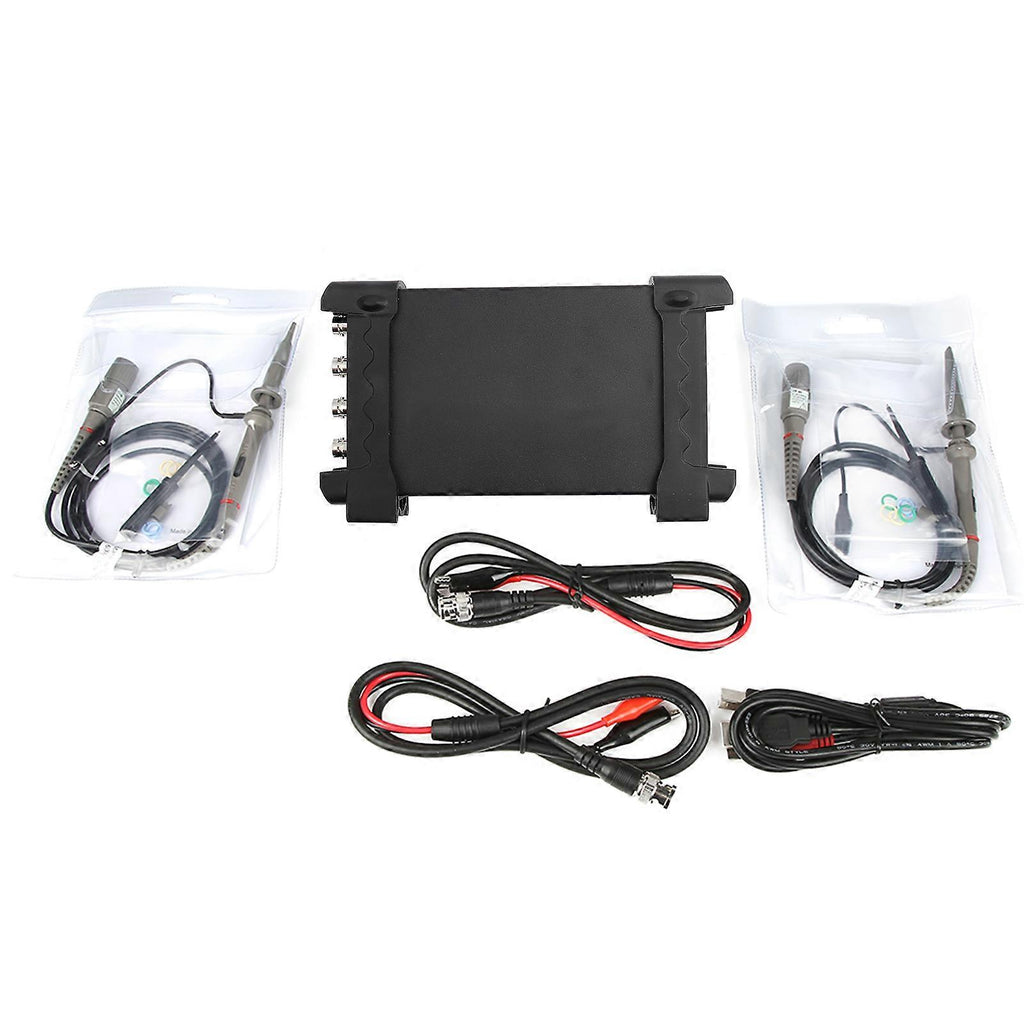

The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 70MHz bandwidth. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying.Features:1. Multiple functions: Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record, FFT spectrum analyzer and replay function.2. The operation interface is similar to benchtop oscilloscope, easy to operate with high cost performance.3. Good mechanical design with small size which is easy for carrying.4. The outer case is made by anodised aluminium., with great heat resistance and abrasive resistance with beautiful appearance.5. Fit for the portable computers, table PC, and repairing/fixing of production line.6. Software support: for Windows10, for Windows 8, for Windows 7.7. The waveform data could be output to EXCEL, BMP, JPG as time and voltage category.8. Serial bus triggering and decode: Bus protocol information can be quickly and intuitively displayed in table form.9. Waveform averaging, reverse, add, subtract, multiply, divide, X-Y display.10. One computer could connect with multiple oscilloscopes, expand the channel number easily.11. USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.12. Provide secondary development library DLL and Labview\VB\VC developing examples.Specification:Model: 6074BCBandwiidth: 70MHzChannel: 4CHSampling rate: 1GSa/sMemory depth: 64KTime baseprecise:50ppmTime base range: 2ns/div-1000s/div (1-2-4 sequences)Input impedance: 1M 25pFInput sensitivity: 2mV/div~10V/divVertical resolution: 8bitVertical displacement range: 2mV~10V/div @ x1 probe, 20mV~100V/div @ x10 probe,200mV~1000V/div @ x100 probe, 2V~10000V/div @ x1000 probeDC gain accuracy: 3%Bandwidth limit: 20MHzTrigger mode: Edge, Pulse, Video, AlternativeTrigger source: CH1, CH2, CH3, CH4Waveform signal process: Add, subtract, multiply, divide, FFT, InvertCursor measurement: Cross, Trace, Horizontal, VerticalOscilloscope size: 20.5x12x3cm / 8.1x4.7x1.2inPackage weight: Approx. 906g / 31.9ozPackage list:1 * USB Oscilloscope2 * BNC to Crocodile Clip Cables1 * USB Cable2 * High Voltage Probes2 * Protection Cover2 * Calibration Pen12 * Identification Rings1 * CDNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering..
