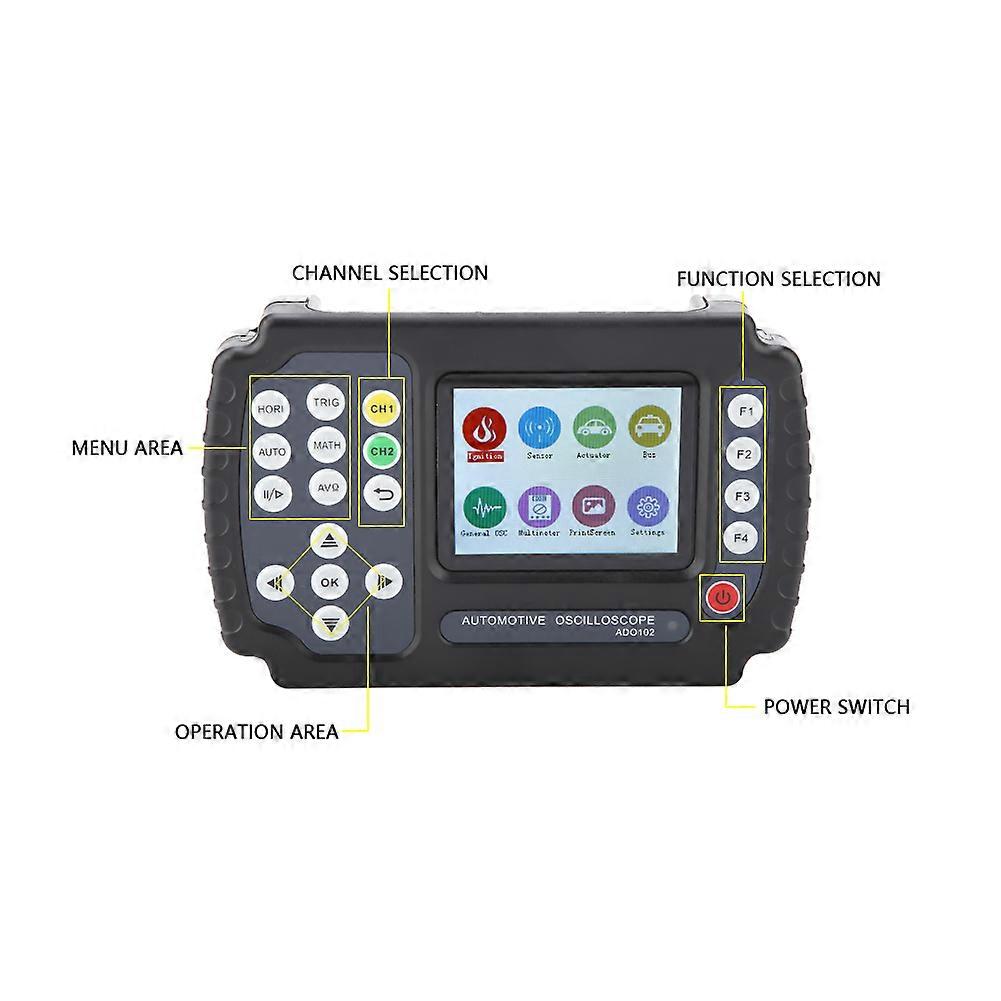

This digital oscilloscope combines general oscilloscope, automotive oscilloscope and multimeter in one, with powerful and practical functions. It can be widely used in engineering surveying, automotive repair, inverter, research, design, education and other fields. Features:1. Integrated with auto range multimeter, which can measures AC/DC voltage and current, resistance, capacitance, diode, continuity test. 2. With edge trigger function, this oscilloscope support automatic detection (20Hz-10MHz). 3. Support time and voltage cursor. 4. Dual analog channel, waveform math addition functions. 5. Quickly complete the one-button operation function of automotive corresponding module. 6. Color LCD screen with 320*240 resolution displays clear and stable waveform. 7. Any display interface screenshots, and they can be previewed directly. 8. With adjustable backlight, convenient to operate in darkness. 9. Equipped with USB interface, it can be connected to USB device such as computer, tablet, etc. Specification:Model ADO102 Input Input coupling AC, DC Channel 2 Input impedance 1M, 25pF Maximum input voltage 40V(probe X1), 400V(probe X10), 2000V(probe X100) Probe attenuation 1X, 10X Attenuation setting1X, 10X, 100XSignal acquisition system Sampling method Real time sampling, random sampling Memory depth 4K Vertical system Vertical sensitivity 1000mV-5V(probe X1), 100mV-50V(probe X10) (1, 2.5, 5 stepping) Vertical accuracy 3%Vertical resolution 8bit Bandwidth 10MHz Horizontal system Realtime sampling rate 100MSa/s Scanning range 25nS/div - 5S/div Trigger system Mode Auto, normal, single Typoe Rising edge, falling edge Auto detection Support (20Hz-10MHz) Measurement system Cursor measurement Time and voltage cursor Measurement methodManual Measyrement Amplitude, frequency, period, duty cycle General parameter Input voltage AC 100-240V Plug type US plugScreen 3.2 inch 320*240 LCDBattery 2 x BRC18650 lithium batteries (NOT included) Package weight Approx. 1050g / 37.0oz Package list:1 x Oscilloscope 1 x Plug 1 x Oscilloscope Probe 4 x Automotive Acupuncture Probe1 x Screwdriver 2 x High Voltage Probe2 x Test Probe1 x USB Cable1 x Screen Protective Film 1 x Calibration Pen2 x Protection Cover8 x Identification Ring1 x USB Stick1 x Black PenNote:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering..
